Home >> Mercedes Benz >> 2011 >> SLK 300 (171.454) V6-3.0L (272.942) >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Convertible Top >> Convertible Top Weatherstrip >> Service and Repair >> Removal and Replacement >> AR77.50-P-4200V Remove/Install Seal At Front of Vario Roof on Side

AR77.50-P-4200V Remove/Install Seal At Front of Vario Roof on Side



AR77.50-P-4200V Remove/install Seal At Front Of Vario Roof On Side

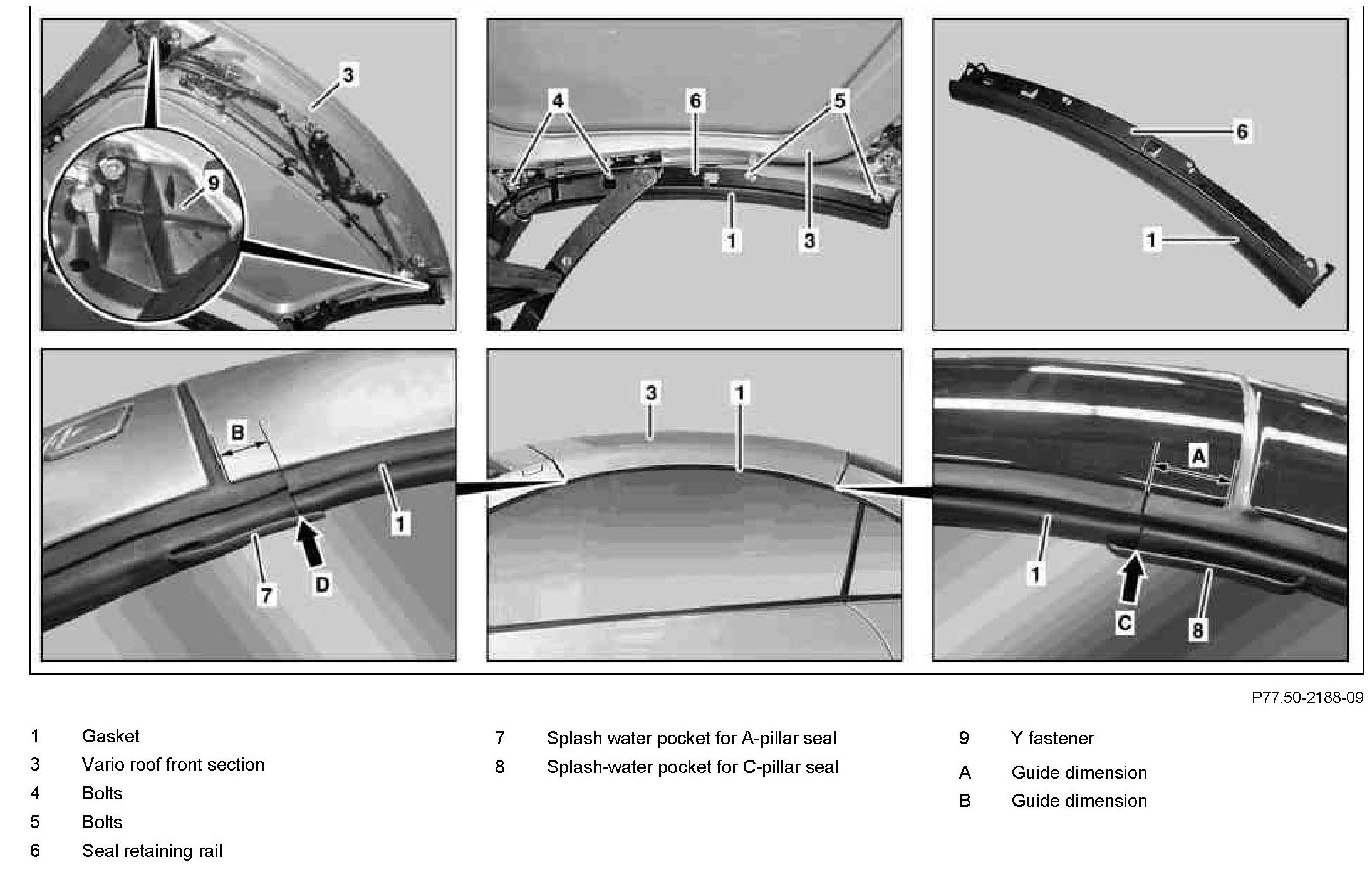

Component Identification:

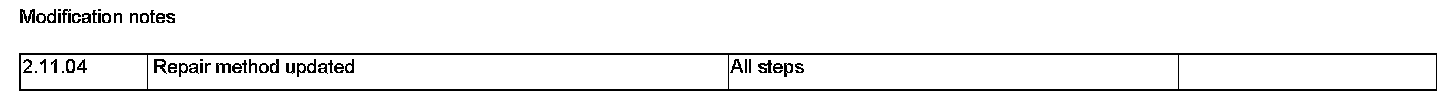

Modification Notes:

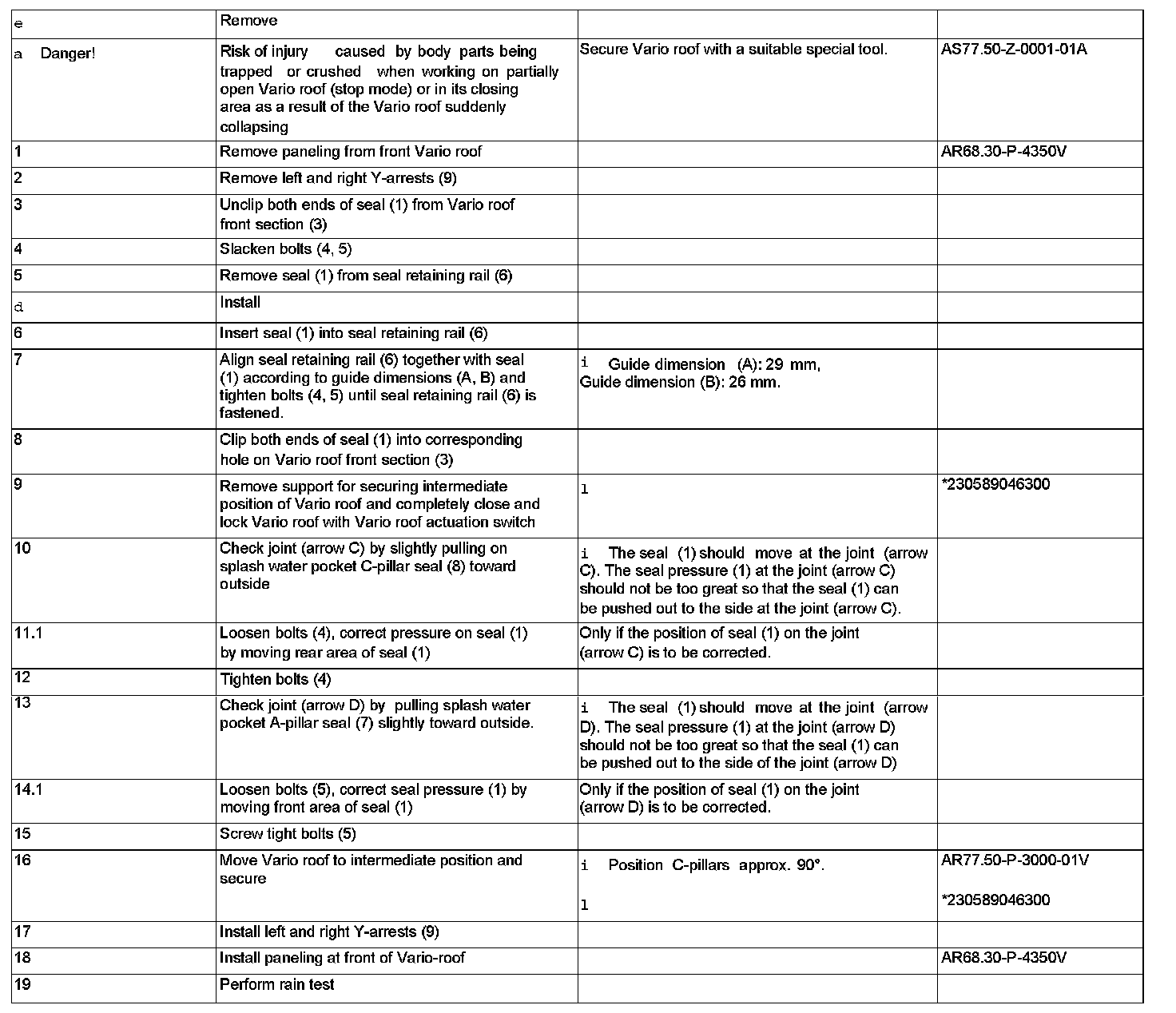

Steps 1 - 19:

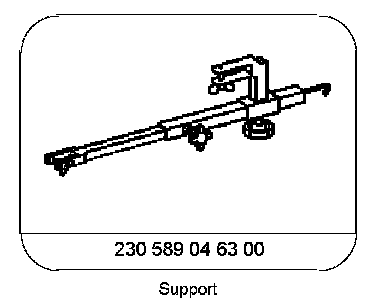

Special Tools:
