Convertible Top Hydraulic Hose: Service and Repair



AR77.37-P-3551V Remove/install Hydraulic Lines For Trunk Lid Actuation Hydraulic Cylinder

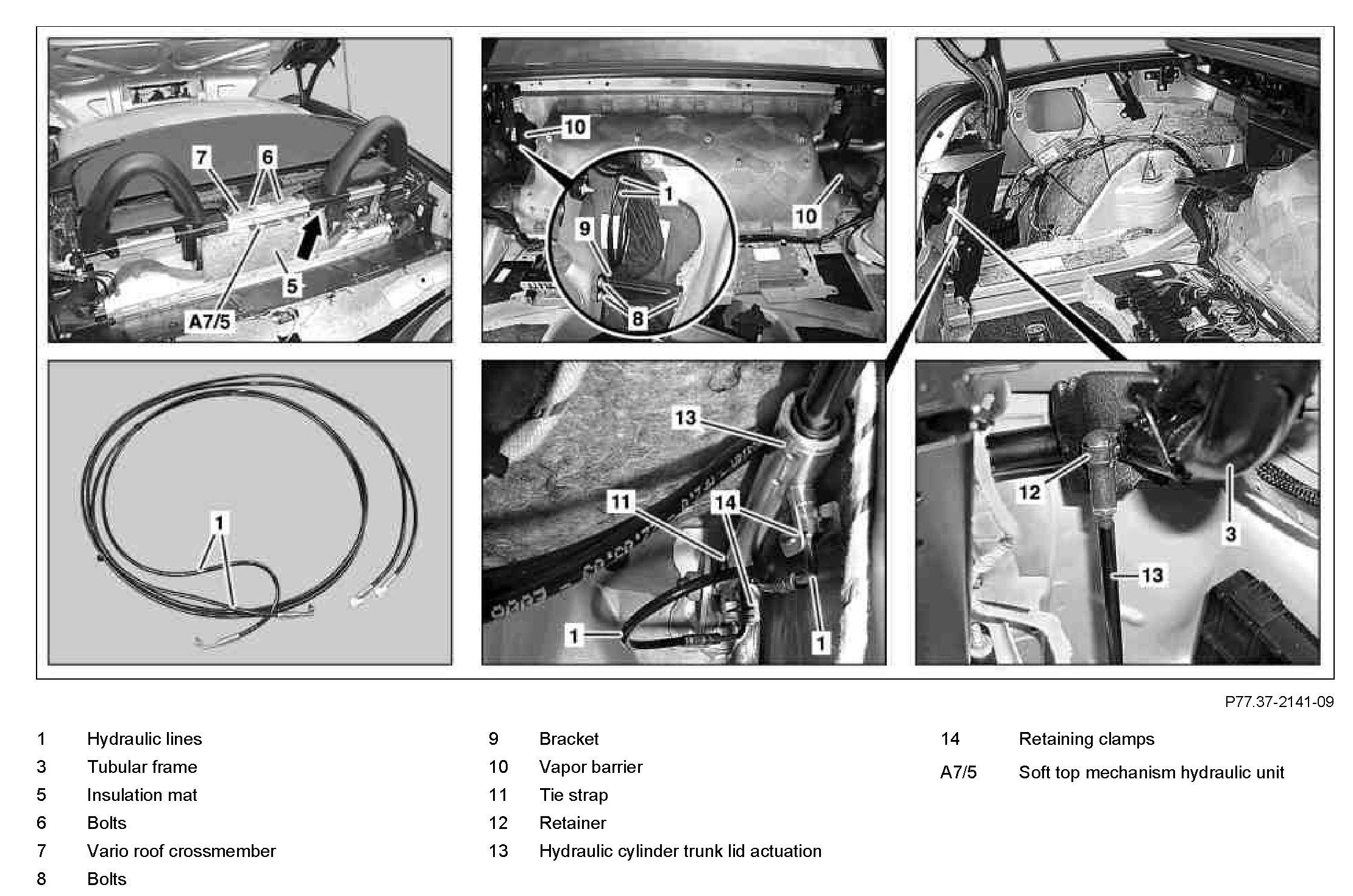

Component Identification:

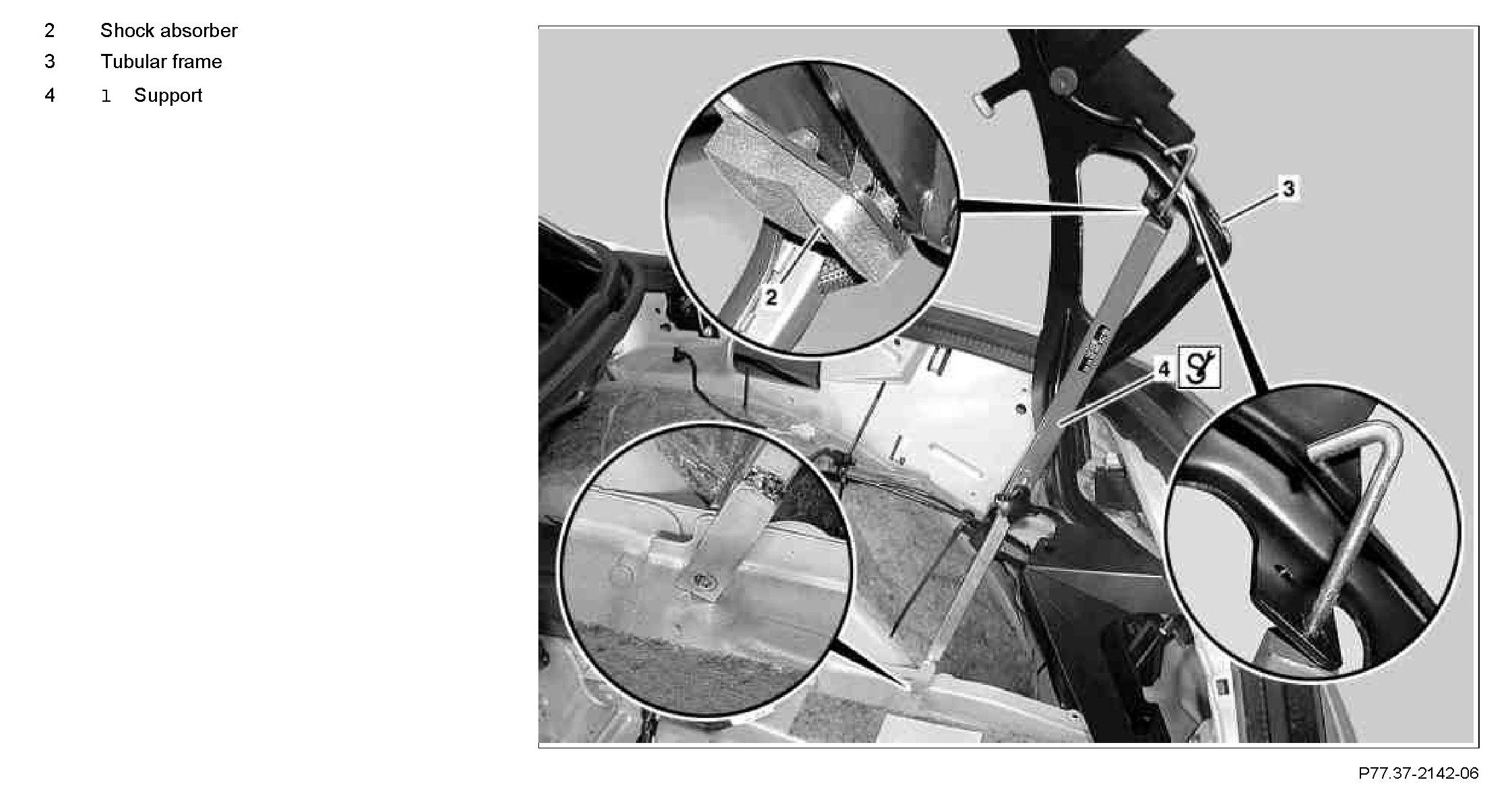

Component Identification:

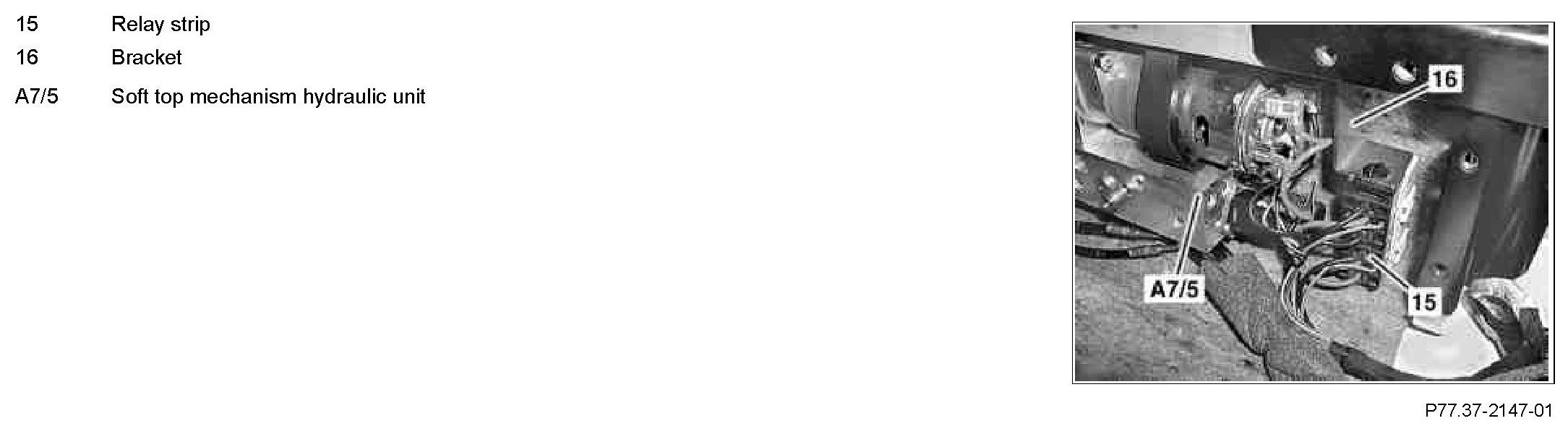

Component Identification:

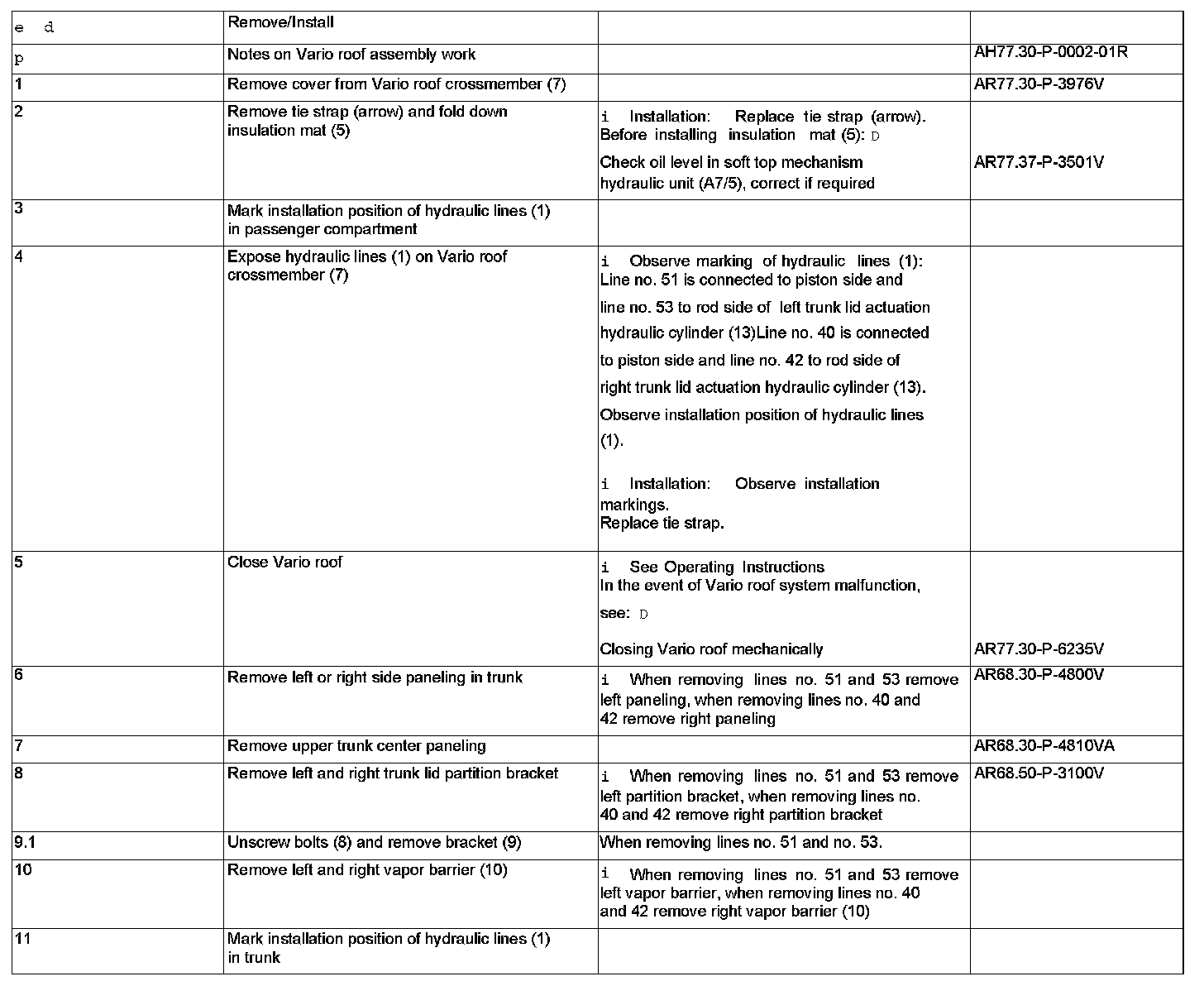

Steps 1 - 11:

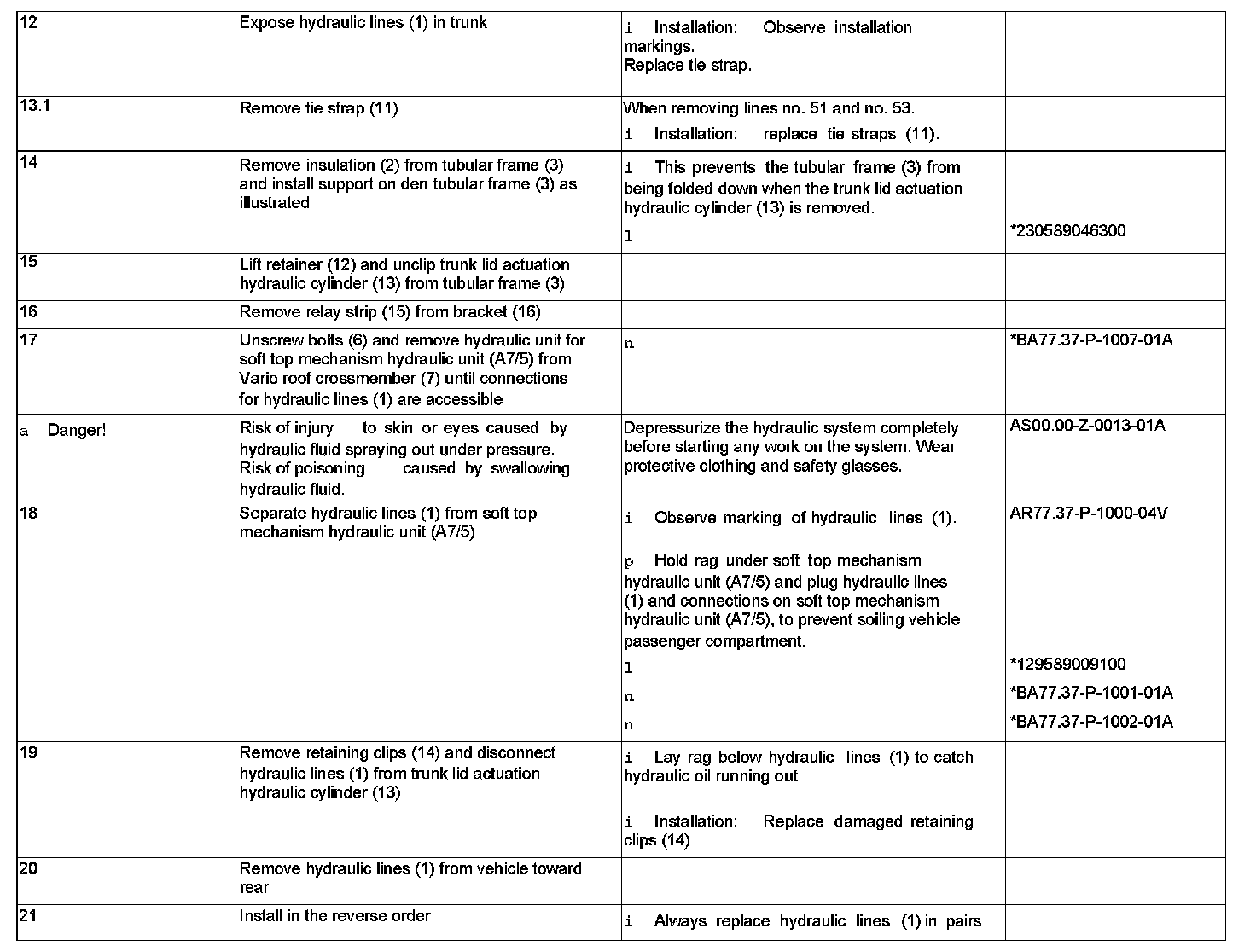

Steps 12 - 21:

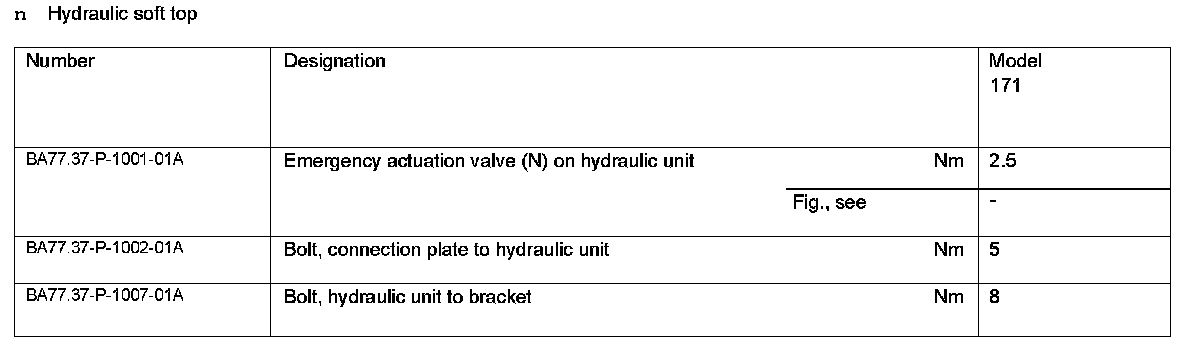

Hydraulic Soft Top:

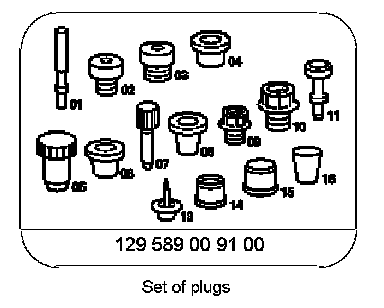

Special Tools:

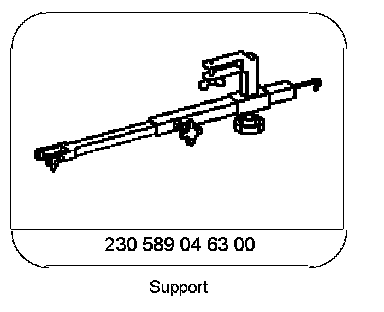

Special Tools:
