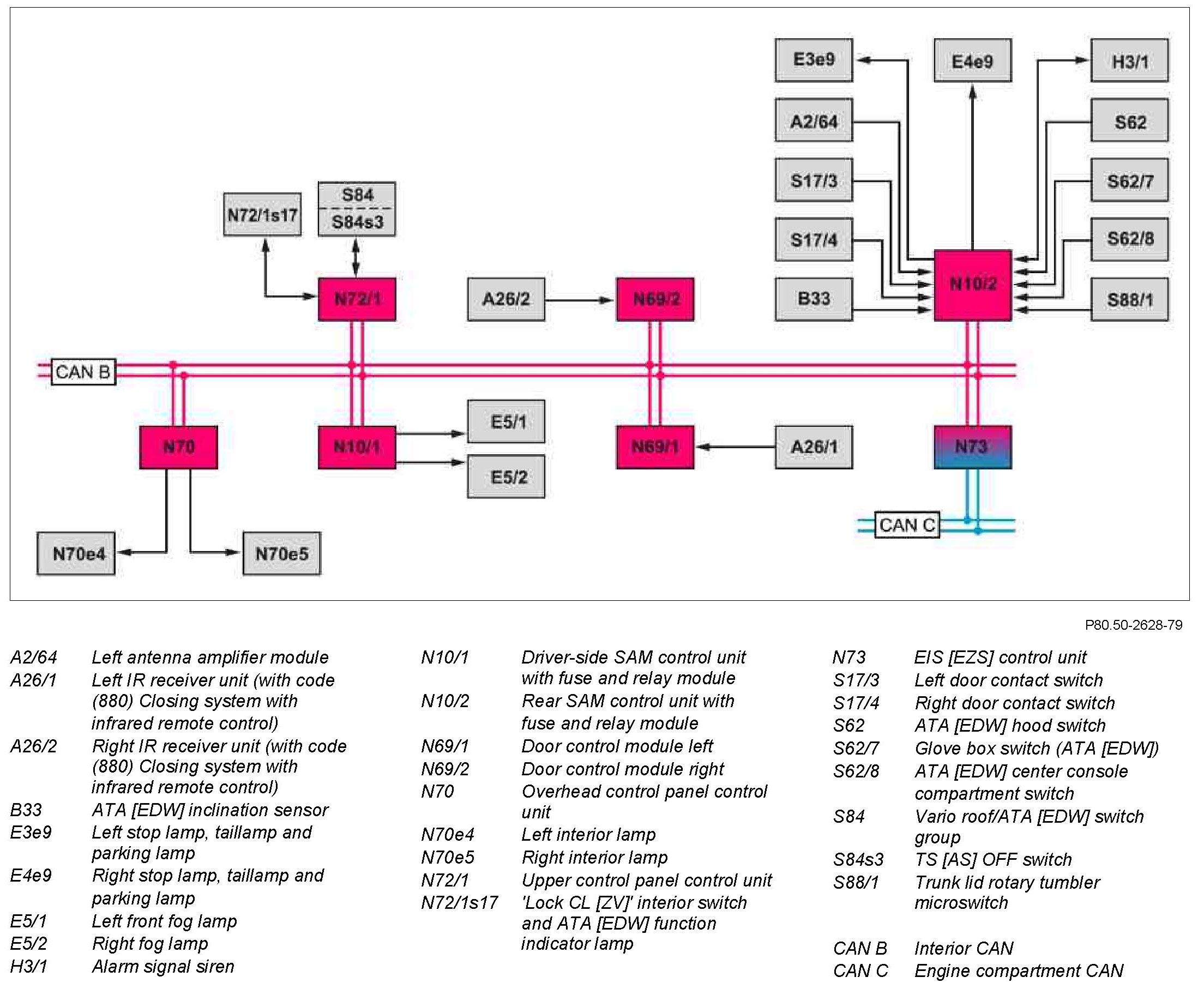

GF80.50-P-0001-01RCU Antitheft Alarm System (ATA (EDW)), Block Diagram



GF80.50-P-0001-01RCU Antitheft Alarm System (ATA [EDW]), Block Diagram
- with CODE (551) Anti-theft alarm system (ATA [EDW])
- with CODE (494) USA version


Component Identification:
