AR27.10-P-0500RC Remove/Install Transmission With Torque Converter

Component Identification:

Component Identification:

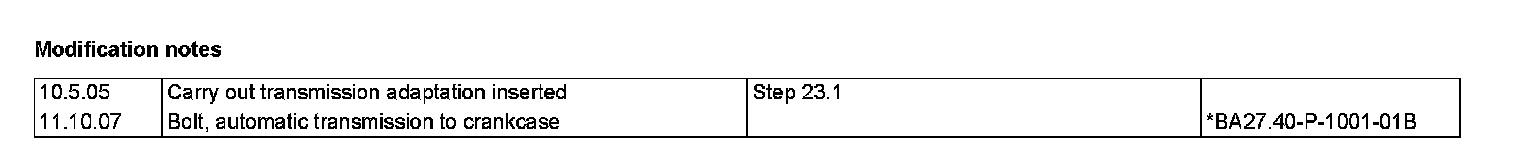

Modification notes:

Steps 1-9:

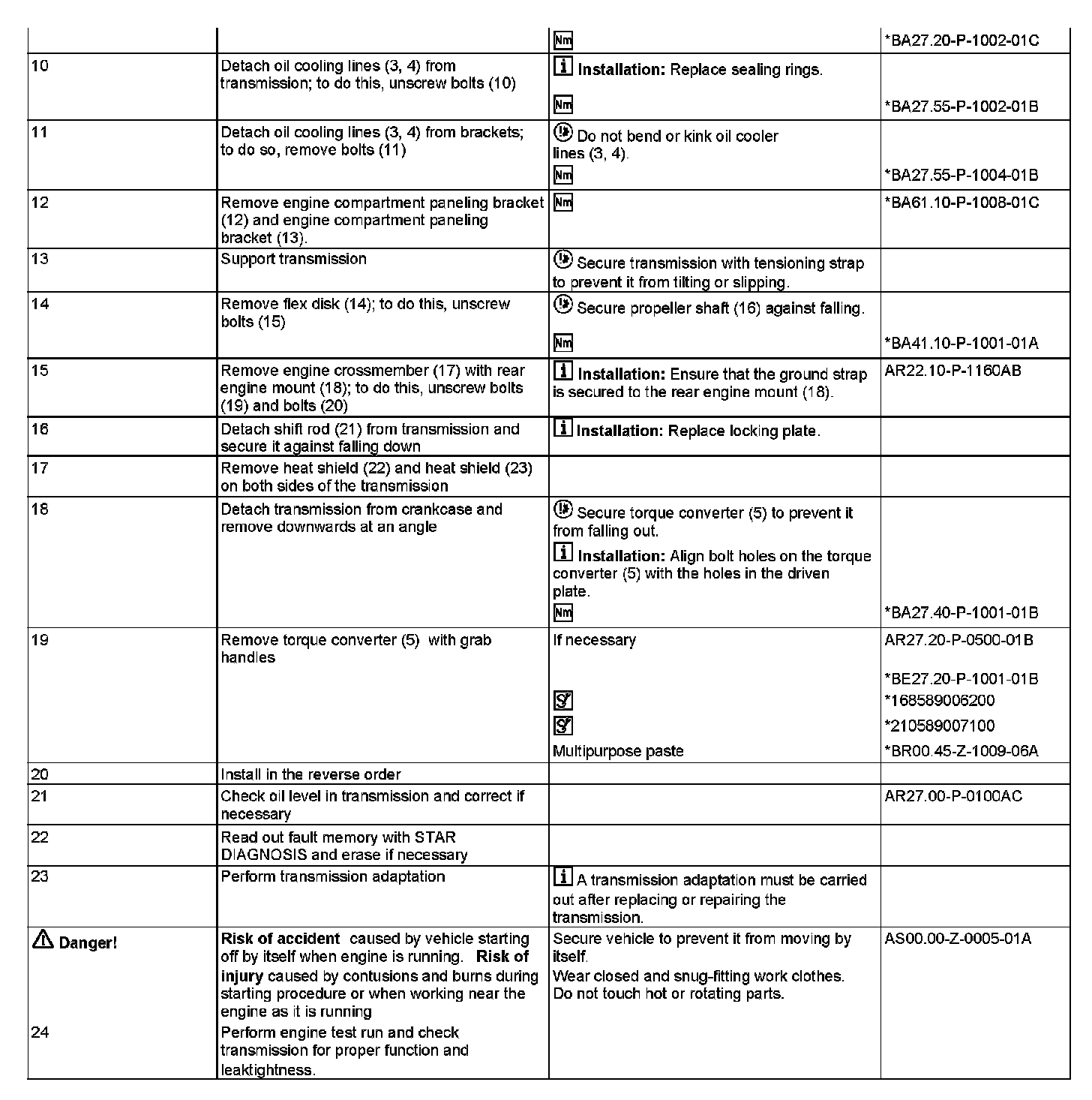

Steps 9 (Continued)-24:

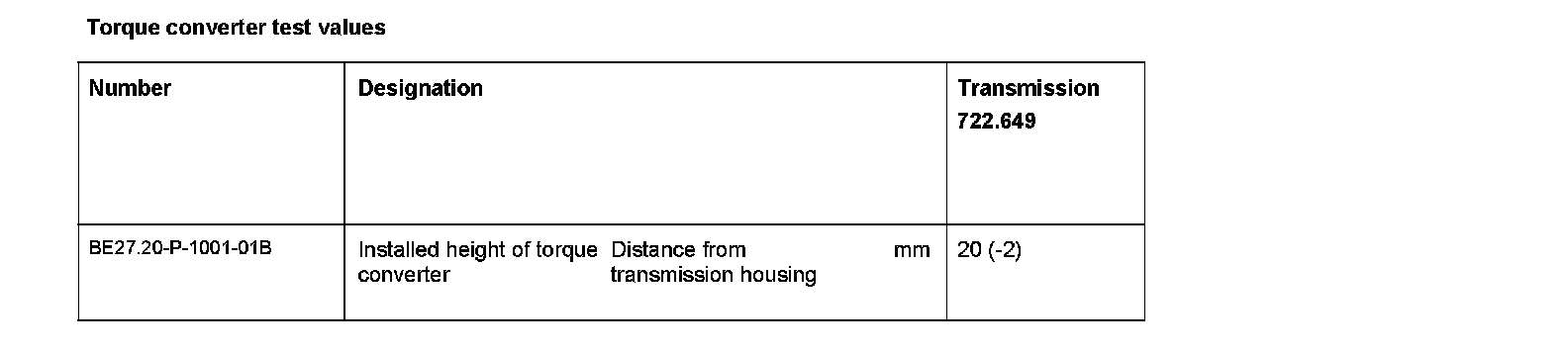

Torque converter test values:

Oil pan, automatic transmission:

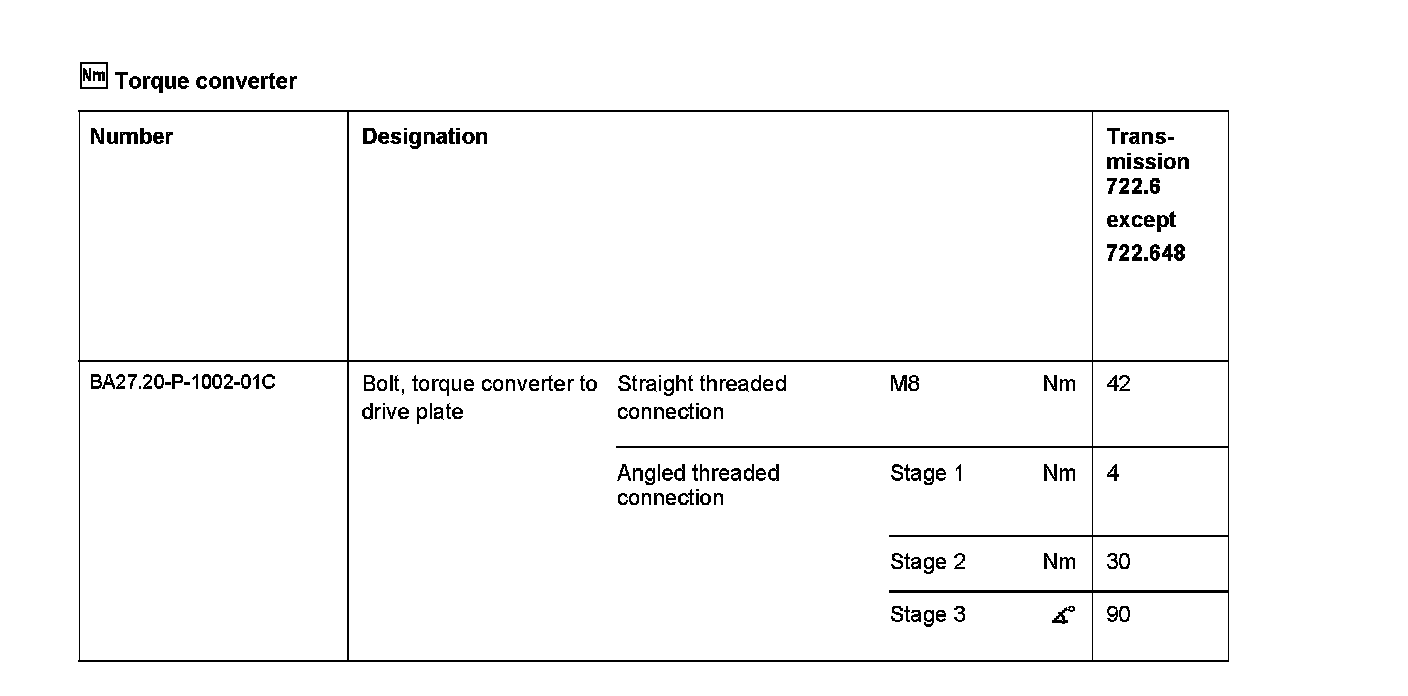

Torque converter:

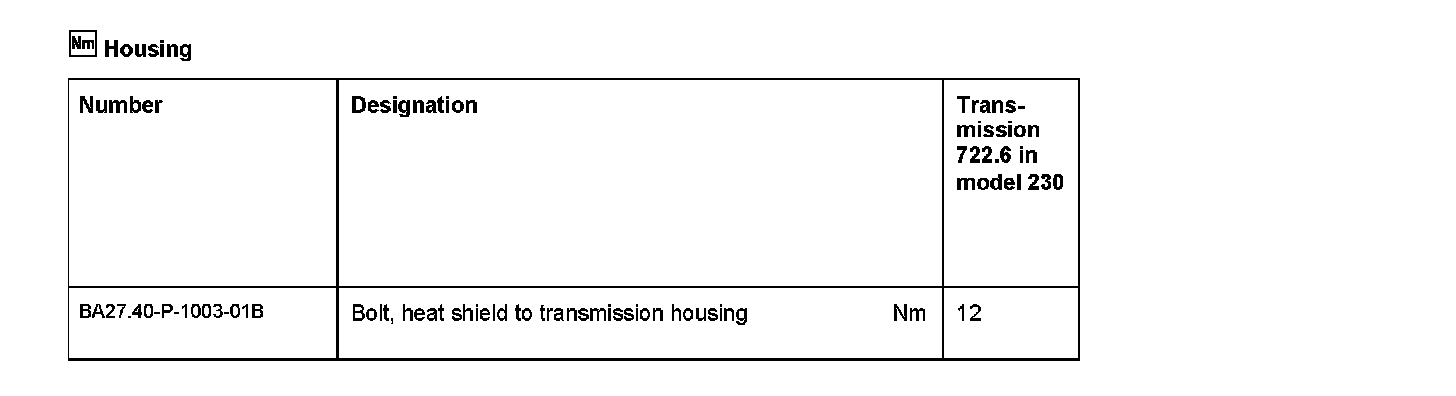

Housing:

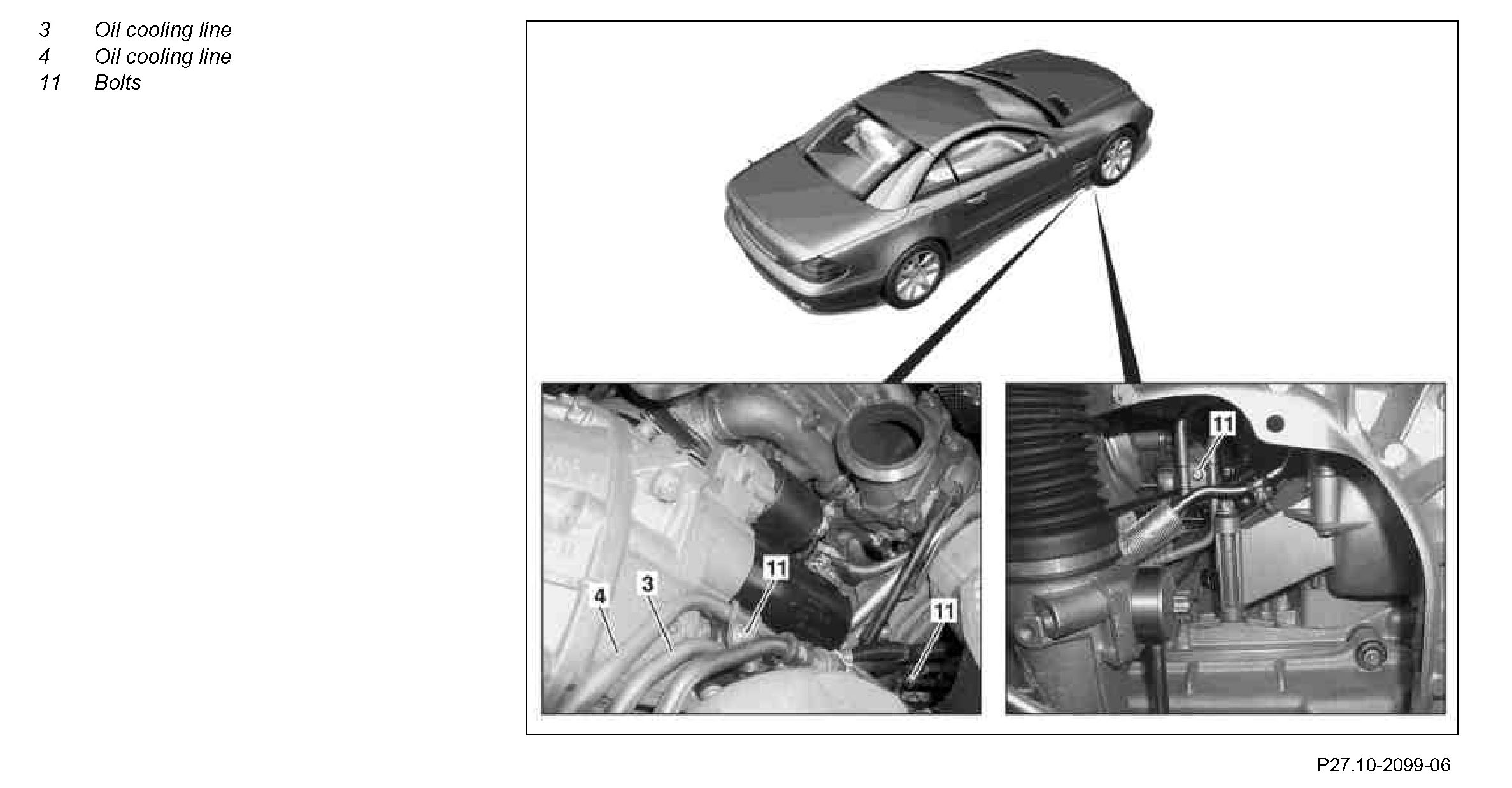

Transmission oil cooling:

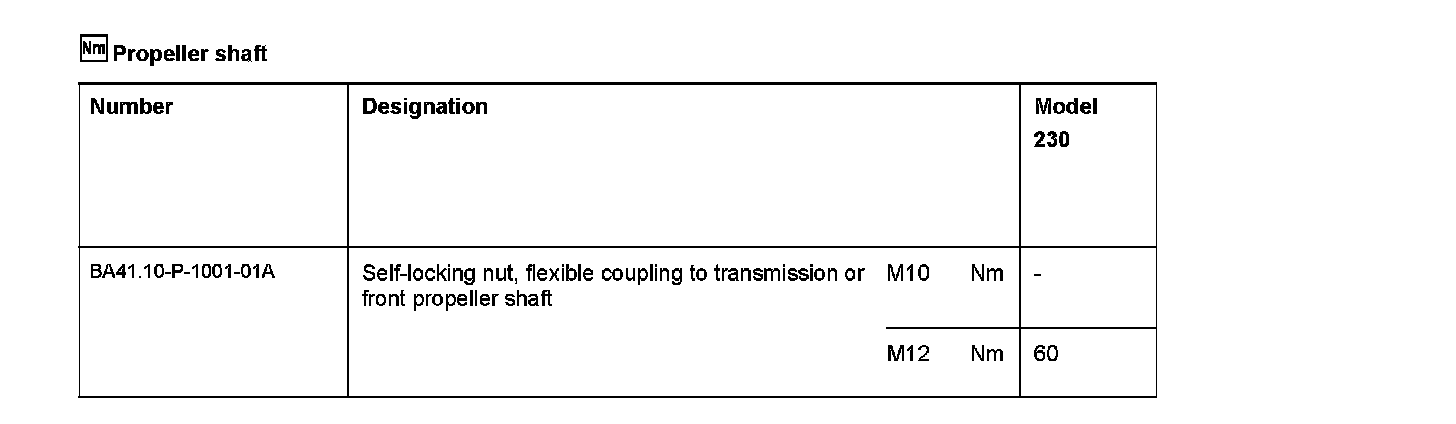

Propeller shaft:

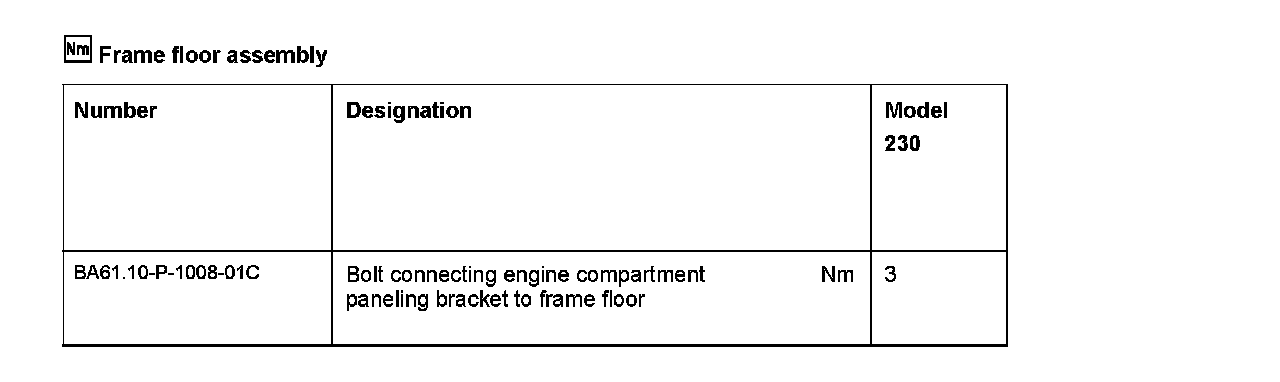

Frame floor assembly:

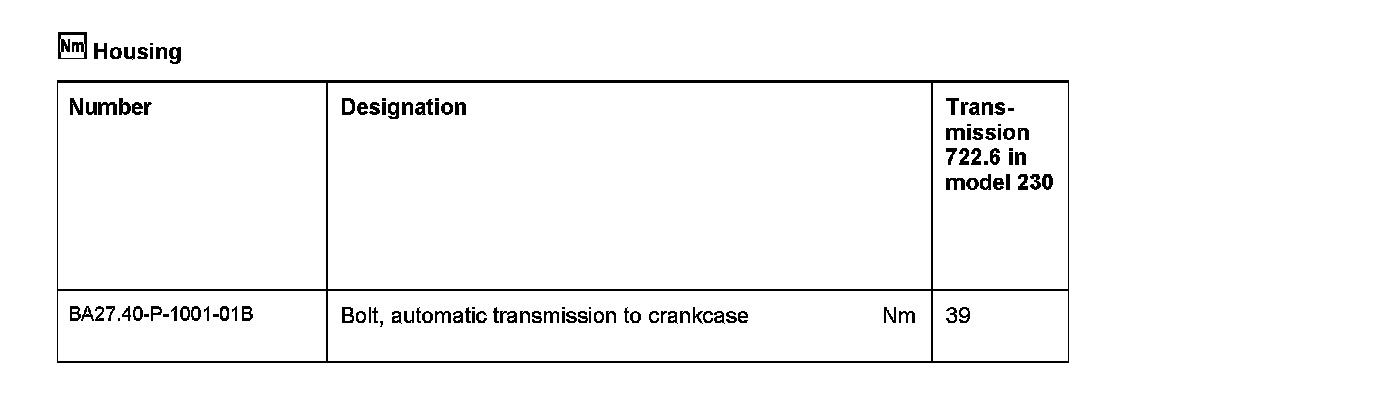

Housing:

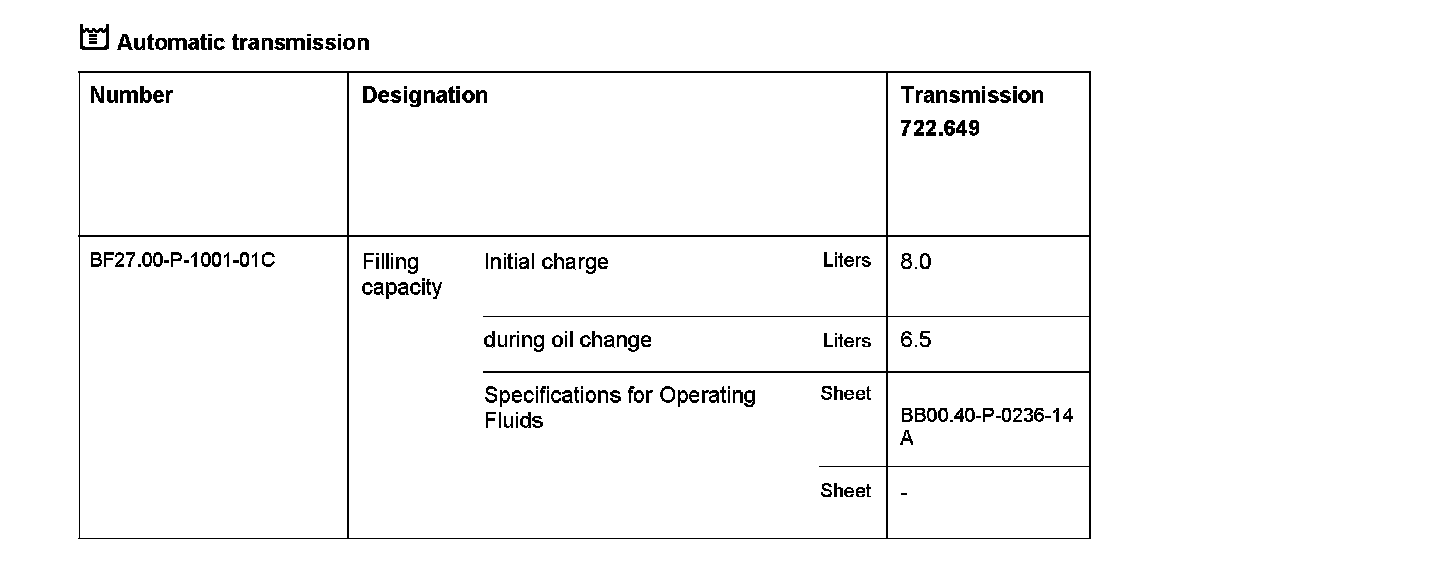

Automatic transmission:

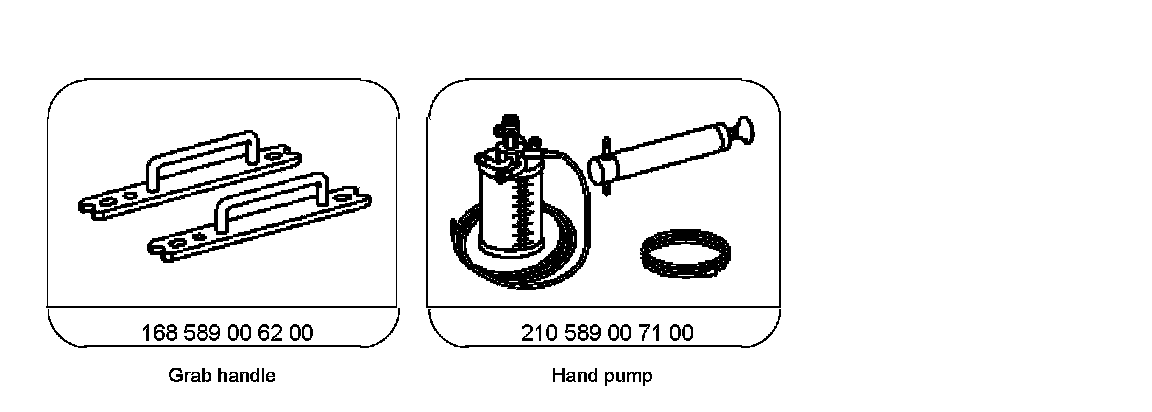

Special Tools:

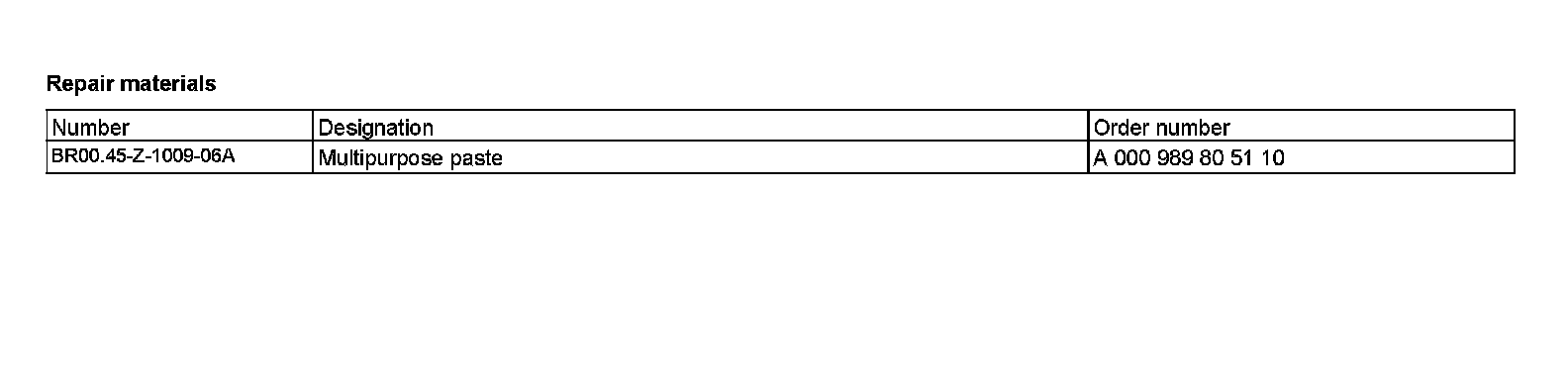

Repair materials:
