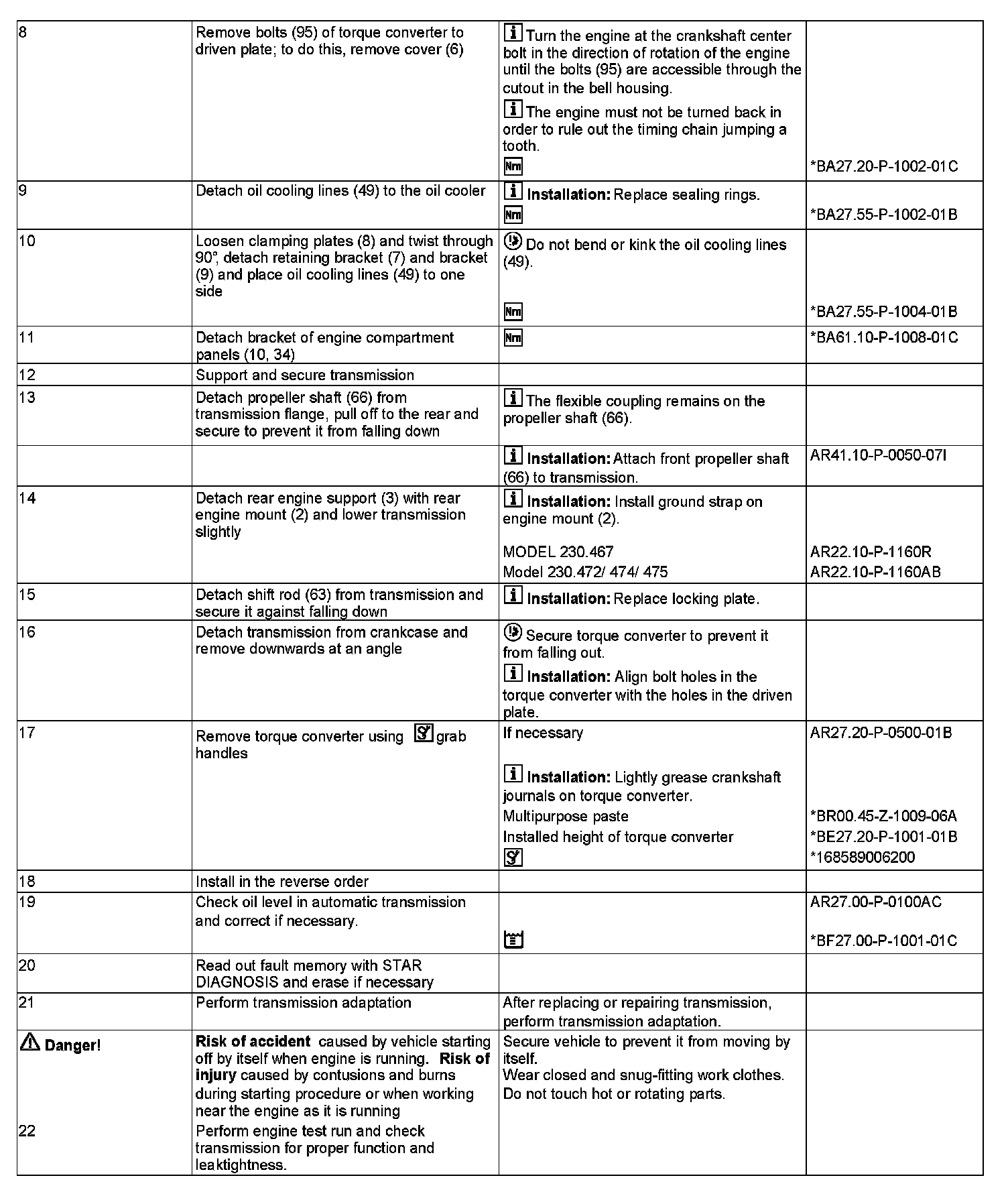

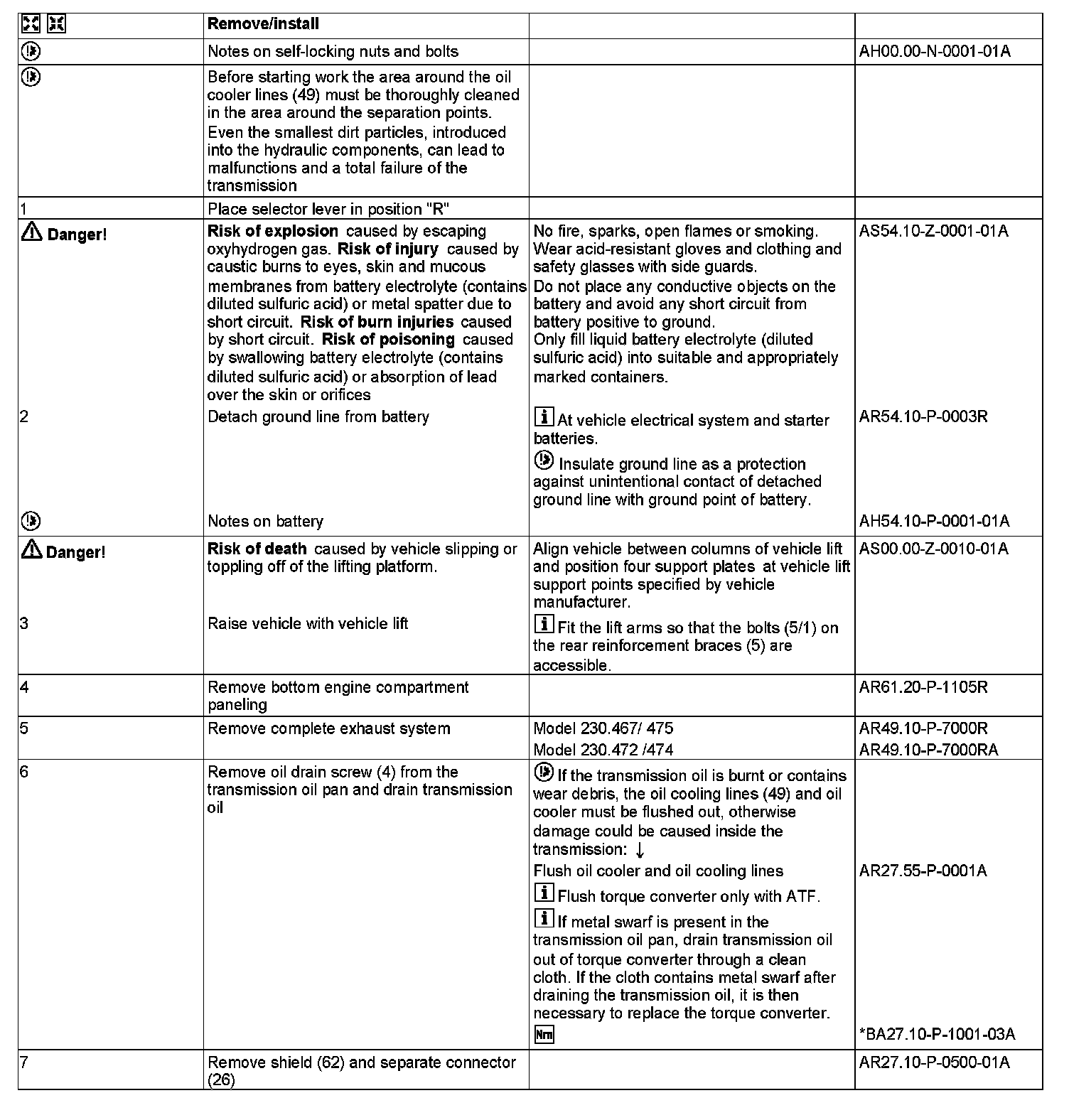

AR27.10-P-0500R Remove/Install Transmission With Torque Converter

AR27.10-P-0500R Remove/Install Transmission With Torque Converter

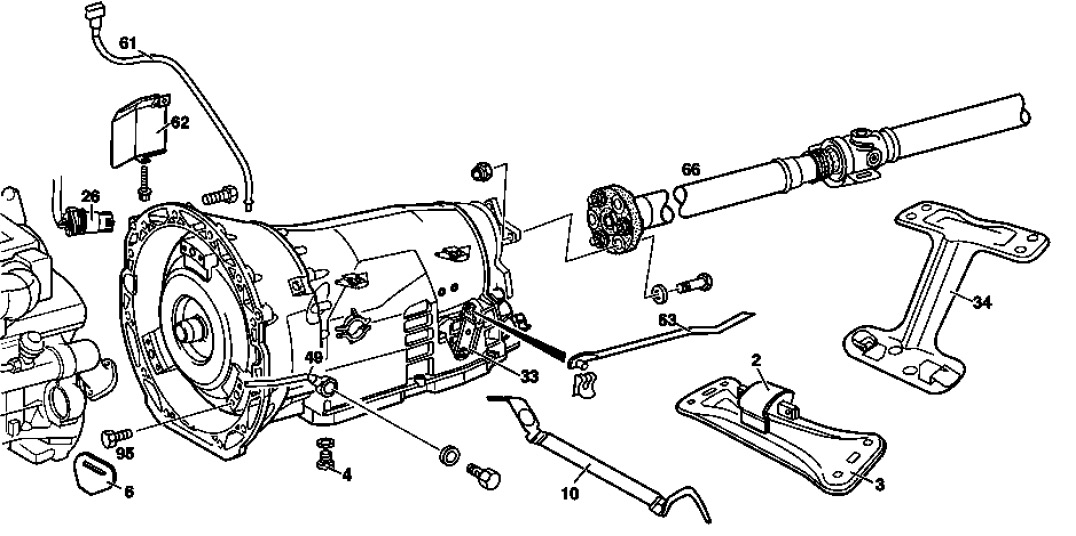

TRANSMISSION 722.643 /633 /644 in MODEL 230





2 Rear engine mount
3 Rear engine support

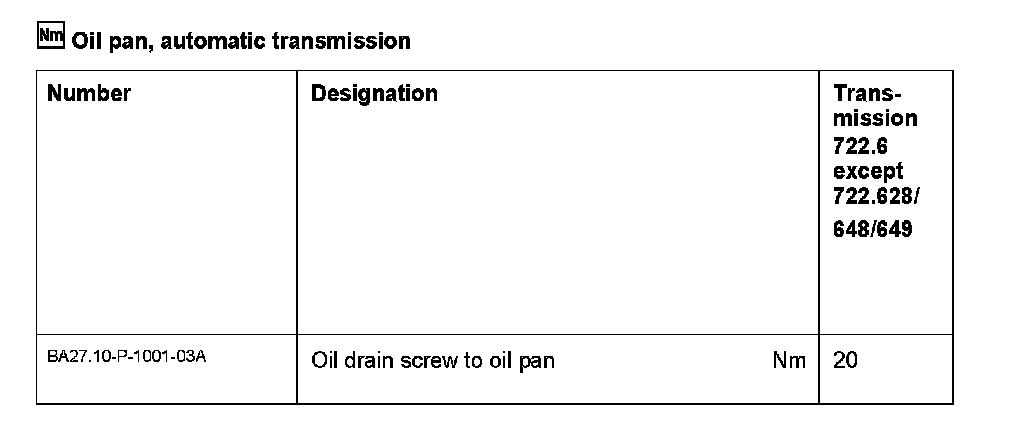

4 Oil drain screw
6 Cover
10 Bracket of engine compartment paneling
26 Plug-in connector

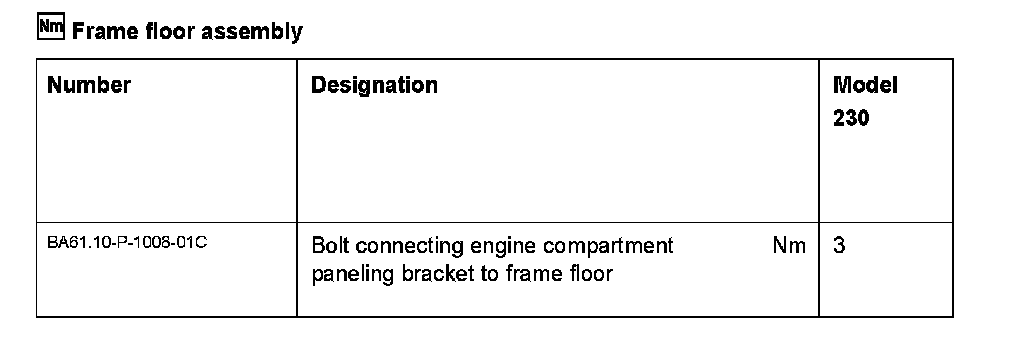

34 Bracket of engine compartment paneling
49 Oil cooling line
61 Oil filler pipe
62 Shield
63 Shift rod
66 Propeller shaft
95 Bolts

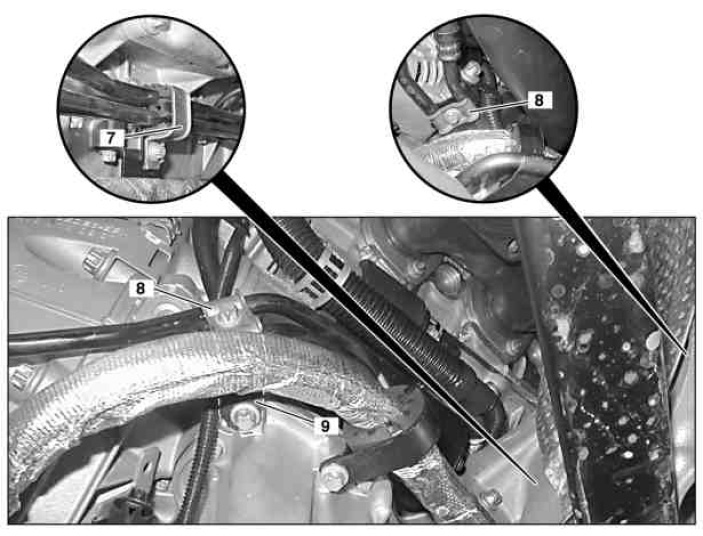

7 Retaining clip
8 Clamp plate
9 Bracket

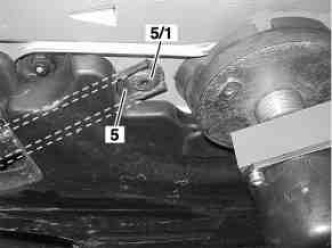

5 Rear reinforcement brace
5/1 Screw
































168 589 00 62 00
Grab handle
