GF27.60-P-5212ACM Control Valve Pressure Regulating Valve, Component Description

GF27.60-P-5212ACM Control valve pressure regulating valve, component description
- TRANSMISSION 722.643/649
- refinement package
- as of model year 09

Component Identification:

Location
The control valve pressure regulating valve is located in the shift plate valve housing.

Task
The regulating valve regulates the control valve pressure.

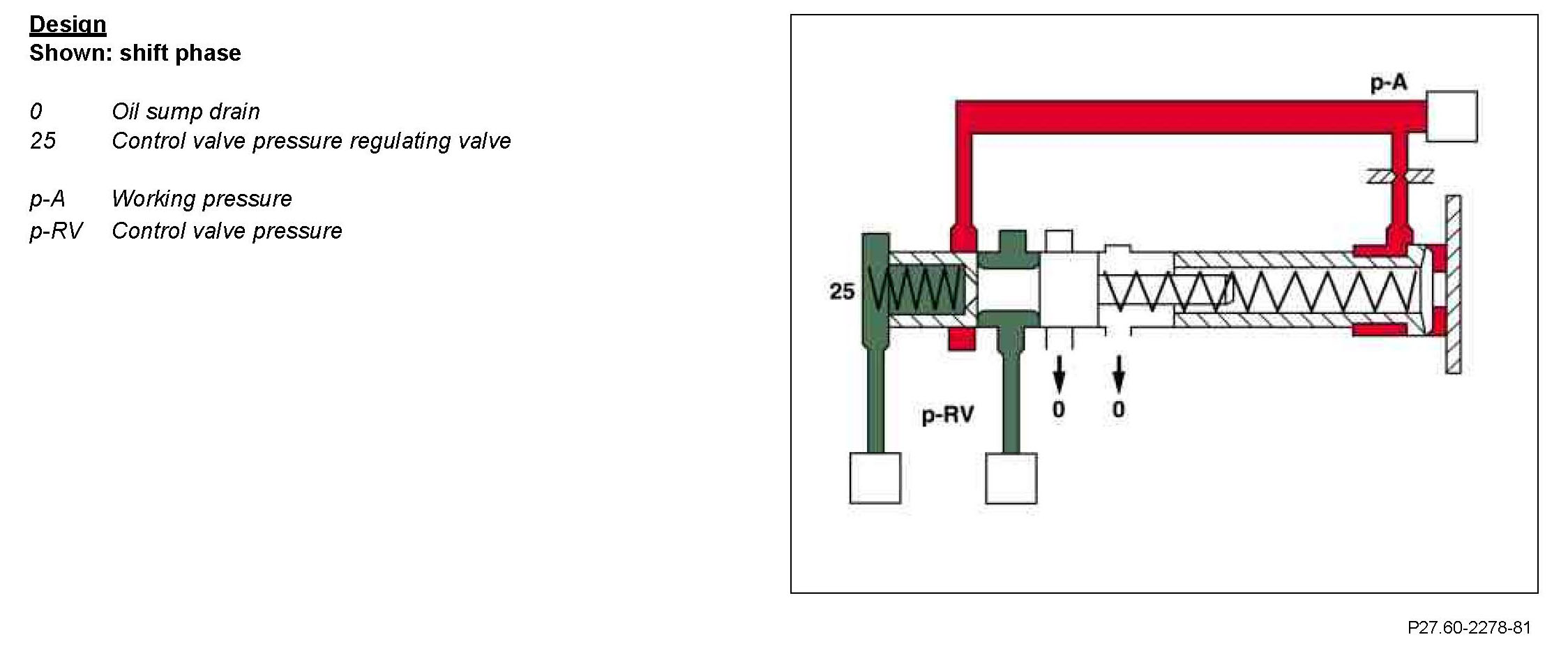

Function
The control valve pressure is regulated at the control valve pressure regulating valve, depending on the working pressure up to the maximum pressure.
