GF27.60-P-5164ACM Electronic Transmission-Control Control Unit, Component Description

GF27.60-P-5164ACM Electronic transmission-control control unit, component description
- TRANSMISSION 722.643/649
- refinement package
- as of model year 09

Component Identification:

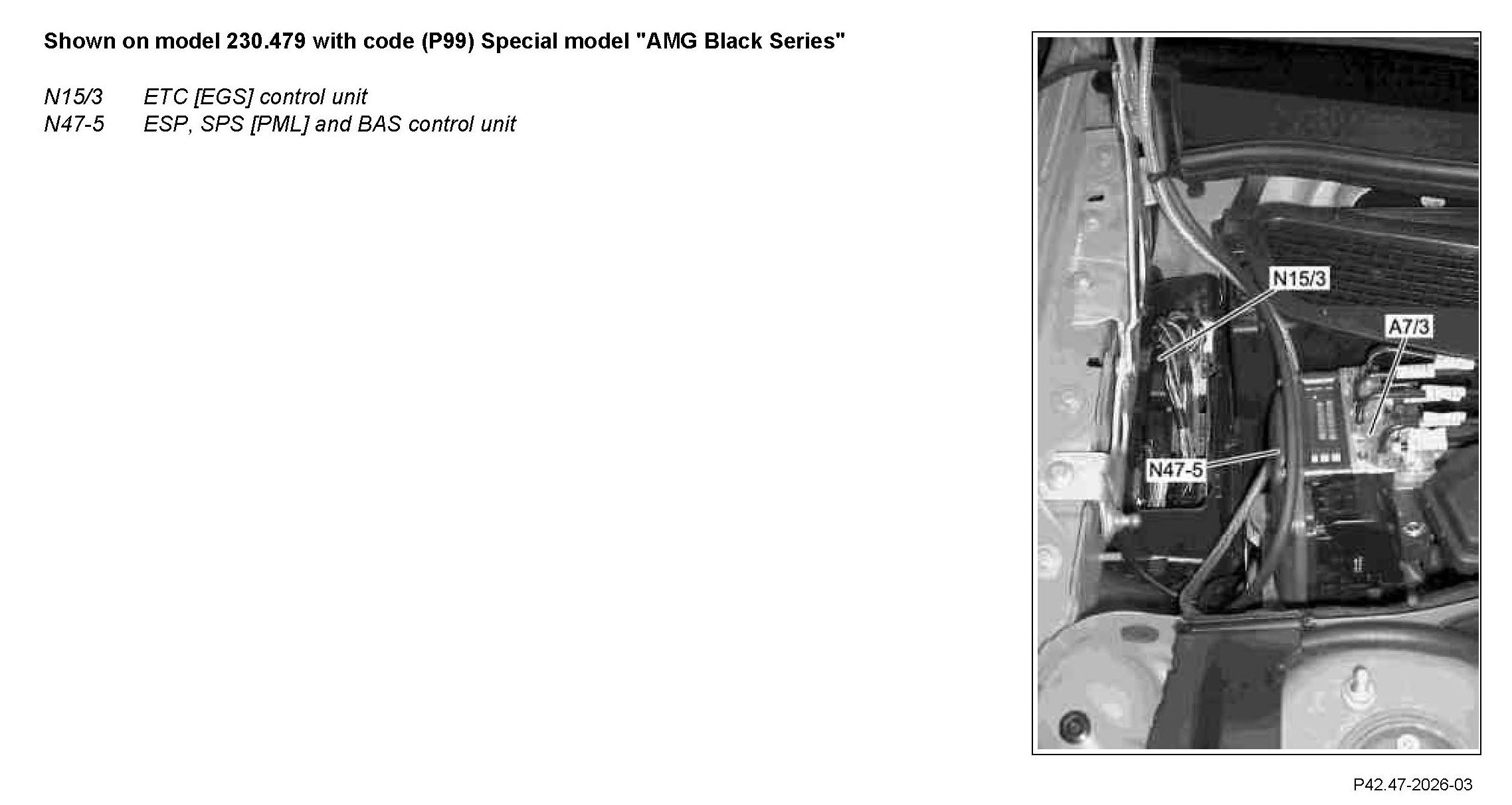

Location on model 230.479 with code (P99) Special model "AMG Black Series"
The electronic transmission control (EGS) control unit is located in the right rear of the engine compartment next to the ESP, SPS [PML] and BAS control unit.

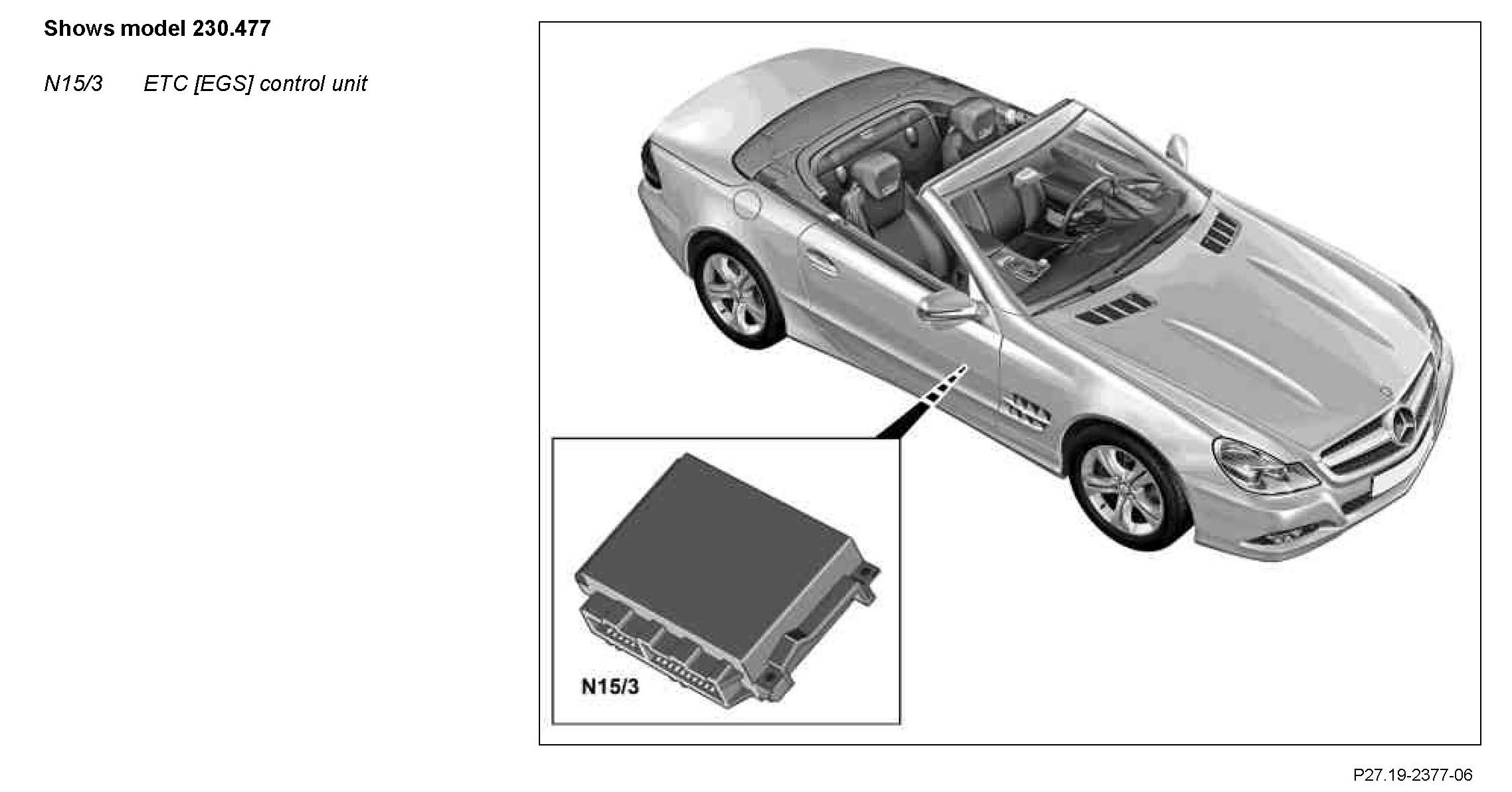

Location except model 230.479 with code (P99) Special model "AMG Black Series"
The ETC [ETS] control unit EGS is located on the plate in the front passenger footwell.

Task
The tasks of the electronic transmission control (EGS) control unit are subdivided into the following partial tasks:
^ General
^ Input and output signals

General
The ETC [EGS] control unit determines the instantaneous operating condition of the vehicle and controls all gear change sequences taking into account shift comfort and the driving situation.

The electronic transmission control (EGS) control unit is flashable i.e. the complete software in the control unit can be changed (replaced).

Input and output signals

Signal inputs and outputs
Direct input signals
- Circuit 31
- Circuit 87
- Starter lock-out contact (Y3/6s1)
- Transmission oil temperature sensor (Y3/6b1)
- Rotational speed of sun gear (rpm sensor 2 (Y3/6n2))
- RPM of the planetary spider (rpm sensor 3 (Y3/6n3))
- Standard (M1)/Sport (M2) manual transmission switch (S16/14s1)

Direct output signals
- Modulating pressure control solenoid valve (Y3/6y1)
- Shift pressure control solenoid valve (Y3/6y2)
- 1-2 and 4-5 shift solenoid valve (Y3/6y3)
- 3-4 shift solenoid valve (Y3/6y4)
- 2-3 shift solenoid valve (Y3/6y5)
- Torque converter lockup PWM solenoid valve (Y3/6y6)

Engine compartment CAN (CAN C) signals
- Electronic selector lever module control unit (N15/5)
- Selector lever position
- Transmission mode, transmission mode switch (S16/5)
- Steering column tube module (N80)
- MINUS steering wheel gear shifter (S110/1) and PLUS steering wheel gear shifter (S111/1), with code 428 Steering wheel shift paddles
- ESP, SPS [PML] and BAS control unit (N47-5)
- Wheel speeds and direction of rotation, substitute values in the event of failure of rpm sensor 2 and rpm sensor 3
- Adjusted braking torque, change of shift strategy, brake the vehicle, transmission shifts down earlier
- Vehicle lateral acceleration at center of gravity, adaptation of shift strategy, detection of dynamic driving style
- Cruise control operation, special shifting strategy
- Interruption of force distribution, shift to "N"
- Stop lamp switch (S9/1), change of shift strategy, brake the vehicle, transmission shifts down earlier
- ESP specified torque, torque reduction or torque increase
- Wheel torque factor, overall gear ratio
- Actual gear, target gear
- Transmission variant, recognition of basic variants, difference in gear ratios

ME-SFI [ME] control unit (N3/10)
Requests for catalytic converter heating Switching request
- Engine torque
- Coolant temperature
- Engine speed
- Engine load
- Kickdown
- Engine speed limitation active
- Limp-home mode engine control
- Drive position
- Transmission mode
- Actual gear, target gear
- Engine torque reduction request
- Starter enable in selector lever position "P" or "N"
- Engine idle specified speed (for actuation of the torque converter lockup clutch)
- Status of torque converter lockup clutch
- Emergency operation transmission control
- Central gateway control unit (N93)
- Communication diagnosis
Instrument cluster (A1)
- Selector lever position
- Transmission mode
- Engine diagnosis indicator lamp actuation (A1e58), except code (494) USA version or, with code (494) USA version, CHECK ENGINE indicator lamp actuation (A1e26)
- EIS [EZS] control unit (N73)
- Drive authorization system, stage 3 (DAS 3), start enable
- Shift lock function request, status of circuit 50 (fault memory storage influence)
