GF27.19-P-5177ACM Torque Converter Lockup Clutch Control Solenoid Valve, Component Description

GF27.19-P-5177ACM Torque converter lockup clutch control solenoid valve, component description
- TRANSMISSION 722.643/649
- refinement package
- as of model year 09

Component Identification:

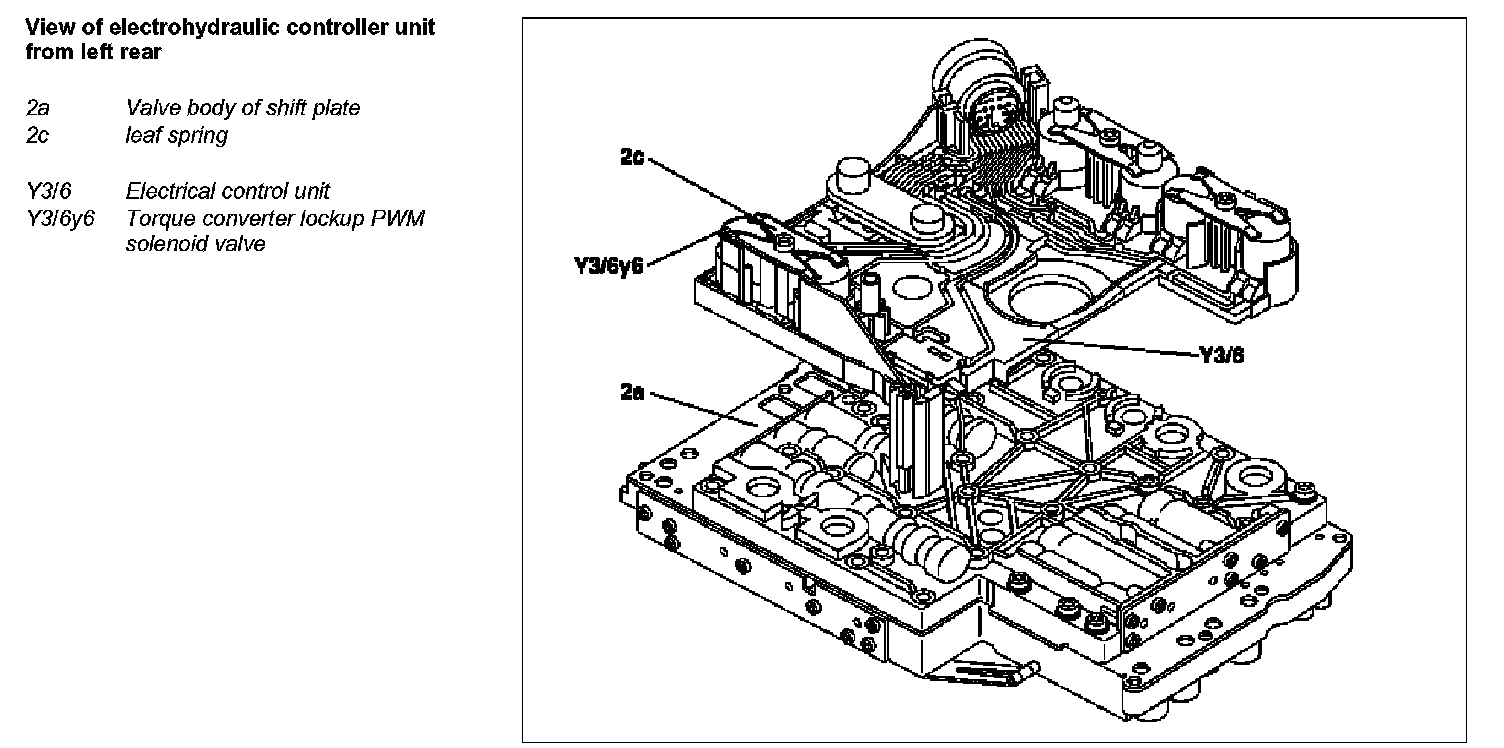

Location
The pulse width modulation solenoid valve is located on the supporting body of the electric controller unit and is pressed against the valve housing of the valve body assembly by a leaf spring.

Task
The pulse width modulation solenoid valve controls the pressure for the torque converter lockup clutch.

Component Identification:

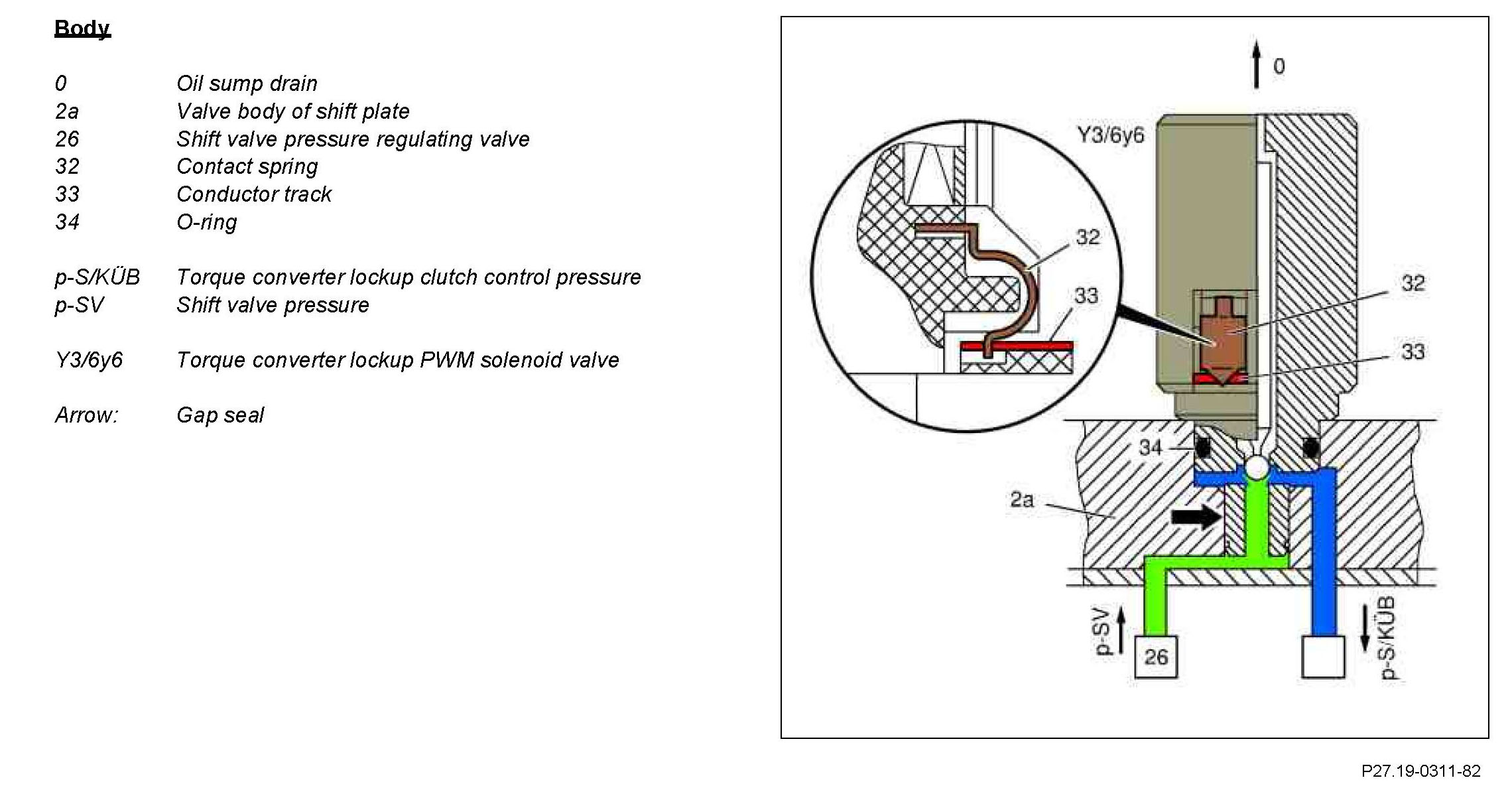

The pulse width modulation-solenoid valve is sealed towards the valve housing of the shift plate by an O-ring and a gap seal (arrow).

The contact springs on the pulse width modulation solenoid valve grip in a slot in the conductor tracks. The spring force of the contact springs means that reliable contacting is guaranteed.

Function
The pulse width modulation solenoid valve converts a pulse width modulated current actuated by the EGS control unit (N15/3) into the corresponding hydraulic torque converter lock-up clutch control pressure.
