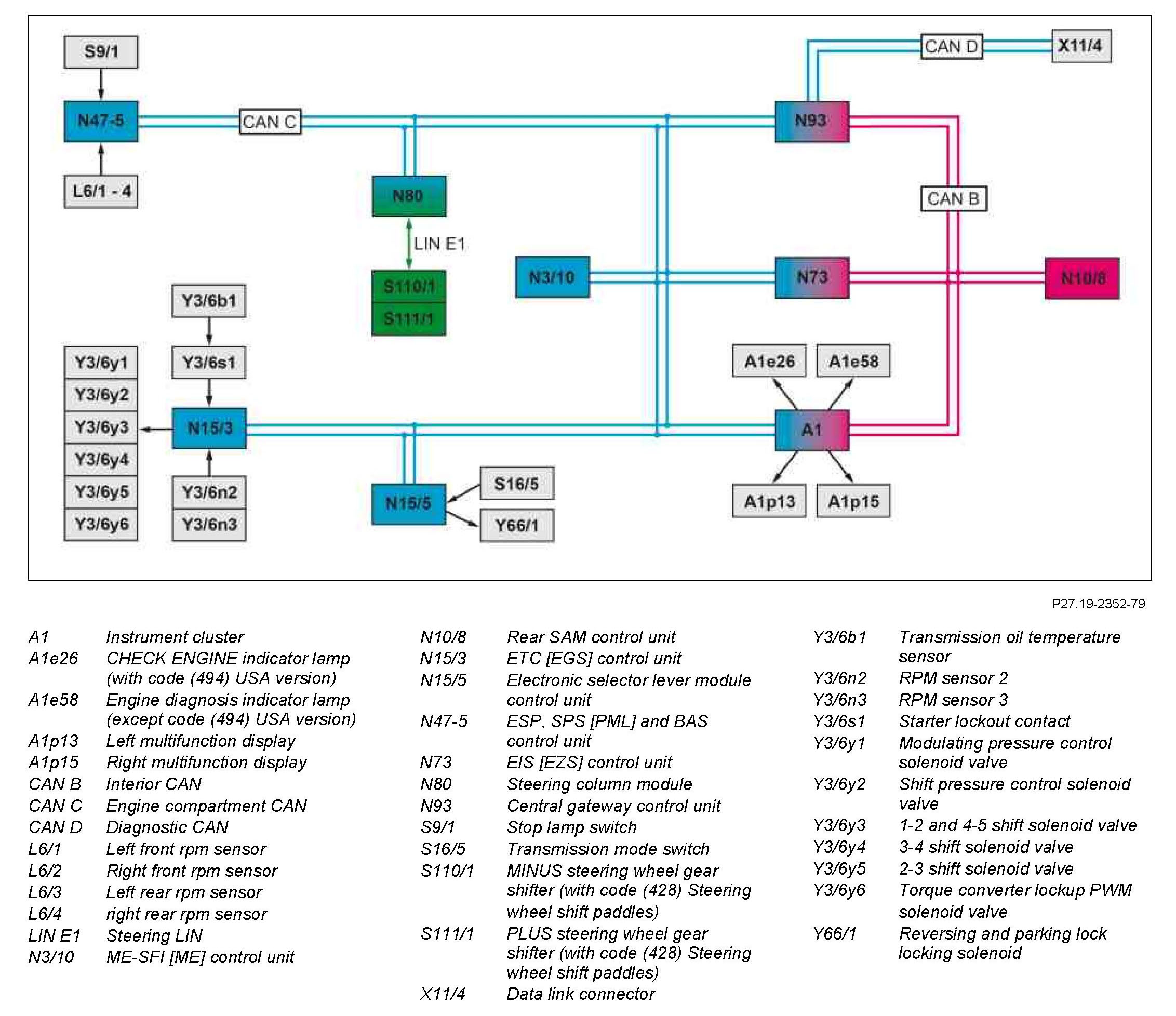

GF27.10-P-0001-20ACM Automatic Transmission (AT), Block Diagram

GF27.10-P-0001-20ACM Automatic transmission (AT), block diagram
- TRANSMISSION 722.643/649
- except CODE (P99) Special model "AMG Black Series"
- as of model year 09
