GF27.10-P-0001-08ACM Automatic Transmission (AT), Location of Electric/Electronic Components
GF27.10-P-0001-08ACM Automatic transmission (AT), location of electric/electronic components
- TRANSMISSION 722.643/649
- as of model year 09

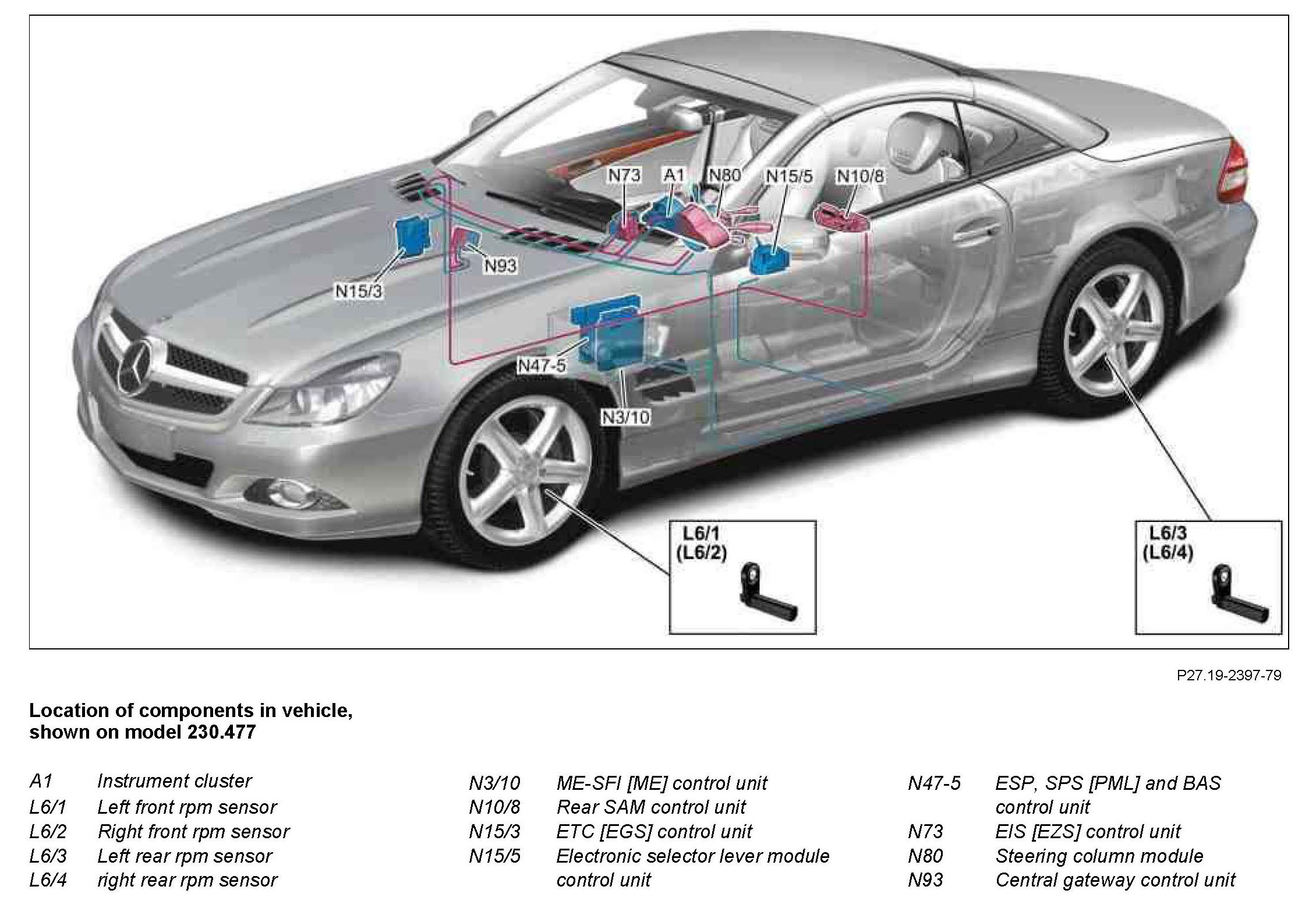

Component Identification:

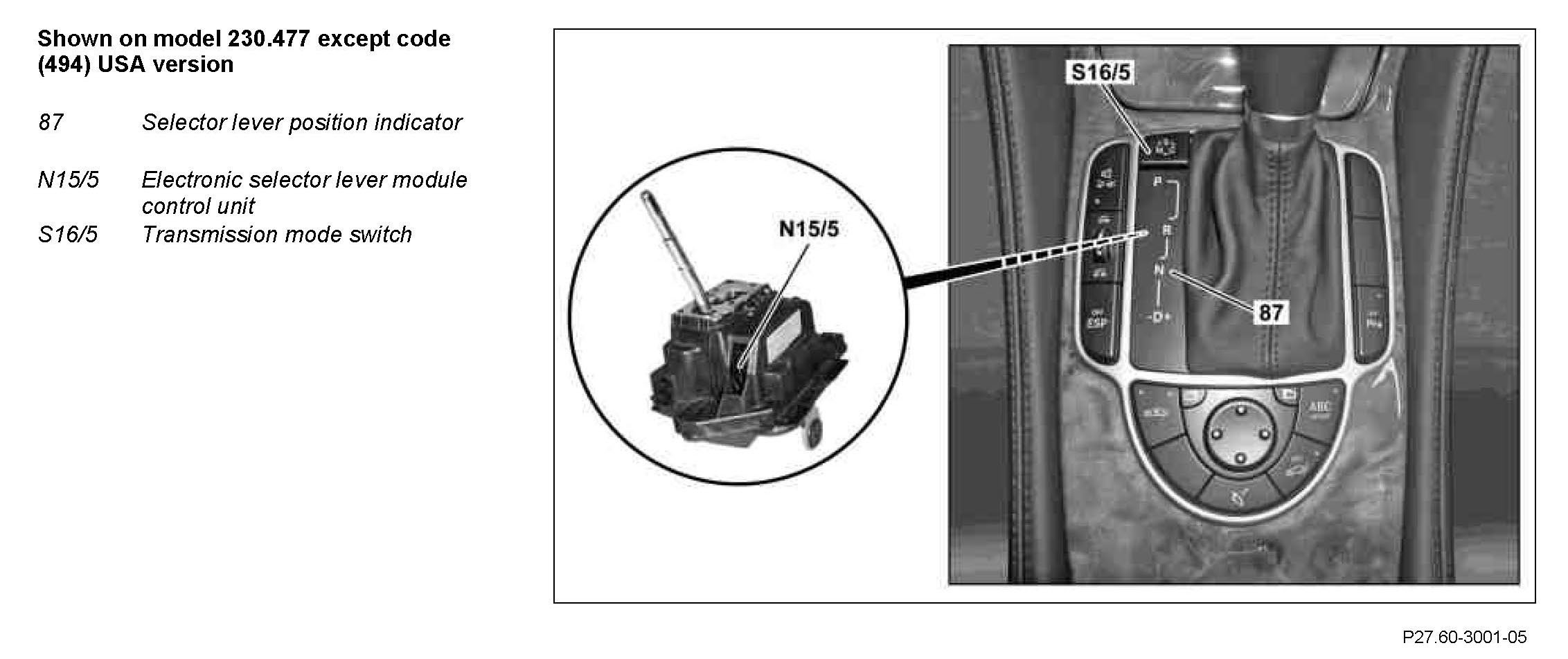

Component Identification:

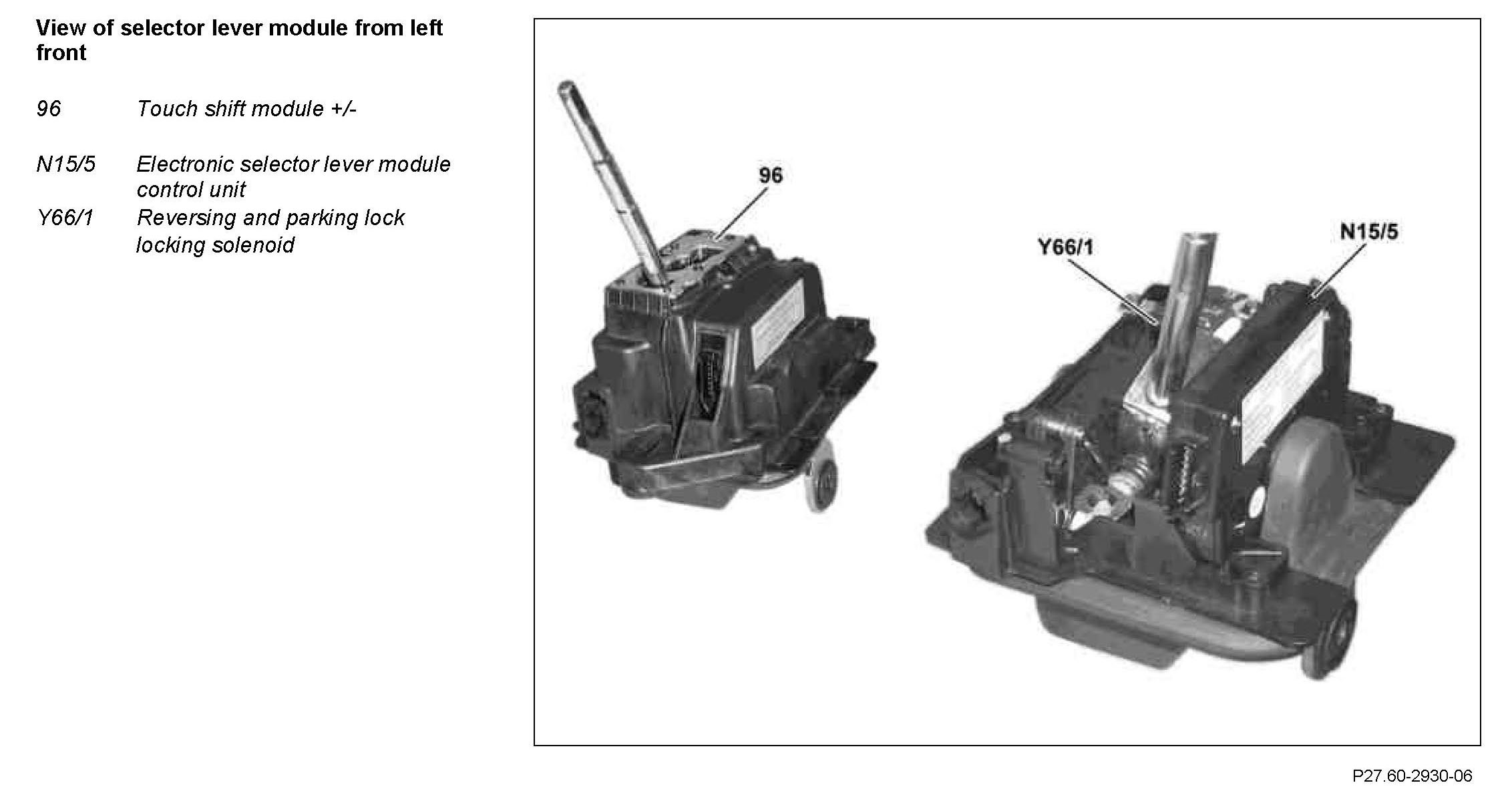

Component Identification:
Component Identification:
Component Identification:
Component Identification:
Component Identification:

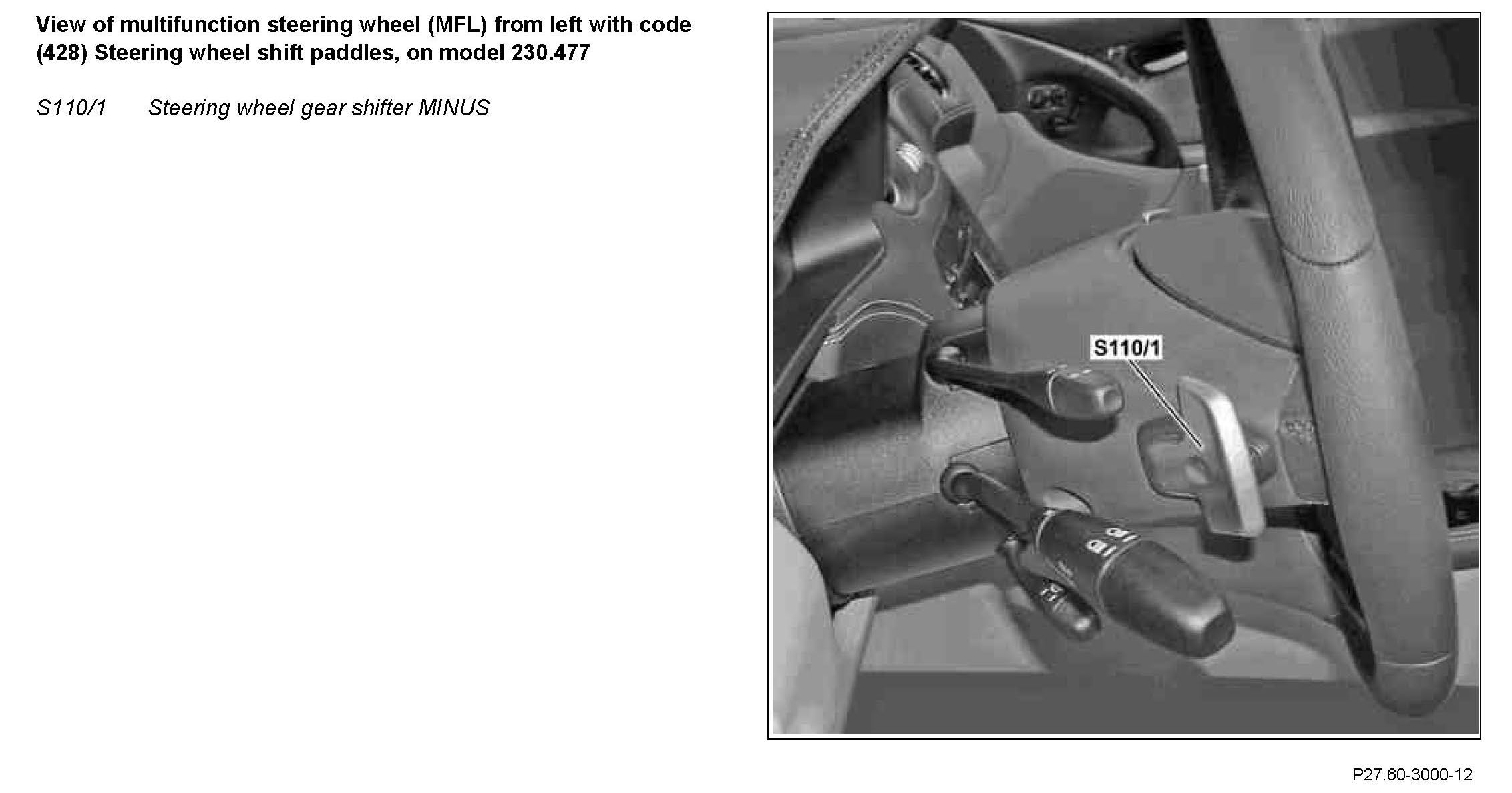

Located on the rear side of the multifunction steering wheel at the left is the MINUS steering wheel gear shifter and at the right the PLUS steering wheel gear shifter (S111/1).
