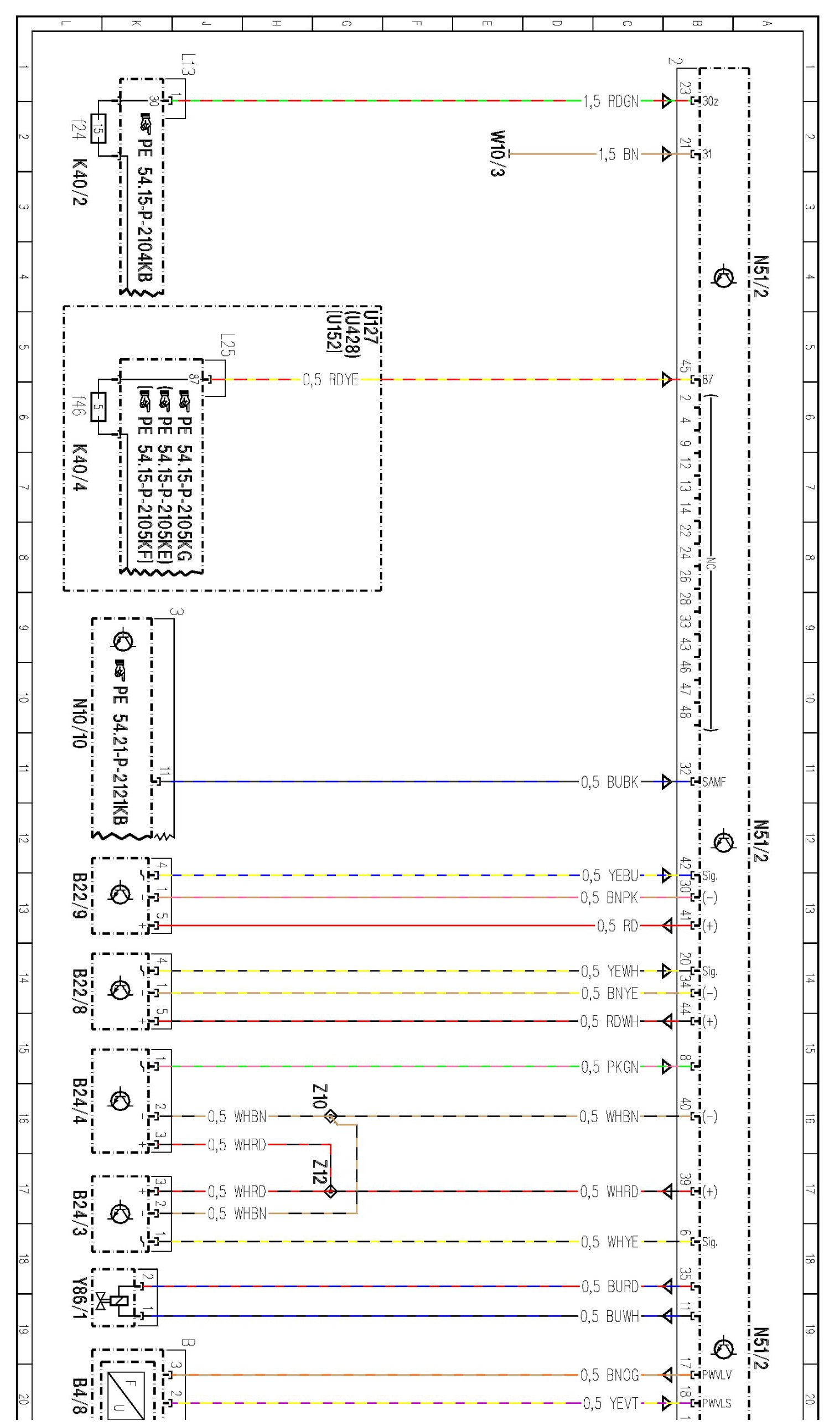

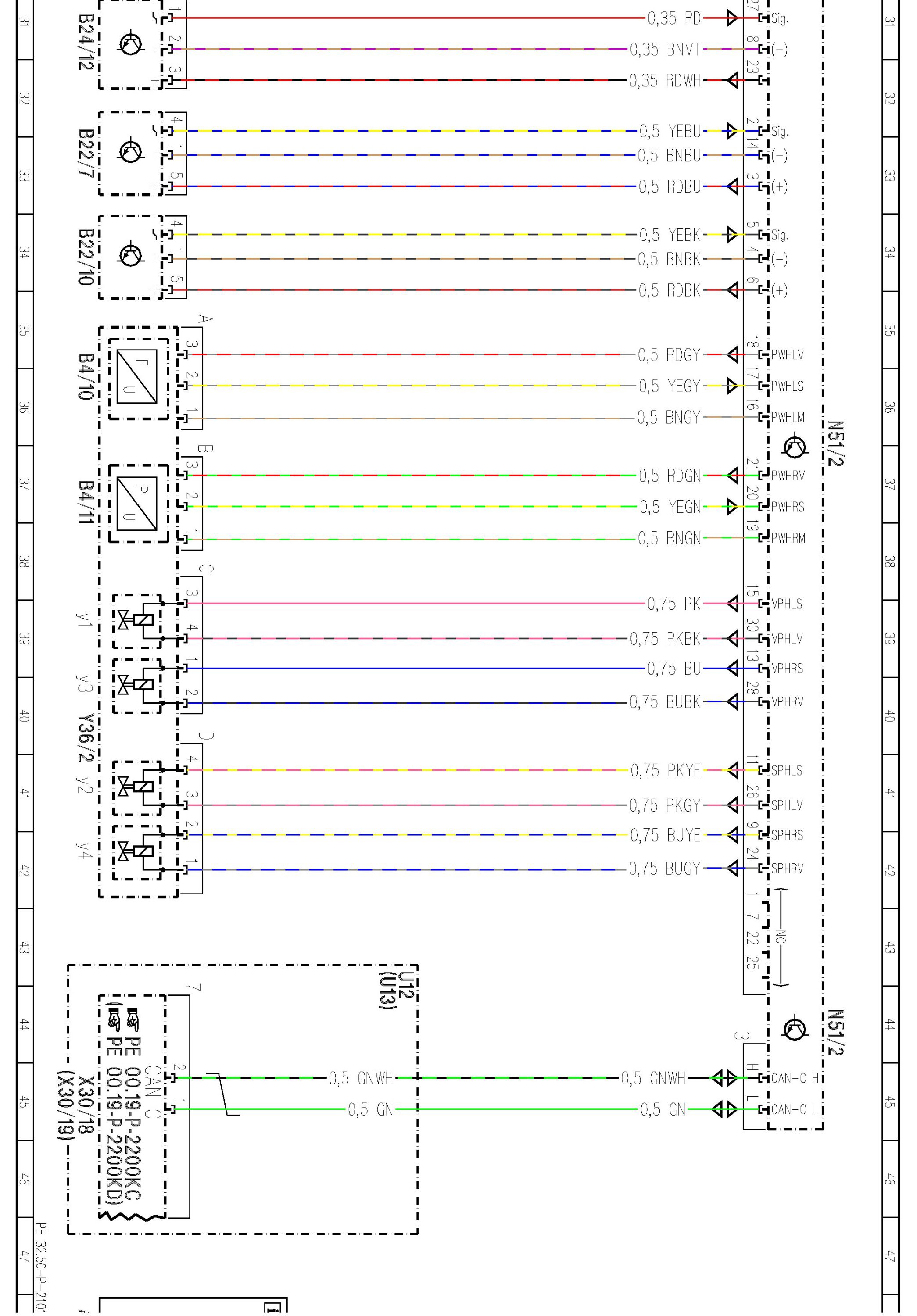

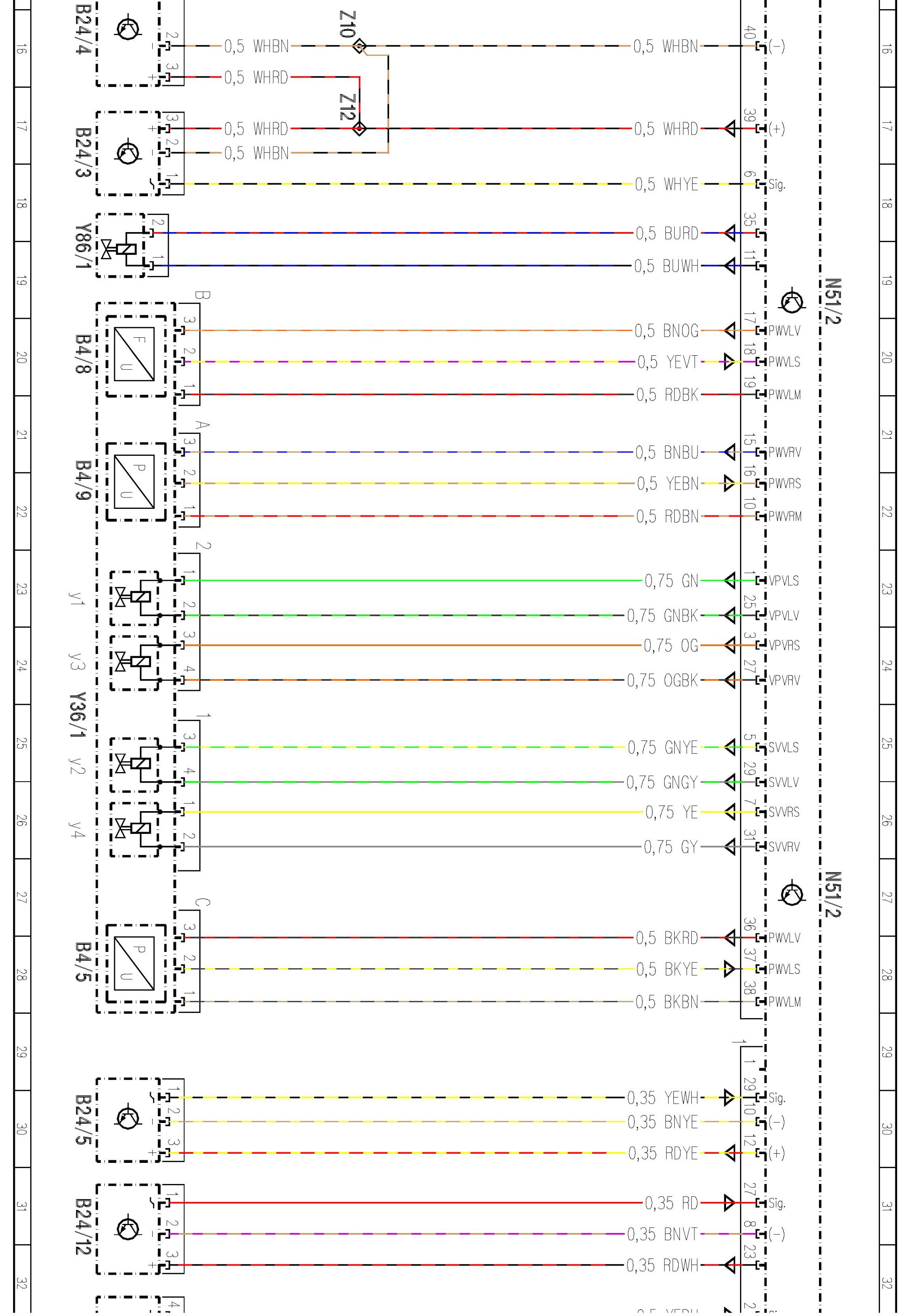

PE32.50-P-2101KC Active Body Control (ABC) Control Module, Wiring Diagram

PE32.50-P-2101KC Active Body Control (ABC) Control Module, Wiring Diagram

Model 230
- with CODE (487) Active Body Control (ABC)
- as of model year 2009 /YoM 08 model refinement package
- Control unit N51/2


































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
