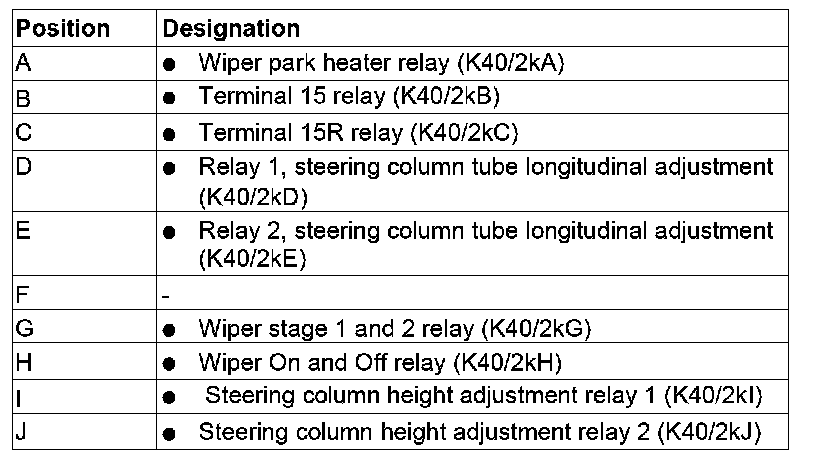

GF54.15-P-1257-03RIT Relay Assignment of Fuse and Relay Box In Left Side of Engine Compartment



GF54.15-P-1257-03RIT Relay Assignment Of Fuse And Relay Box In Left Side Of Engine Compartment
- with CODE (P99) Special model "AMG Black Series"

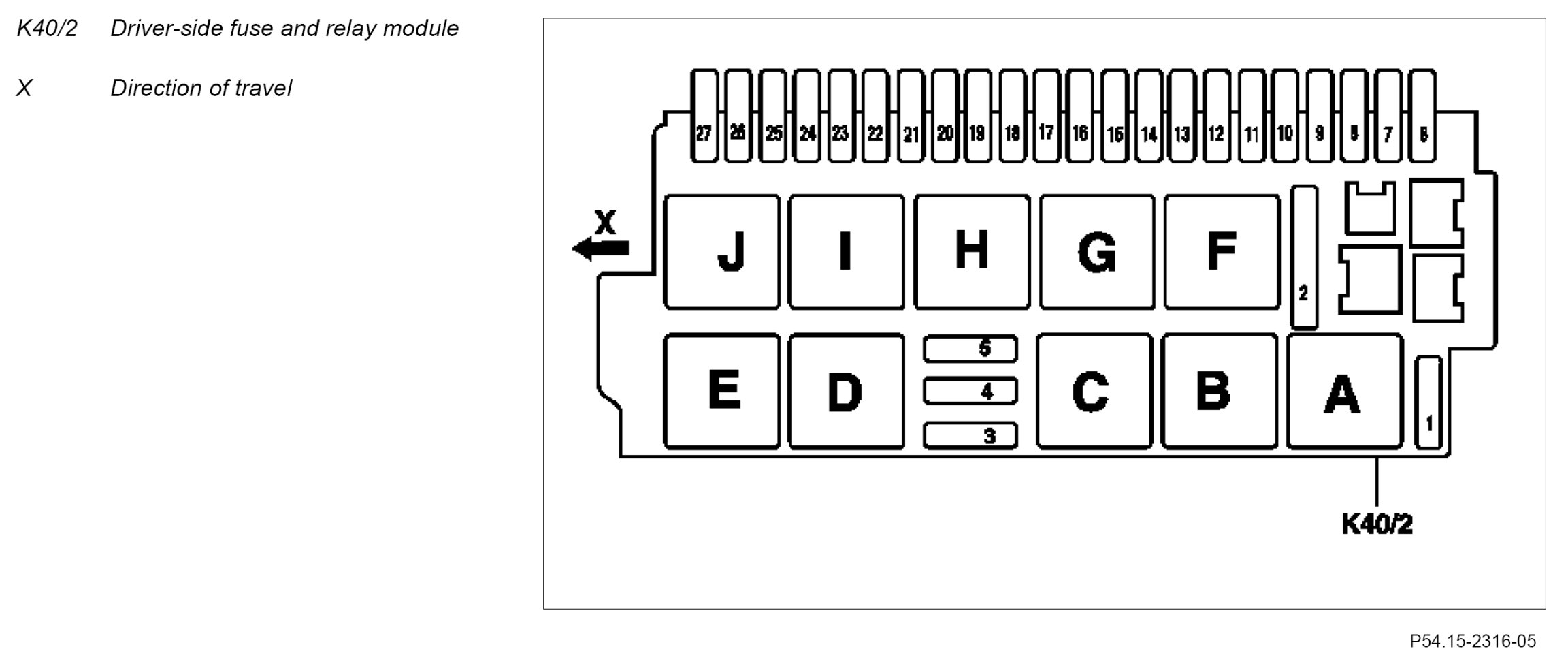

Component Identification:
