Home >> Mercedes Benz >> 2011 >> SL 65 AMG (230.479) V12-6.0L Turbo (275.981) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Block Assembly >> Crankshaft Main Bearing >> BE03.20-P-1000-03E Inspection Data of Crankshaft Main Bearing Shells

BE03.20-P-1000-03E Inspection Data of Crankshaft Main Bearing Shells

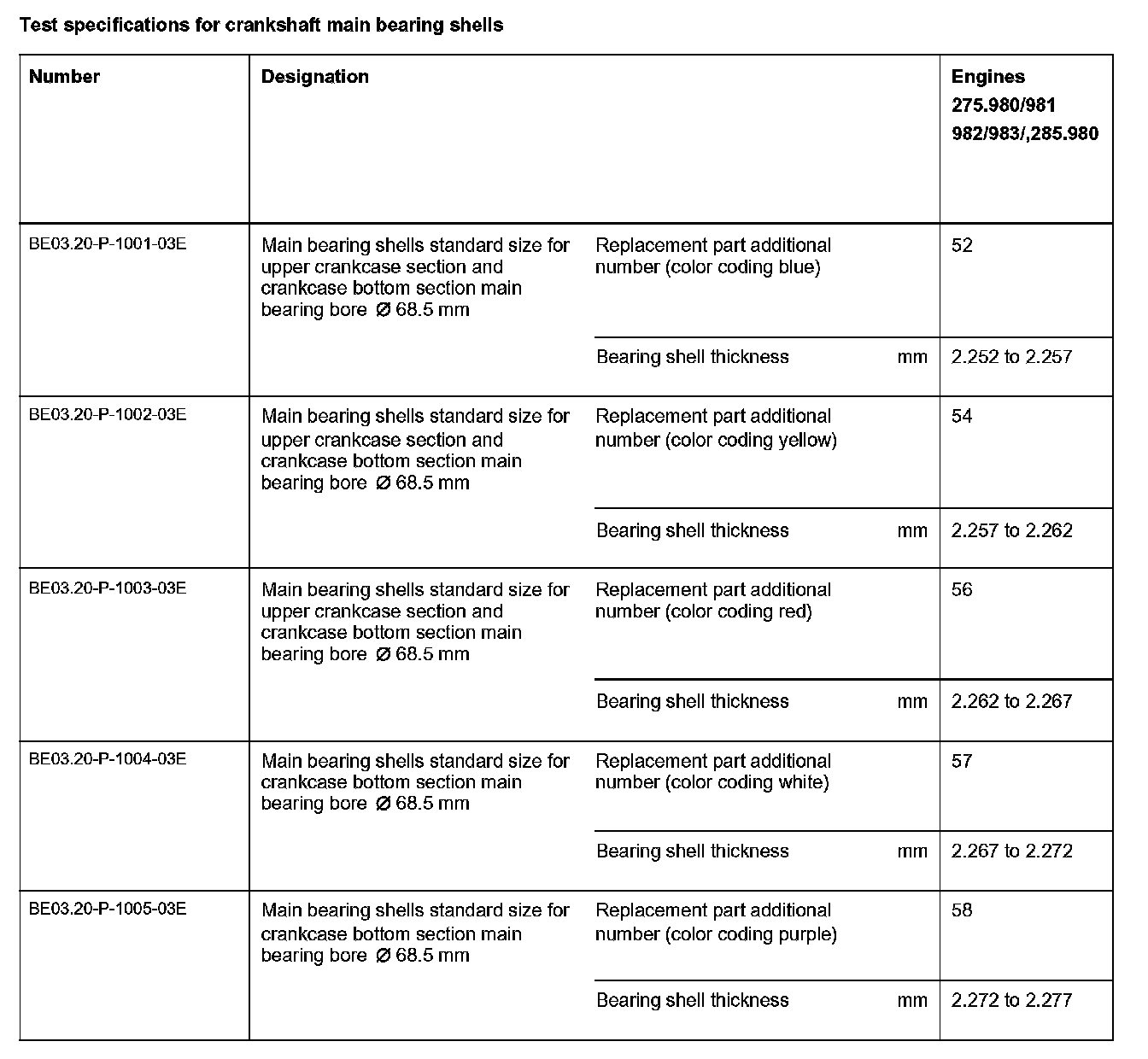

BE03.20-P-1000-03E Test specifications for crankshaft main bearing shells

Test specifications for crankshaft main bearing shells:




Test specifications for crankshaft main bearing shells:
