AR40.20-P-0322-03R Check Caster and Assign to Tabular Value

AR40.20-P-0322-03R Check caster and assign to tabular value

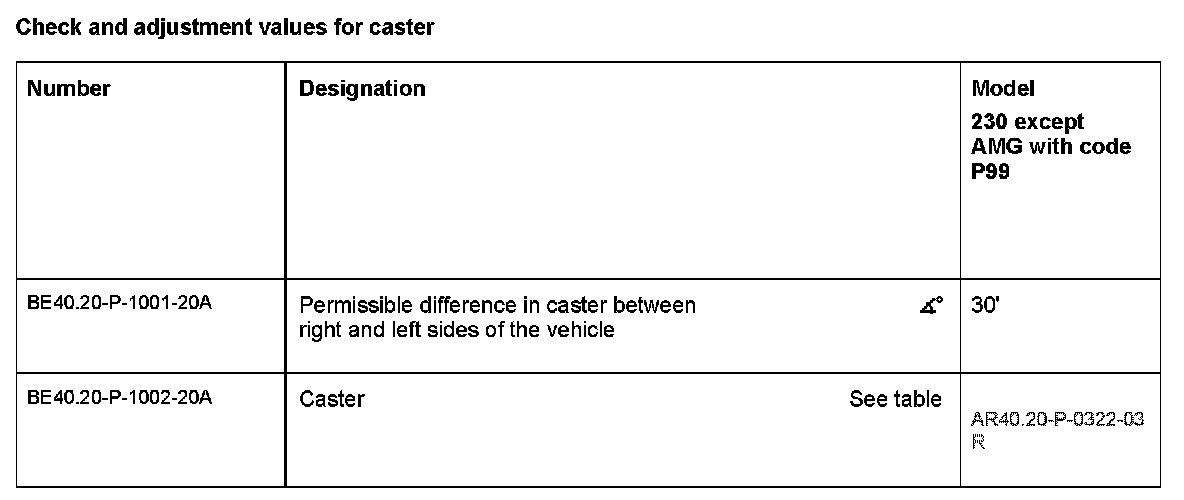

Tolerance for caster ±30'
The level values are displayed by the electronic inclinometer in decimal degrees [°].

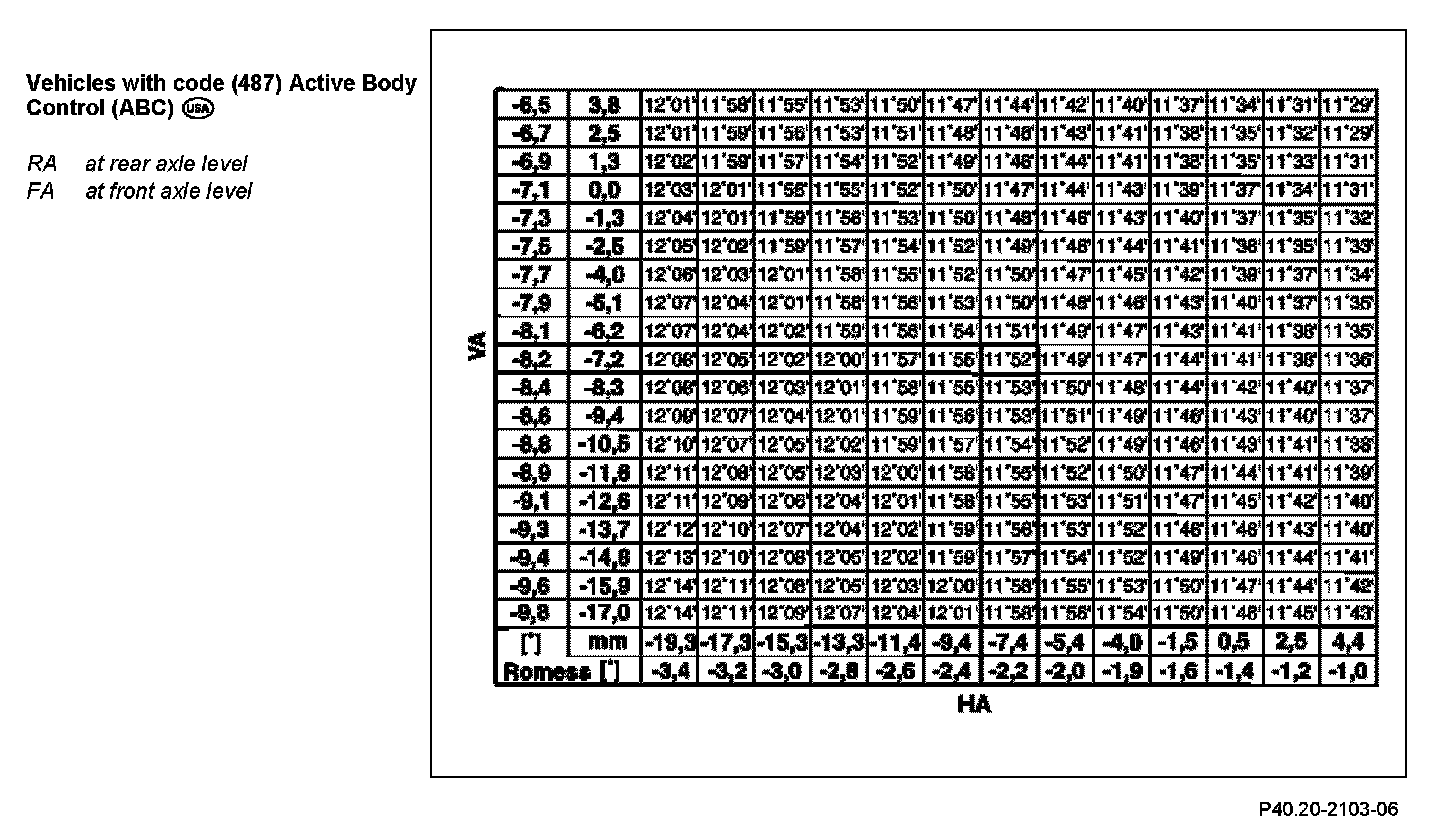

1 Obtain the caster value from the table taking into account the front axle (FA) level values and rear axle (RA) level values measured previously.

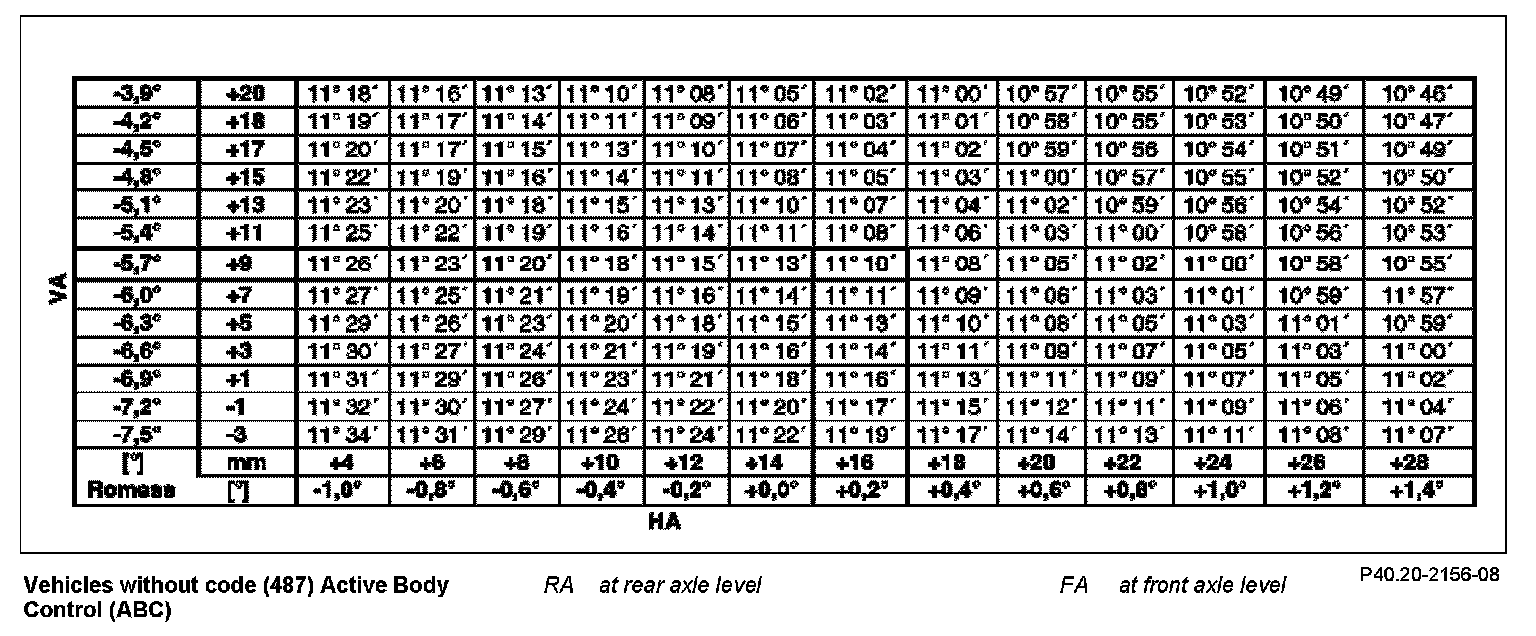

Example, see Table:
Front axle level value (FA): -5.7°
Rear axle level value (RA): +0.2°
= Caster value 11° 10' (±30')
