Transmission Mode Switch: Service and Repair



AR27.19-P-0055AMG Remove/install buttons and rotary switch of Drive Unit
- with TRANSMISSION 722.93

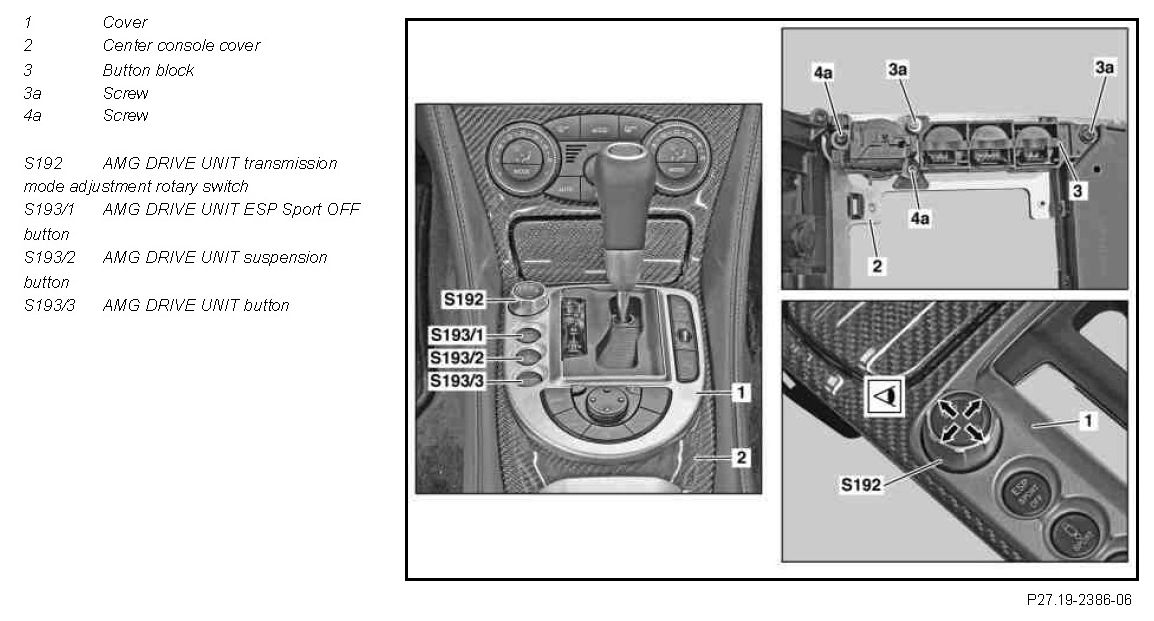

Component Identification:

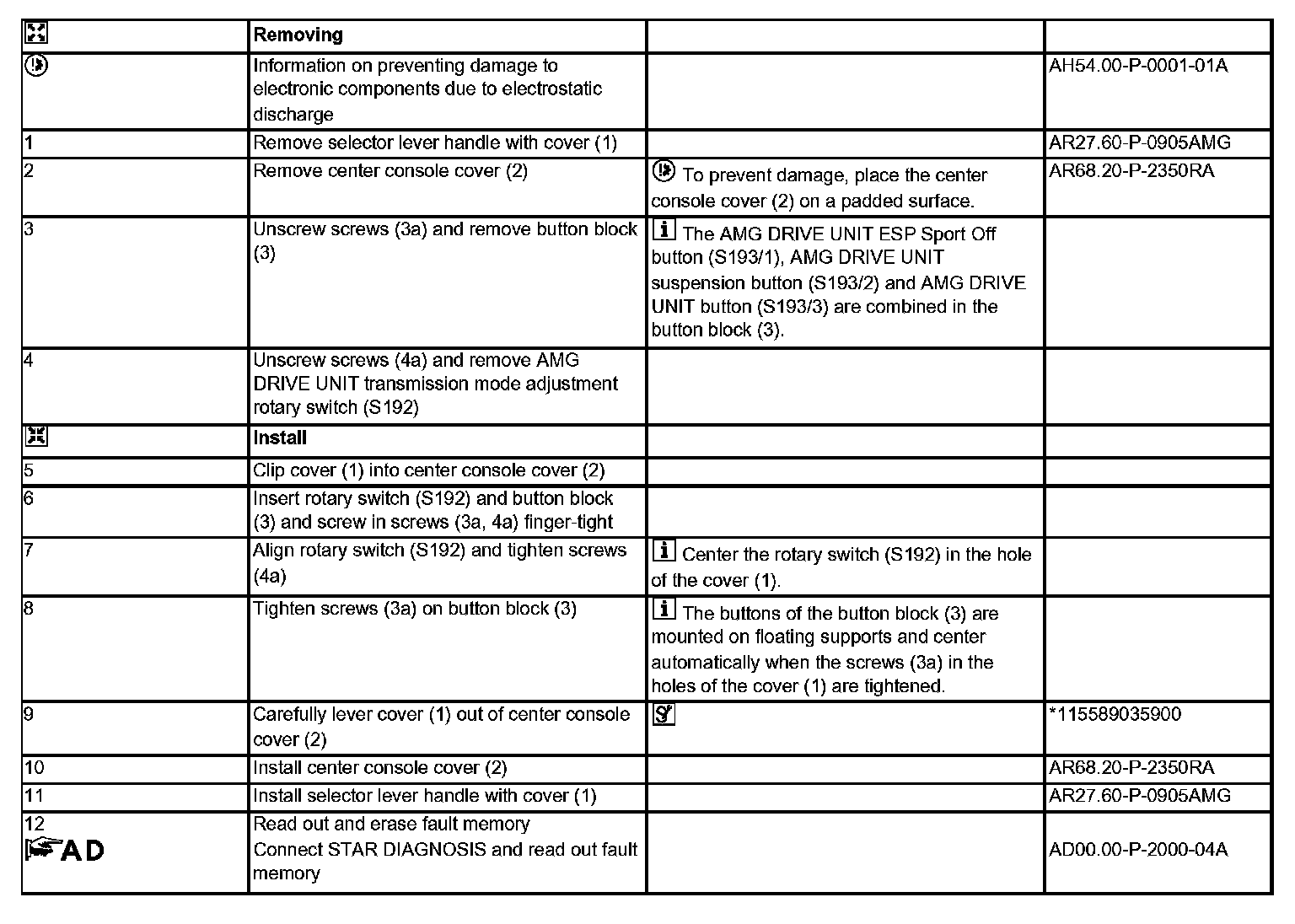

Steps 1-12:

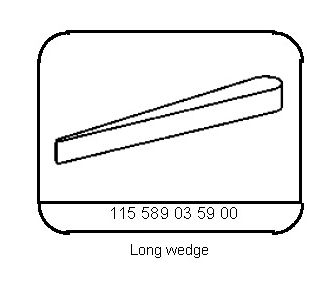

Special Tools:
