Glove Box Lamp Switch: Description and Operation

GF82.20-P-5223RI Glove Compartment Lighting With Switch, Component Description

Component Identification:

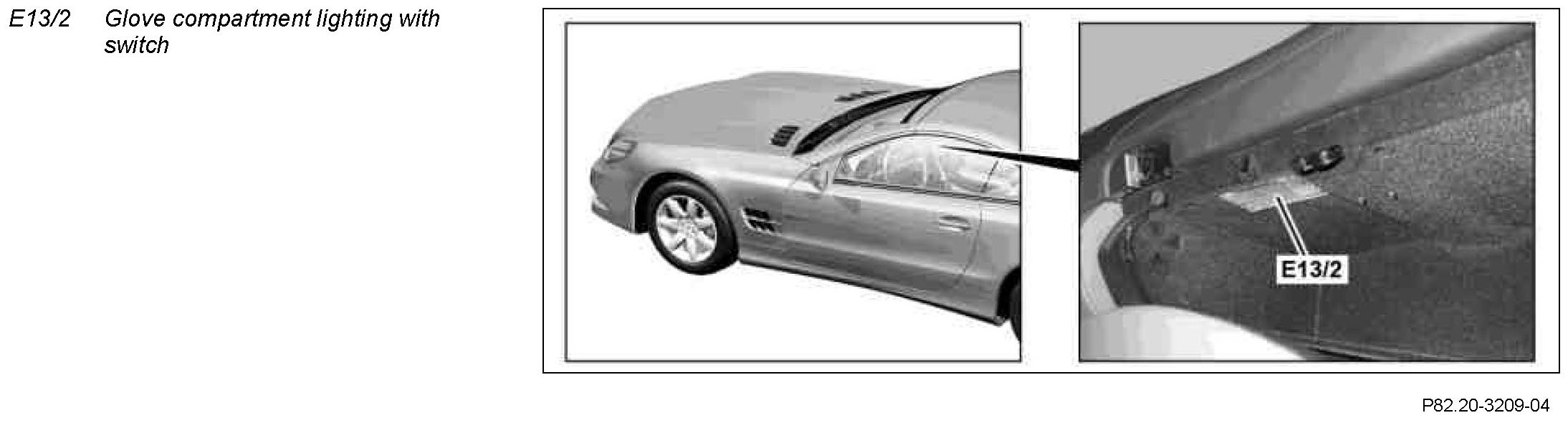

Location
The glove compartment lighting with switch is located on the top of the glove compartment.

Task
The glove compartment lighting with switch is used to illuminate the glove compartment.
When the glove compartment is opened, the voltage that is present at the integrated switch is used to illuminate the glove compartment.

The power supply to the glove compartment lighting with switch is provided by the front passenger side SAM control unit (N10/11).
