AR54.30-P-6341R Remove/Install Outside Temperature Indicator Sensor

AR54.30-P-6341R Remove/Install Outside Temperature Indicator Sensor

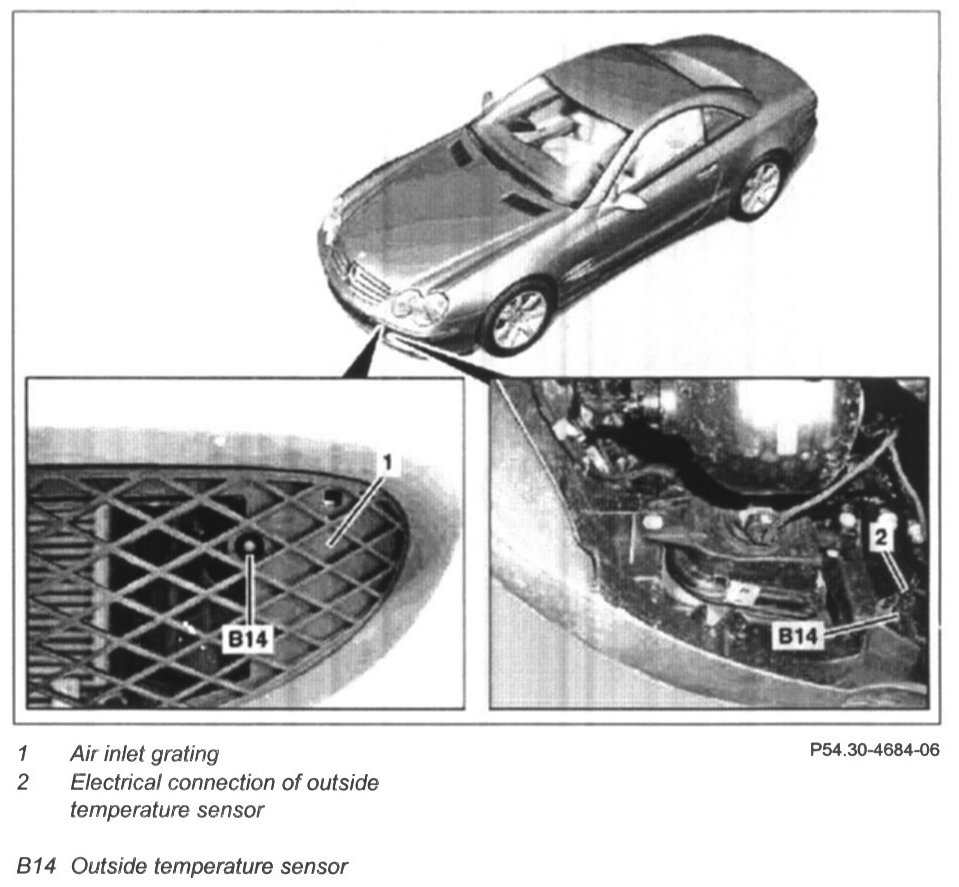

1 Remove left outer engine compartment paneling under radiator
2 Pull outside temperature indicator temperature sensor (B14) out of air inlet grating (1)

CAUTION: Do not pull by the electrical cable.

3 Unclip and unplug electrical connection of outside temperature indicator temperature sensor (2)

NOTE: Installation: Counter the air inlet grating (1) until the outside temperature indicator temperature sensor can be felt to lock.

4 Install in the reverse order.
