Evaporator Temperature Sensor / Switch: Description and Operation

GF83.57-P-2126RI Evaporator Temperature Sensor, Component Description

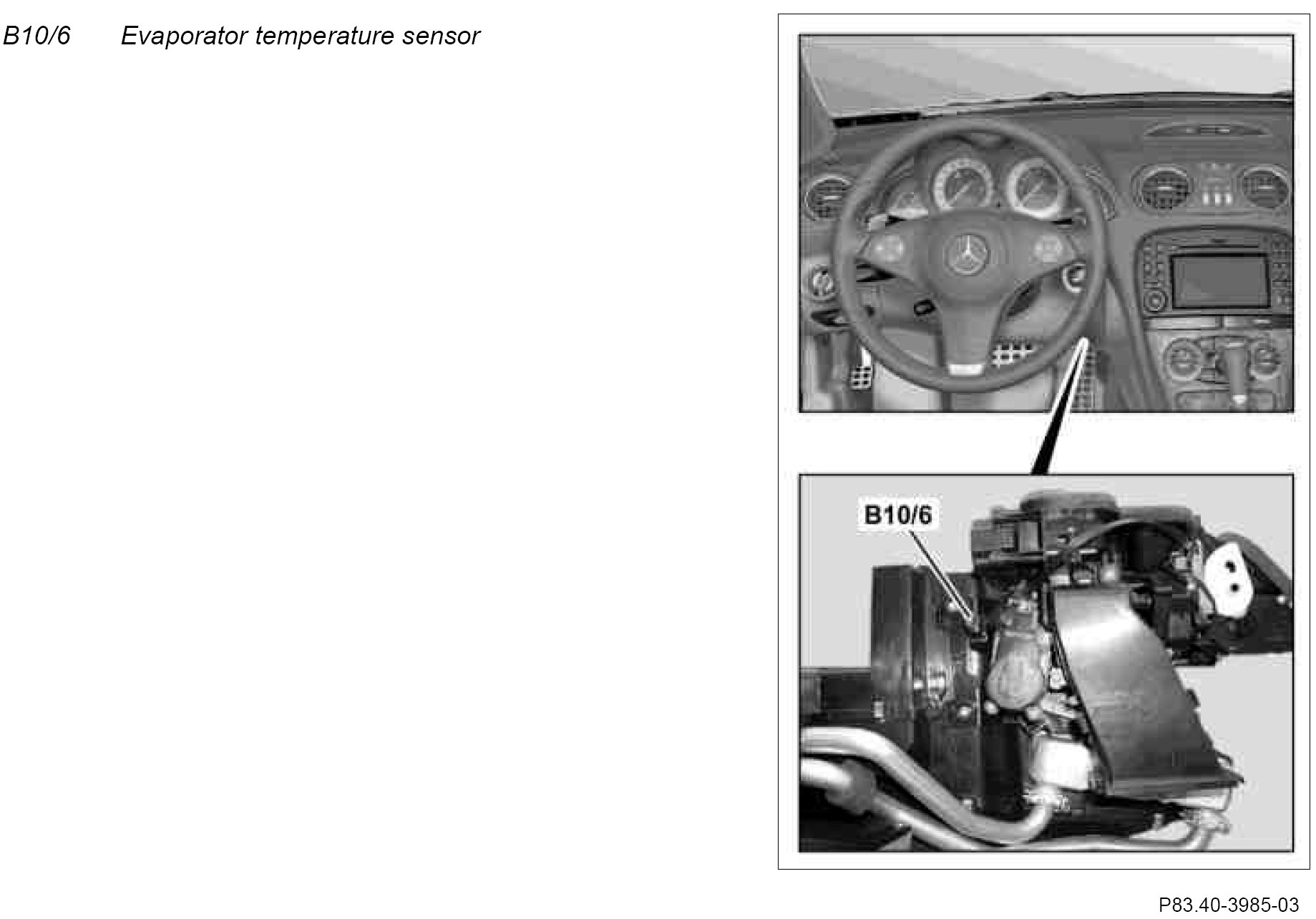

Component Identification:

Location
The evaporator temperature sensor is located in the air flow downstream of the left evaporator in the air conditioning housing.

Task
The evaporator temperature sensor measures the temperature of the air flowing past the evaporator. The evaporator temperature sensor is read in directly by the AAC [KLA] control and operating unit (N22).
