GF30.20-P-2100RIC CC [TPM] Switch, Component Description

GF30.20-P-2100RIC CC [TPM] Switch, Component Description
- with CODE (219) Distronic (DTR)
- except CODE (494) USA version
- refinement package
- as of model year 09

Component Identification:

Location

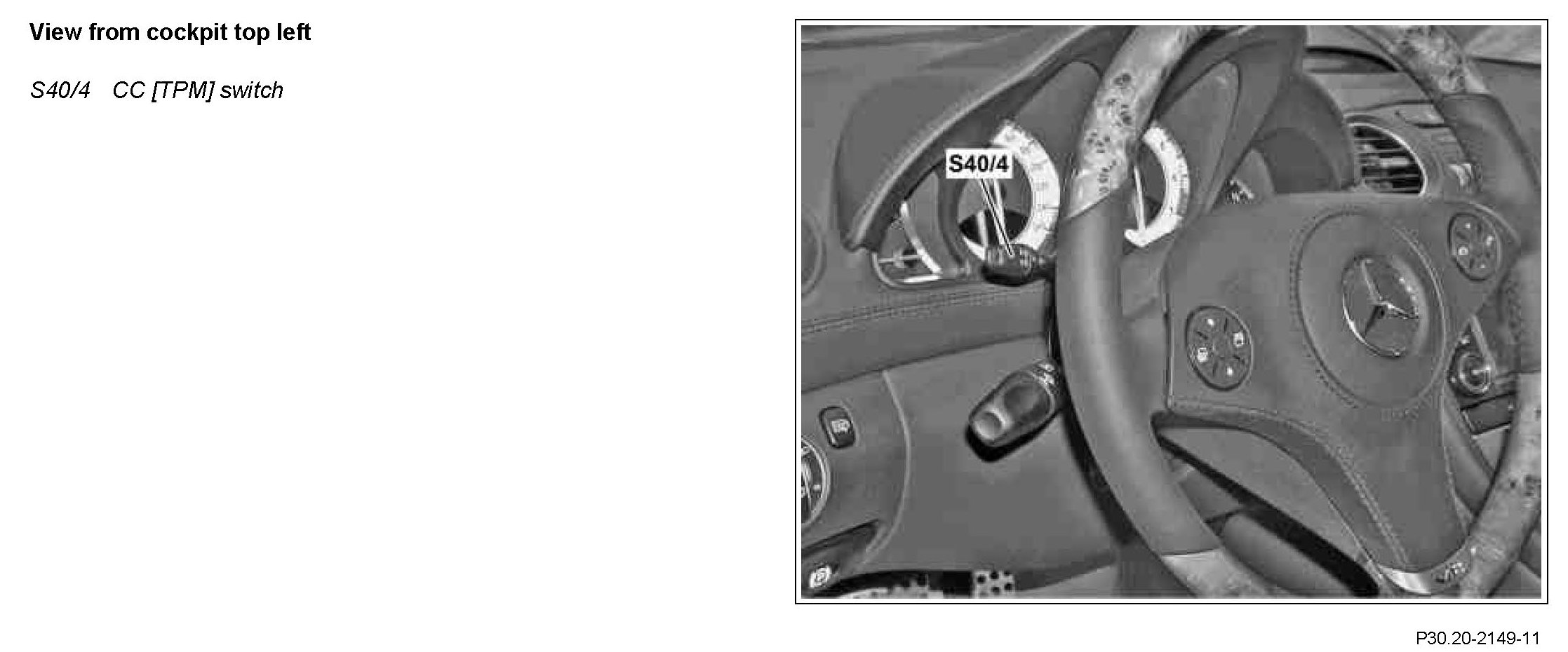

The CC [TPM] switch is located at the top left of the steering column module (N80).

Task
The CC [TPM] switch has the following tasks:
- Activating and deactivating the DISTRONIC function or the Variable Speed Limiter

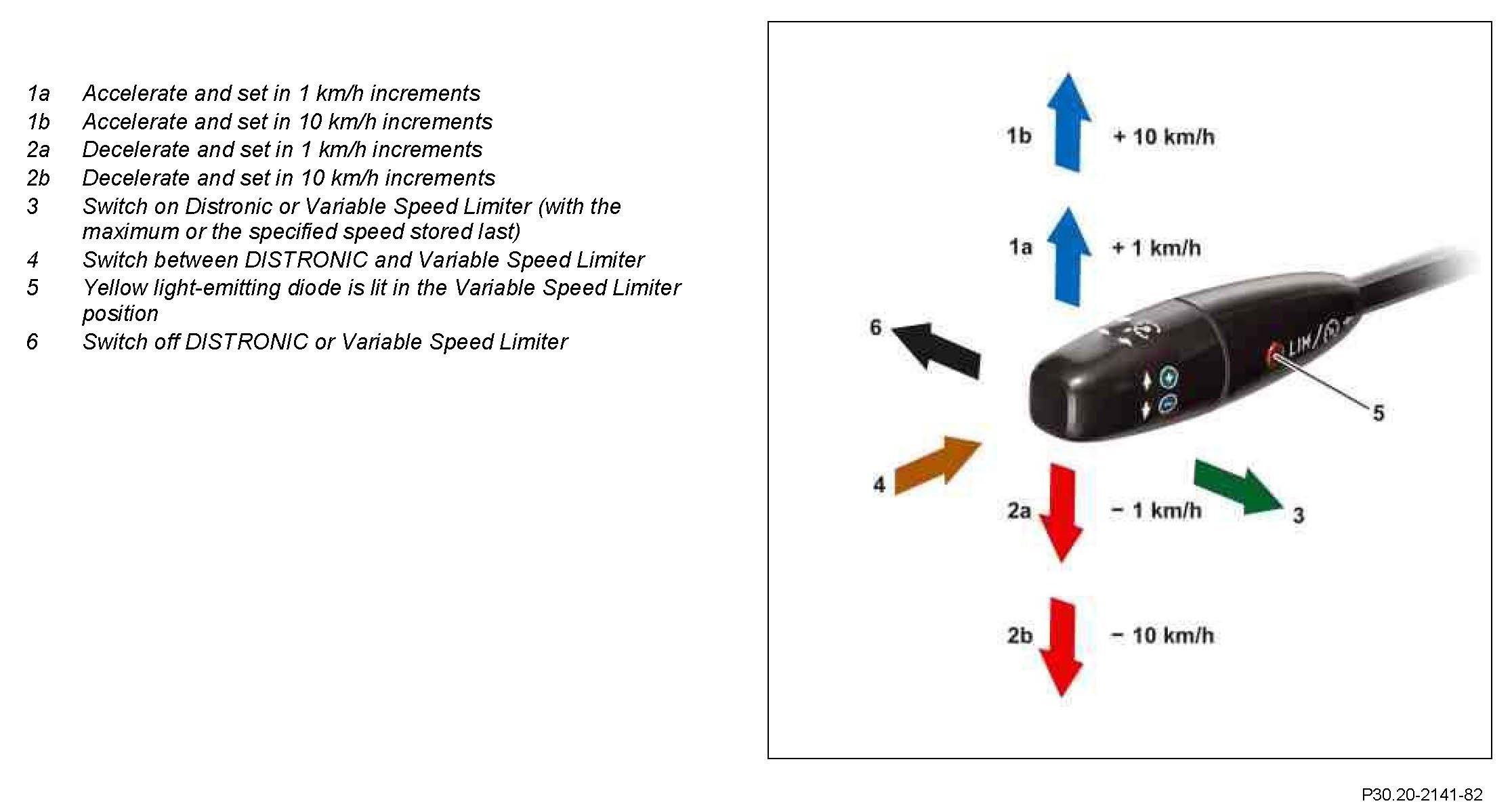

- Increasing and decreasing the specified speed (for DISTRONIC) or the maximum speed (for Variable Speed Limiter) in 1 km/h or in 10 km/h increments (two settings)


Design

Component Identification:

Function

Component Identification:

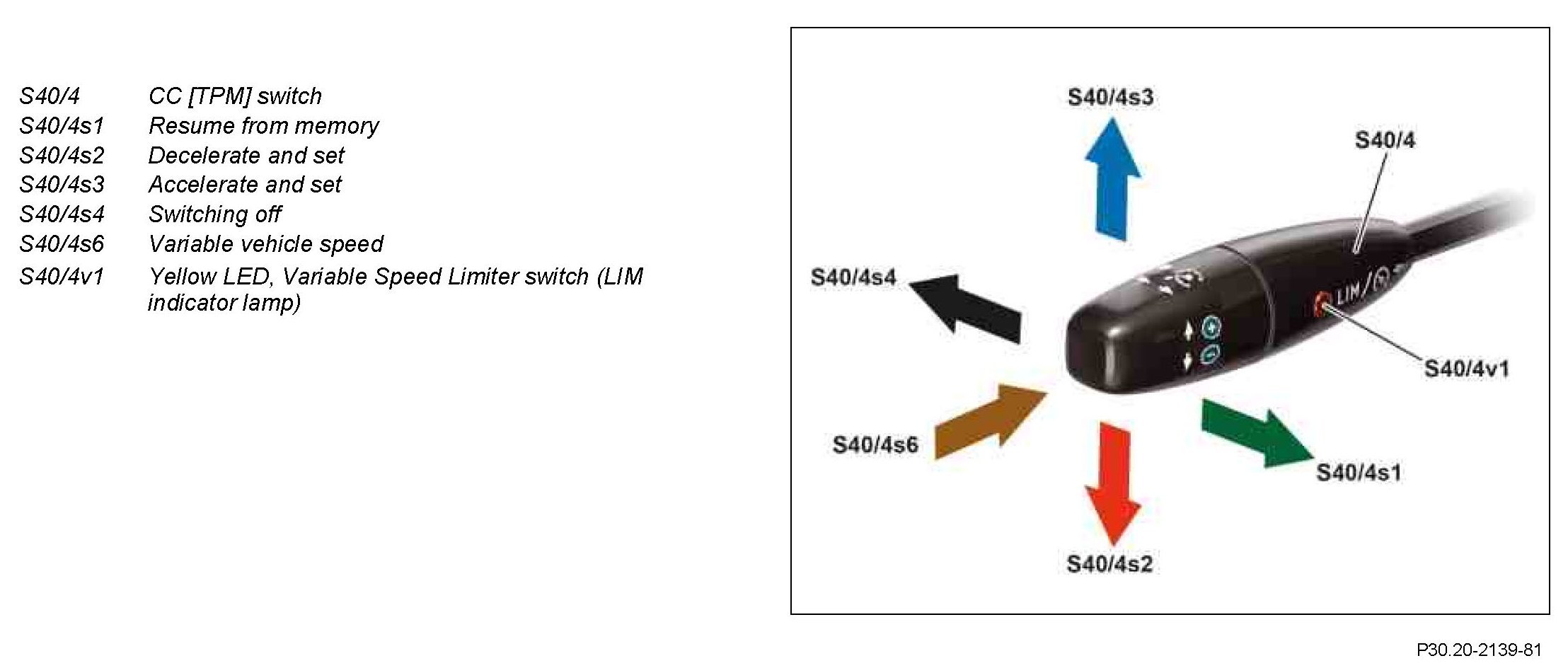

When the cruise control pushbutton switch is operated, two contacts are always closed simultaneously. The actual input is made by closure of the accelerate and set contact (storage of maximum/specified speed). The safety contact (S40/4s5) must close simultaneously so that the entry is accepted.

The signals from the CC [TPM] push button switch are read in by the steering column tube module and transmitted to the ESP, SPS [PML] and BAS control unit (N47-5) via the engine compartment CAN (CAN C) for evaluation.
