GF42.45-P-5107RI Steering Angle Sensor, Component Description

GF42.45-P-5107RI Steering angle sensor, component description

Component Identification:

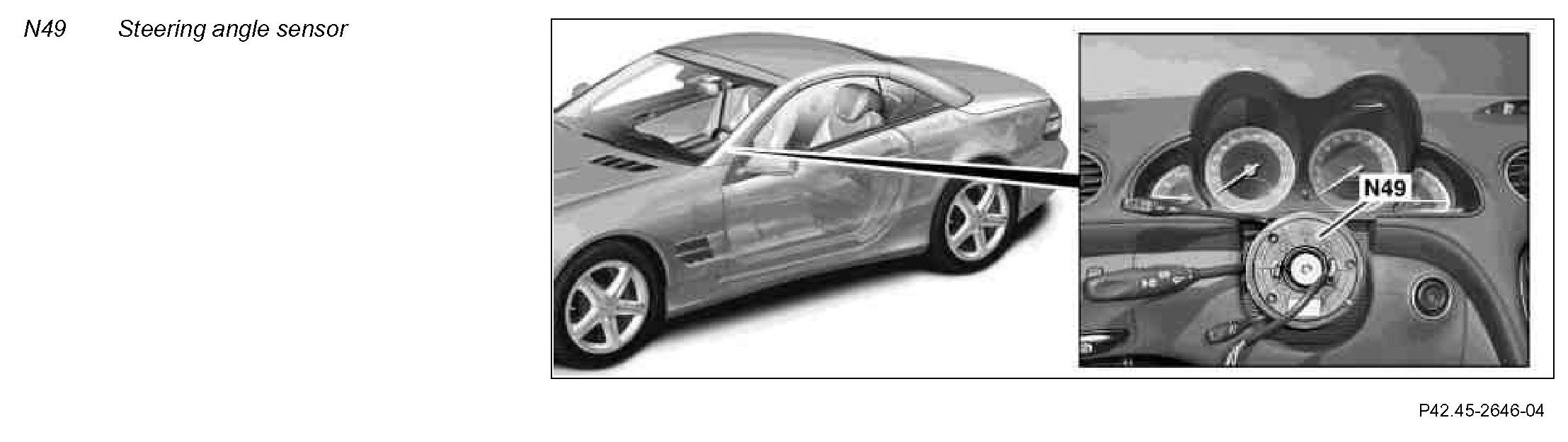

Location
The steering angle sensor is integrated in the steering column tube module (N80).

Task
The steering angle sensor records the current position of the steering wheel and provides the steering column tube module with an electrical voltage signal proportional to the steering lock angle.
