Home >> Mercedes Benz >> 2011 >> SL 65 AMG (230.479) V12-6.0L Turbo (275.981) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Power Trunk / Liftgate Lock Switch >> Service and Repair

Power Trunk / Liftgate Lock Switch: Service and Repair

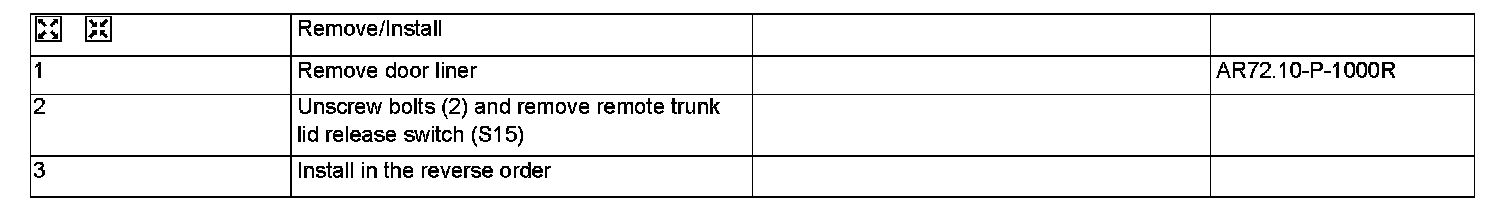

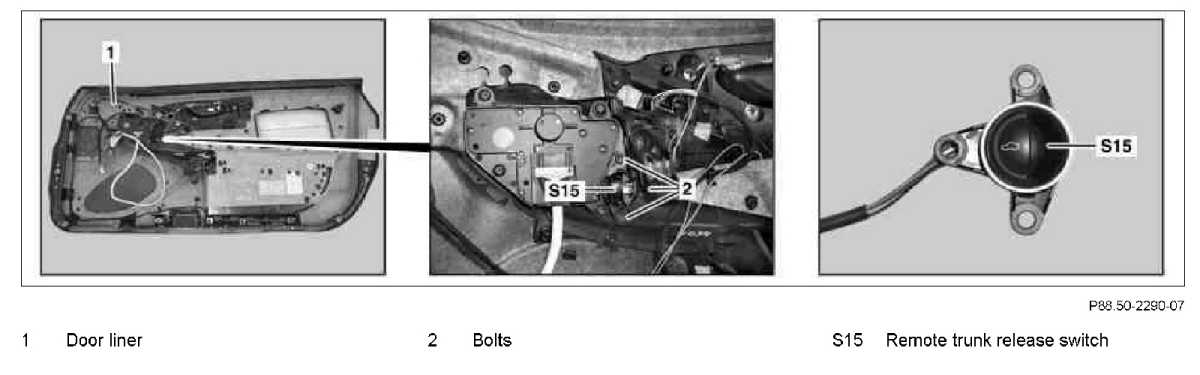

AR88.50-P-5040R Remove/Install Remote Trunk Release Switch
