GF91.60-P-4067RI Seat Occupied Recognition Pressure Sensor, Component Description

GF91.60-P-4067RI Seat Occupied Recognition Pressure Sensor, Component Description
- with CODE (494) USA version

Component Identification:

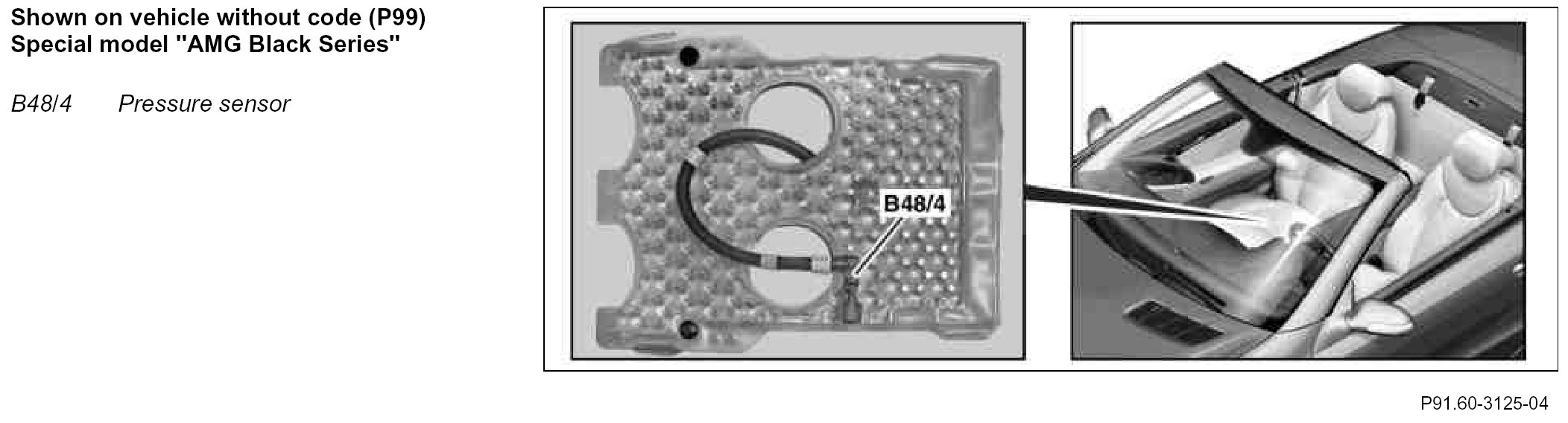

Location
The pressure sensor is located under the seat cushion at the seat cushion frame of the front passenger seat.

Task
The pressure sensor determines the weight applied to the front passenger seat by means of a pressure measurement in a seat mat filled with silicone.

The value is used by the Weight Sensing System (WSS) control unit (N110) for determining the occupancy status of the front passenger seat.
