AR47.20-P-5717RBS Remove/Install Fuel Pump Control Unit



AR47.20-P-5717RBS Remove/Install Fuel Pump Control Unit
- with CODE (P99) "AMG Black Series" special model

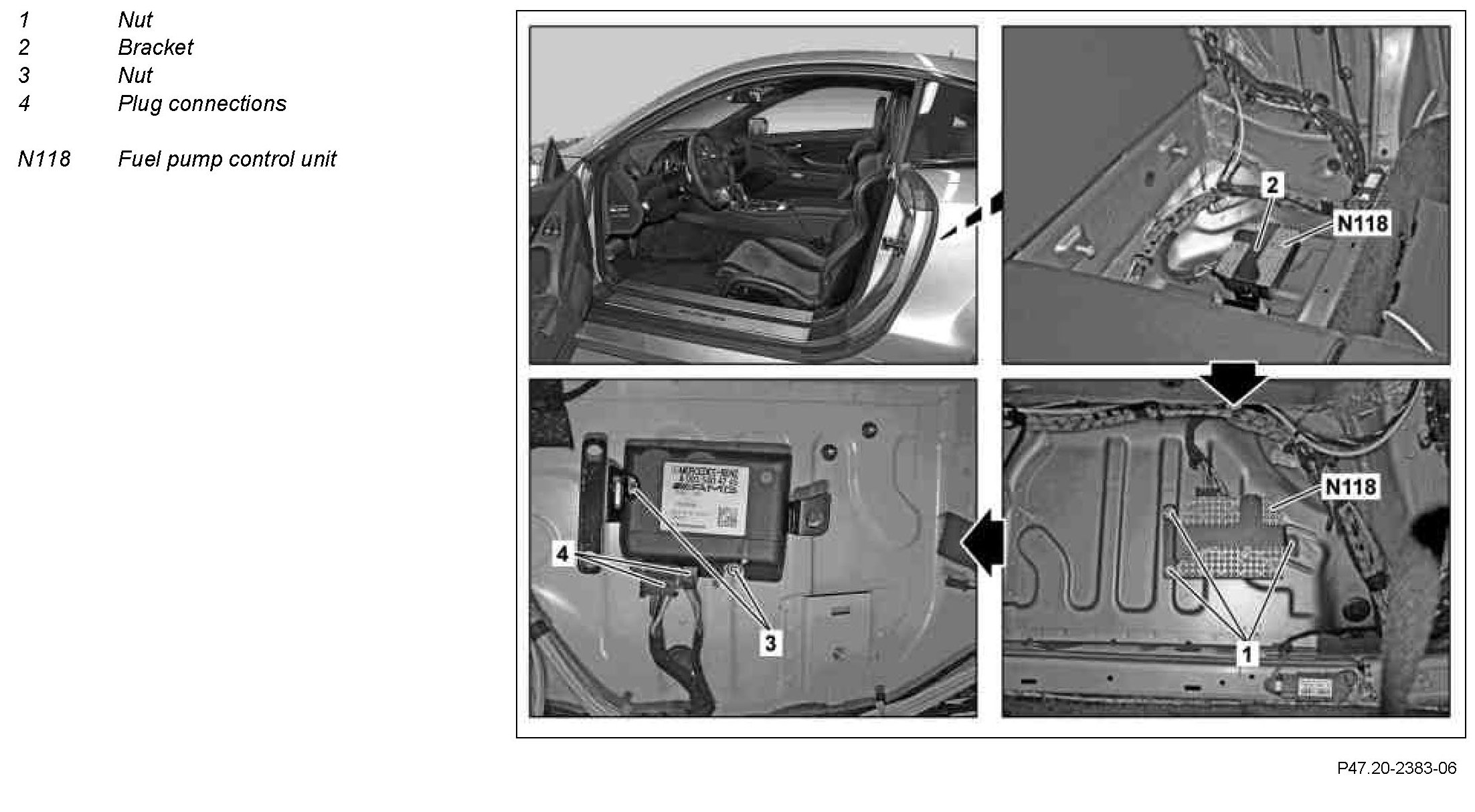

Component Identification:

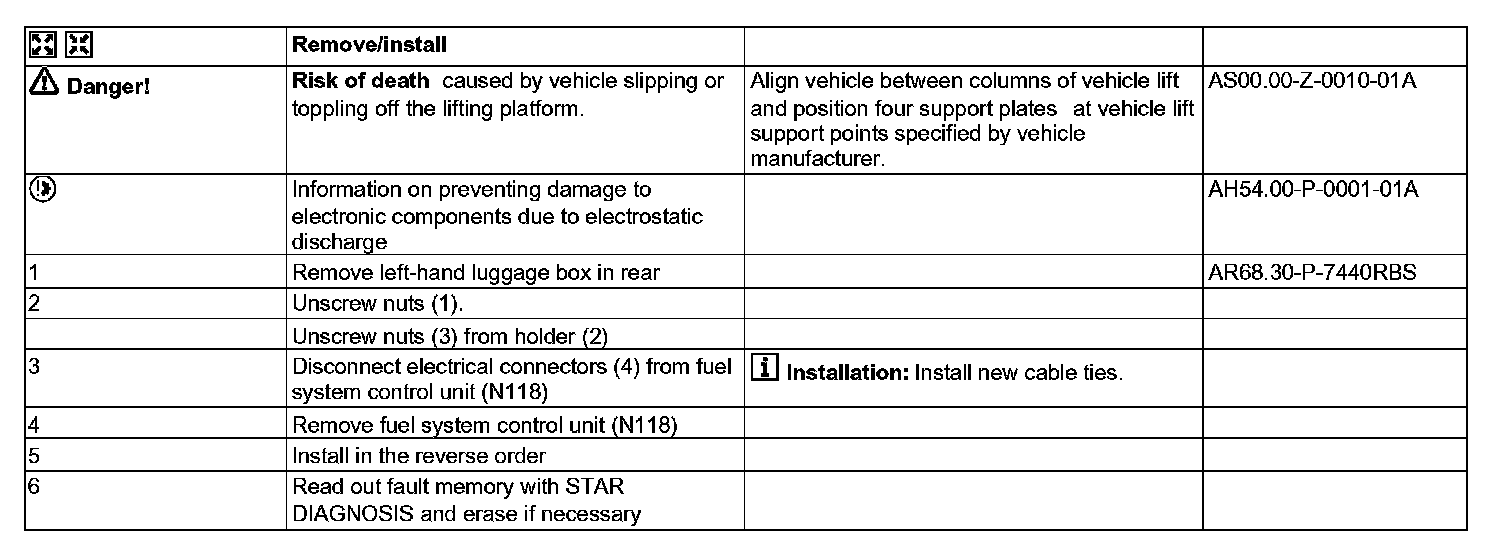

Steps 1 - 6:
