AR54.65-P-0006R Remove/Install Parktronic System (PTS) Control Module

AR54.65-P-0006R Remove/Install Parktronic System (PTS) Control Module
- with CODE (220) Parktronic System (PTS)







1 Remove Keyless Go control module

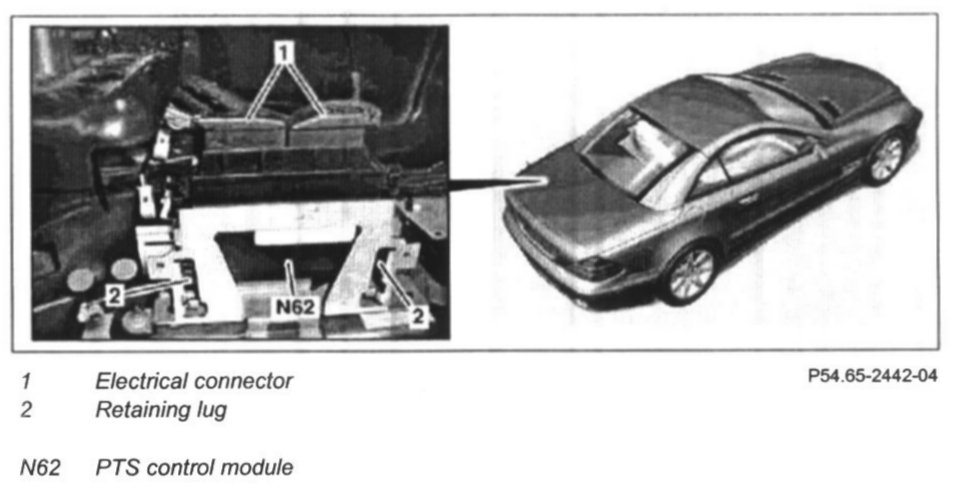

2 Disconnect electrical connectors (1).
3 Press retaining lugs (2) and pull PTS control module (N62) up and out.
4 Install in the reverse order
5 Read out fault memory
6 Download basic data from STAR DIAGNOSIS
