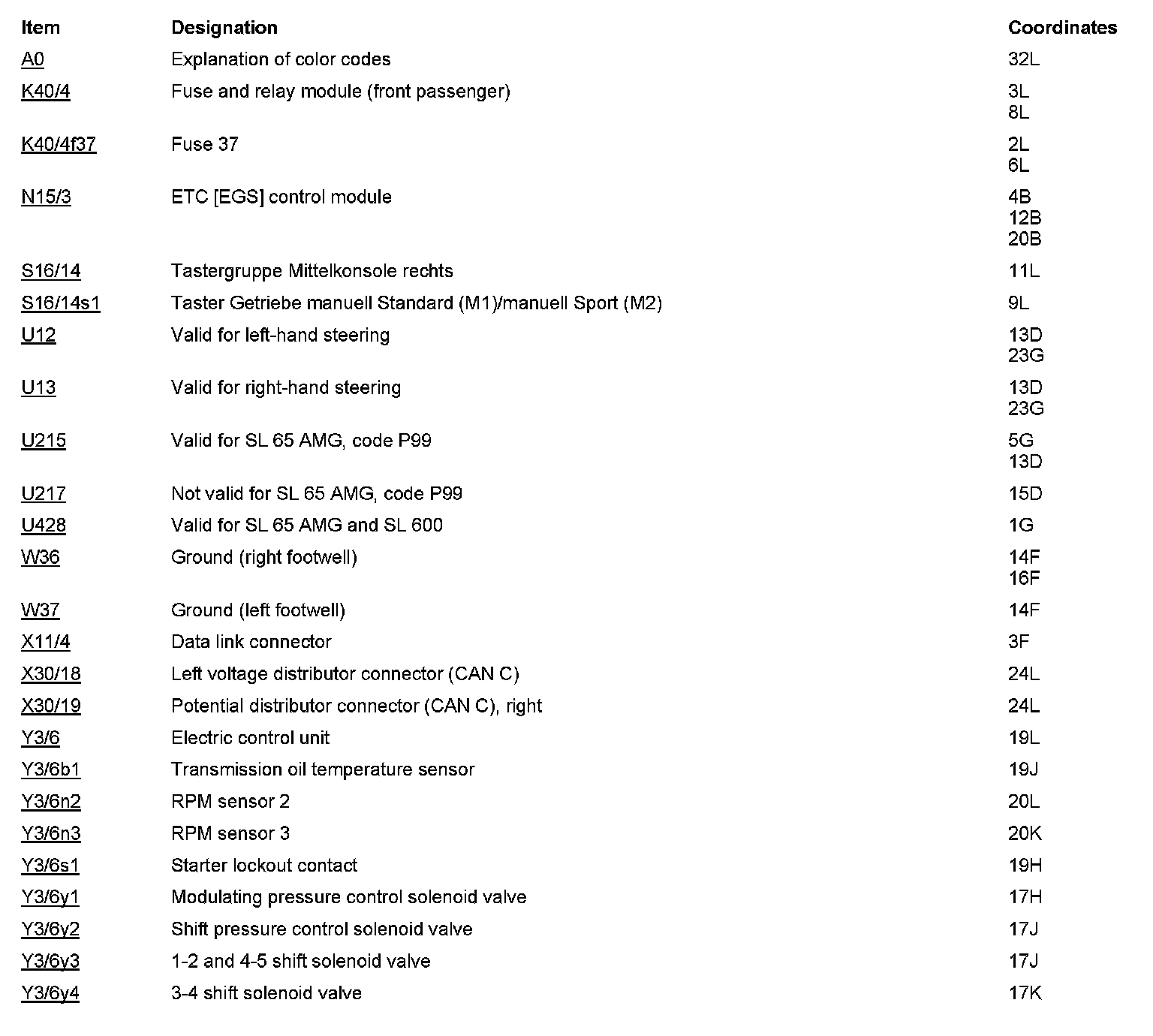

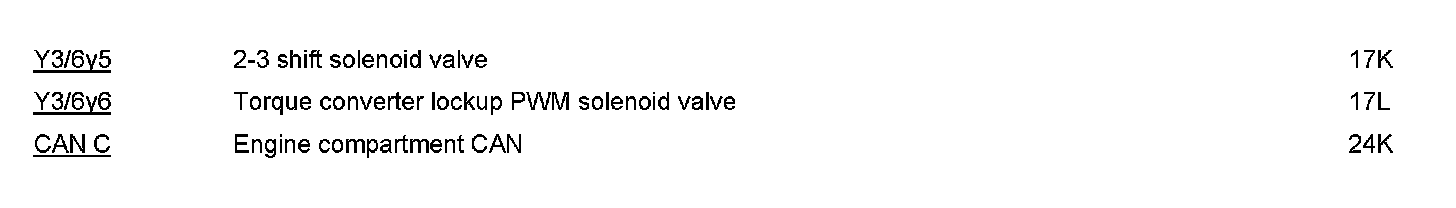

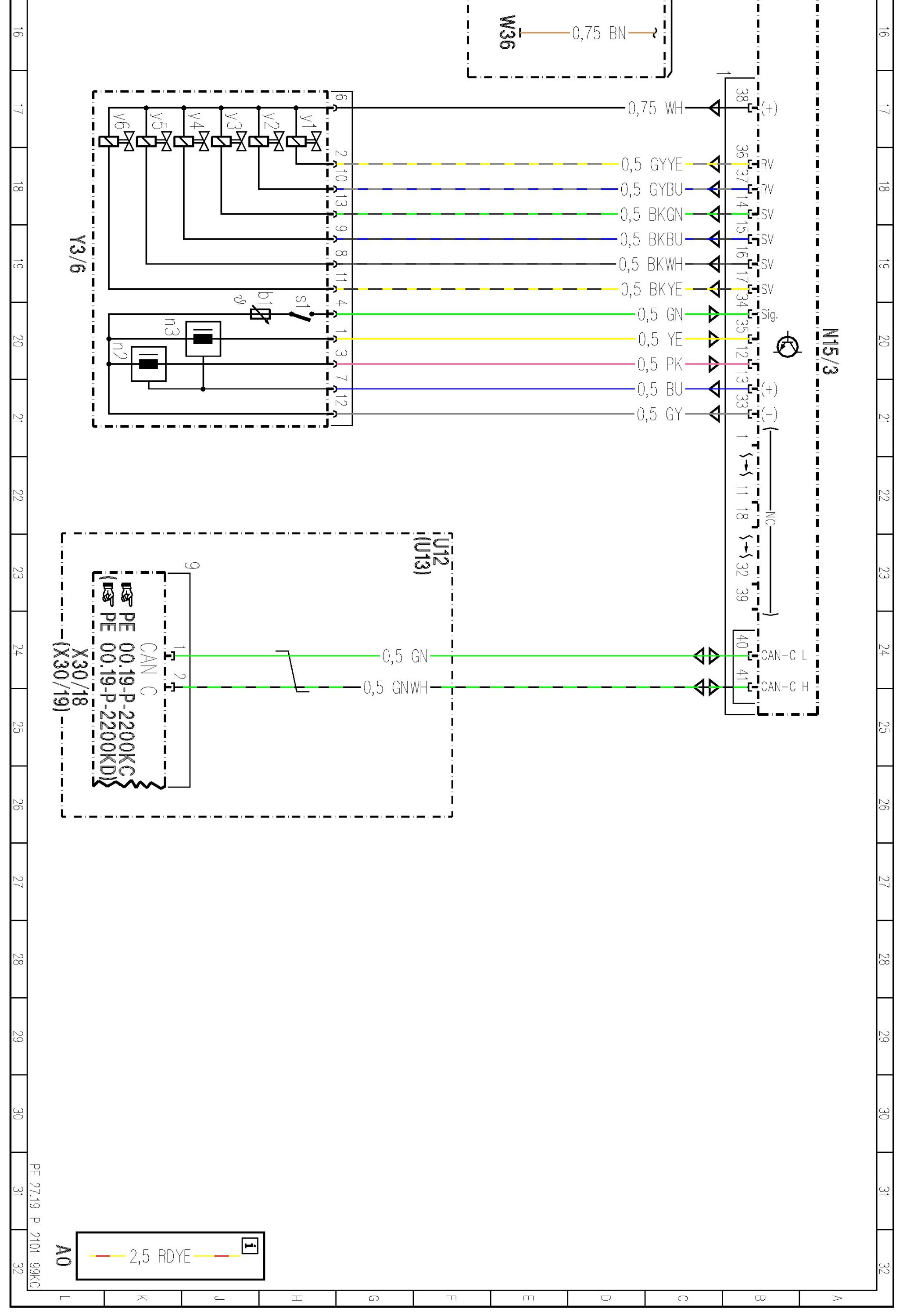

PE27.19-P-2101KC Electronic Transmission Control (ETC) Control Module, Wiring Diagram

Transmission 722.6 in Model 230
- with CODE (423) Automatic five speed transmission (NAG)
- as of model year 2009 /YoM 08 model refinement package
- Control unit N15/3


























Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
