AR20.20-P-3866RMB Remove/Install Additional Radiator



AR20.20-P-3866RMB Remove/install additional radiator
- as of model year 2008
- except CODE (P99) Special model "AMG Black Series"

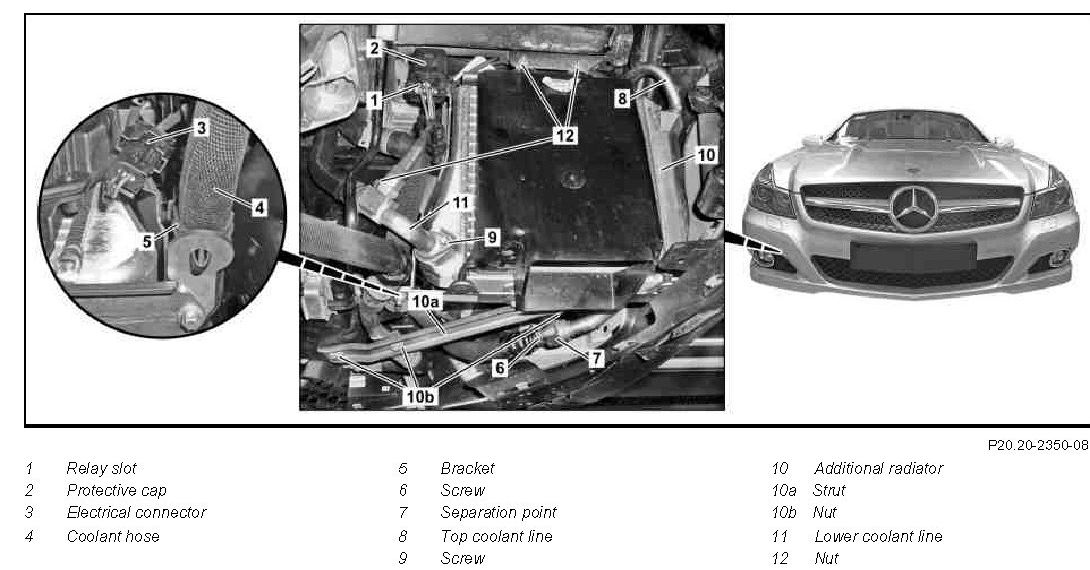

Component Identification:

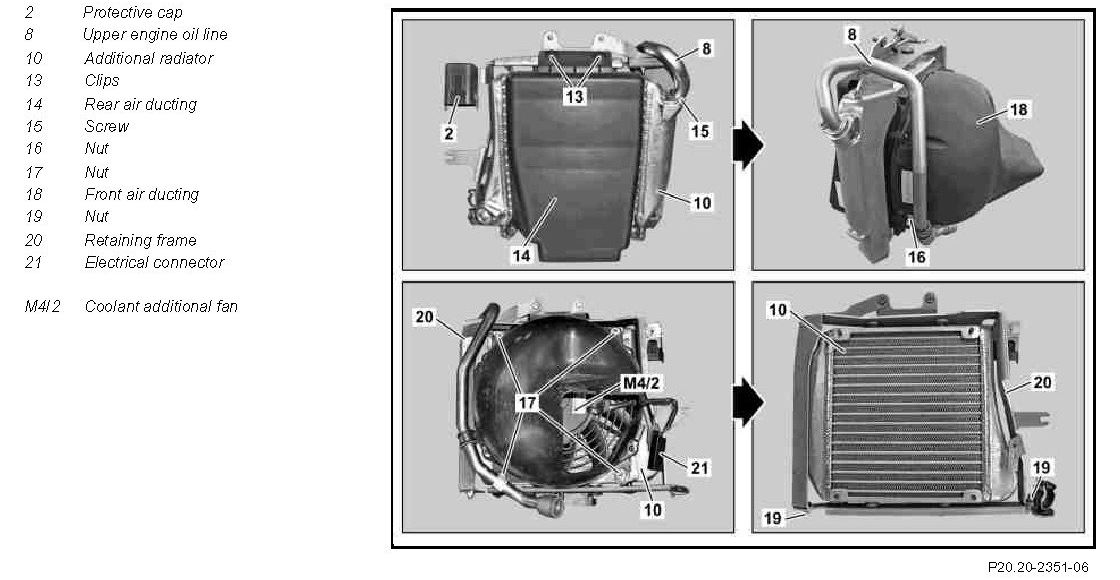

Component Identification:




Notes:

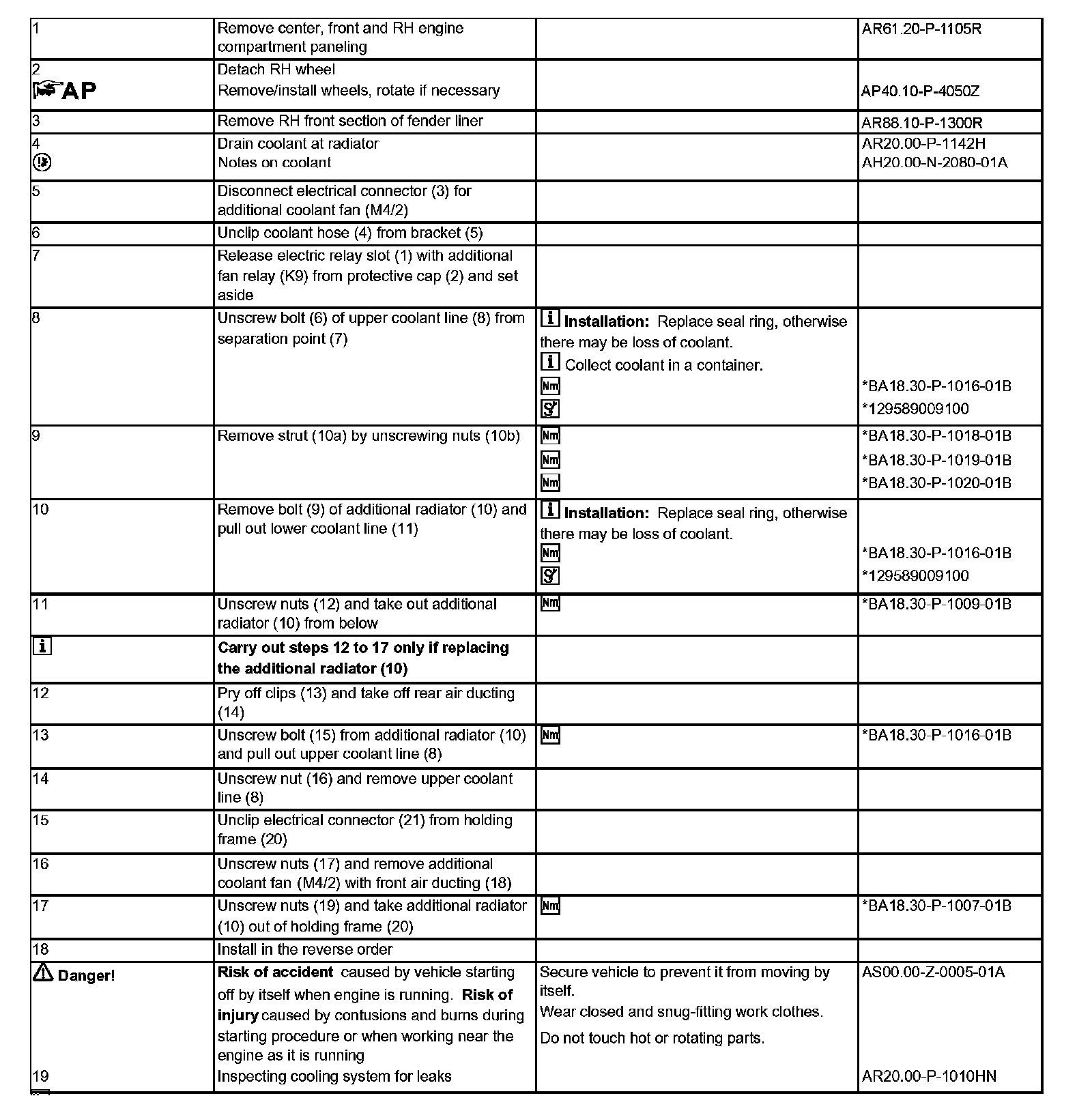

Remove/install Steps 1-19:

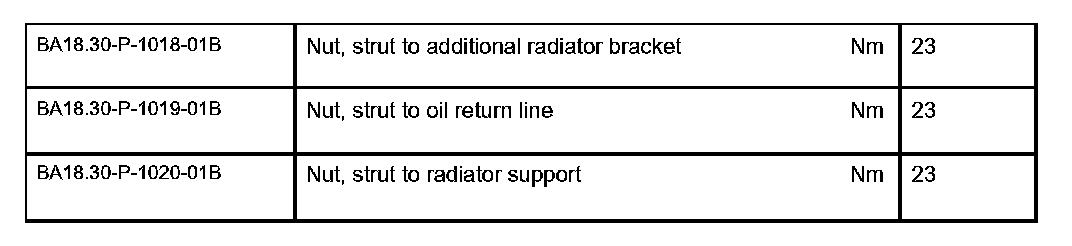

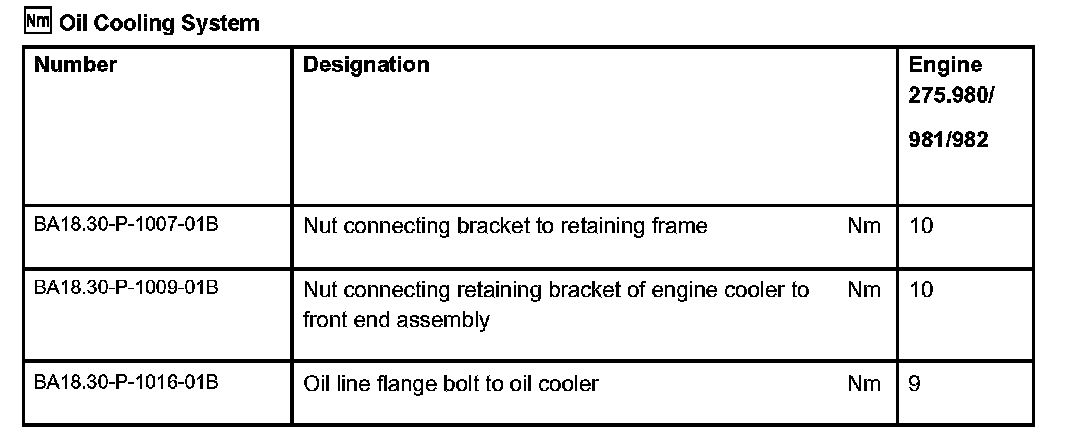

Oil cooling system:

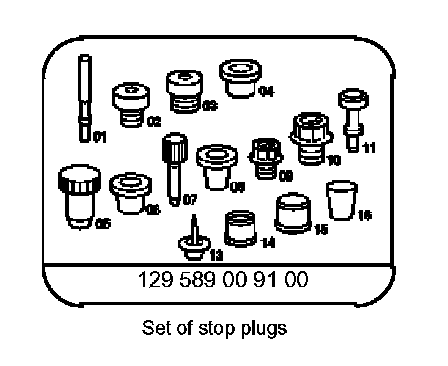

Special Tools:
