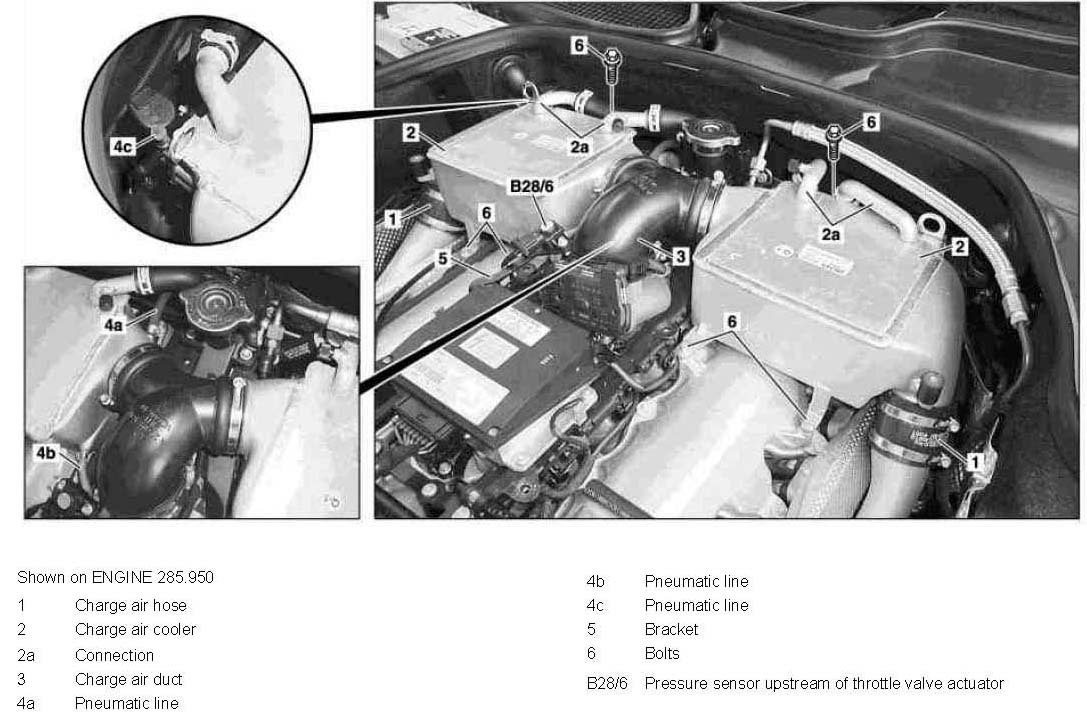

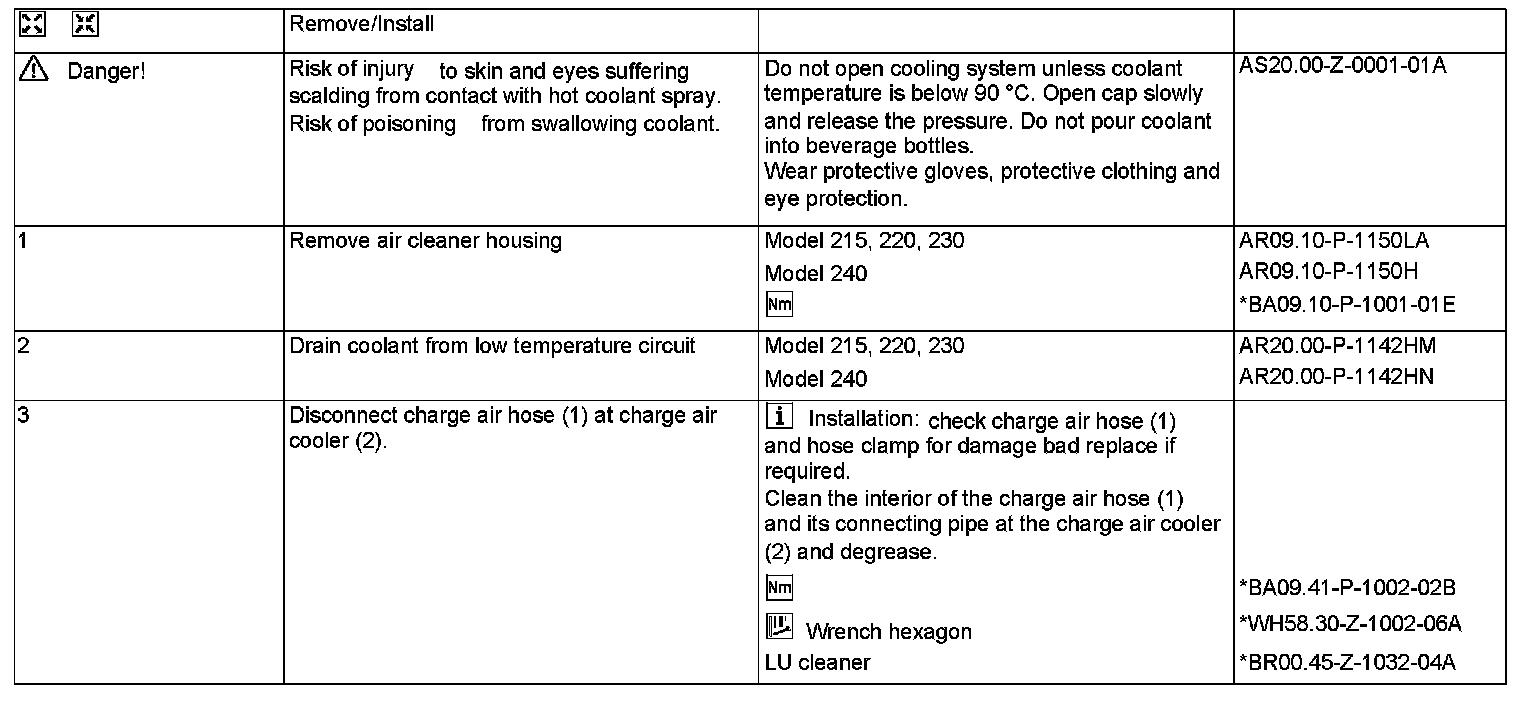

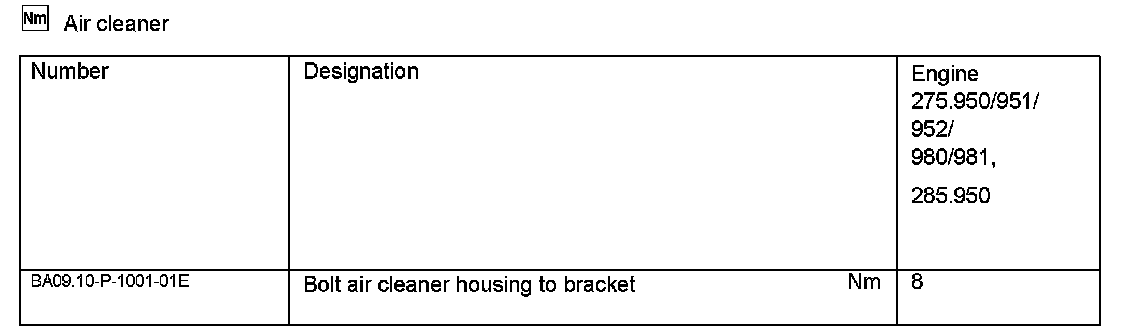

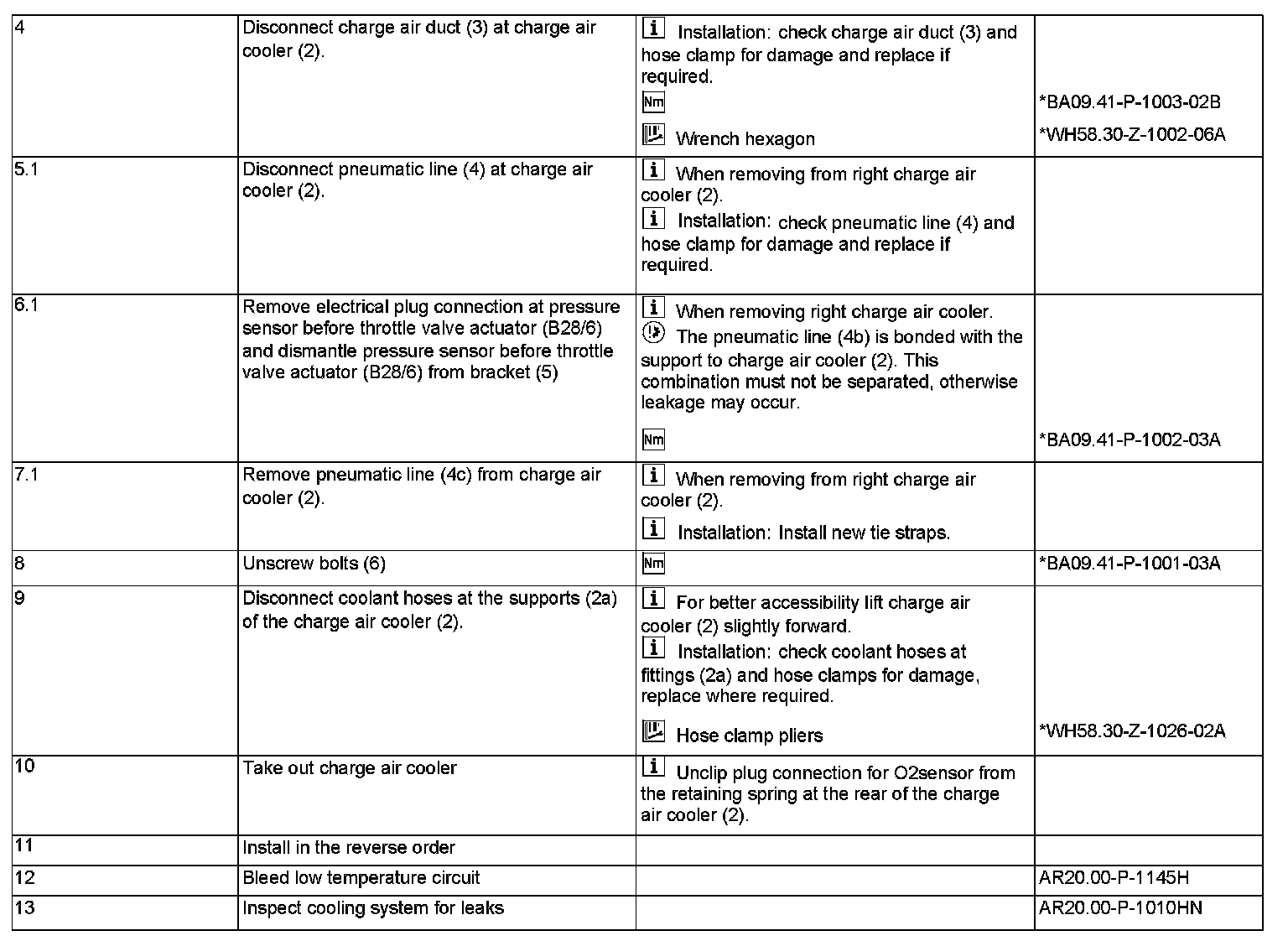

AR09.41-P-6817HH Remove/Install Charge Air Cooler
AR09.41-P-6817HH Remove/Install Charge Air Cooler
AR09.41-P-6817HH Remove/Install Charge Air Cooler
