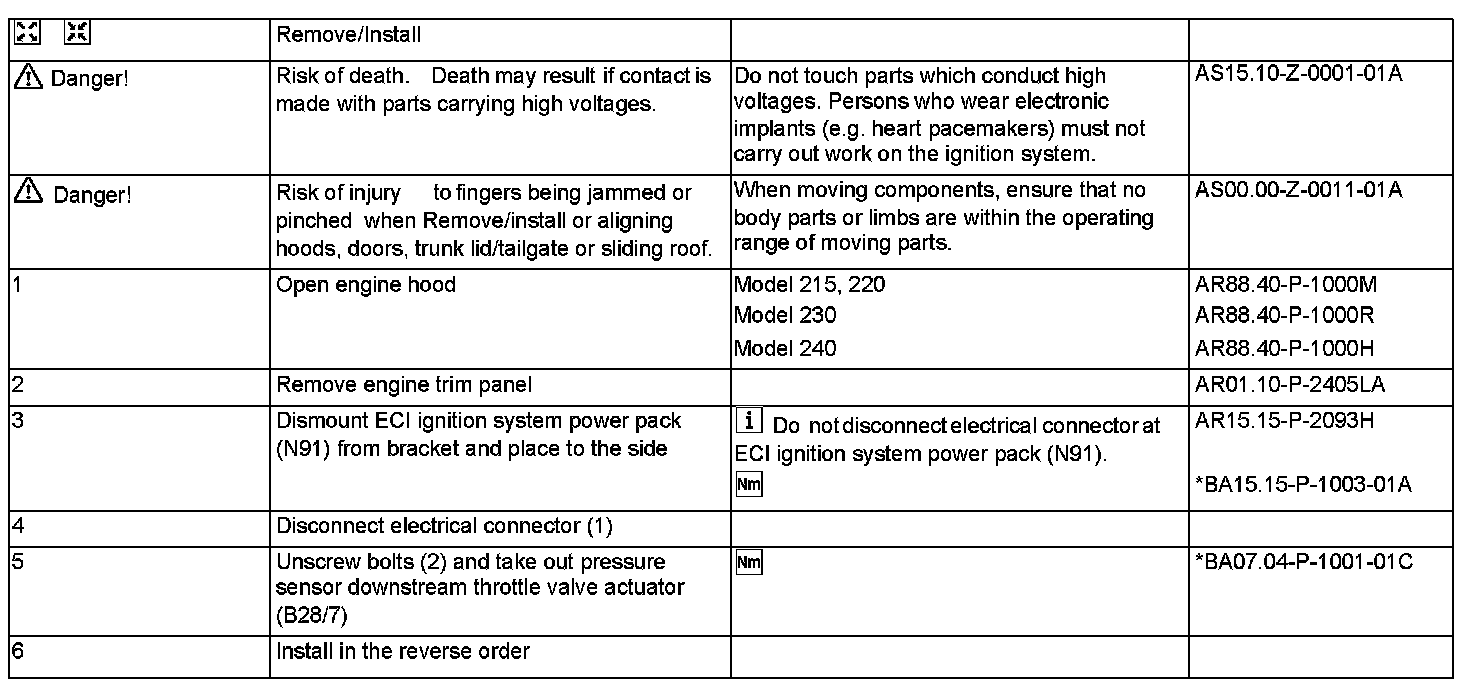

AR07.04-P-0101HA Remove/Install Downstream Pressure Sensor Throttle Valve Actuator



AR07.04-P-0101HA Remove/Install Downstream Pressure Sensor Throttle Valve Actuator

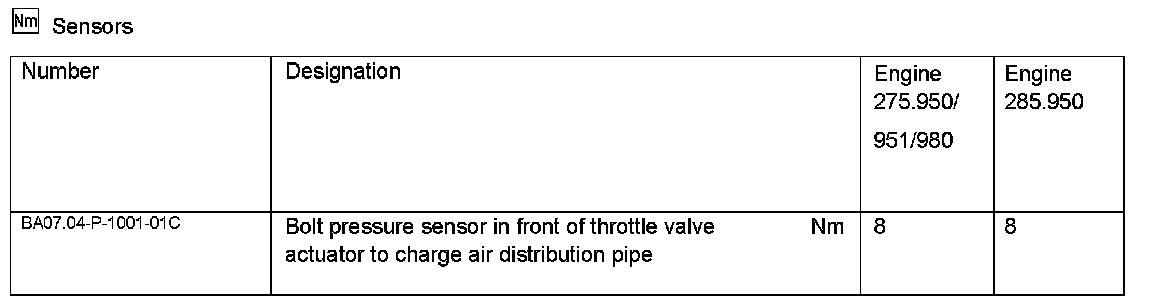

Sensors:

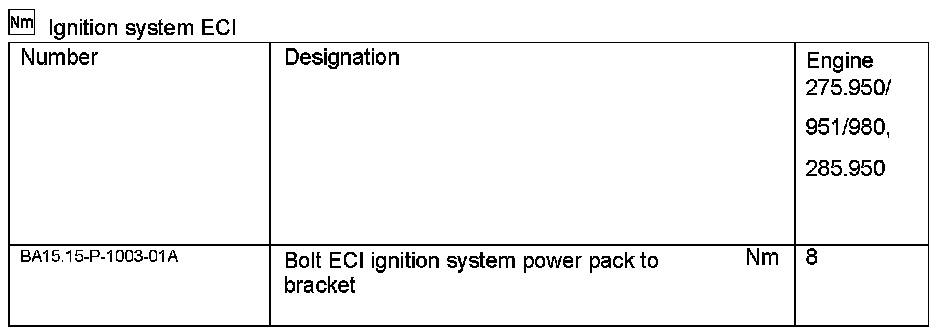

Ignition System ECI:
