GF07.03-P-6010MOR Component Description For Fuel Injection Valves

GF07.03-P-6010MOR Component Description For Fuel Injection Valves
- refinement package
- as of model year 09

Component Identification:

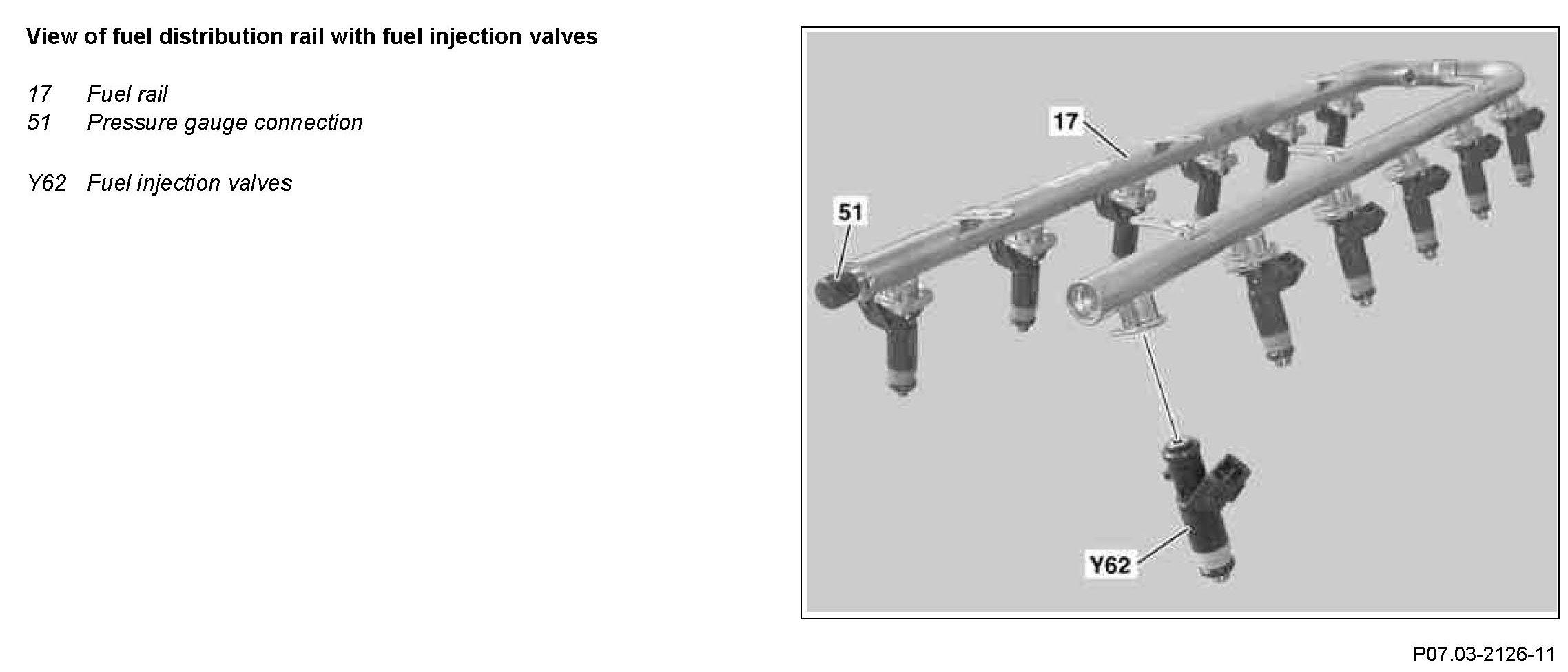

Location
The fuel injection valves are plugged into the cylinder head intake ports under the fuel distribution rail.

Task
The fuel injection valves spray a calculated fuel quantity at a specifically determined point in time, finely atomized, into the intake port of the respective cylinder.

Design
The diameter and number of the outlet holes in the multi-hole nozzle are adjusted to the fuel requirement of the engine (engine power).

Component Identification:

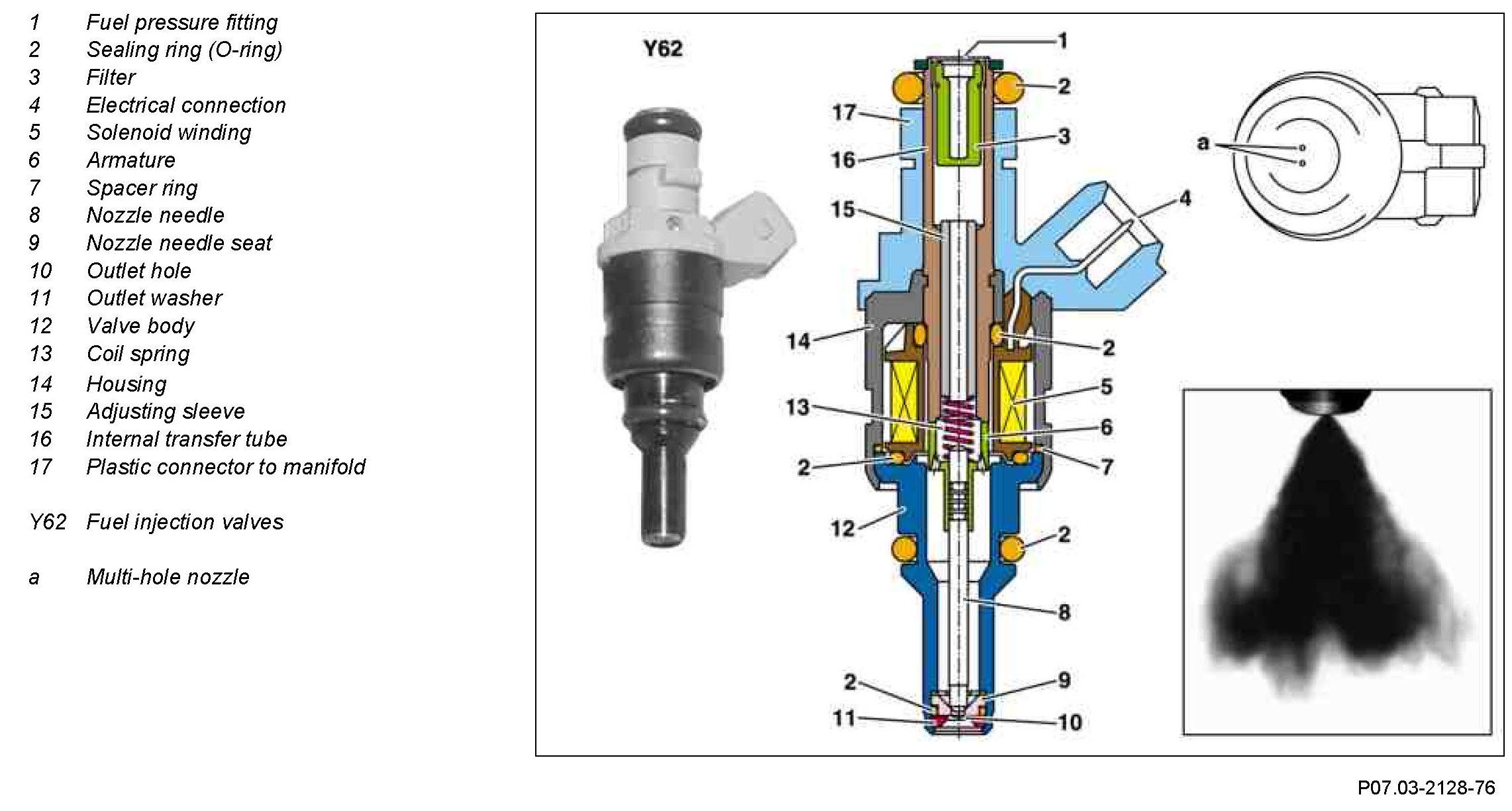

Function
When magnet coil (5) is energized, nozzle needle (8) is raised about 0.1 mm by the solenoid armature (6) against coil spring (13).

The fuel escapes through the multi-hole nozzle (a) and is sprayed into the intake port in a finely atomized spray.

Each of the fuel injection values is directly actuated in sequence via ground impulses of appropriate length from the ME-SFI [ME] control unit (N3/10).
The voltage supply takes place from "circuit 87 M1".

Sequential actuation means that a fuel quantity (injection quantity) is calculated for each cylinder and supplied to the cylinder.
