GF47.10-P-3004MOR On-Board Refueling Vapor Recovery Function

GF47.10-P-3004MOR On-board Refueling Vapor Recovery Function
- MODEL 230.4 with ENGINE 275.9 as of model year 2009
- with CODE (494) USA version /AEJ 08 model refinement package

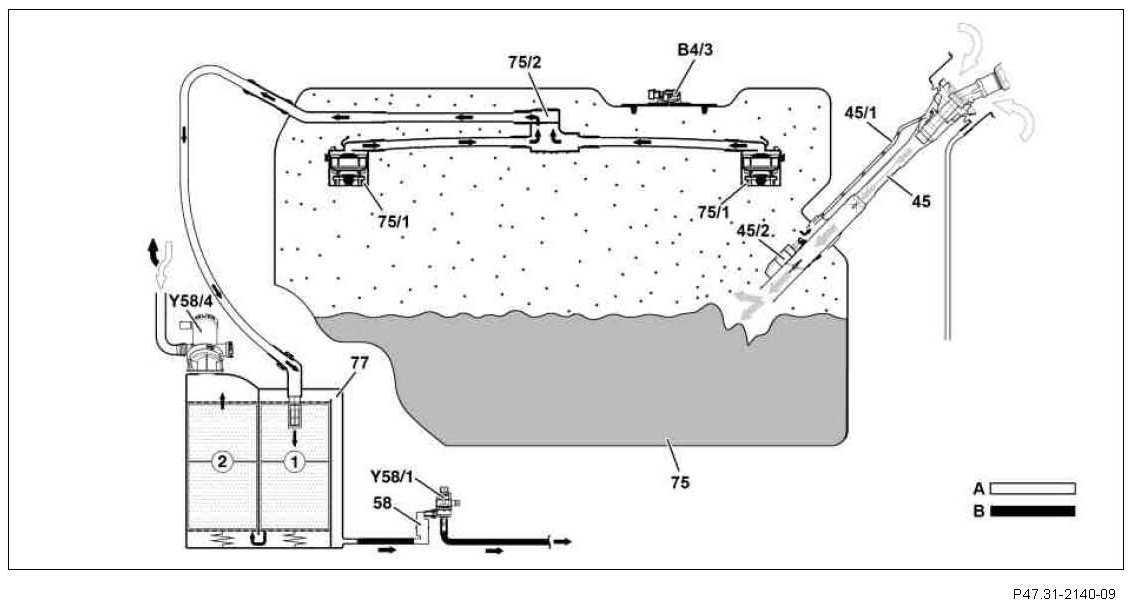

Schematic diagram of fuel tank aeration and ventilation
1 Activated charcoal canister chamber 1
2 Activated charcoal canister chamber 2
45 Fuel filler neck
45/1 Recirculation line (for air drawn in when refueling)
45/2 Float with flap
58 Fluid reservoir
75 Fuel tank
75/1 Safety valve (rollover valve)
75/2 Fuel retention valve
77 Activated charcoal canister
B4/3 Fuel tank pressure sensor
Y58/1 Purge control valve
Y58/4 Activated charcoal filter shutoff valve
A Air admission line and vent line
B Purge line

On-board refueling vapor recovery, general points
The legislator requires that the refueling vapors in the vehicle are collected (ORVR = Onboard Refueling Vapor Recovery).
Fuel and refueling vapors must be separated in order to prevent fuel from flowing into the activated charcoal canister due to inappropriate refueling or a defective nozzle.

On-board refueling vapor recovery, function sequence
Thanks to its shape, the fuel filler neck functions as a suction jet pump. The fuel out of the nozzle accelerates through this in the filler neck and air is suctioned around the nozzle.
As a result of this air intake (in the fuel tank) around the nozzle, refueling vapors are not able to rise up at the fuel filler neck and escape into the atmosphere.
The refueling vapors flow through the two safety valves (rollover valves), the fuel retention valve and the aeration/vent line to the activated charcoal canister, where they are stored.

If fuel gets into the two safety valves at the top (when fueling, braking, accelerating or cornering), these close off the aeration/vent line to the activated charcoal canister. This prevents fuel from reaching the activated charcoal canister.
The fuel retention valve also prevents fuel from reaching the activated charcoal canister.

When the fuel tank is full, the float valve closes off the fuel filler neck. This ensures that the refueling nozzle shuts off more rapidly and overfilling is largely prevented.

The safety valve closes off the ventilation system in the event of an accident (rollover), and thus prevents fuel from escaping.

When purging is enabled, the fuel vapors are drawn off through the purge line by the engine, and burnt together with the fuel gases from the activated charcoal canister.
