Catalytic Converter: Service and Repair
AR49.10-P-5500RM Removing/installing the catalytic converter

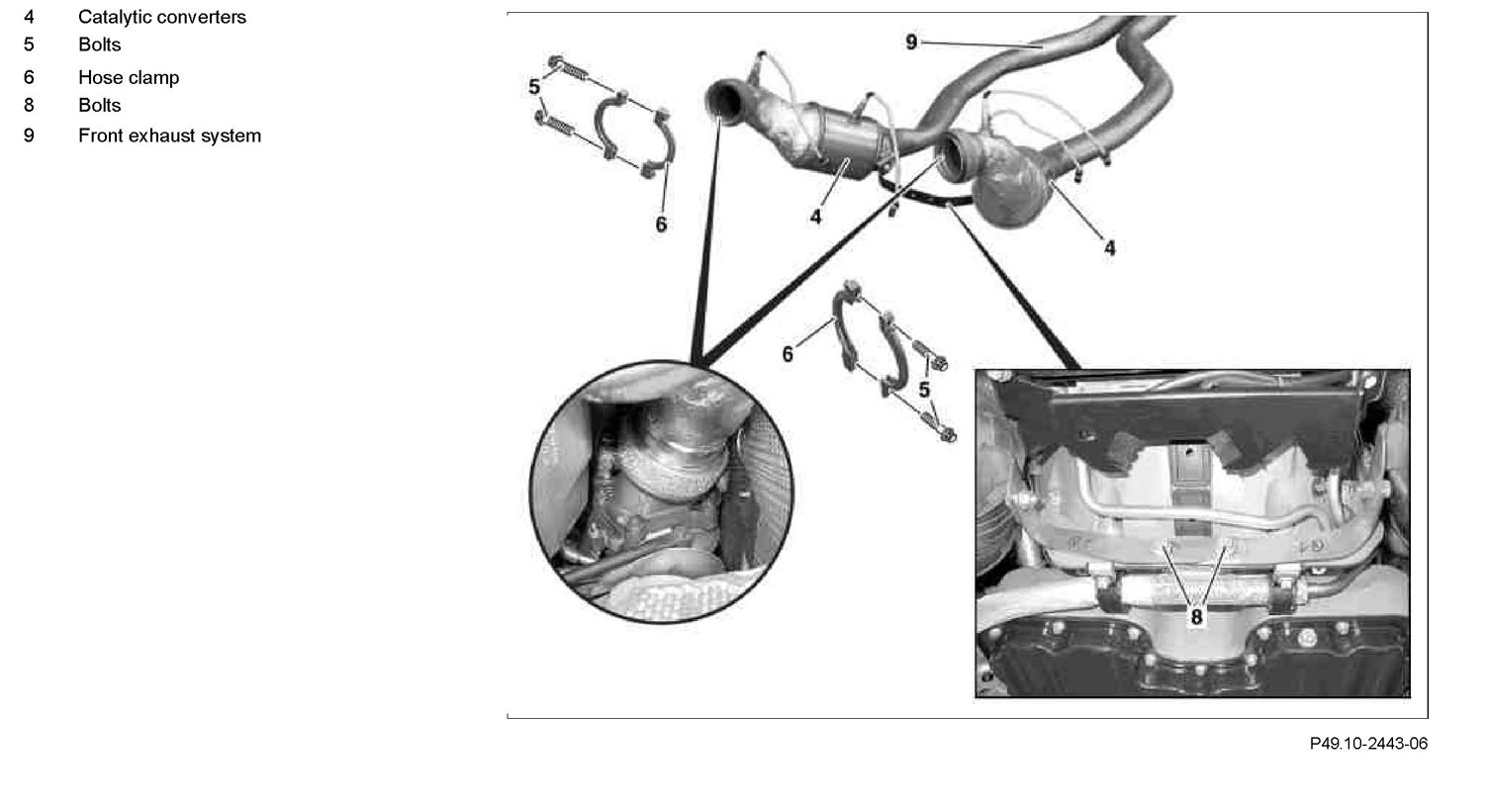

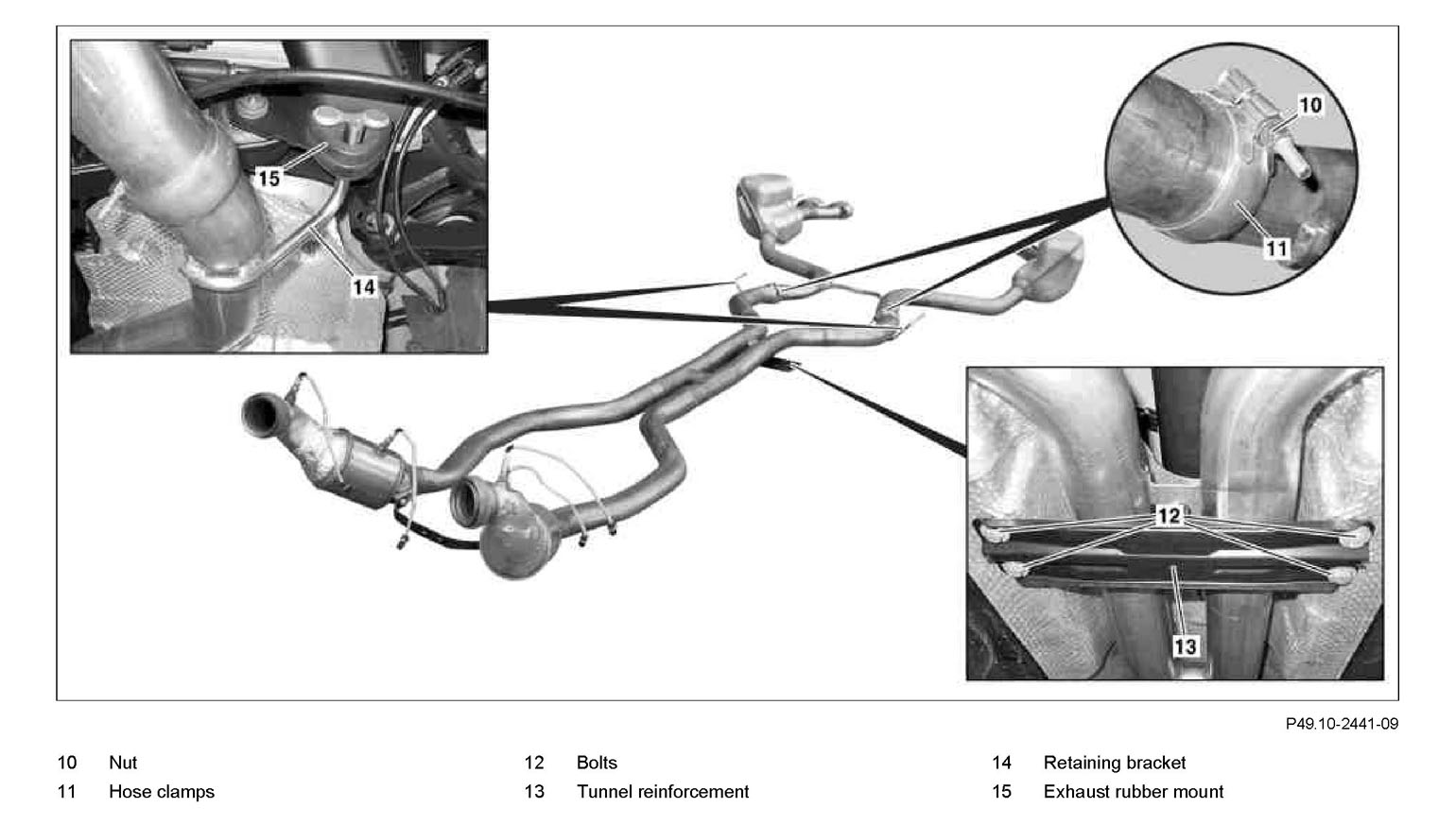

Component Identification:

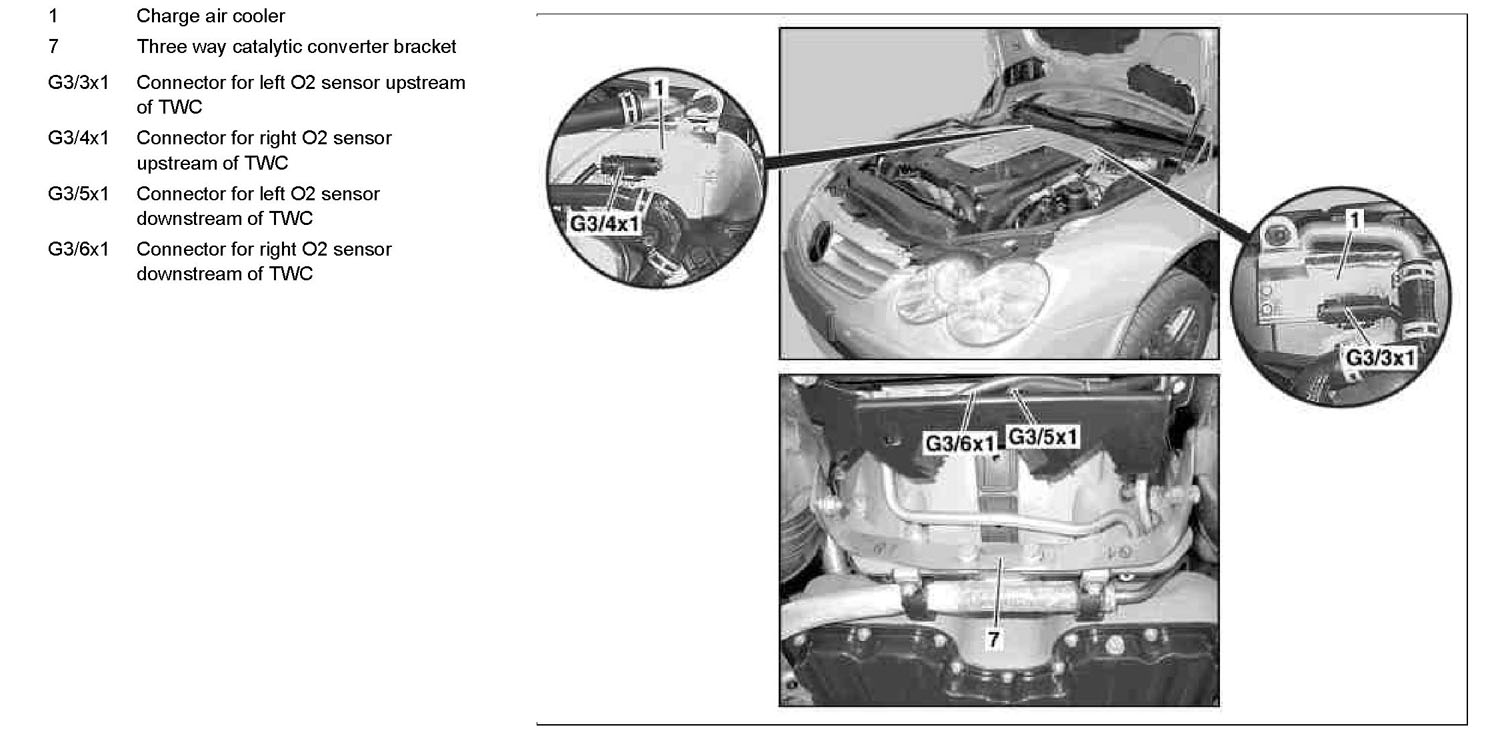

Component Identification:
Component Identification:
Steps 1-9:

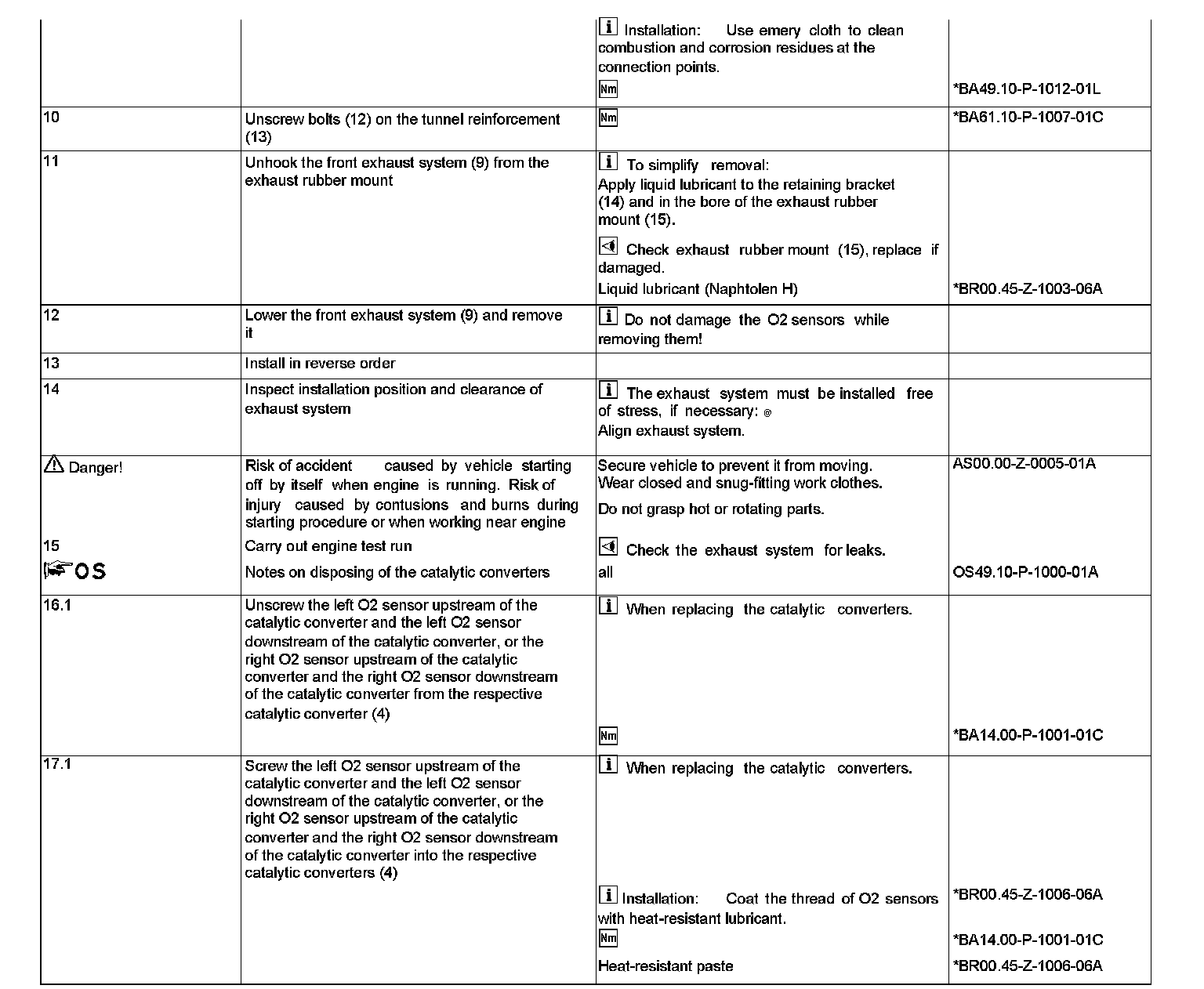

Steps 10-17.1:

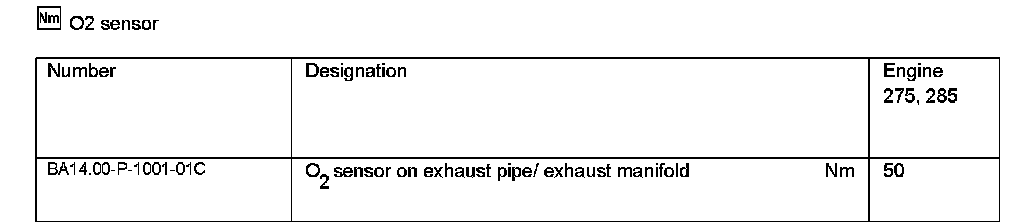

O2 Sensor:

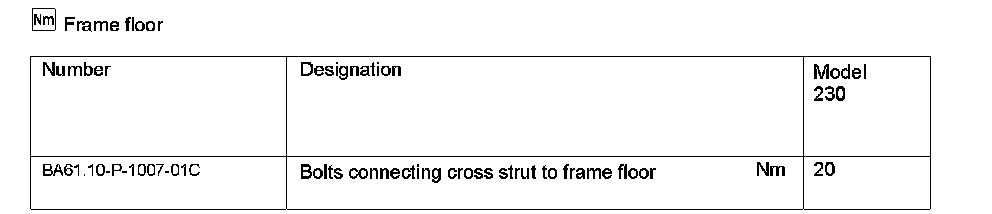

Frame Floor:

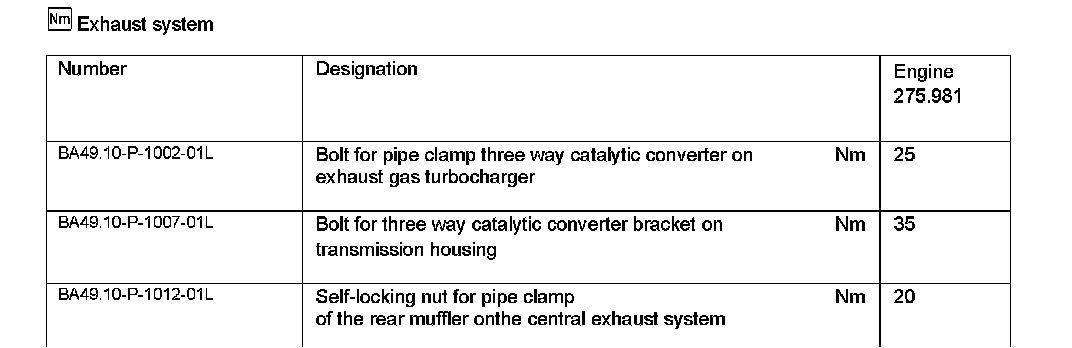

Exhaust System:

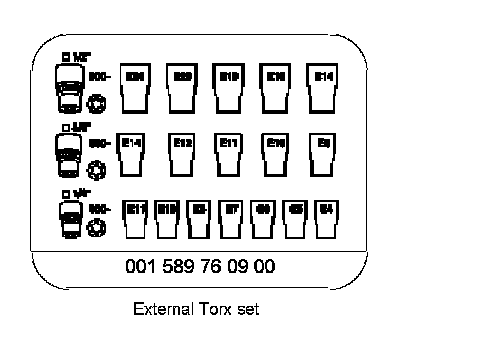

Special Tools:

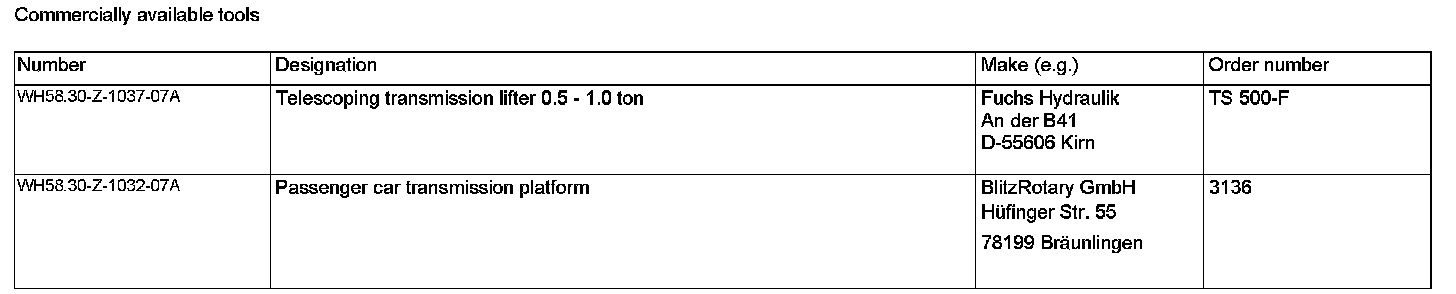

Commercially Available Tools:

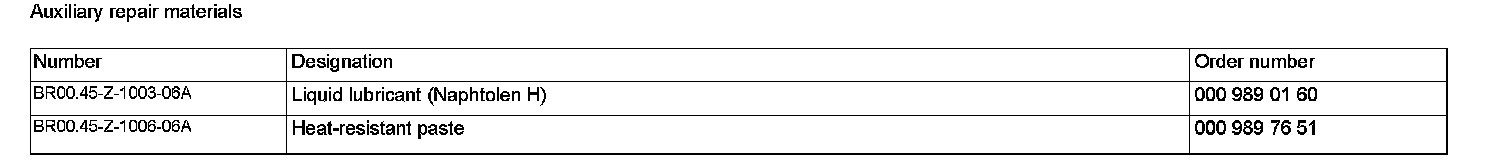

Auxiliary Repair Materials:
