GF49.10-P-3002M Three-Way Catalytic Converter Location/Task/Design/Function

GF49.10-P-3002M Three-way Catalytic Converter Location/Task/Design/Function
ENGINE 275.950 in MODEL 215, 220
ENGINE 275.951 in MODEL 230 up to Model Year 8
ENGINE 275.953 in MODEL 216, 221 up to Model Year 8
ENGINE 275.954 in MODEL 230 up to Model Year 8
ENGINE 275.980 in MODEL 215, 220
ENGINE 275.981 in MODEL 230 up to Model Year 8
ENGINE 275.982 in MODEL 216, 221 up to Model Year 8
ENGINE 285.950 in MODEL 240
ENGINE 285.980 in MODEL 240

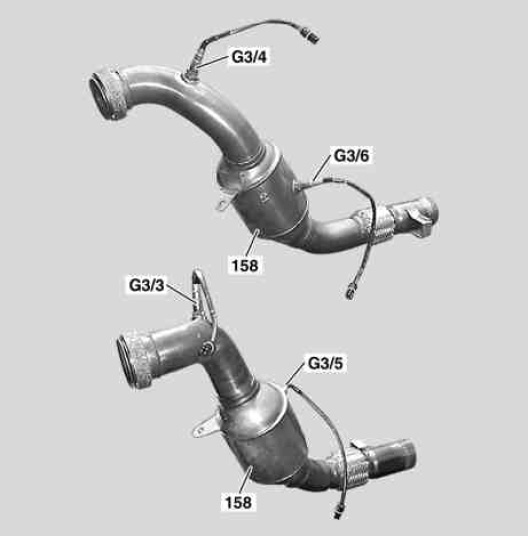

158 Catalytic converter

G3/4 Left O2 sensor upstream of TWC
G3/4 Right O2 sensor, upstream of TWC
G3/5 Left O2 sensor upstream of TWC
G3/6 Right O2 sensor, upstream of TWC
