PE07.61-P-2101KL ME-SFI Fuel Injection and Ignition System Control Module, Wiring Diagram

PE07.61-P-2101KL ME-SFI Fuel Injection and Ignition System Control Module, Wiring Diagram

Engine 275 (except 275.983) in Model 230
- except CODE (P99) Special model "AMG Black Series"
- as of model year 2009 /YoM 08 model refinement package

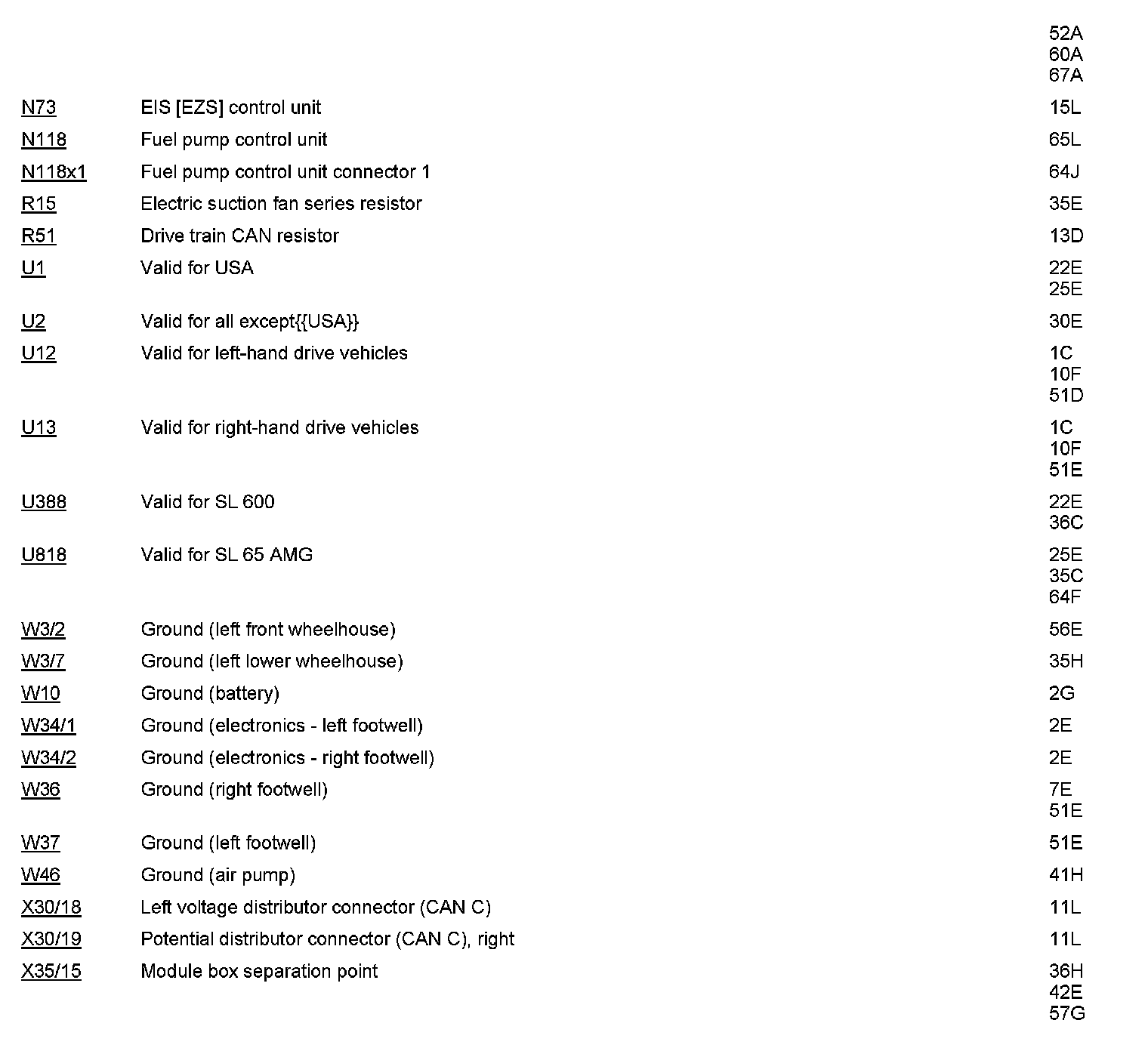

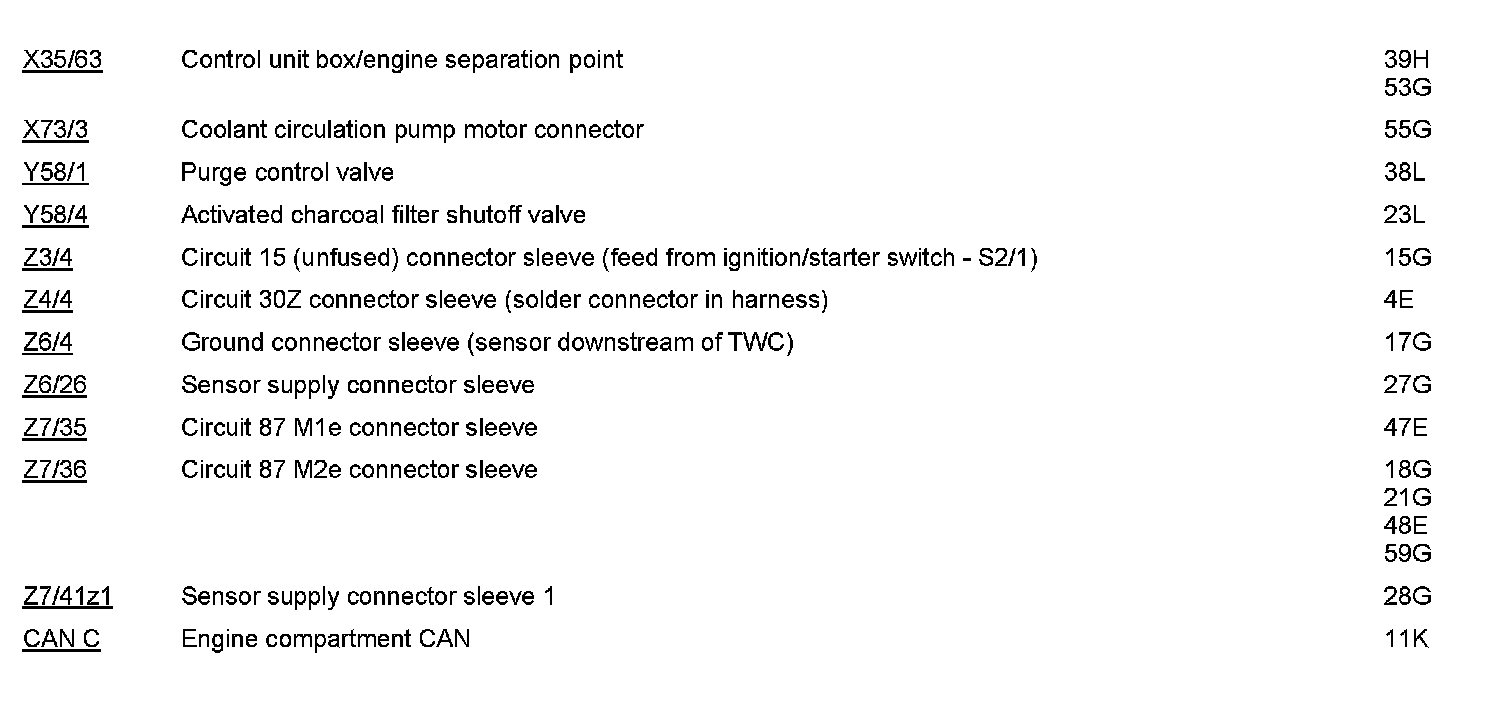

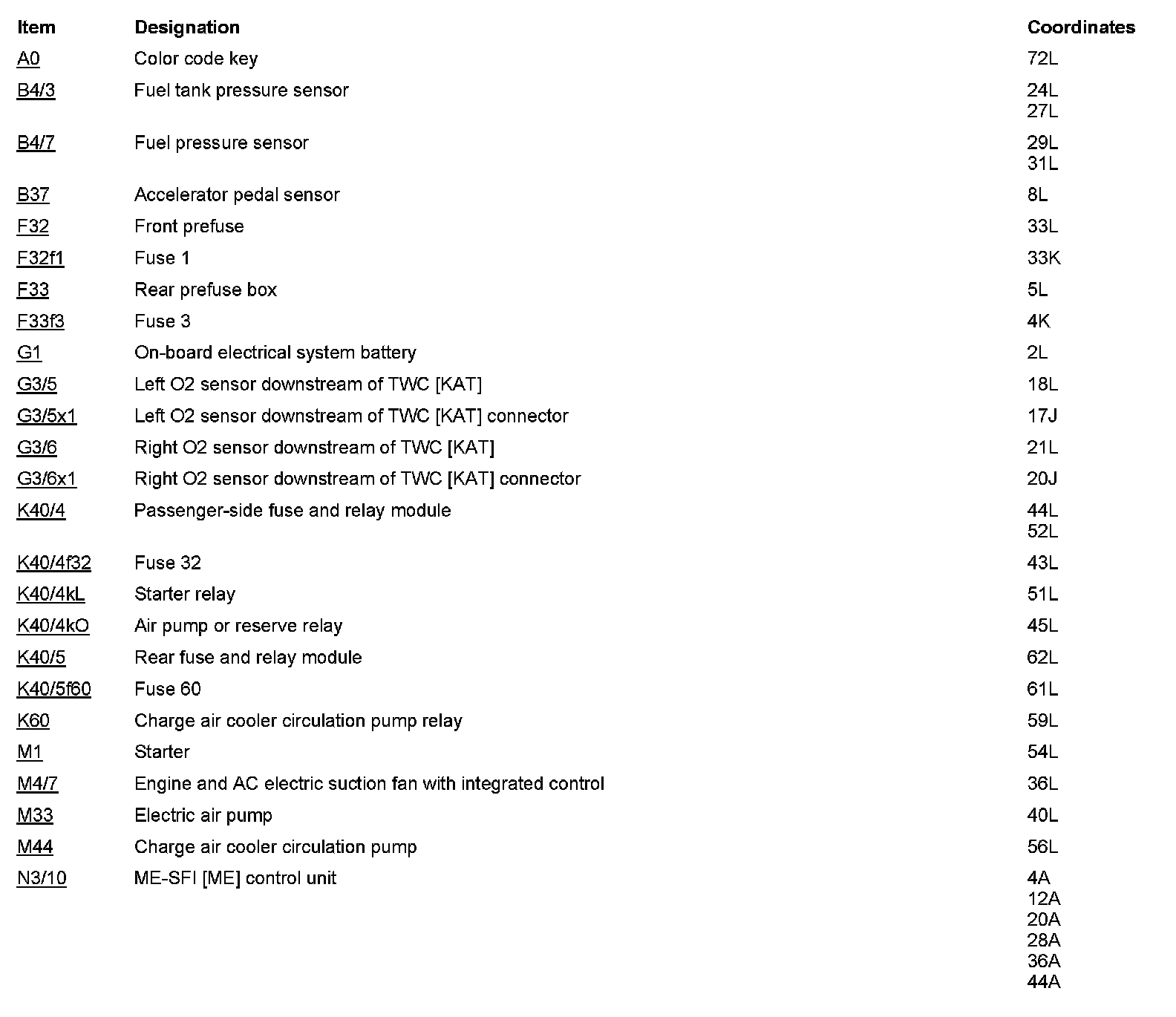

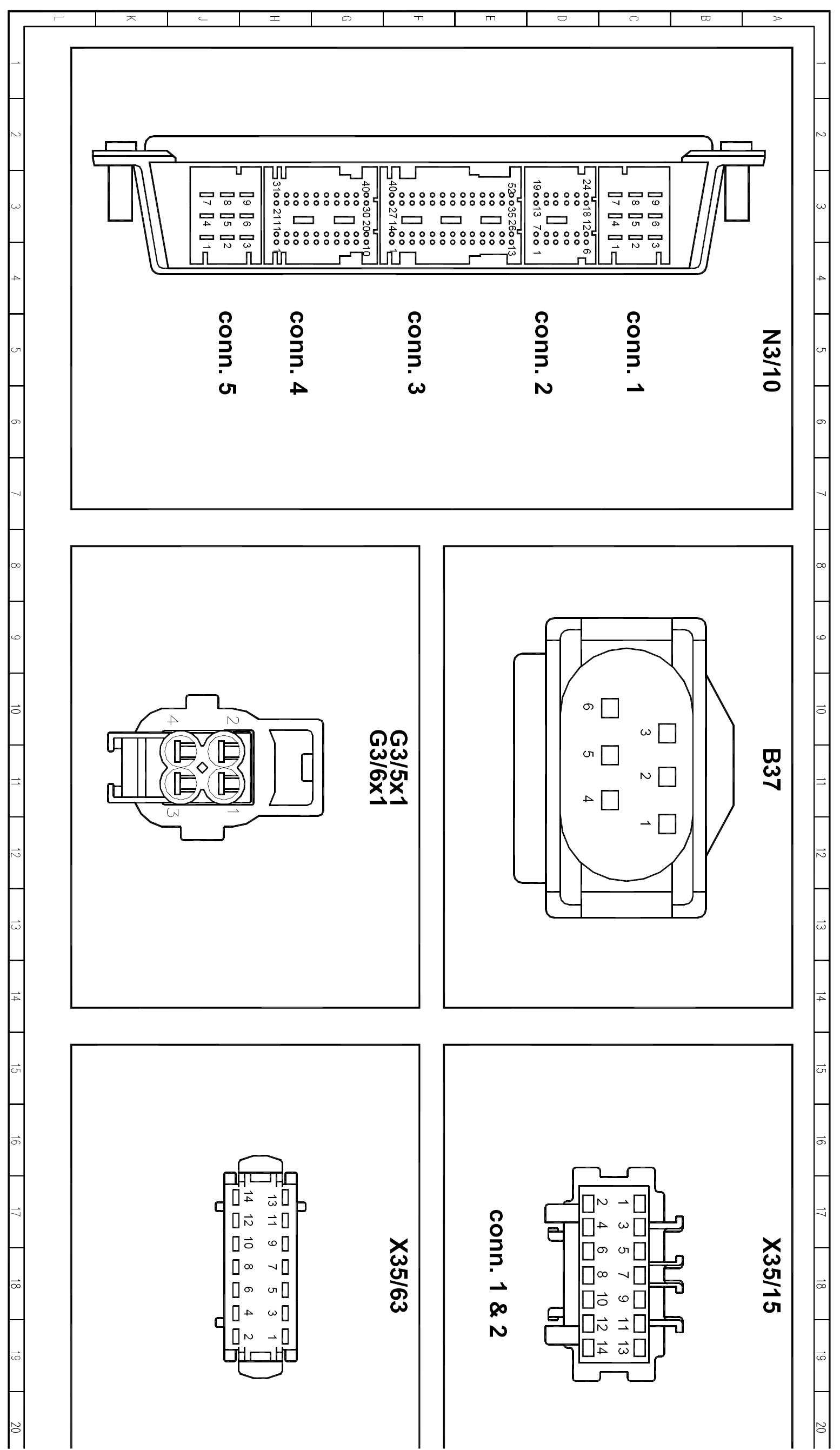

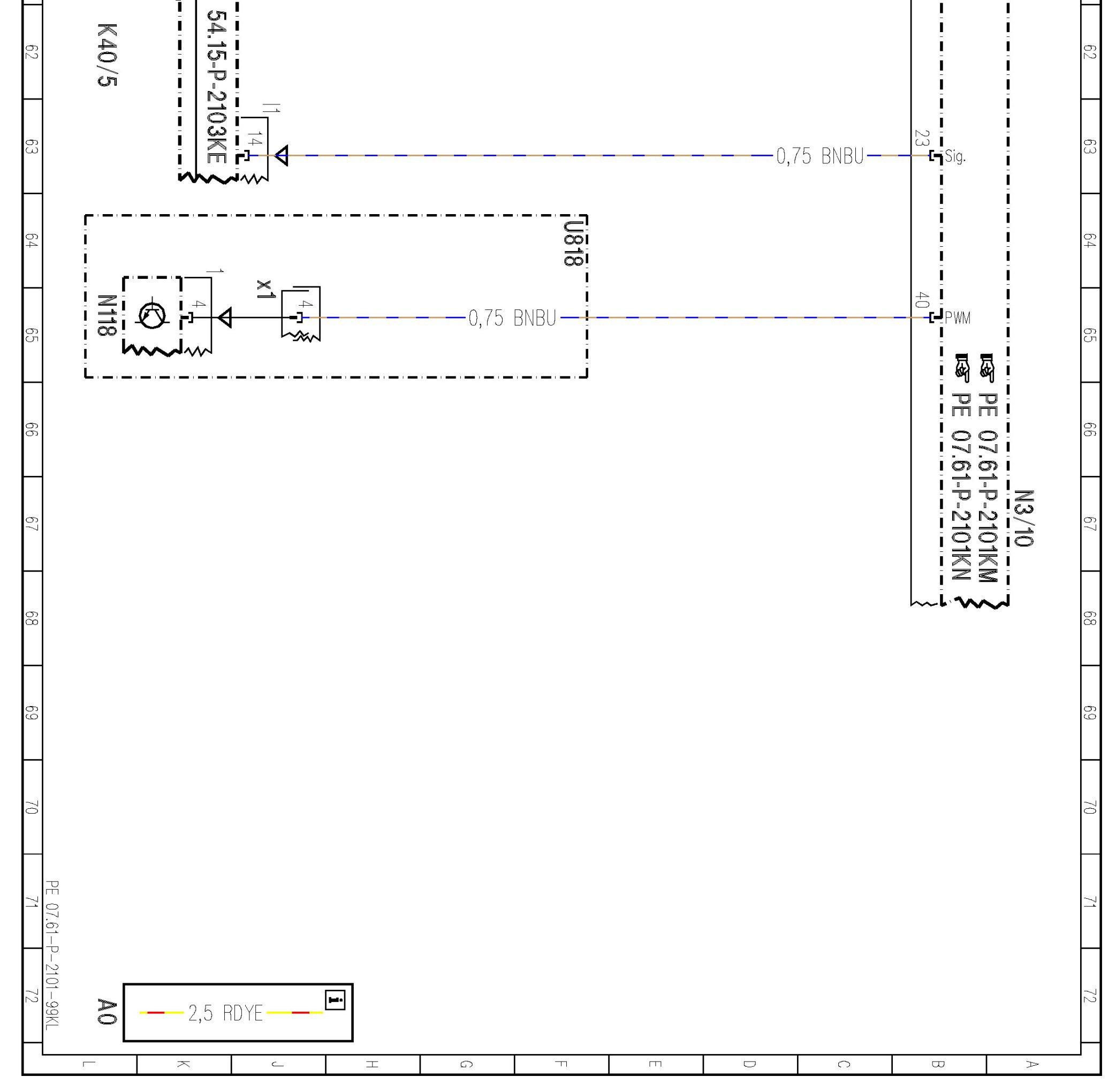

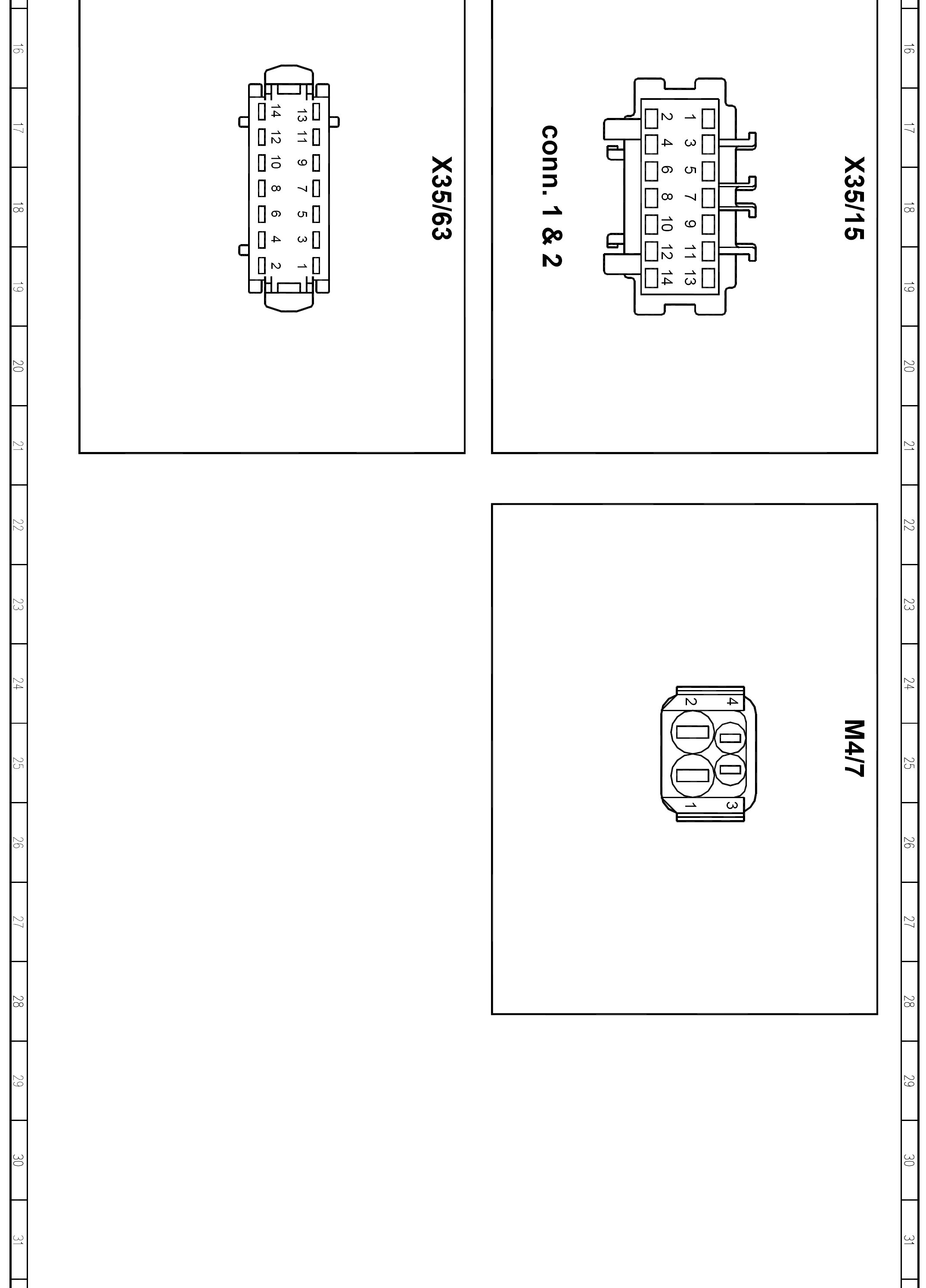

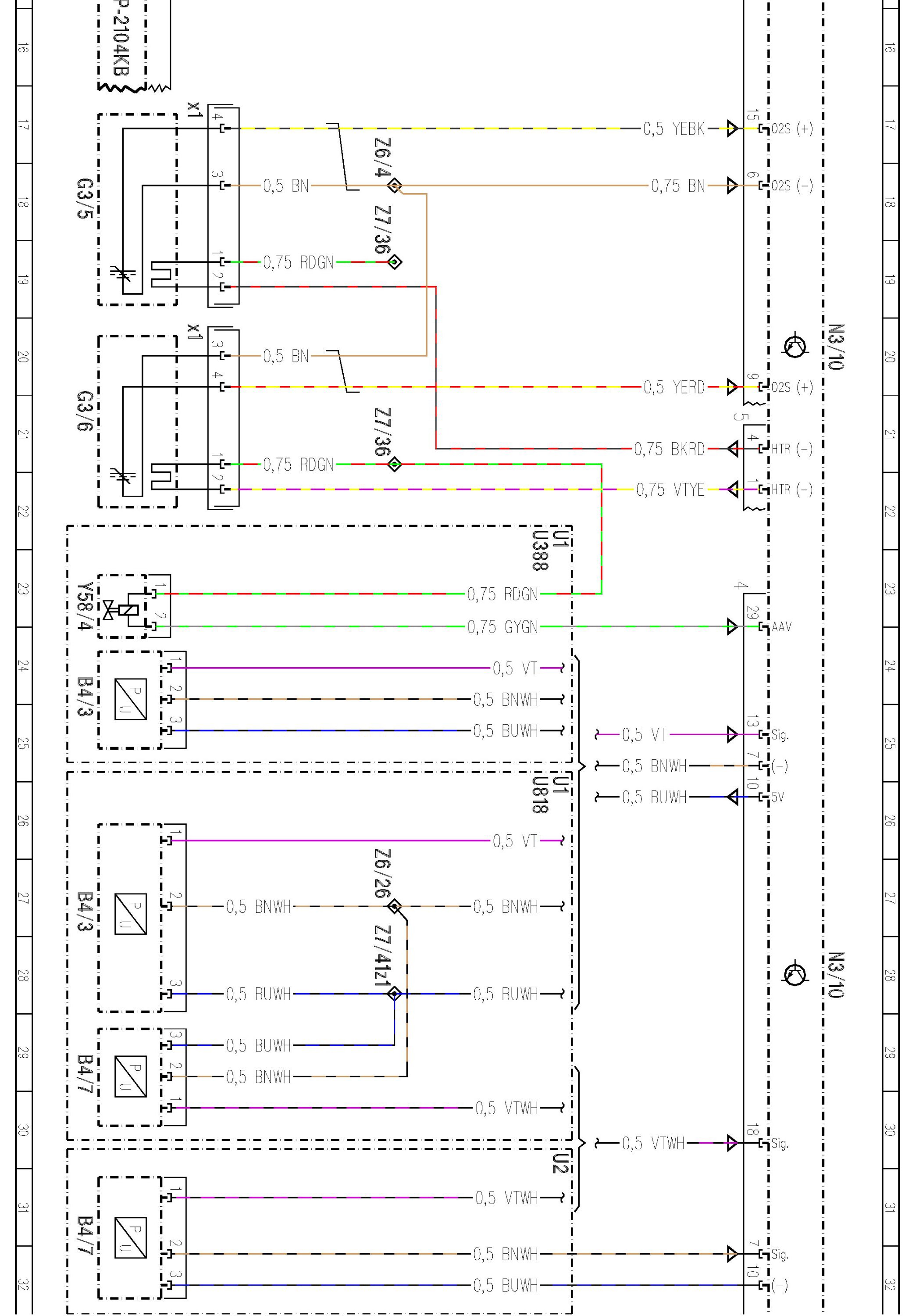

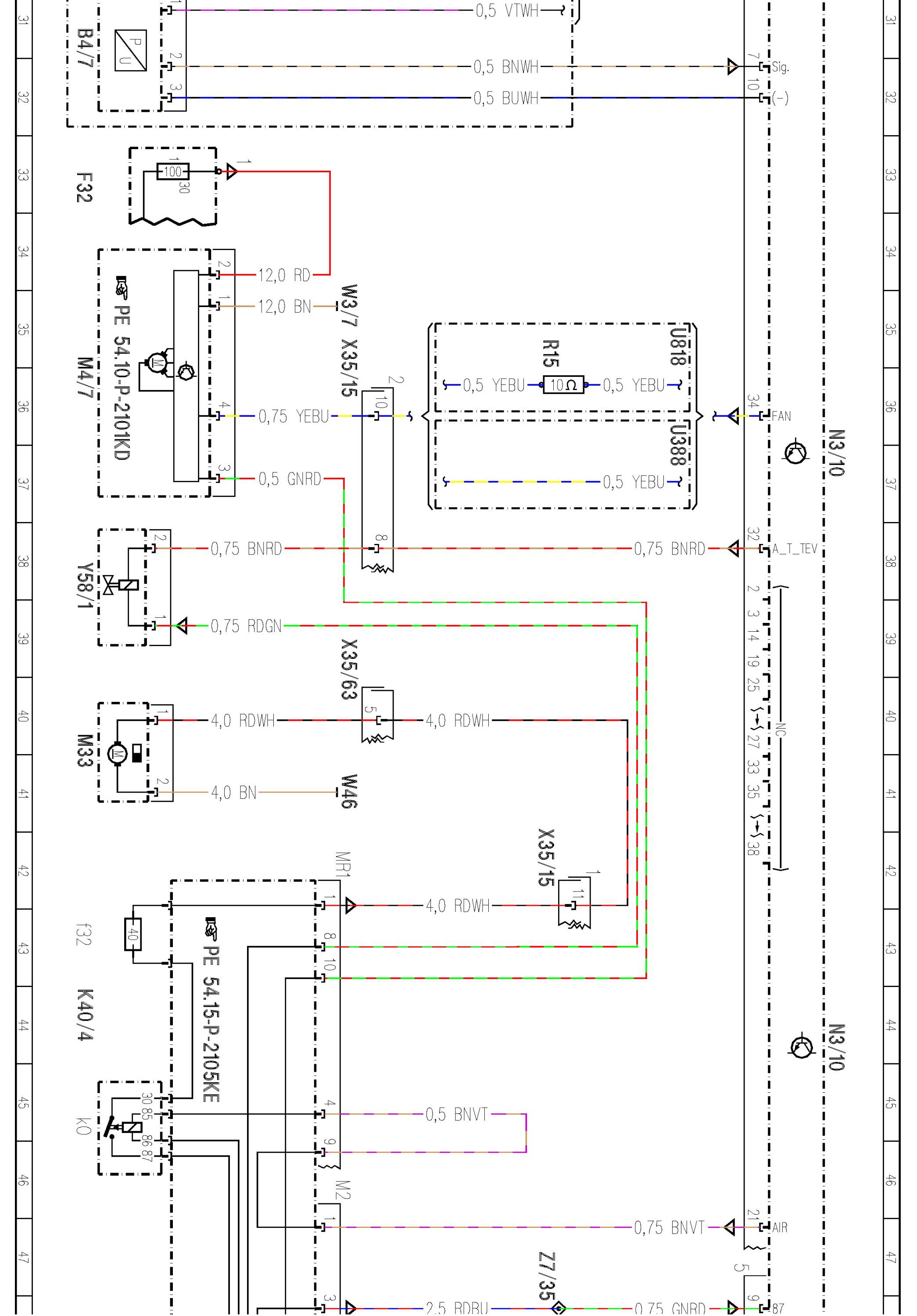

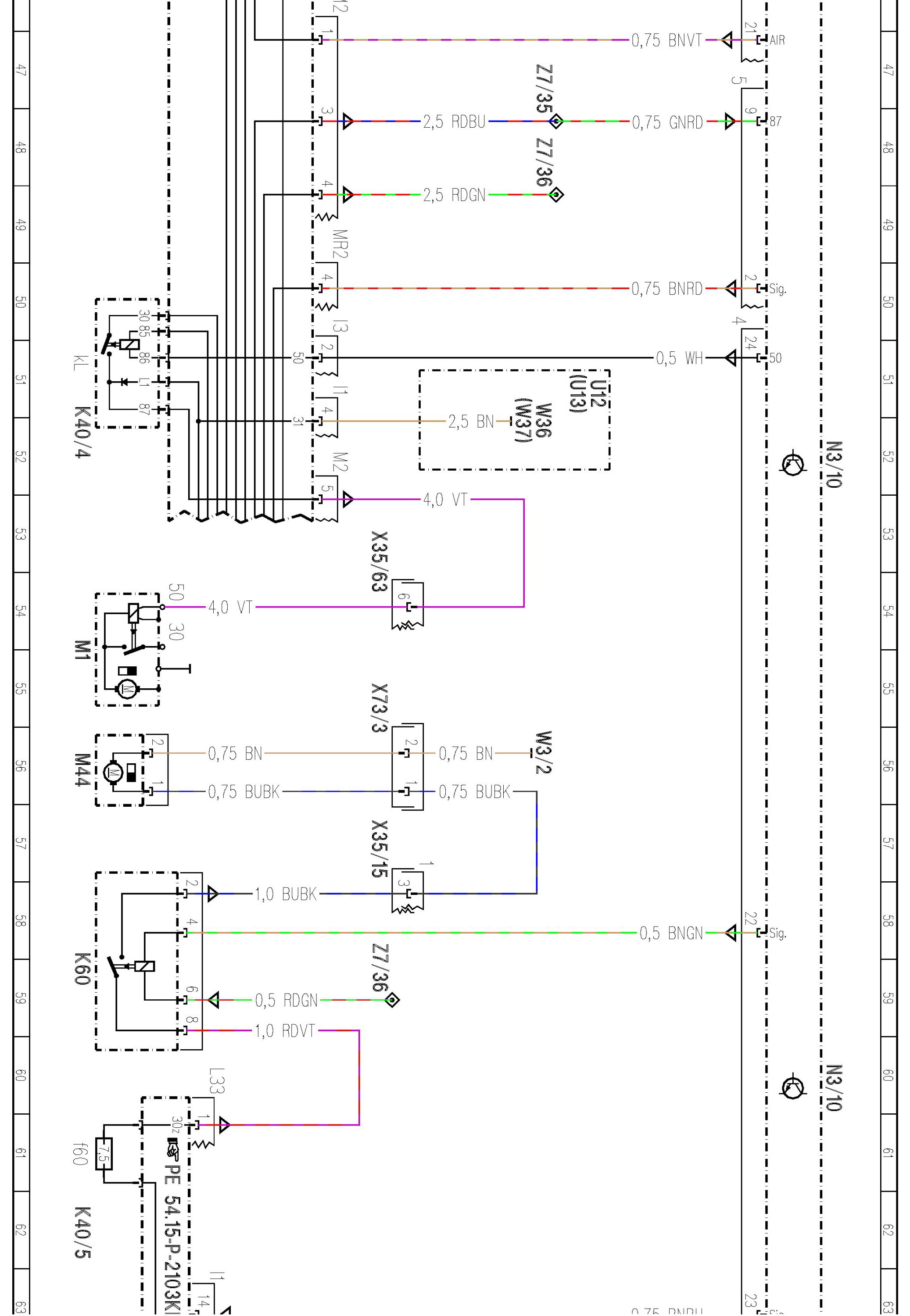

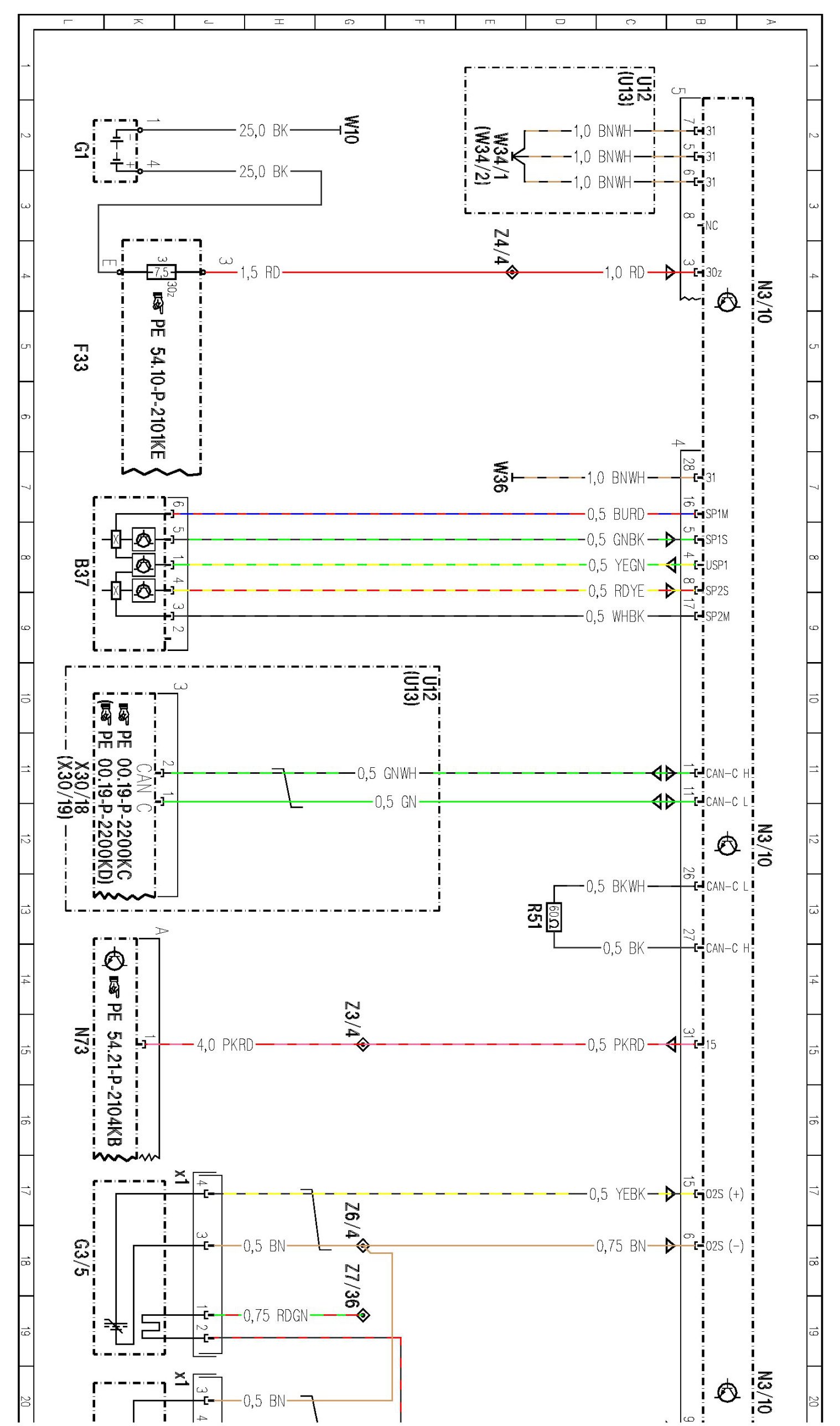

- Control unit N3/10, Sheet 1


















































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
