GF47.30-P-2100MOR Component Description For Fuel Tank Pressure Sensor

GF47.30-P-2100MOR Component Description For Fuel Tank Pressure Sensor
- MODEL 230.4 with ENGINE 275.9 as of model year 2009
- with CODE (494) USA version /AEJ 08 model refinement package

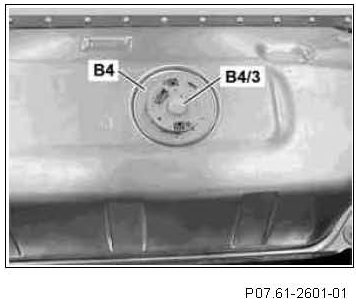

View of fuel tank at the front in trunk (for engine 275.954/81)
B4 Fuel level sensor
B4/3 Fuel tank pressure sensor

Location
The tank pressure sensor is integrated in the top of the fuel level indicator sensor.

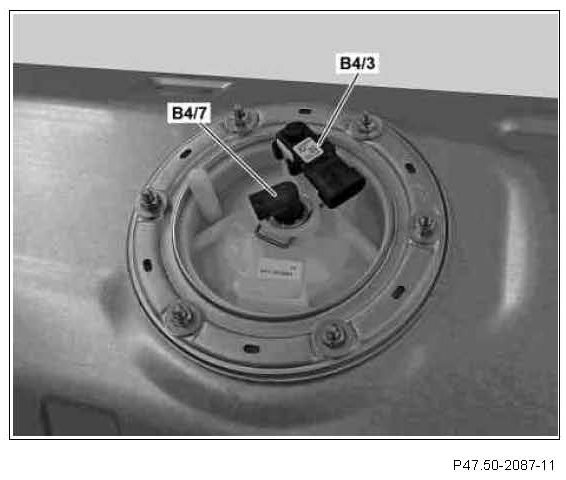

View of fuel tank at the front in trunk (for engine 275.983 code (P99) Special model "AMG Black Series")
B4/3 Fuel tank pressure sensor
B4/7 Fuel pressure sensor

Location
The tank pressure sensor is located above in the fuel filter housing.

Task
The fuel tank pressure sensor detects the pressure inside the fuel tank for testing for leaks in the purge system (leak test).

Function
The fuel tank pressure sensor detects the internal pressure of the fuel tank and issues a corresponding voltage signal to the ME-SFI [ME] control unit (N3/10).
The voltage supply of 5 V is performed by the ME-SFI [ME] control unit.
