GF00.19-P-0800RI Can Electrical Connector, As-Built Configuration

GF00.19-P-0800RI CAN Electrical Connector, As-built Configuration
- MODEL 230.4 as of model year 09/YoM 08 model refinement package

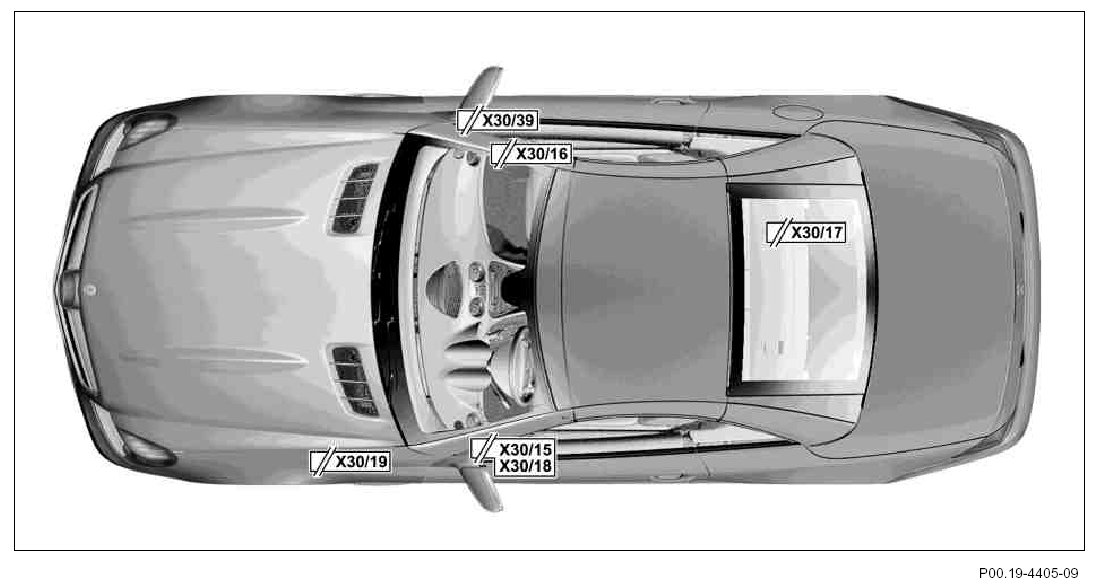

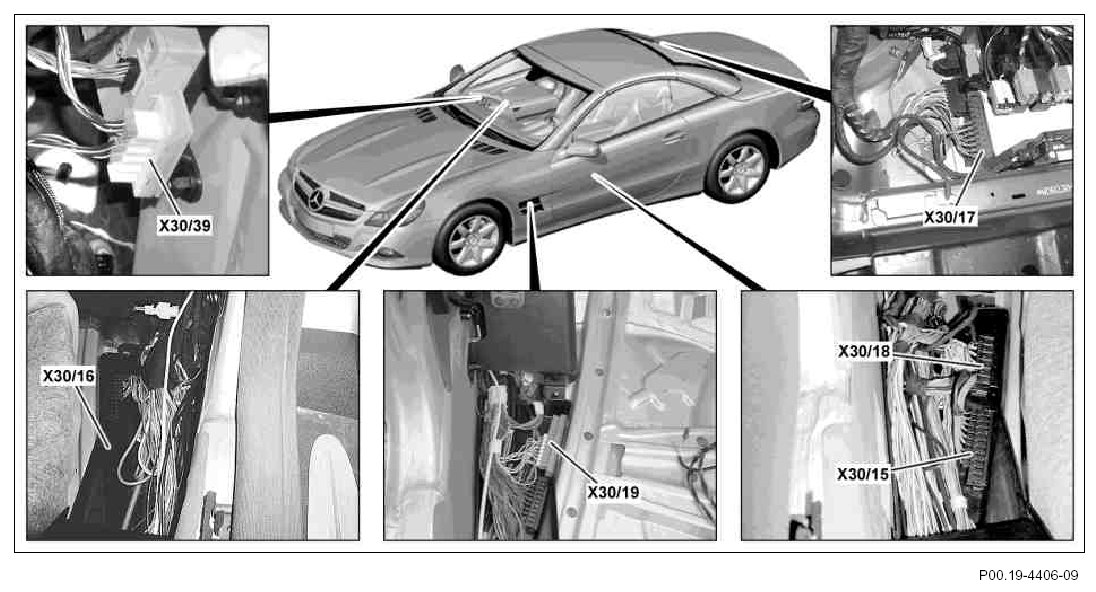

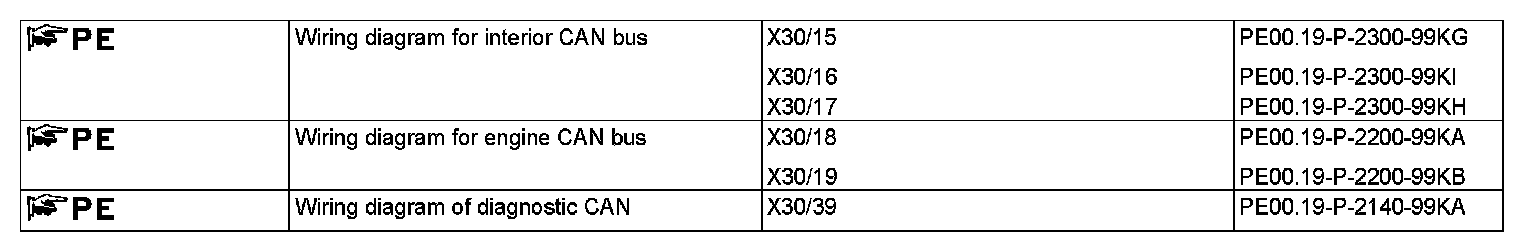

X30/15 Driver CAN B voltage distributor connector
X30/16 Front passenger CAN B voltage distributor connector
X30/17 Rear voltage distributor (CAN B) connector
X30/18 Left voltage distributor connector (CAN C)
X30/19 Potential distributor connector (CAN C), right
X30/39 CAN-D voltage distributor connector

CAN hub assignment
- Driver CAN B voltage distributor connector
- Front passenger CAN B voltage distributor connector
- Rear voltage distributor (CAN B) connector
- Left voltage distributor connector (CAN C)
- Potential distributor connector (CAN C), right
- CAN-D voltage distributor connector

Driver CAN B voltage distributor connector
- Instrument cluster (A1)
- Restraint system control unit (N2/7) (with left-hand drive vehicle)
- Driver-side SAM control unit (N10/10)
- AAC [KLA] control and operating unit (N22) (with left-hand drive vehicle)
- Left front seat adjustment control unit with memory (N32/1) (with left-hand drive vehicle)
- Right front seat adjustment control unit with memory (N32/2) (with right-hand drive vehicle)
- Left door control unit (N69/1) (with left-hand drive vehicle)
- Right door control unit (N69/2) (with right-hand drive vehicle)
- Overhead control panel control unit (N70) (with right-hand drive vehicle)
- Lower control panel control unit (N72) (with right-hand drive vehicle)
- EIS [EZS] control unit (N73) (with left-hand drive vehicle)
- Steering column tube module (N80)
- Central gateway control unit (N93) (with right-hand drive vehicle)
- Drive Unit control unit (N145) (with model 230.470 left-hand drive vehicle)
- Front passenger CAN B voltage distributor connector
- Potential distributor connector (CAN B), rear (with right-hand drive vehicle)

Front passenger CAN B voltage distributor connector
- Restraint system control unit (with right-hand drive vehicle)
- Right SAM control unit (N10/11)
- AAC [KLA] control and operating unit (with right-hand drive vehicle)
- Left front seat adjustment control unit with memory (with right-hand drive vehicle)
- Right front seat adjustment control unit with memory (with left-hand drive vehicle)
- Left door control unit (with right-hand drive vehicle)
- Right door control unit (with left-hand drive vehicle)
- Overhead control panel control unit (with left-hand drive vehicle)
- Lower control panel control unit (with left-hand drive vehicle)
- EIS [EZS] control unit (with right-hand drive vehicle)
- Central gateway control unit (with left-hand drive vehicle)
- Weight Sensing System (WSS) control unit (N110) (with code (494) USA version)
- Drive Unit control unit (with model 230.470 right-hand drive vehicle)
- Driver CAN B voltage distributor connector
- Potential distributor connector (CAN B), rear (with left-hand drive vehicle)

Rear voltage distributor (CAN B) connector
- PSE controller unit with combined functions (A37)
- COMAND operating, display and controller unit (A40/3)
- Rear SAM control unit (N10/8)
- AIRSCARF control unit (N25/7) (with code (403) AIRSCARF system)
- RVC control unit (N52)
- PTS control unit (N62) (with code (220) PARKTRONIC)
- Vehicle power supply control unit (N82/1)
- KEYLESS-GO control unit (N69/5) (with code (889) Keyless Go)
- TPM [RDK] control unit (N88) (with code (470) Tire pressure monitor (standard) or code (475) Tire pressure monitor (premium))
- Potential distributor connector (CAN B), driver side (with right-hand drive vehicle)
- Potential distributor connector (CAN B), front passenger side (with left-hand drive vehicle)

Left voltage distributor connector (CAN C)
- Instrument cluster (with left-hand drive vehicle)
- DTR controller unit (A89) (with code (219) Distronic (DTR))
- ME-SFI [ME] control unit (N3/10) (with left-hand drive vehicle)
- ETC [EGS] control unit (N15/3) (with left-hand drive vehicle and transmission 722.6)
- Electronic selector lever module control unit (N15/5) (with left-hand drive vehicle)
- ESP, SPS [PML] and BAS control unit (N47-5) (with left-hand drive vehicle)
- ABC control unit (N51/2) (with left-hand drive vehicle and code (487) Active Body Control (ABC))
- EIS [EZS] control unit (with left-hand drive vehicle)
- Steering column tube module (with left-hand drive vehicle)
- Central gateway control unit (with left-hand drive vehicle)
- Fully integrated transmission control unit (VGS) (Y3/8n4) (with left-hand drive vehicle and transmission 722.9)

Potential distributor connector (CAN C), right
- Instrument cluster (with right-hand drive vehicle)
- ME-SFI [ME] control unit (with right-hand drive vehicle)
- ETC [EGS] control unit (with right-hand drive vehicle and transmission 722.6)
- Electronic selector lever module control unit (with right-hand drive vehicle)
- ESP, SPS [PML] and BAS control unit (with right-hand drive vehicle)
- ABC control unit (with right-hand drive vehicle and code (487) Active Body Control (ABC))
- EIS [EZS] control unit (with right-hand drive vehicle)
- Steering column tube module (with right-hand drive vehicle)
- Central gateway control unit (with right-hand drive vehicle)
- Fully integrated transmission control unit (VGS) (with right-hand drive vehicle and transmission 722.9)

CAN-D voltage distributor connector
- Xenon headlamp control unit (E1n1)
- Xenon headlamp control unit (E2n1)
- Central gateway control unit
- Emergency call system control unit (N123/4 (with code (359) TELE AID emergency call system)
- Data link connector (X11/4)
