Home >> Mercedes Benz >> 2011 >> SL 65 AMG (230.479) V12-6.0L Turbo (275.981) >> Repair and Diagnosis >> Lighting and Horns >> Sensors and Switches - Lighting and Horns >> Headlamp Alignment Sensor >> Service and Repair >> AR82.10-P-0004R Remove/Install Front Axle Level Sensors

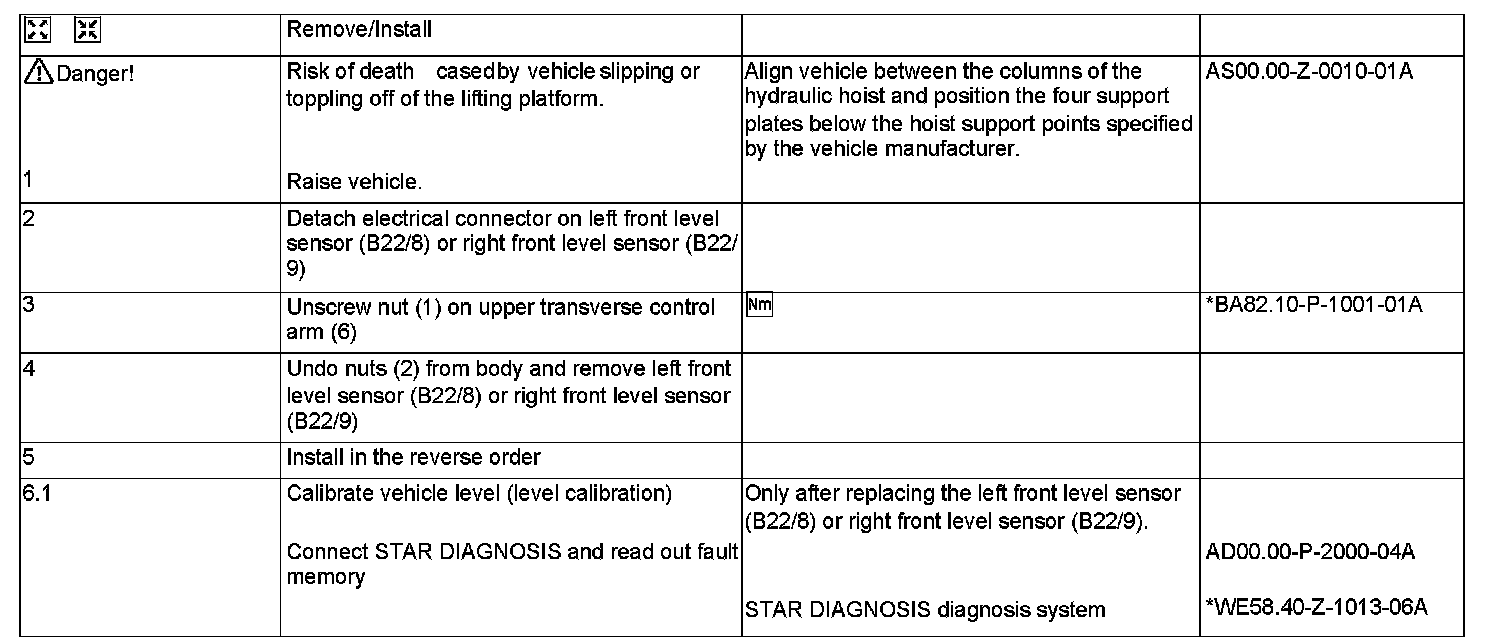

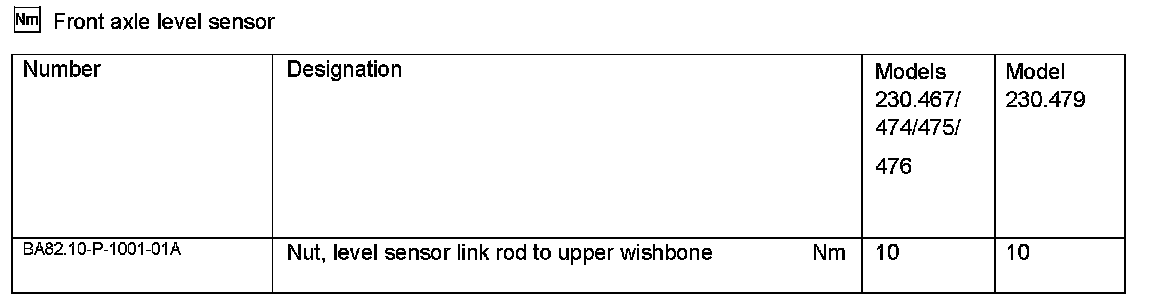

AR82.10-P-0004R Remove/Install Front Axle Level Sensors



AR82.10-P-0004R Remove/Install Front Axle Level Sensors
- with CODE (487) Active Body Control (ABC)

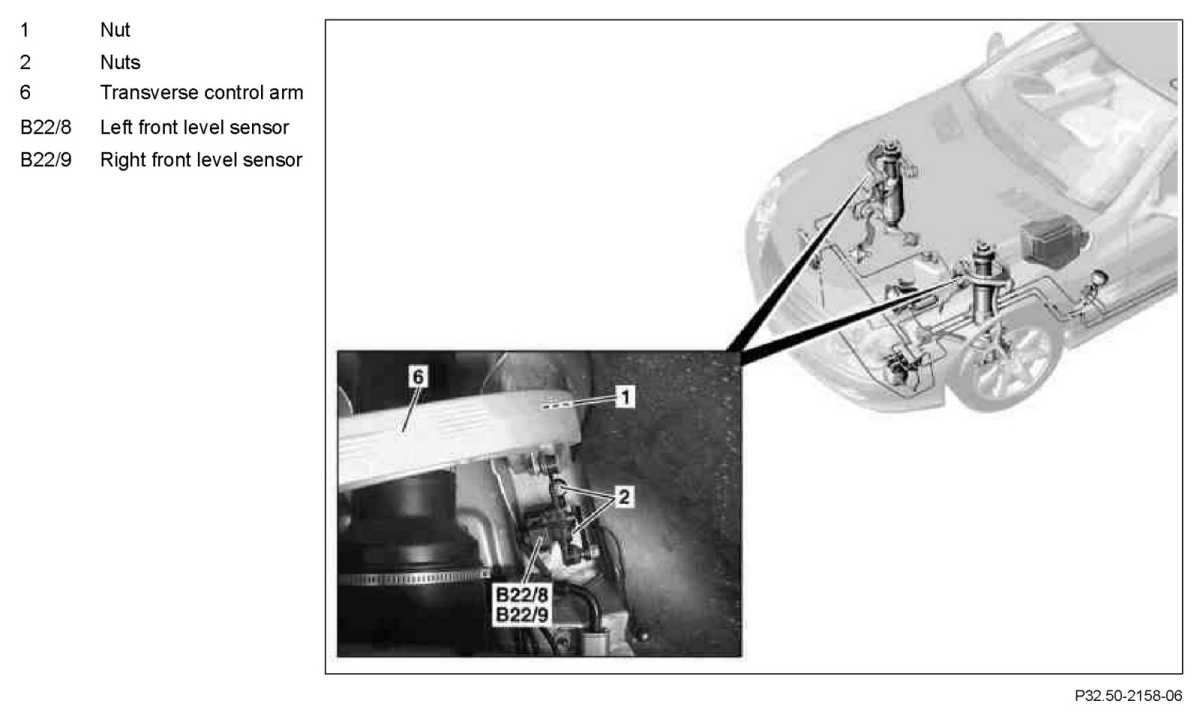

Front Axle Level Sensor:
