AR05.10-P-7601-02R Rivet Timing Chain

AR05.10-P-7601-02R Rivet timing chain

























1 Cover timing case recess and cylinder head with clean rag. m Parts which have fallen into the timing case recess or in the cylinder head must be removed.

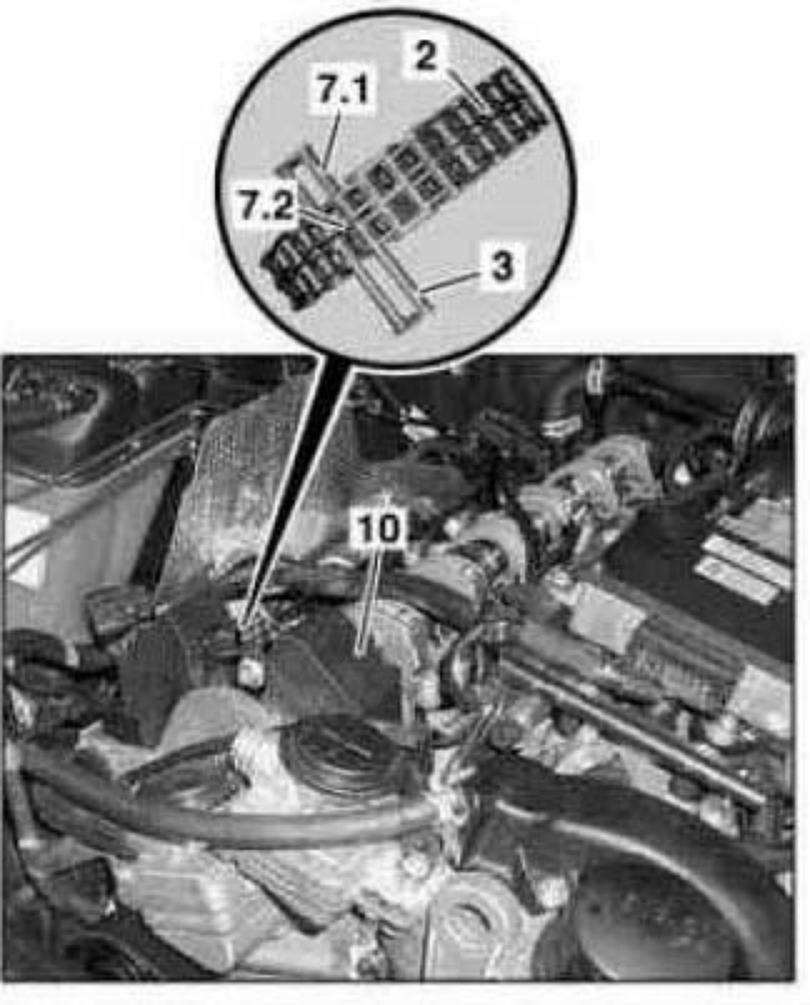

2 Insert new riveted link (7.1) and new middle plate (7.2) together with centering fork (3) into the ends of the new timing chain (2). Fix center plate (7.2) with new riveted link (7.1).

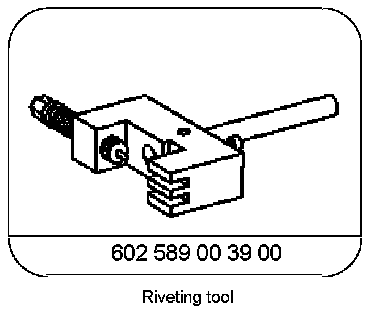

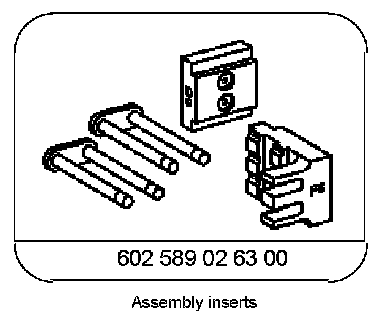

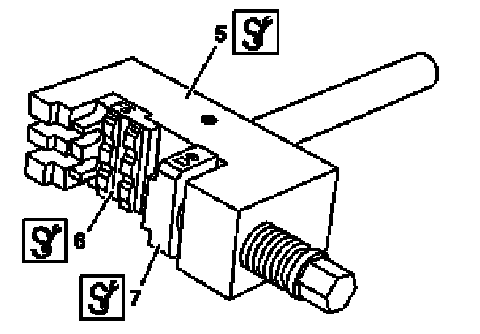

3 Place assembly insert (6) with the digit F5 into theme rivet press tool (5) and fix with mounting screw.
4 Place assembly insert (7) with the digit DO into theme riveting tool (5).
The assembly insert (7) is able to move on the pressure screw and is loosely mounted.
5 Press in new riveted link (7.1) as far as the stop with the riveting tool (5). m Ensure that the riveted link and them riveting tool (5) are aligned. Do not allow the centering fork (3) which is pressed out to drop into the timing case recess.
6 Remove assembly inserts (6, 7) from rivet press tool (5)
Dismount riveting tool (5).

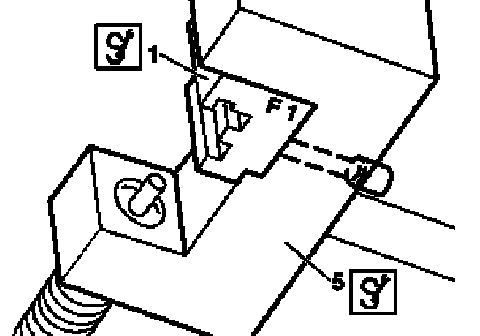

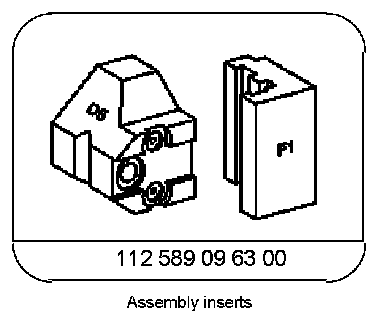

7 Place assembly insert (1) with the digit F1 into theme rivet press tool (5) and fix with mounting screw.

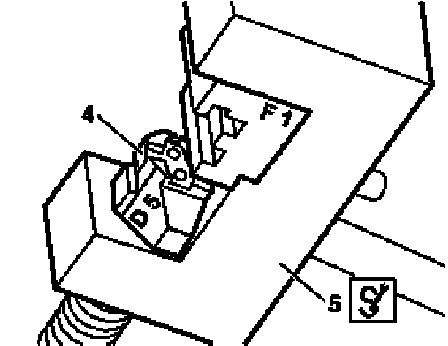

8 Place movable assembly insert (4) with the digit D5 into theme riveting tool (5).

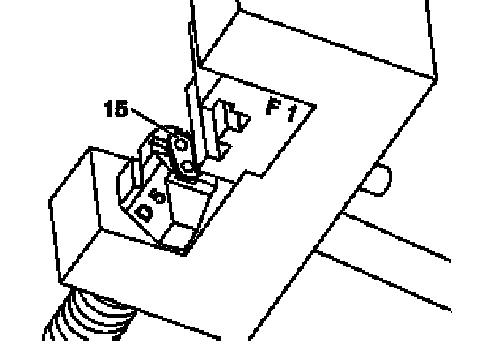

9 Insert new outer plate (15) into the movable assembly insert (4).
The outer plate (15) is held by a magnet.





10 Fit on rivet press tool (5)
The guide spacers must lie on the control chain rollers (2). Ensure that riveted link (7.1) and outer plate (15) are aligned.

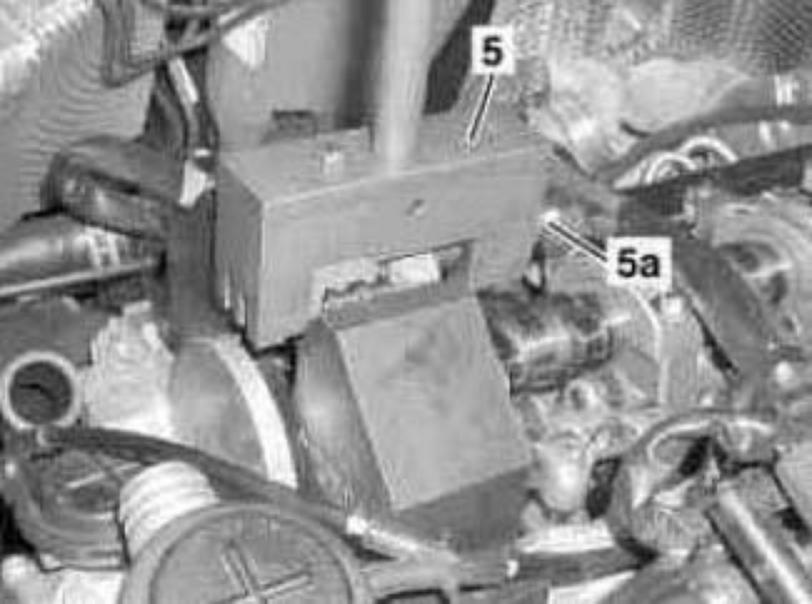

11 Screw in pressure screw (5a) at rivet press tool (5) until solid resistance is felt.
While turning the pressure screw (5a), ensure that the pin in rivet link (7.1) is inserted in the holes in external mounting link (15).
12 Take off riveting tool (5).

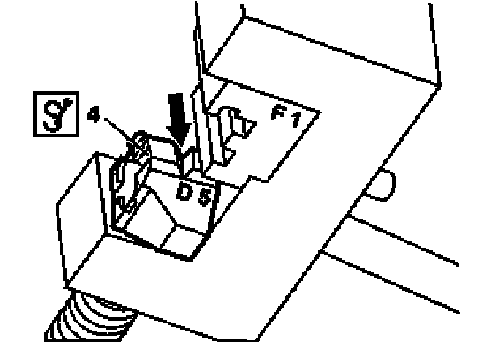

13 Turn over movable assembly insert (4) to the riveting section (arrow).
14 Fit rivet press tool (5) at the center onto one of both timing chain pins of the riveted link (7.1).

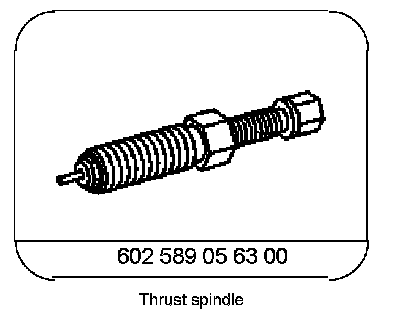

15 Tighten thrust spindle (5a) of rivet press tool (5) and rivet first control chain bolt of riveted link (7.1).
16 Release thrust spindle (5a) Andrew fit rivet press tool (5) on second control chain bolt of riveted link (7.1).
17 Tighten thrust spindle (5a) of rivet press tool (5) and rivet second control chain bolt.
18 Release thrust spindle (5a) and remove rivet press tool (5).

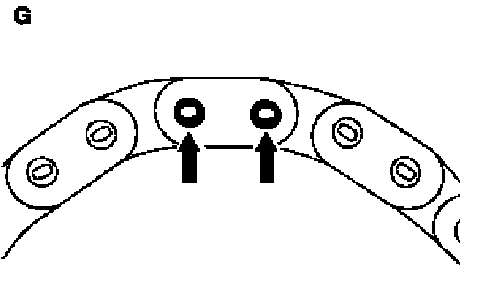

19 Check both rivets (arrows), re-rivet if required.
20 Remove rag from timing case recess and cylinder head.
