Home >> Mercedes Benz >> 2011 >> SL 65 AMG (230.479) V12-6.0L Turbo (275.981) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Engine Lubrication >> Oil Pump >> Engine Oil Pressure >> Testing and Inspection

Engine Oil Pressure: Testing and Inspection

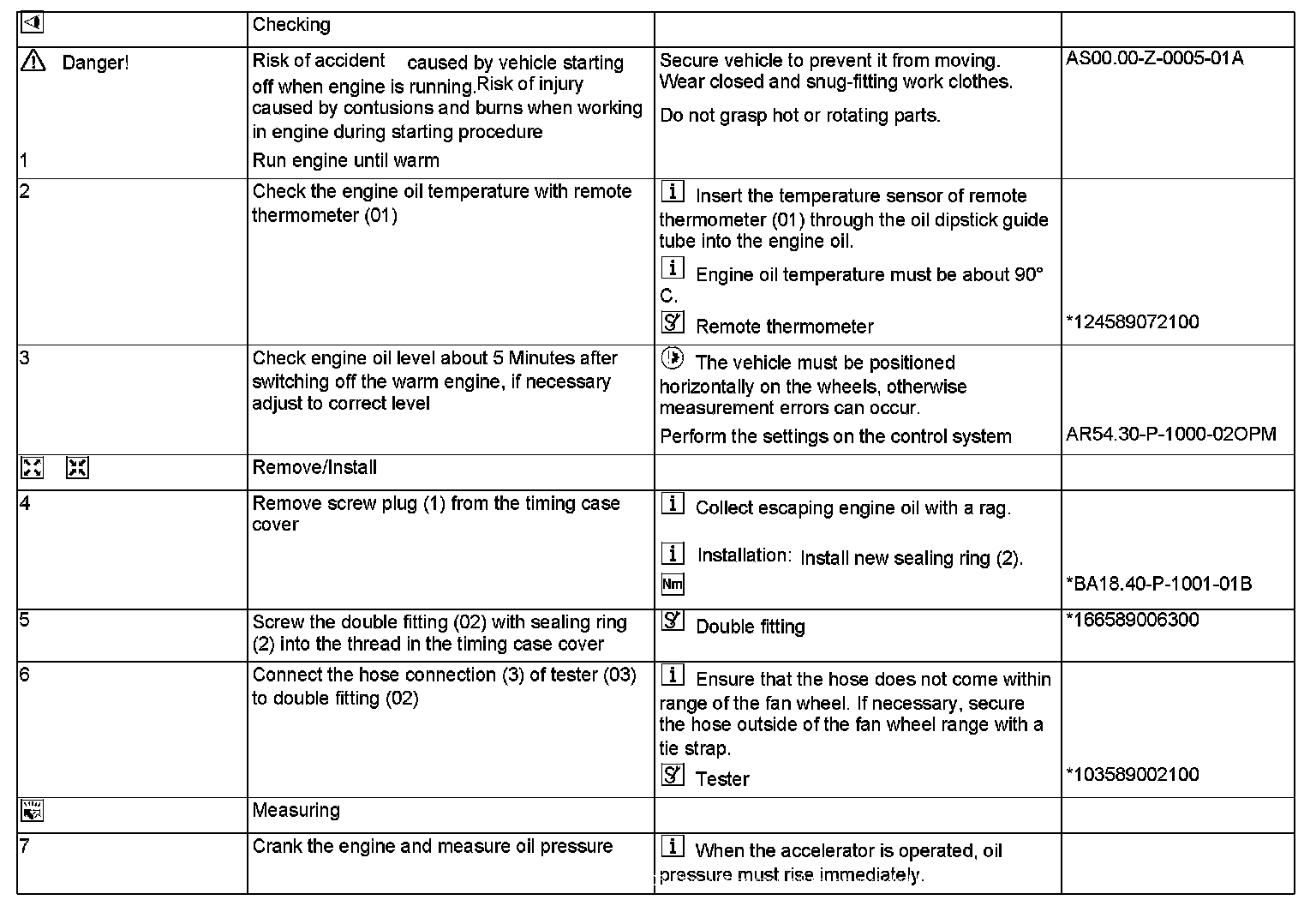

AR18.00-P-1250R Test oil pressure
