Home >> Mercedes Benz >> 2011 >> SL 65 AMG (230.479) V12-6.0L Turbo (275.981) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Cylinder Block Assembly >> Piston >> Service and Repair

Piston: Service and Repair

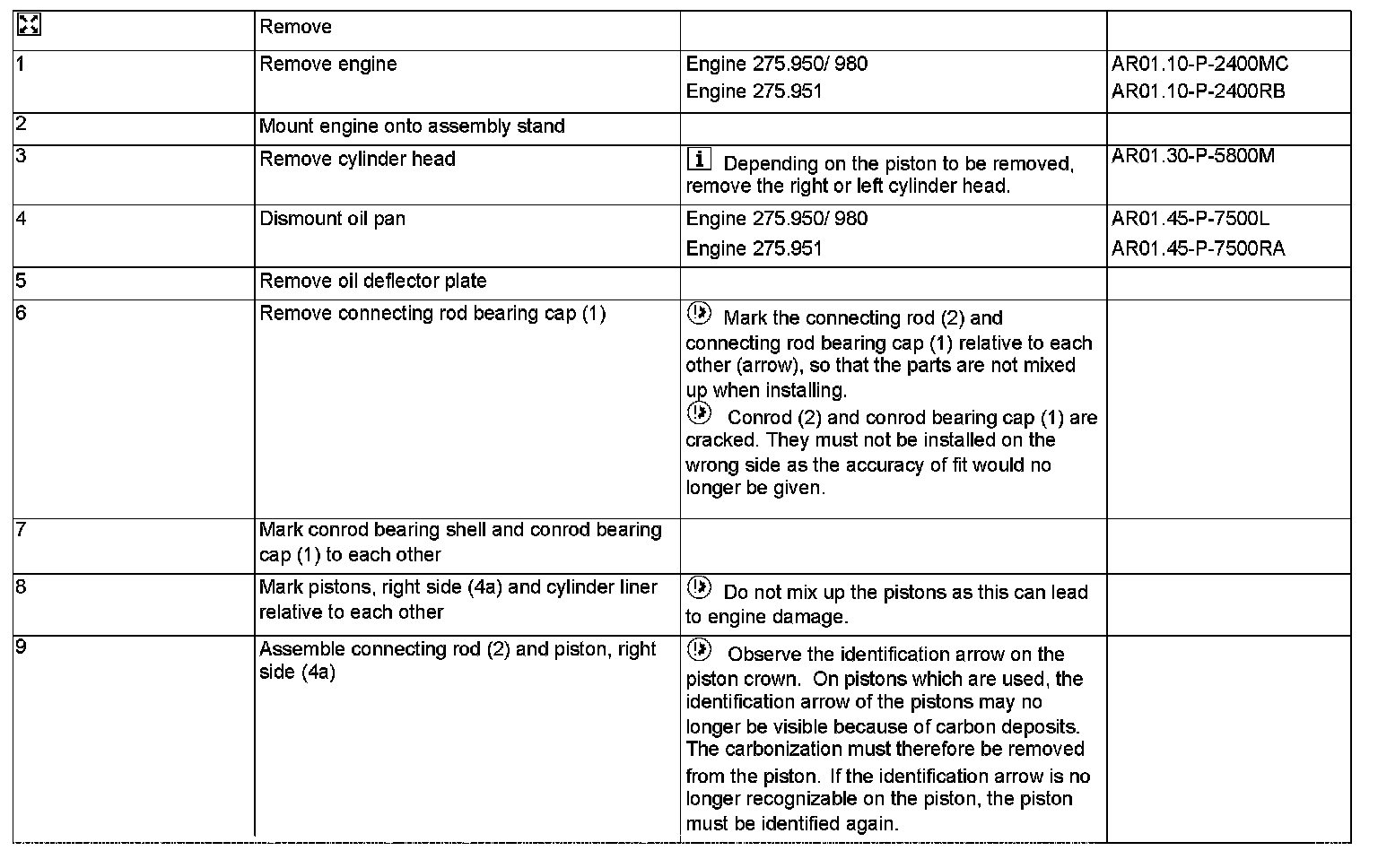

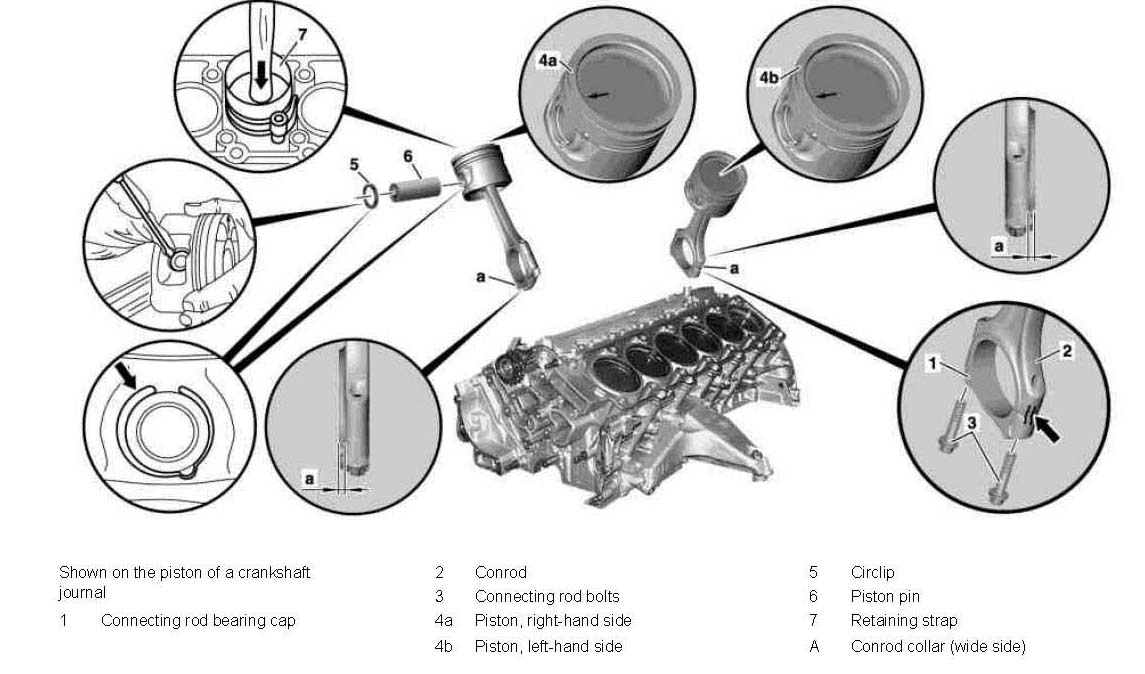

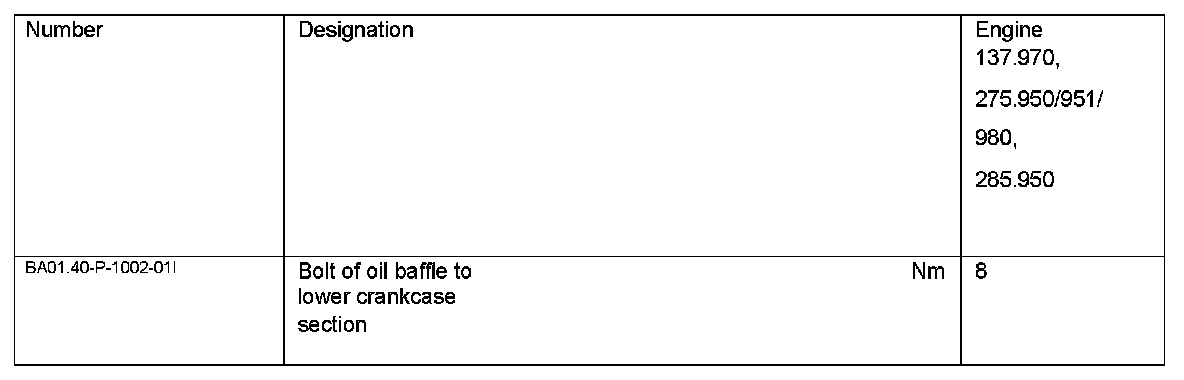

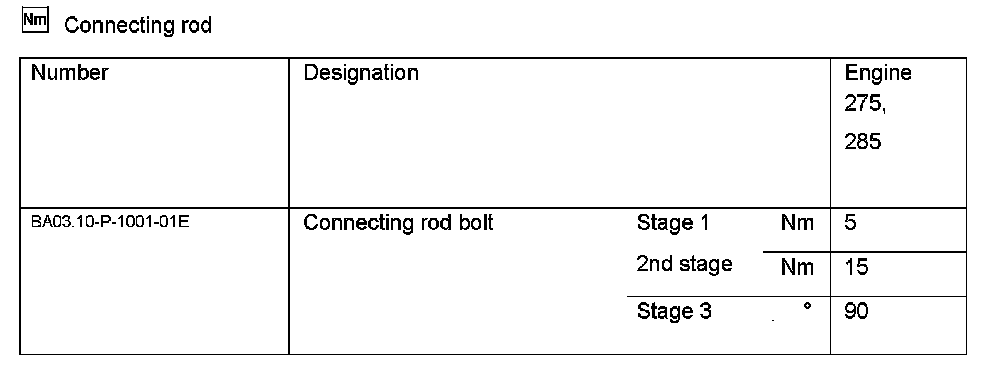

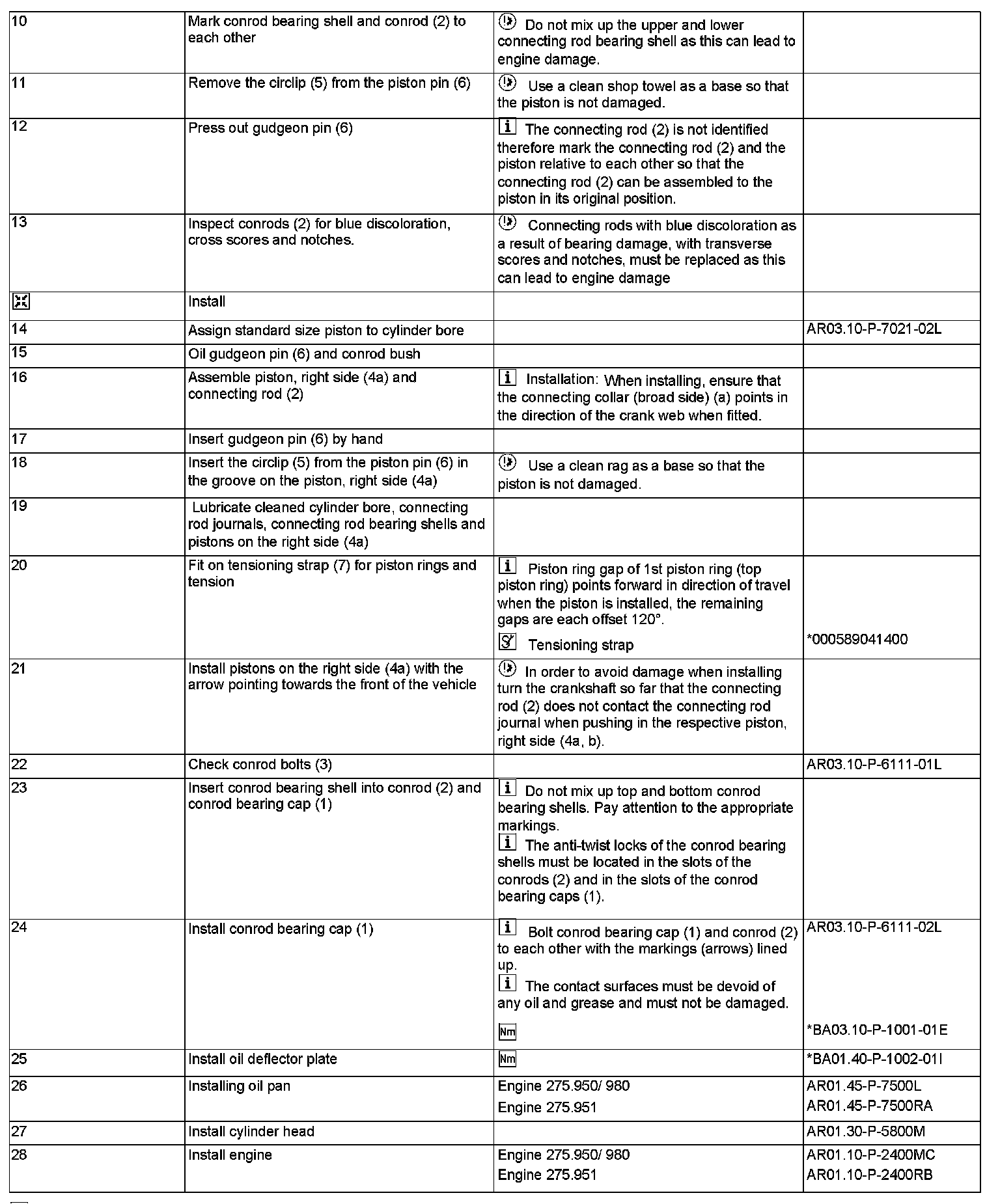

AR03.10-P-7021MC Piston removal and installation
