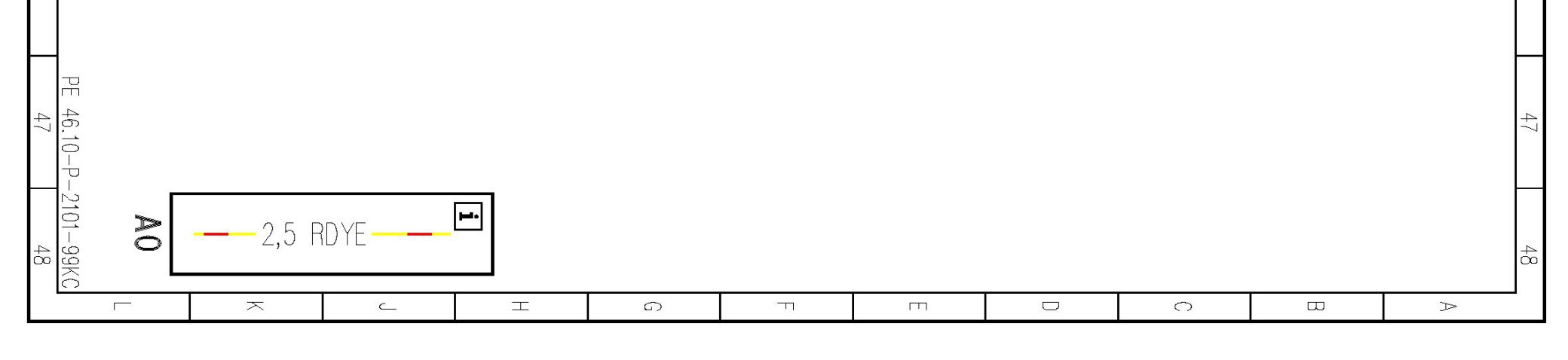

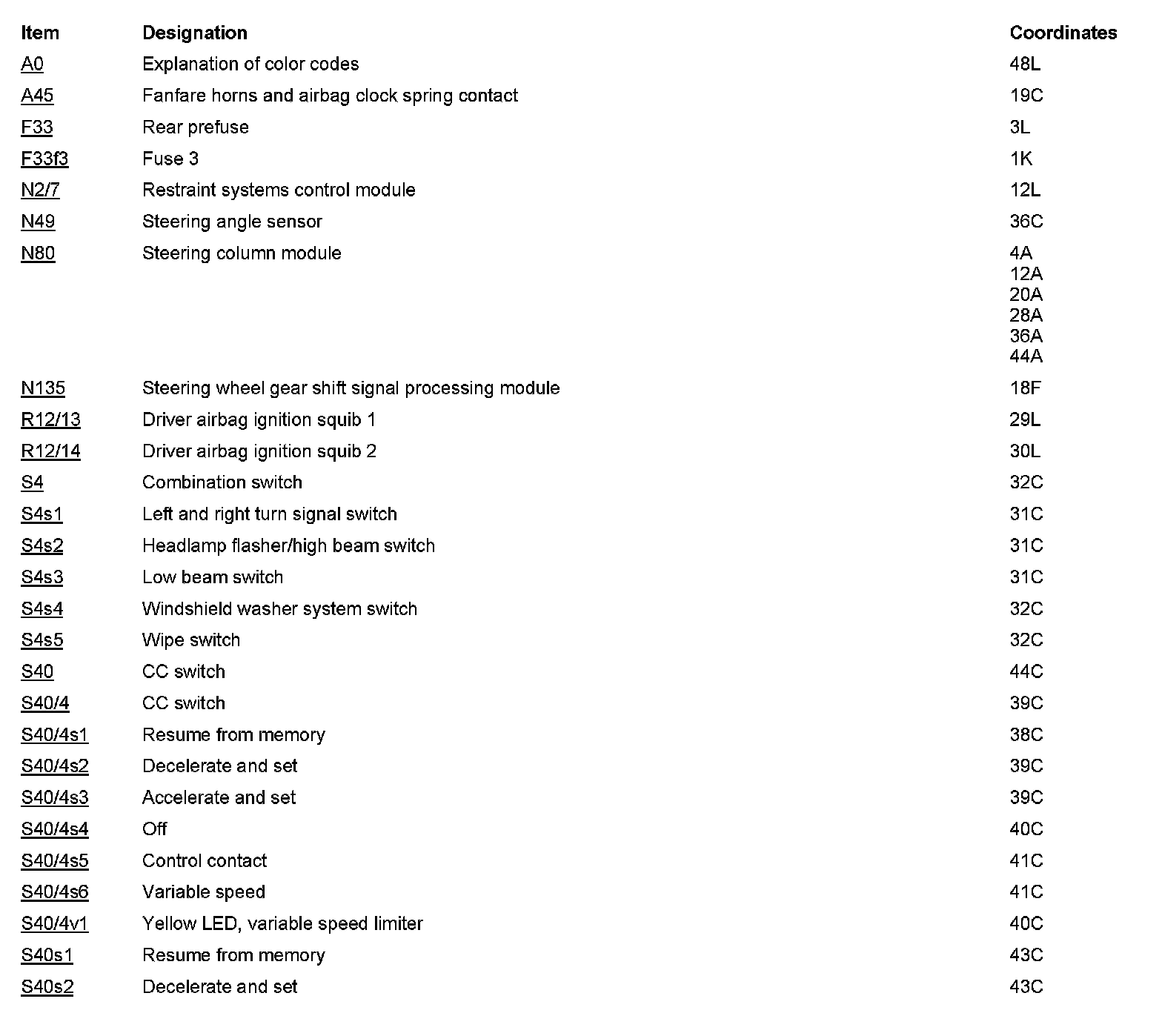

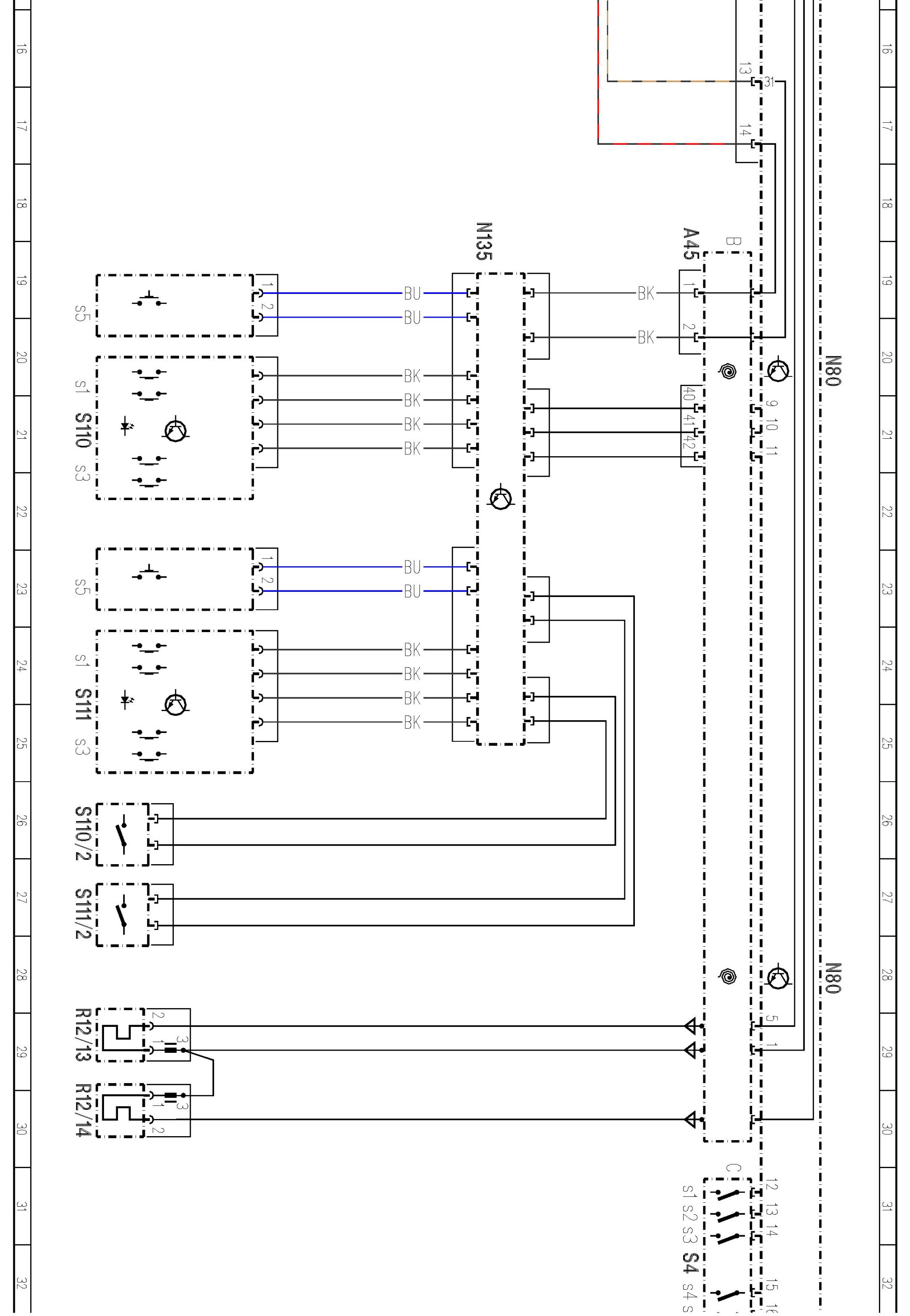

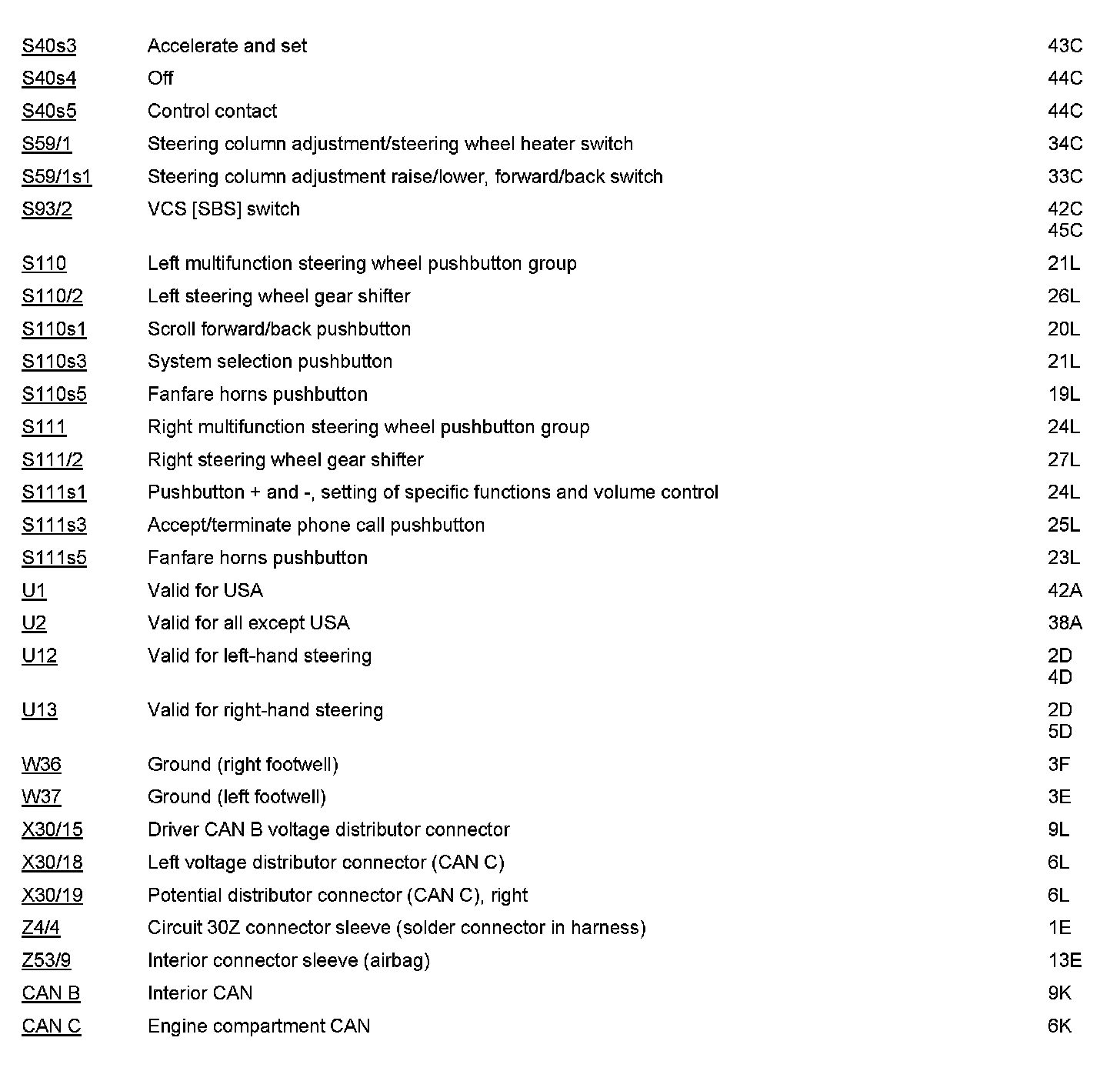

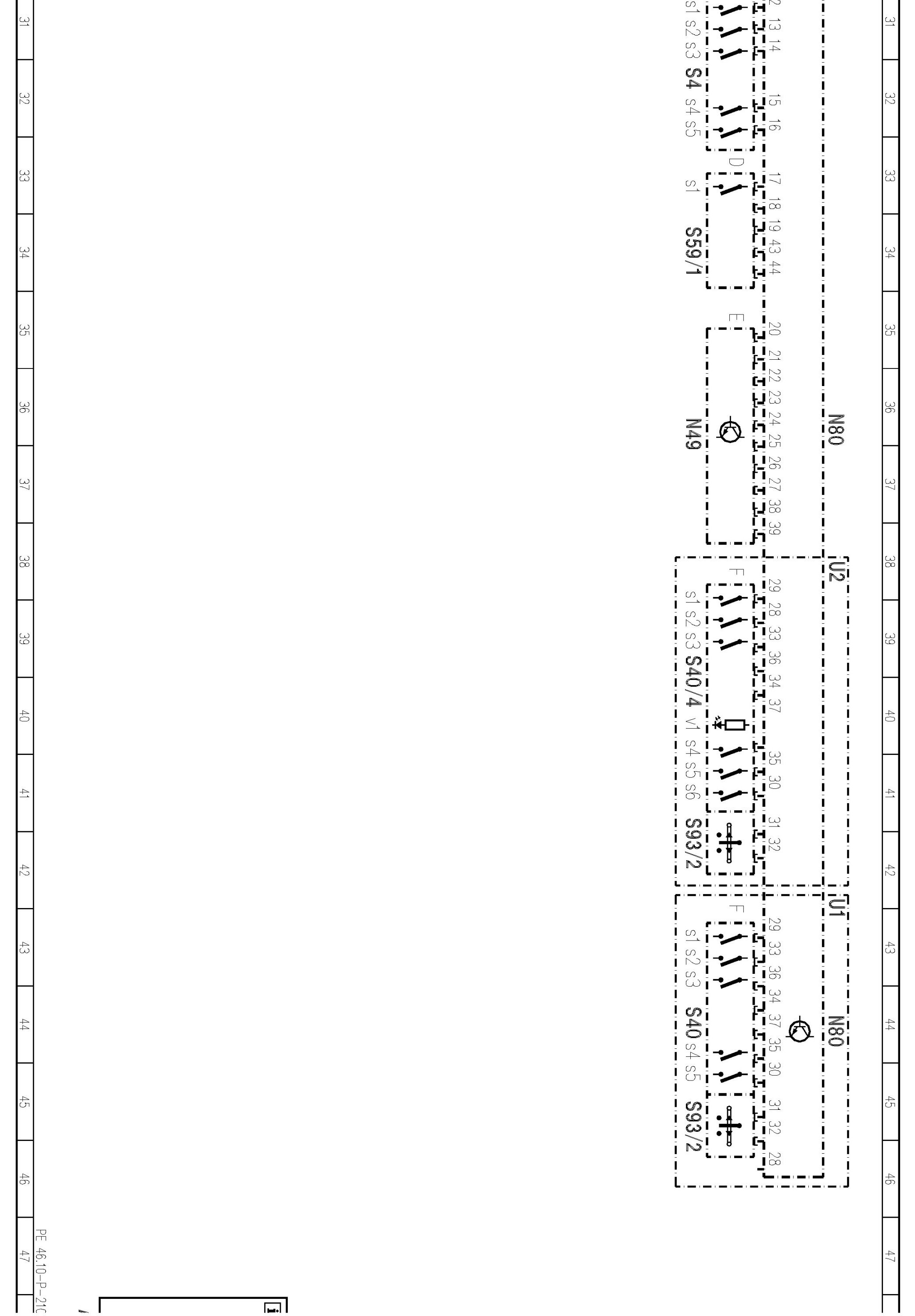

PE46.10-P-2101KC Steering Column Module Control Module, Wiring Diagram

PE46.10-P-2101KC Steering Column Module Control Module, Wiring Diagram

Model 230
- as of model year 2009 /YoM 08 model refinement package

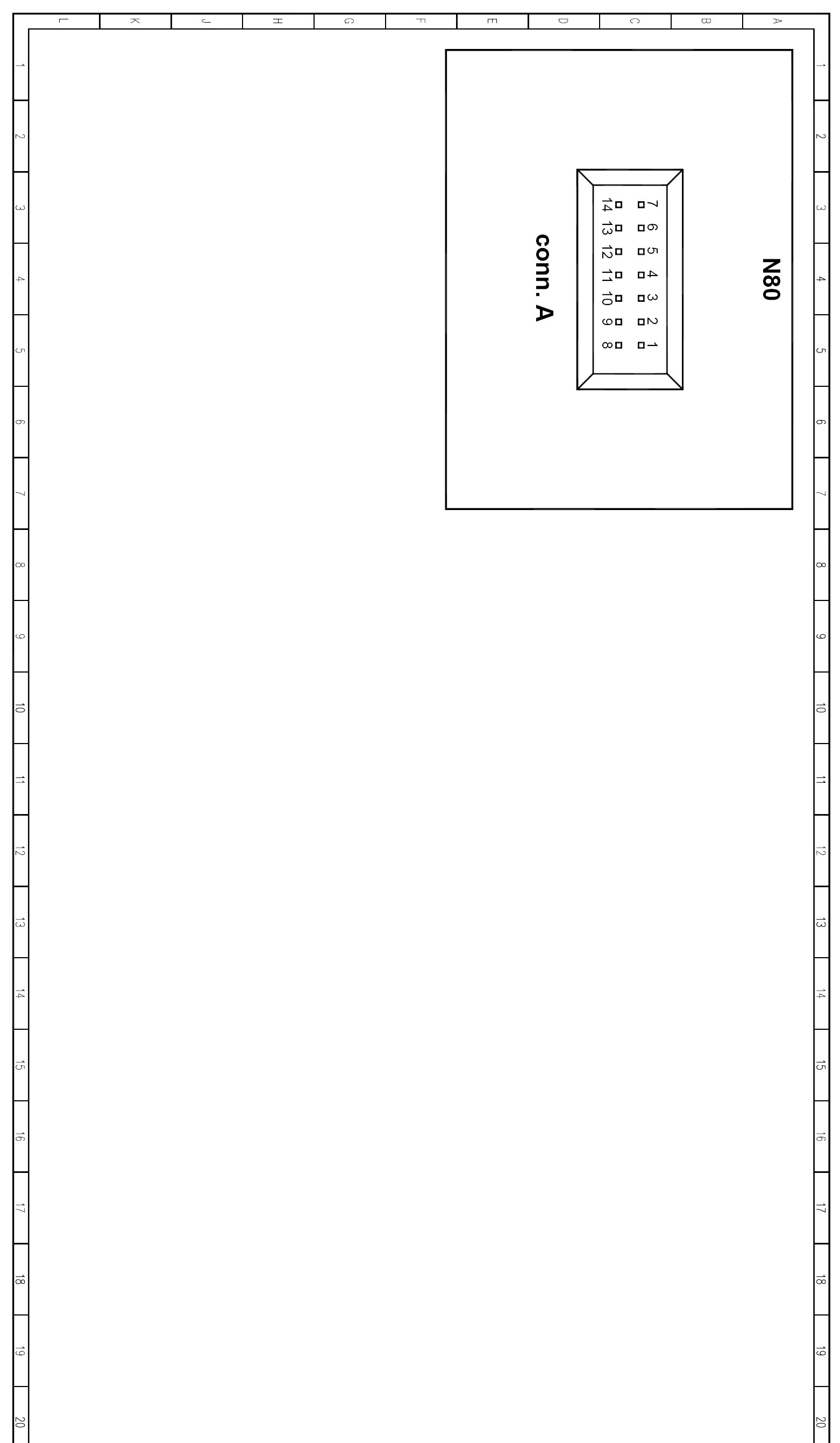

- Control unit N80


































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
