System Diagram

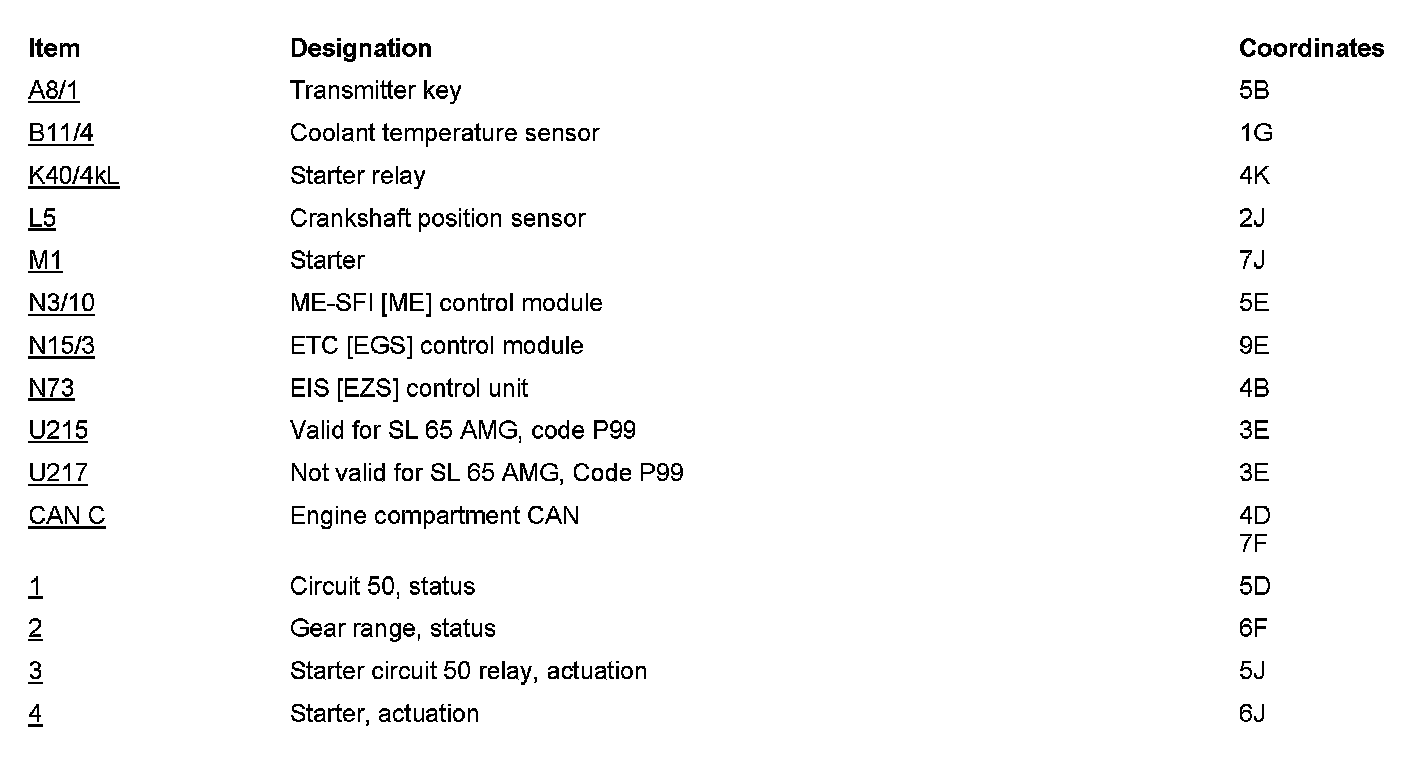

PE15.30-P-2051KC Starter Control, Function Diagram

Model 230.4
- with Engine 275
- as of model year 2009 /YoM 08 model refinement package










Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
