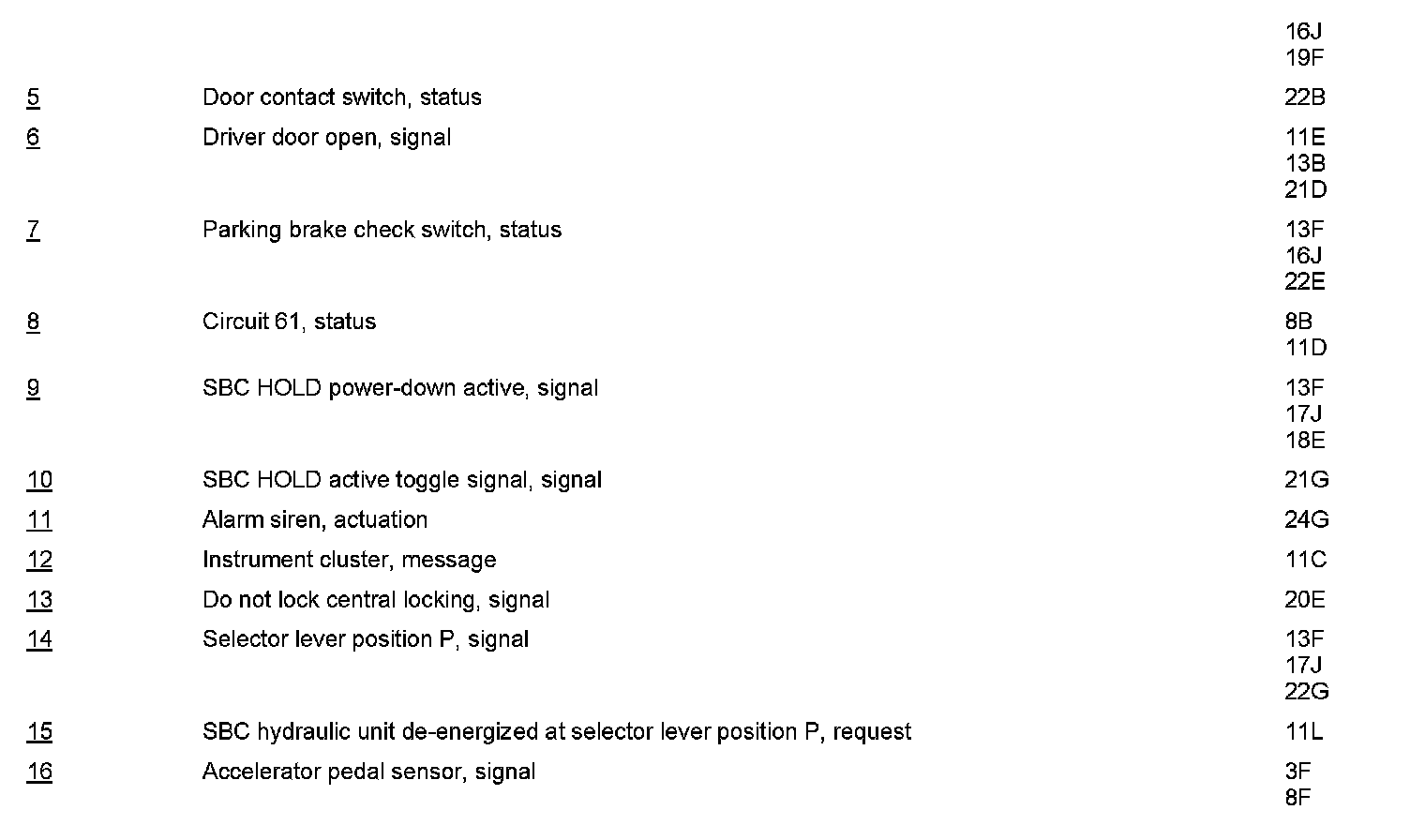

PE42.46-P-2052KA Sensotronic Brake Control Hold (SBC H), Function Diagram

PE42.46-P-2052KA Sensotronic Brake Control Hold (SBC H), Function Diagram

TYP 230.4
- except CODE (P99) Special model "AMG Black Series"
- as of model year 2009 /YoM 08 model refinement package
