AR63.20-P-1390R Check Installation Position of Vario Roof Main Bearing At B-Pillar

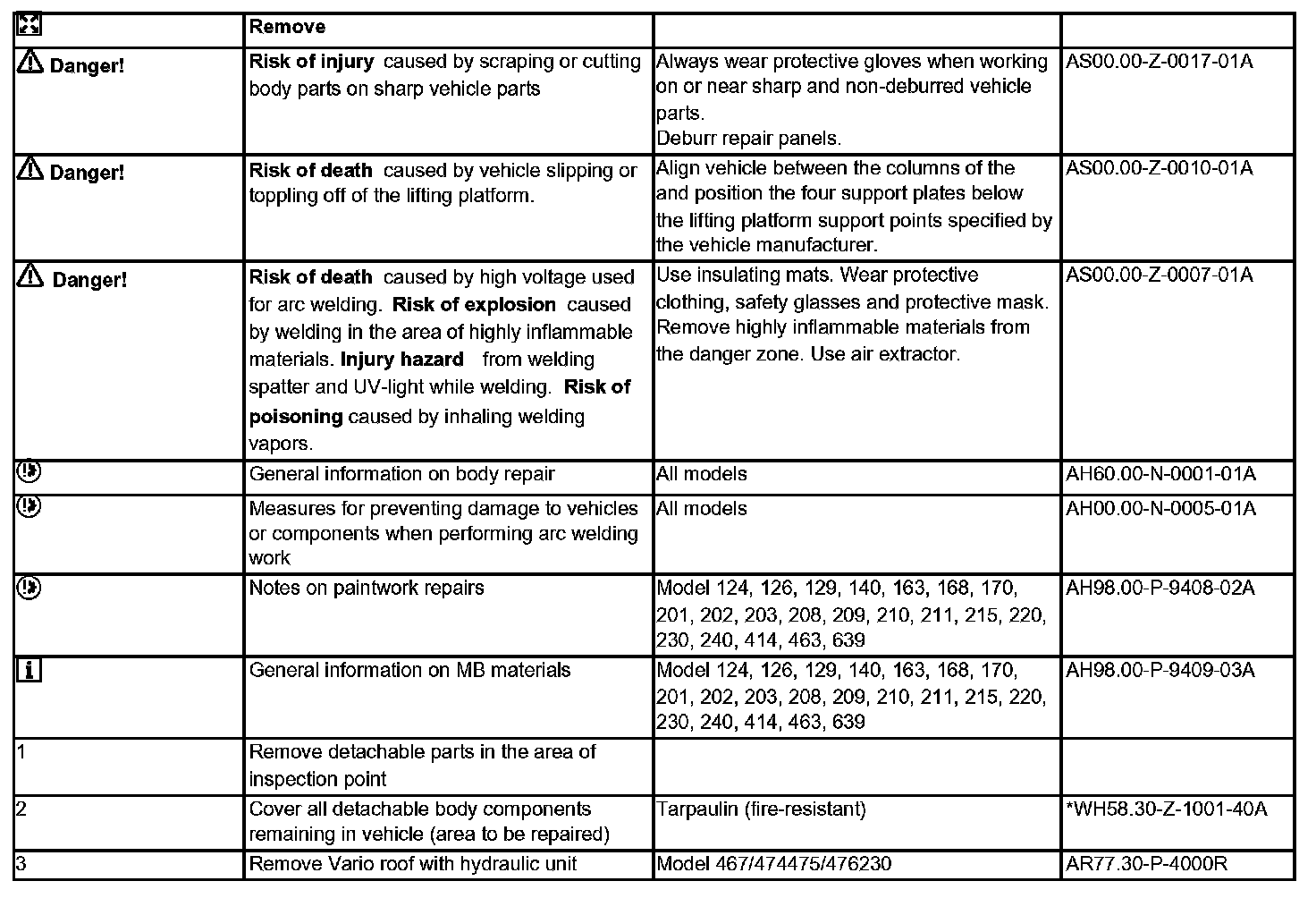

Steps 1 - 3:

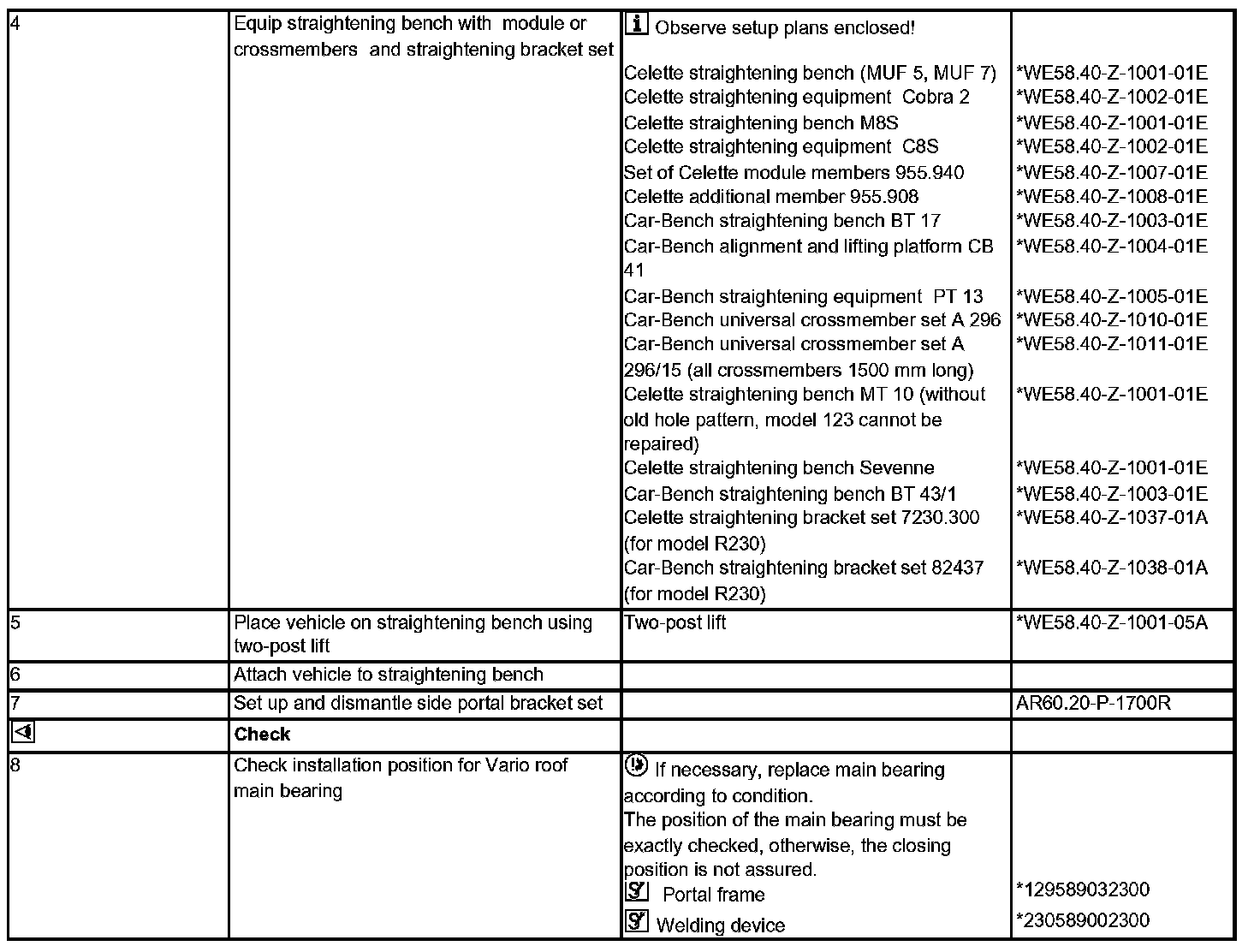

Steps 4 - 8:

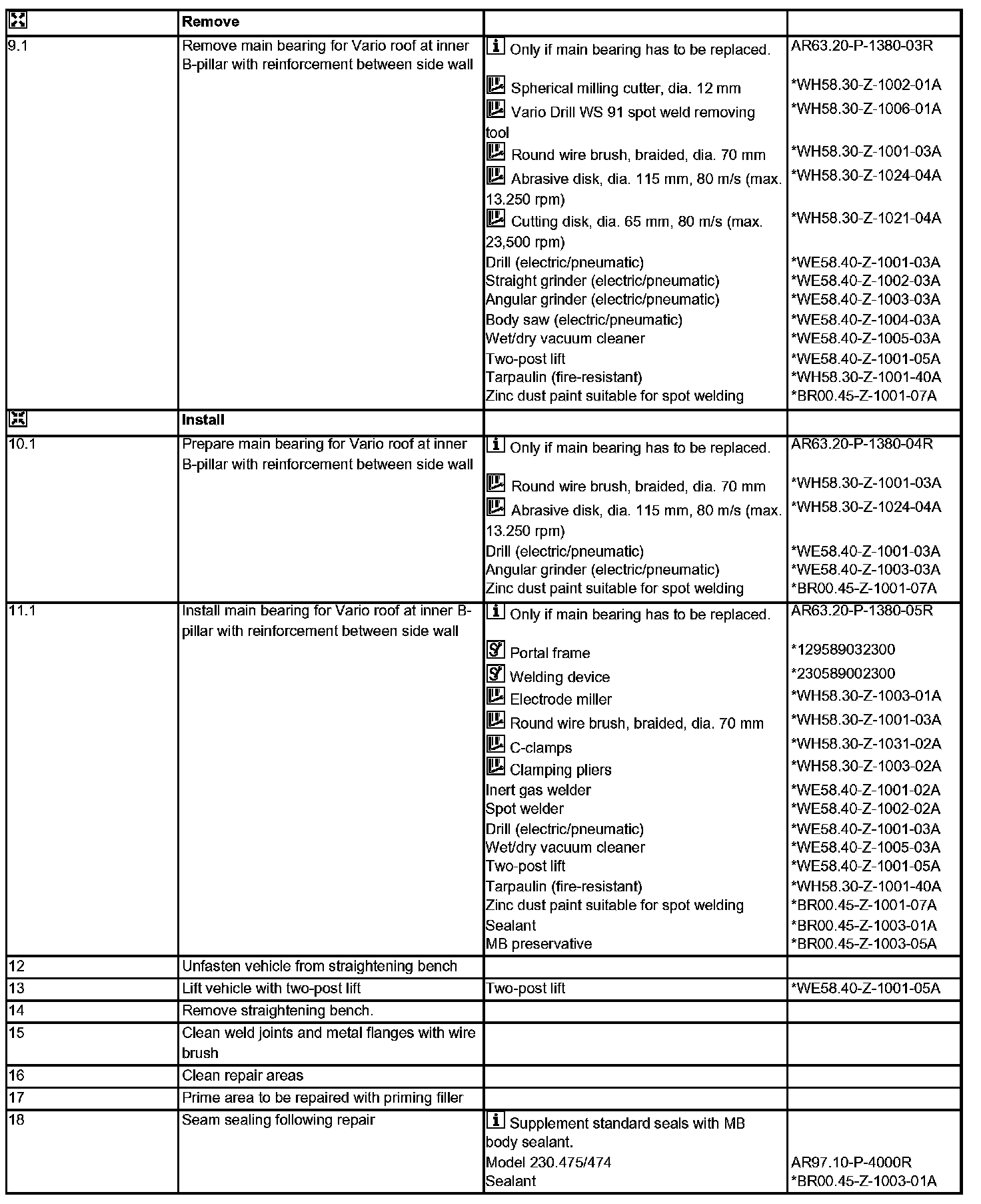

Steps 9.1 - 18:

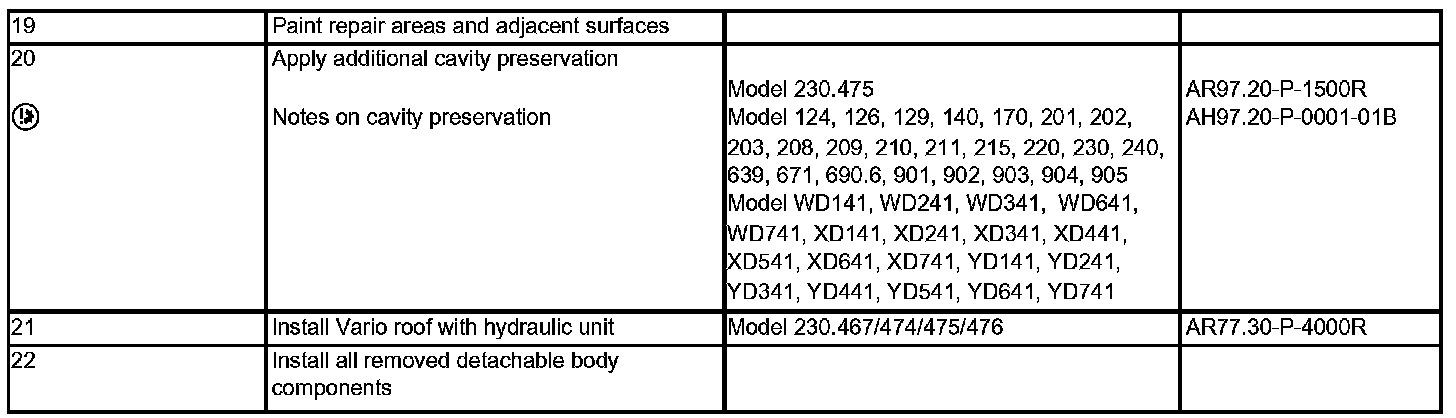

Steps 19 - 22:

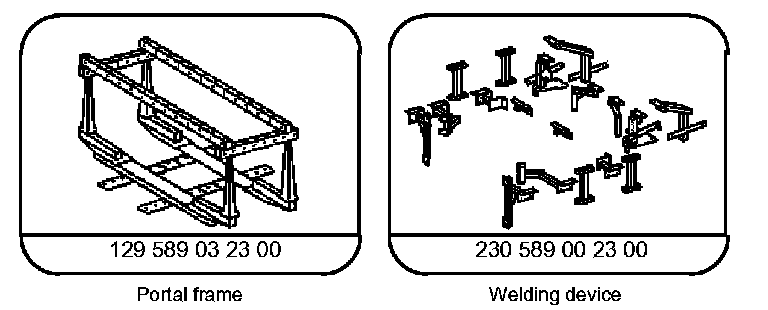

Special Tools:

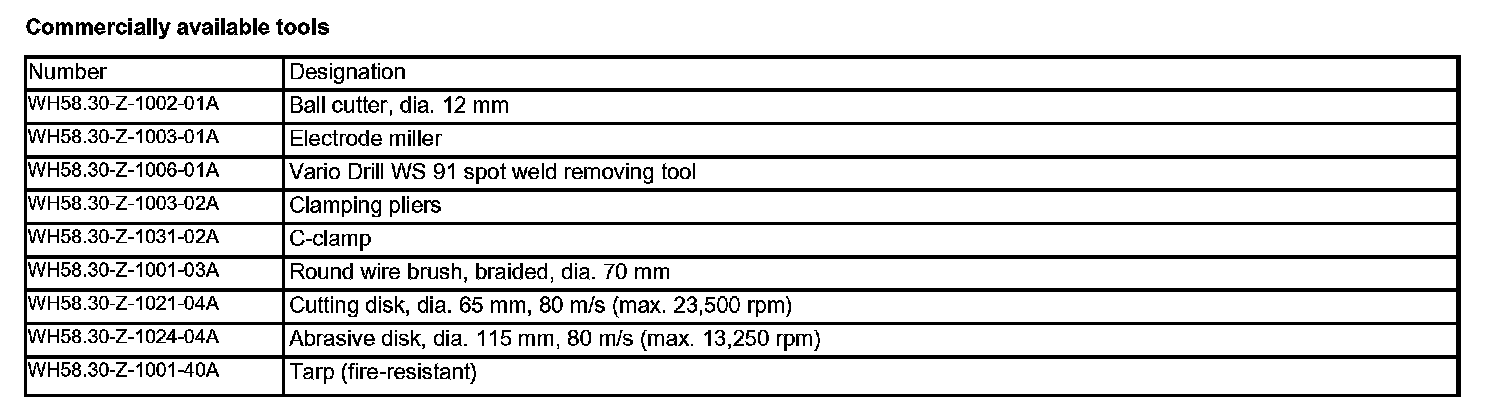

Commercially Available Tools:

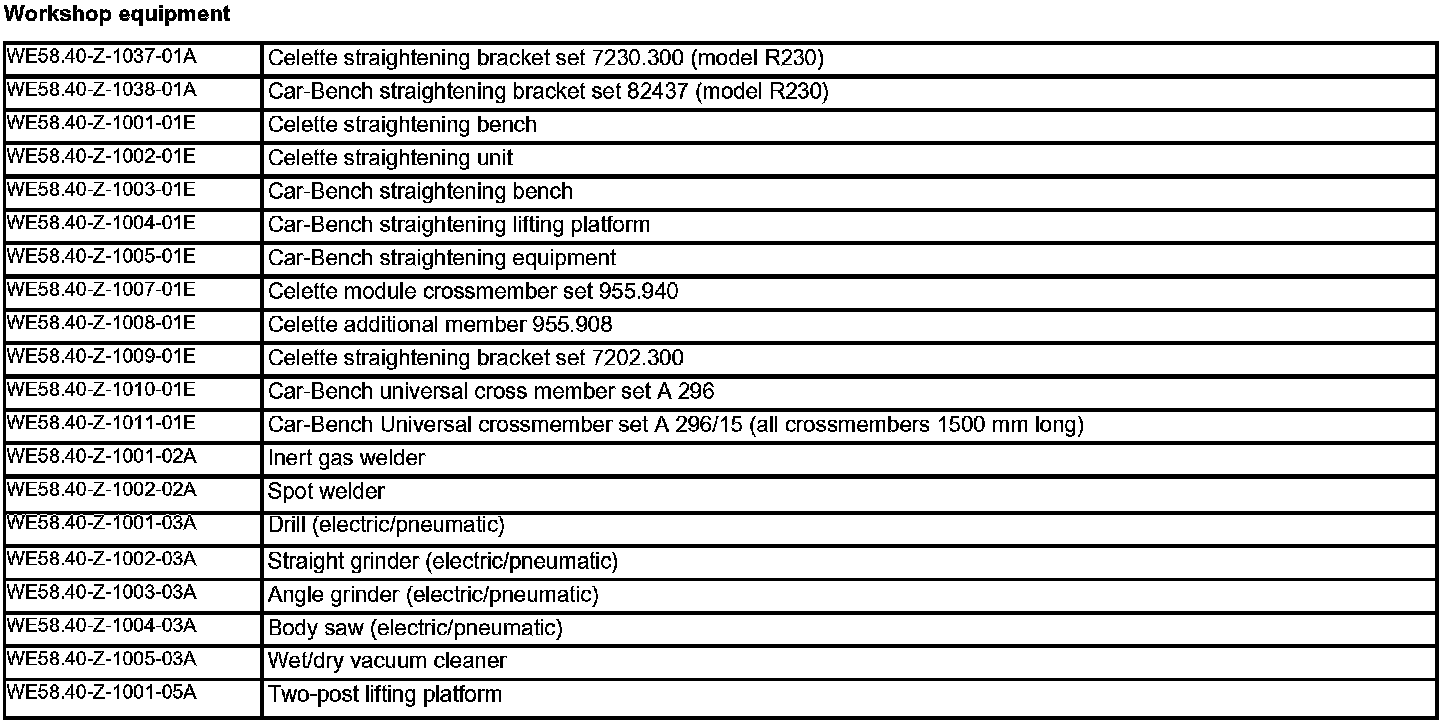

Workshop Equipment:

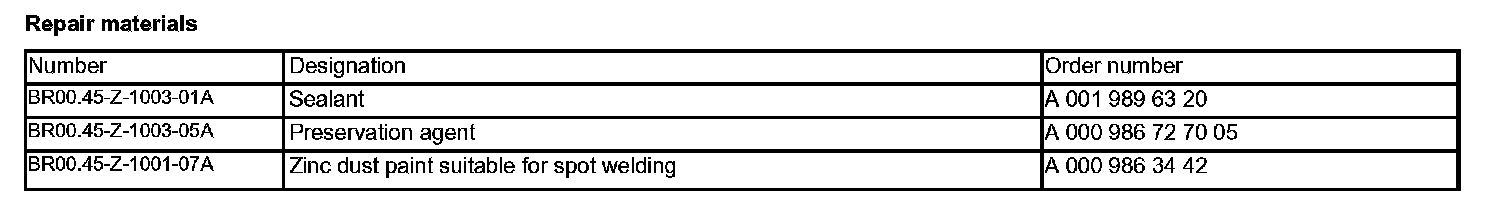

Repair Materials:
