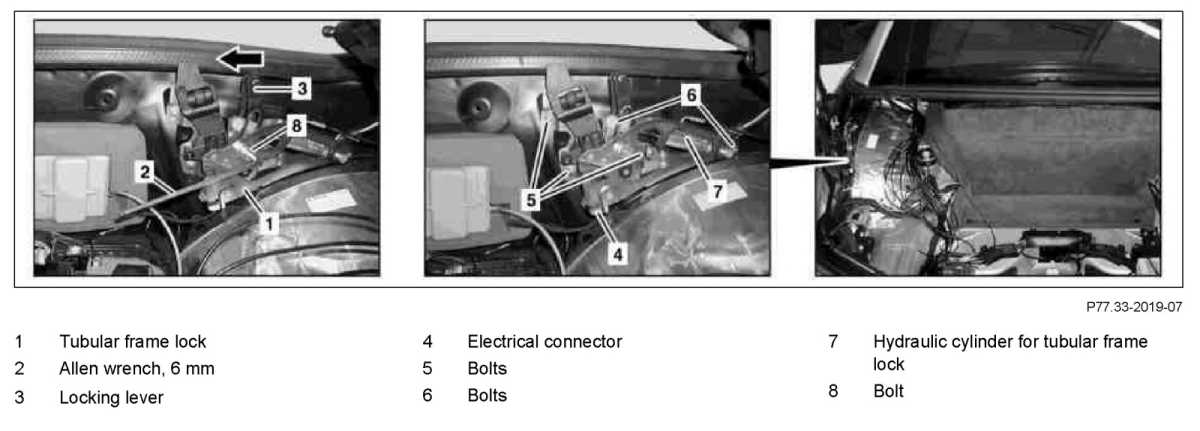

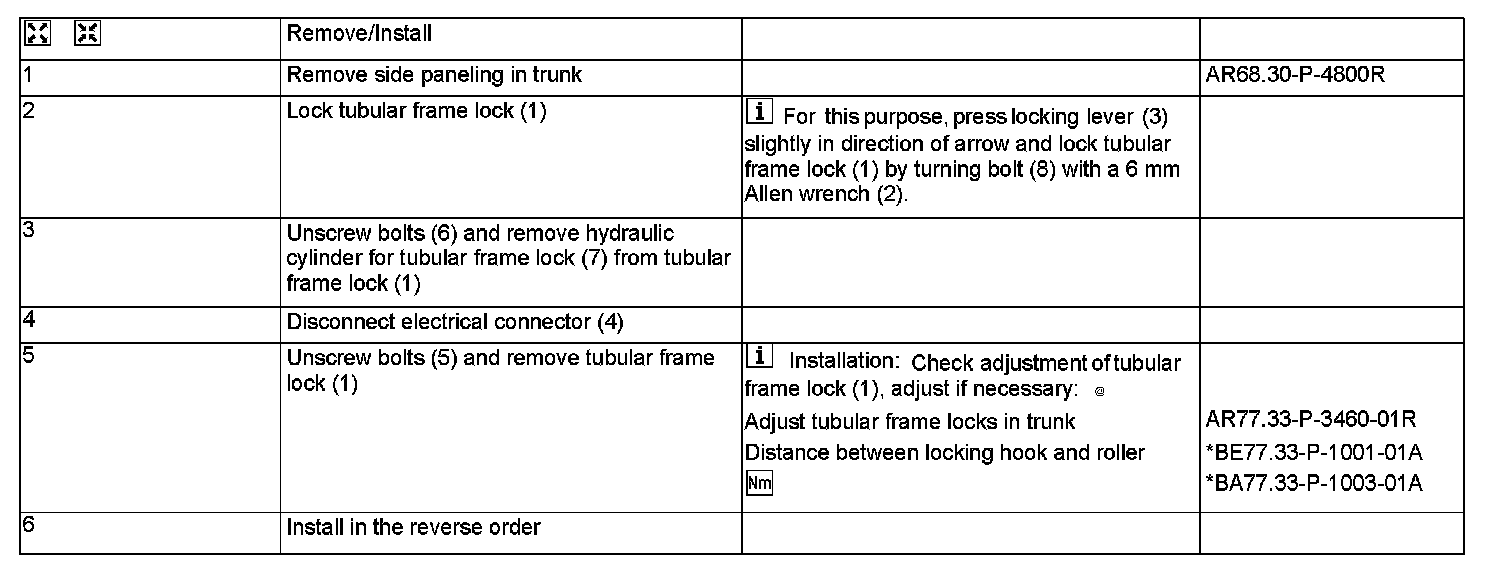

AR77.33-P-3460R Remove/Install Locks For Tubular Frame In Trunk



AR77.33-P-3460R Remove/Install Locks For Tubular Frame In Trunk

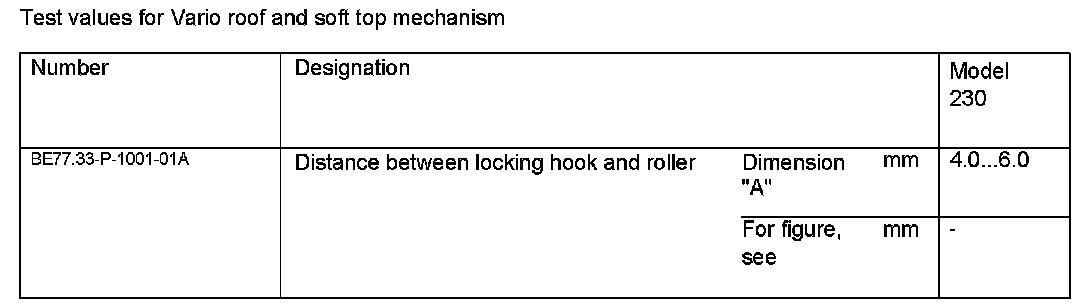

Test Values For Vario Roof And Soft Top Mechanism:

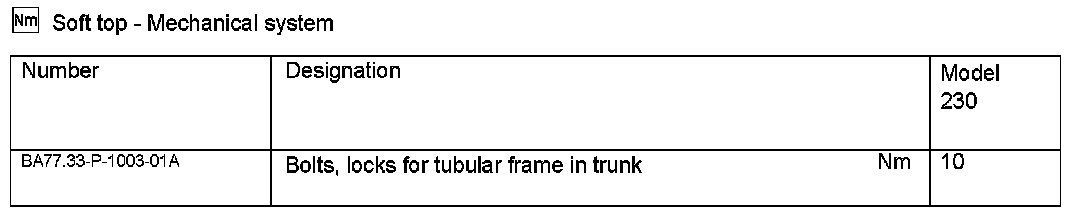

Soft Top - Mechanical System:
