Home >> Mercedes Benz >> 2011 >> SL 65 AMG (230.479) V12-6.0L Turbo (275.981) >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Trunk / Liftgate >> Trunk / Liftgate Shock / Support >> Service and Repair

Trunk / Liftgate Shock / Support: Service and Repair



AR88.50-P-5110R Remove/Install Trunk Lid Gas-Operated Strut

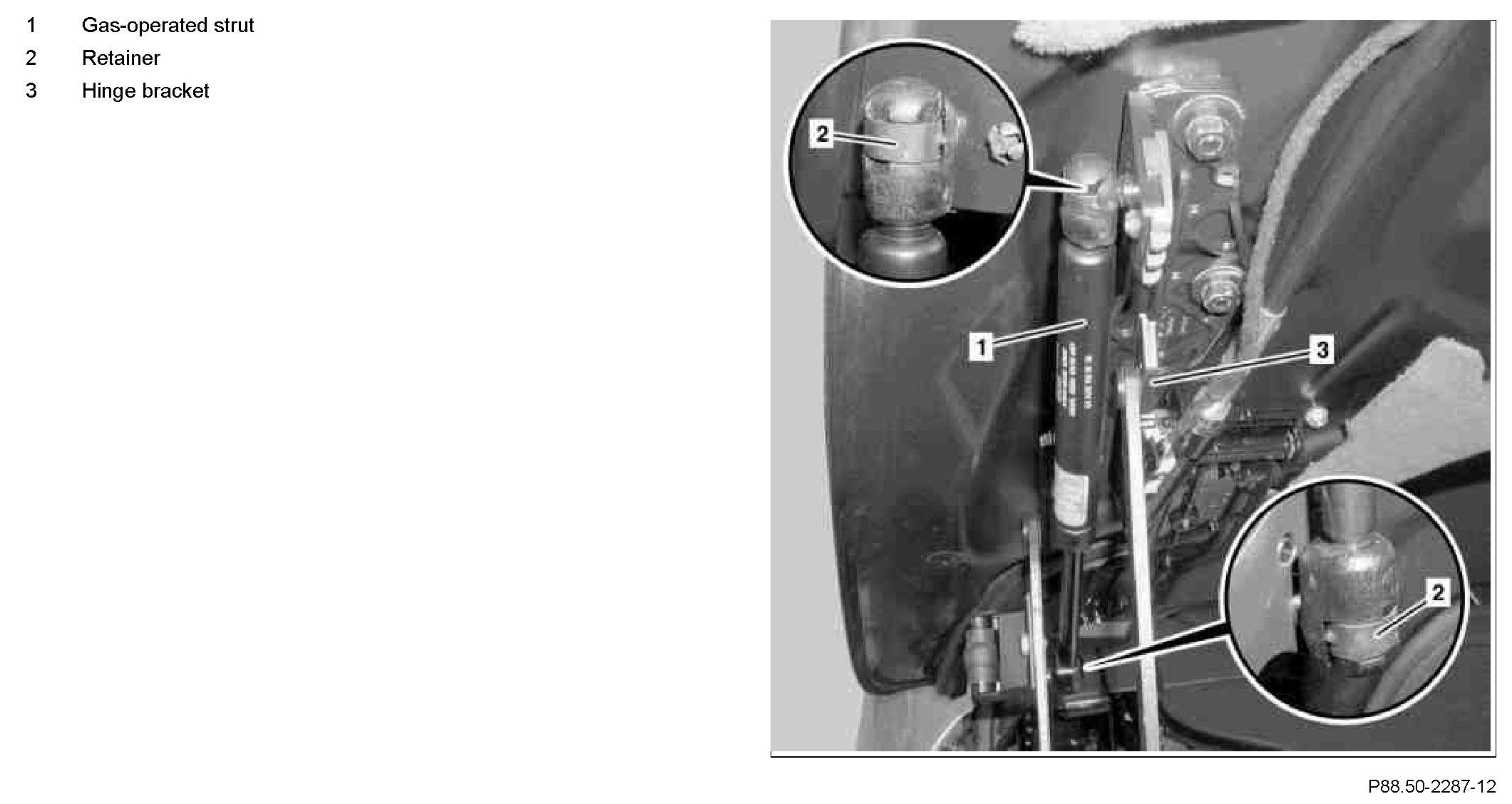

Component Identification:

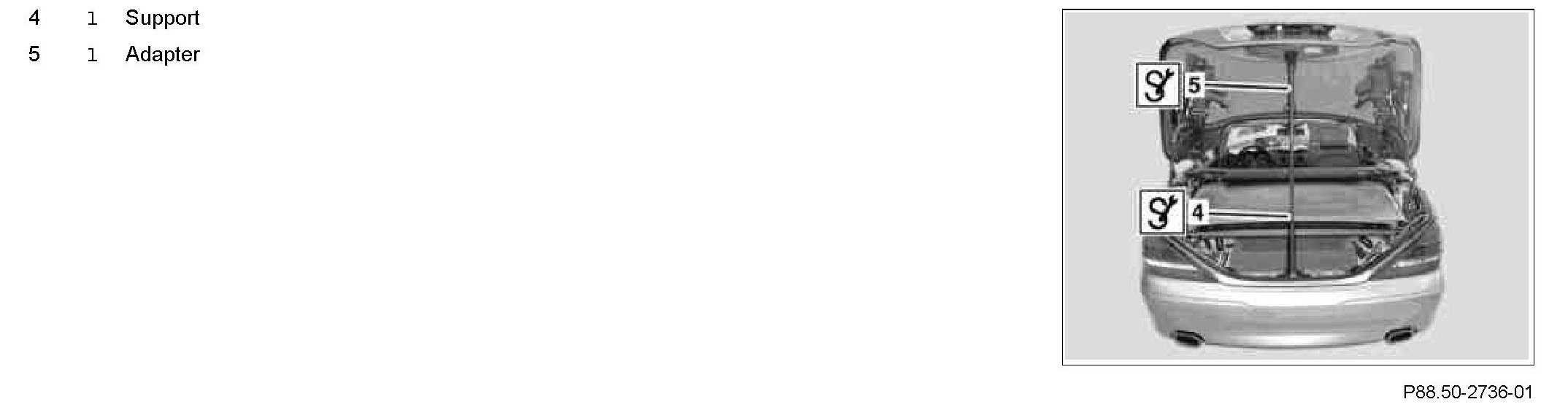

Component Identification:

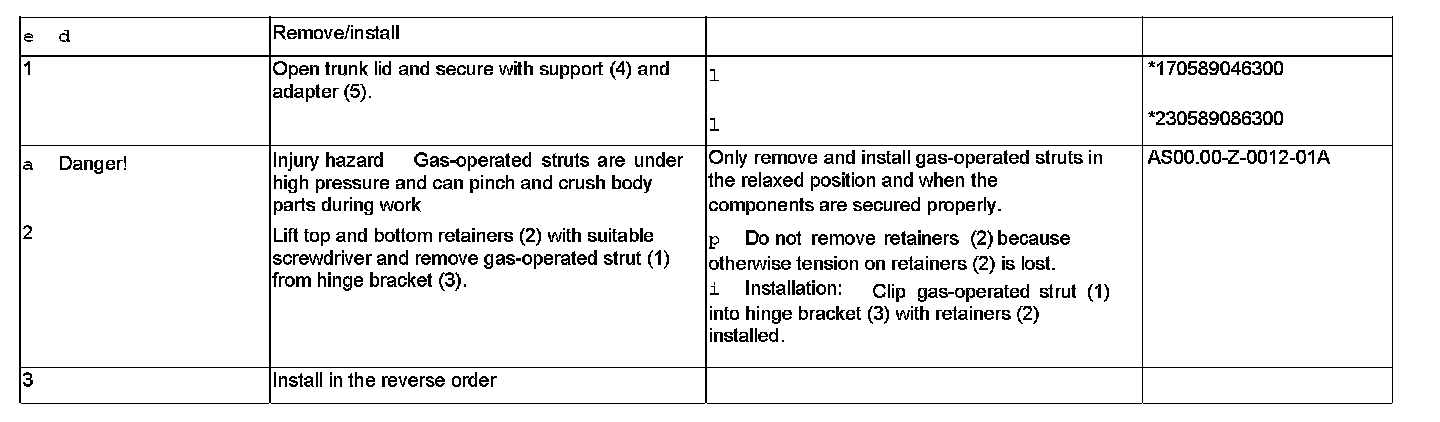

Steps 1 - 3:

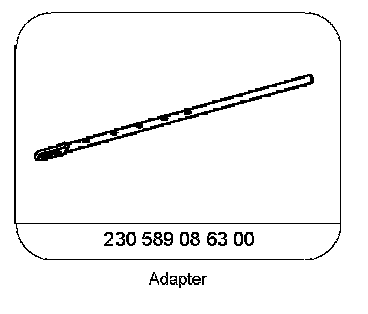

Special Tools:

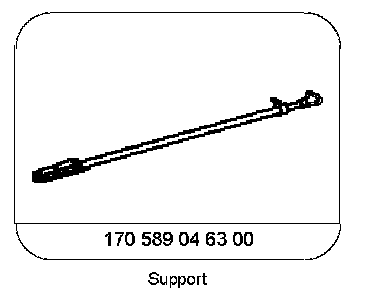

Special Tool:
