Home >> Mercedes Benz >> 2011 >> SL 65 AMG (230.479) V12-6.0L Turbo (275.981) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Keyless Entry >> Keyless Entry Module >> Service and Repair >> AR80.20-P-2700RBS Remove/Install Pneumatic Controller Unit

AR80.20-P-2700RBS Remove/Install Pneumatic Controller Unit



AR80.20-P-2700RBS Remove/install Pneumatic Controller Unit
- with CODE (P99) Special model "AMG Black Series"

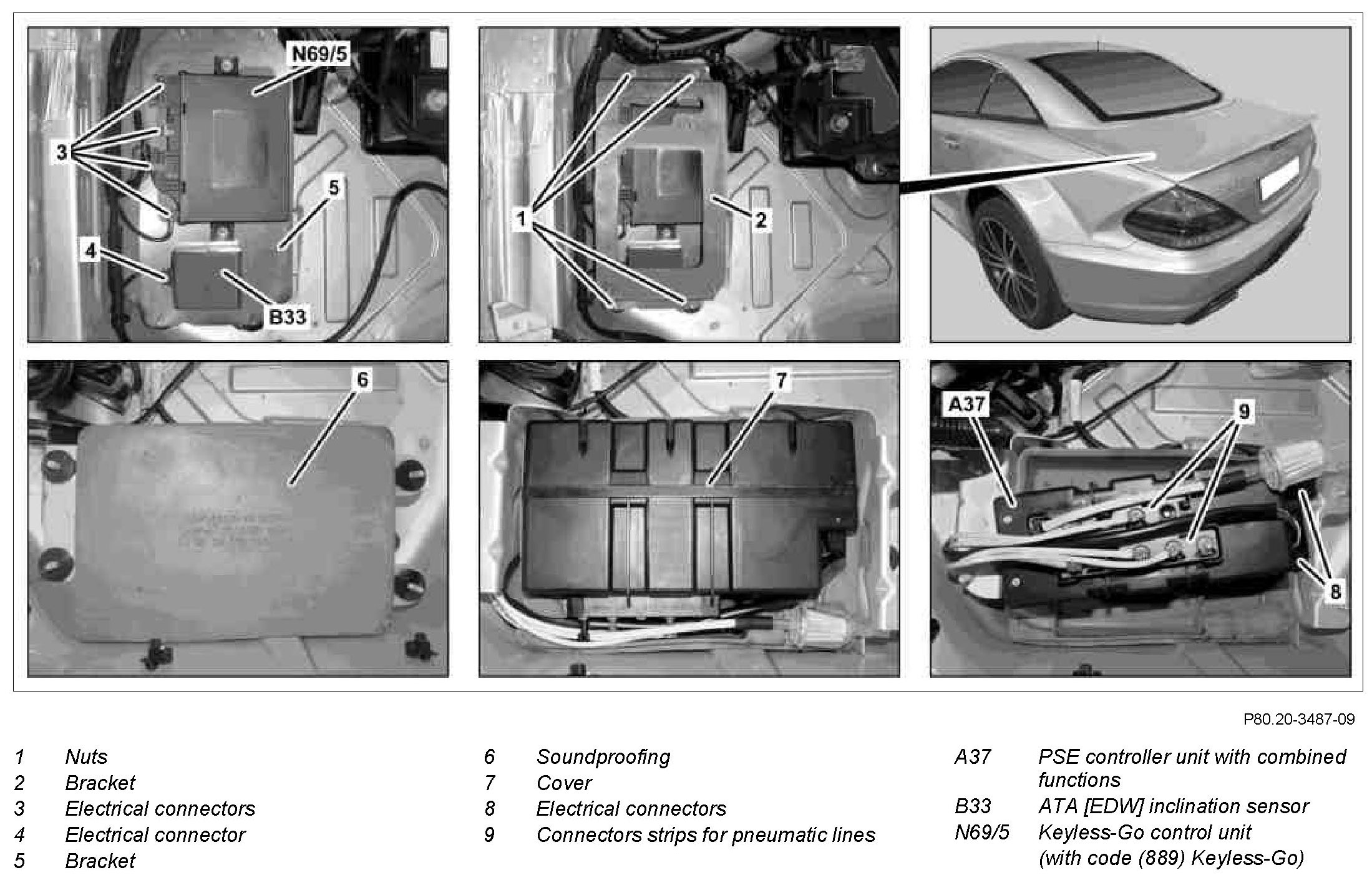

Component Identification:

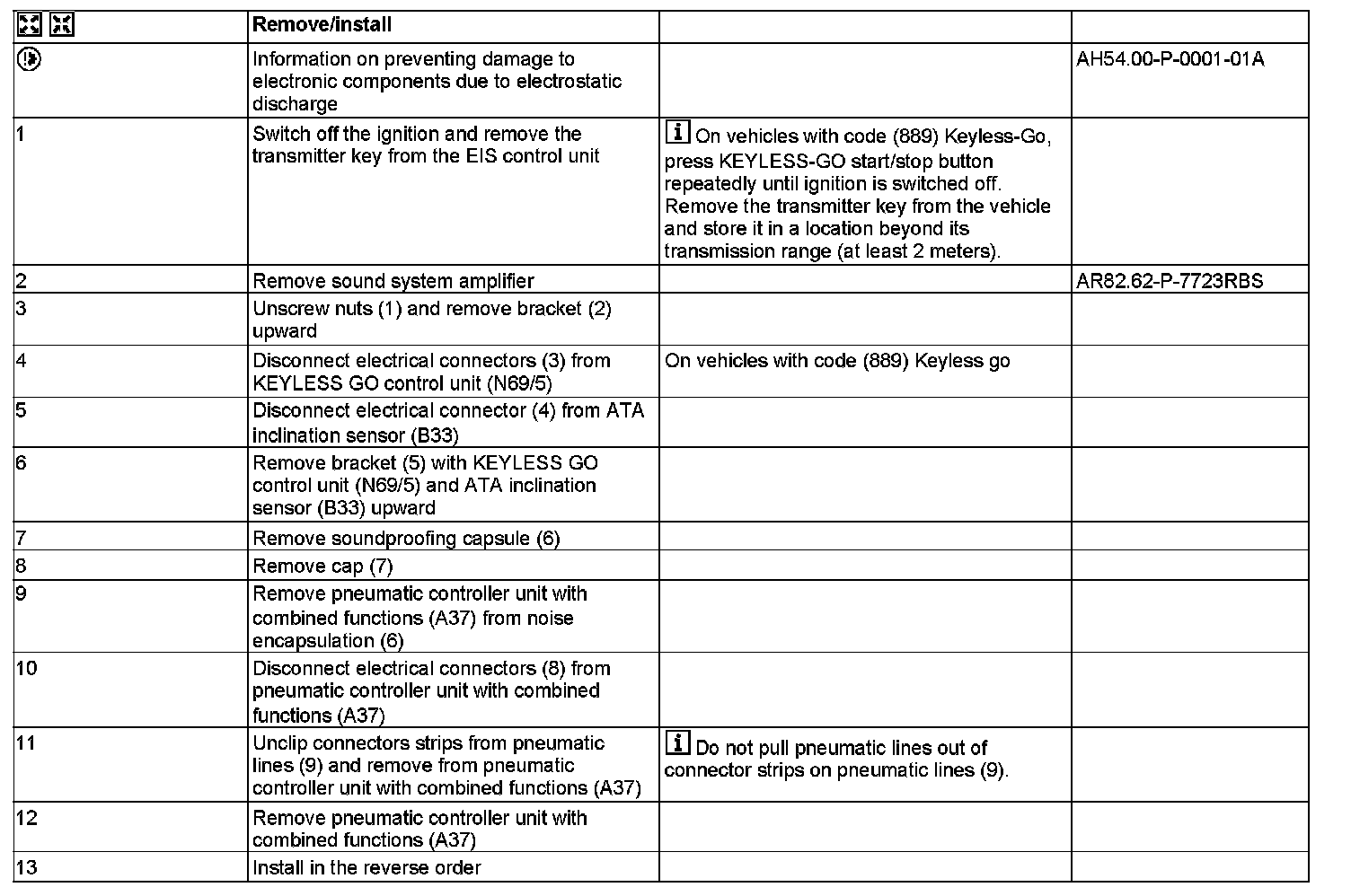

Steps 1 - 13:
