Fuel Pump: Diagrams

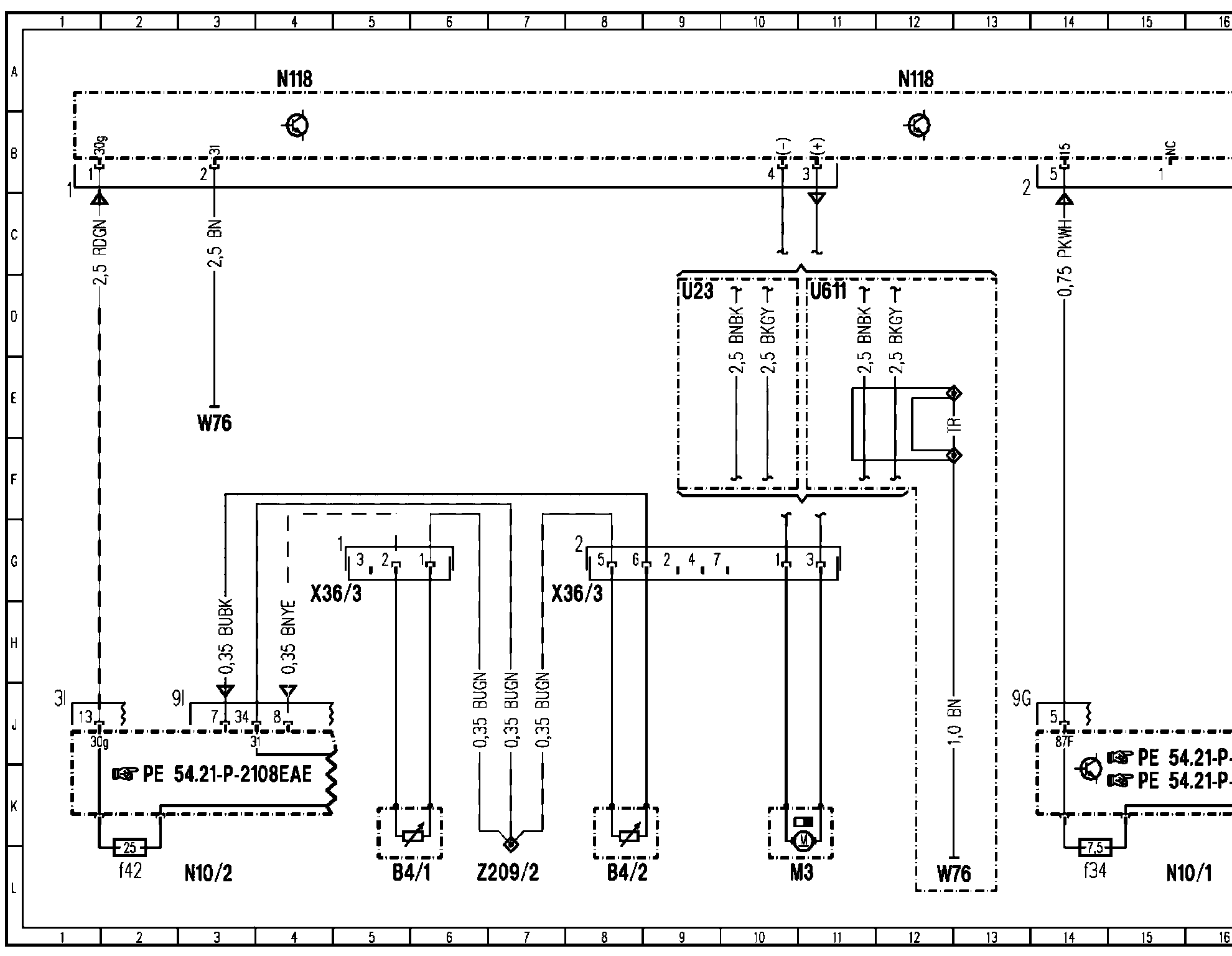

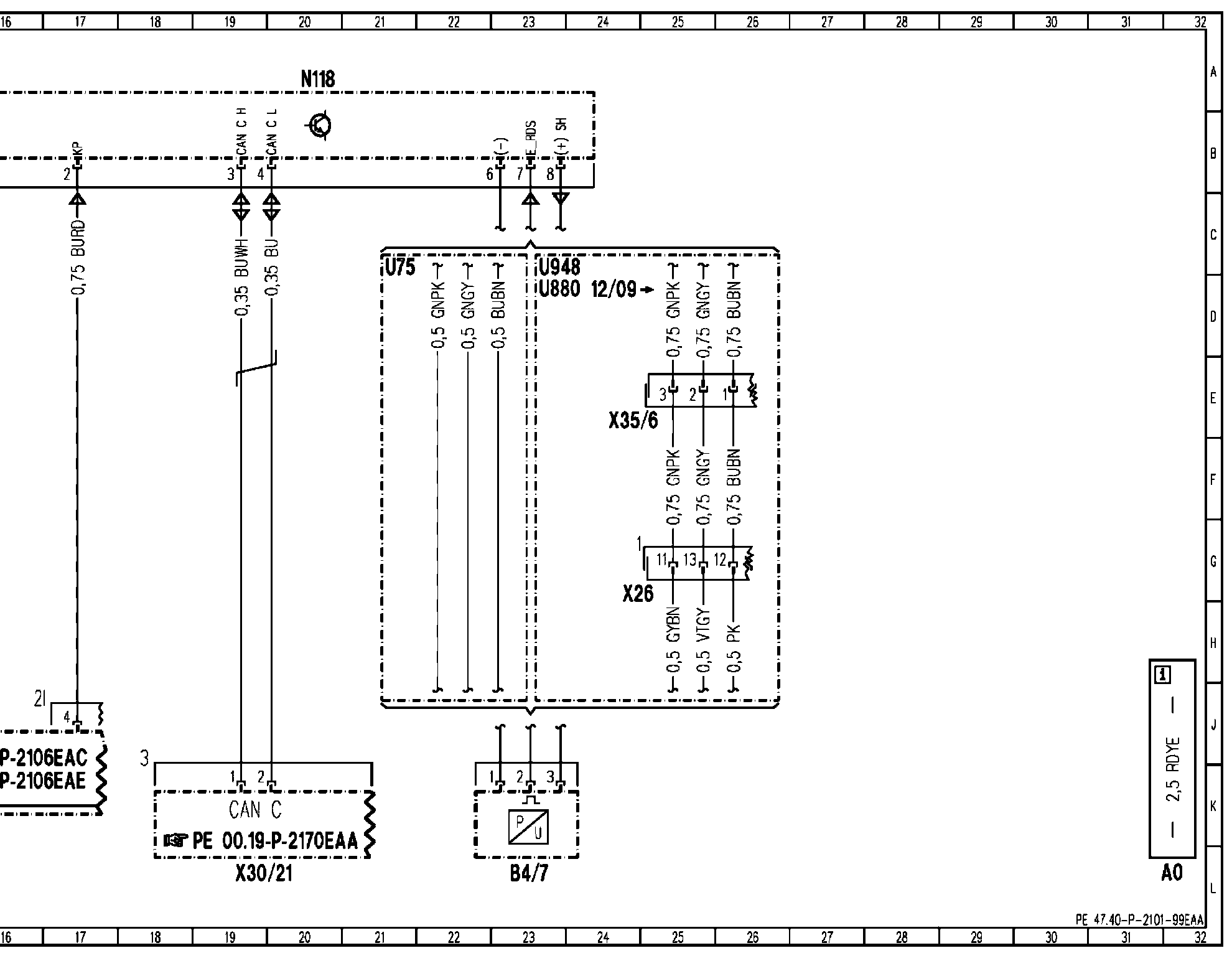

PE47.40-P-2101EAA
Fuel Pump Control Unit
- Control unit N118
Component Locations:
Component Location photographs can be found via their component names at the vehicle level.
Component Locations
