Positive Crankcase Ventilation Valve: Service and Repair
AR01.20-P-2100CV Remove/install centrifuge
Component Identification:

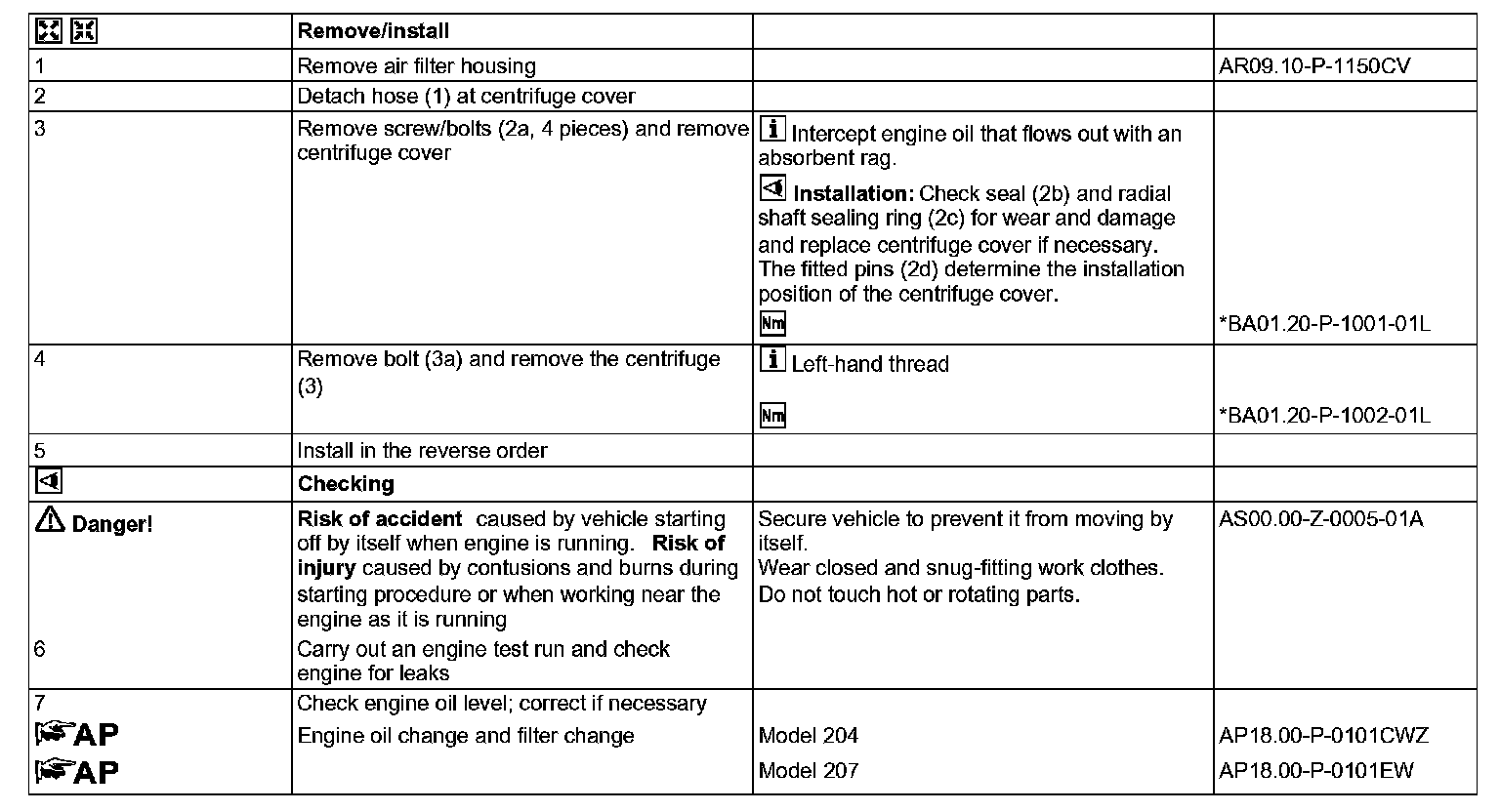

Steps 1-7:

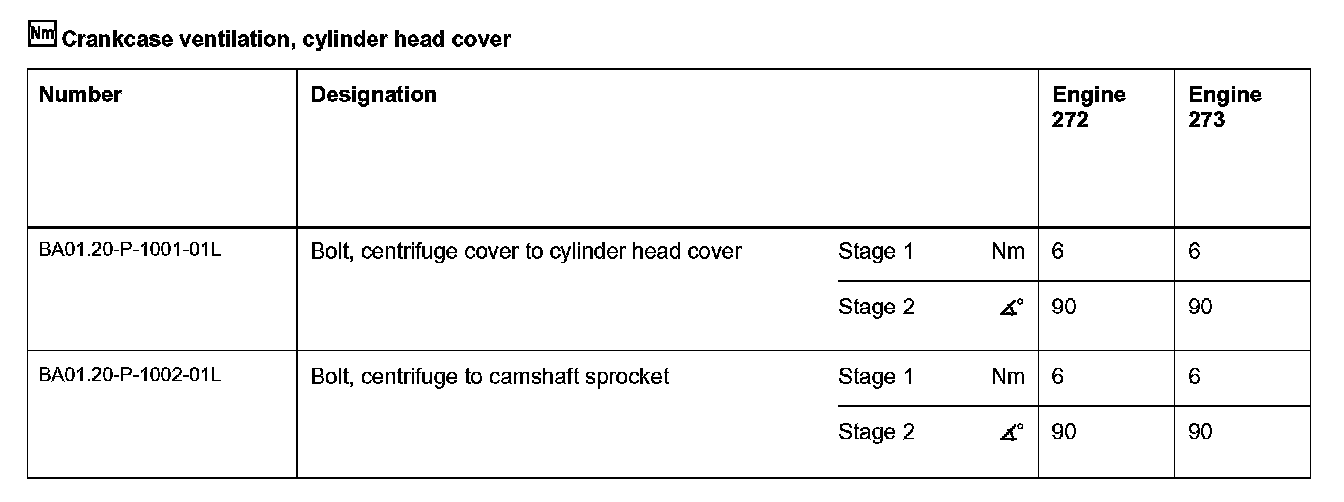

Crankcase ventilation, cylinder head cover:
