Oil Separator: Service and Repair
AR01.20-P-9750CV Remove/install
oil separator

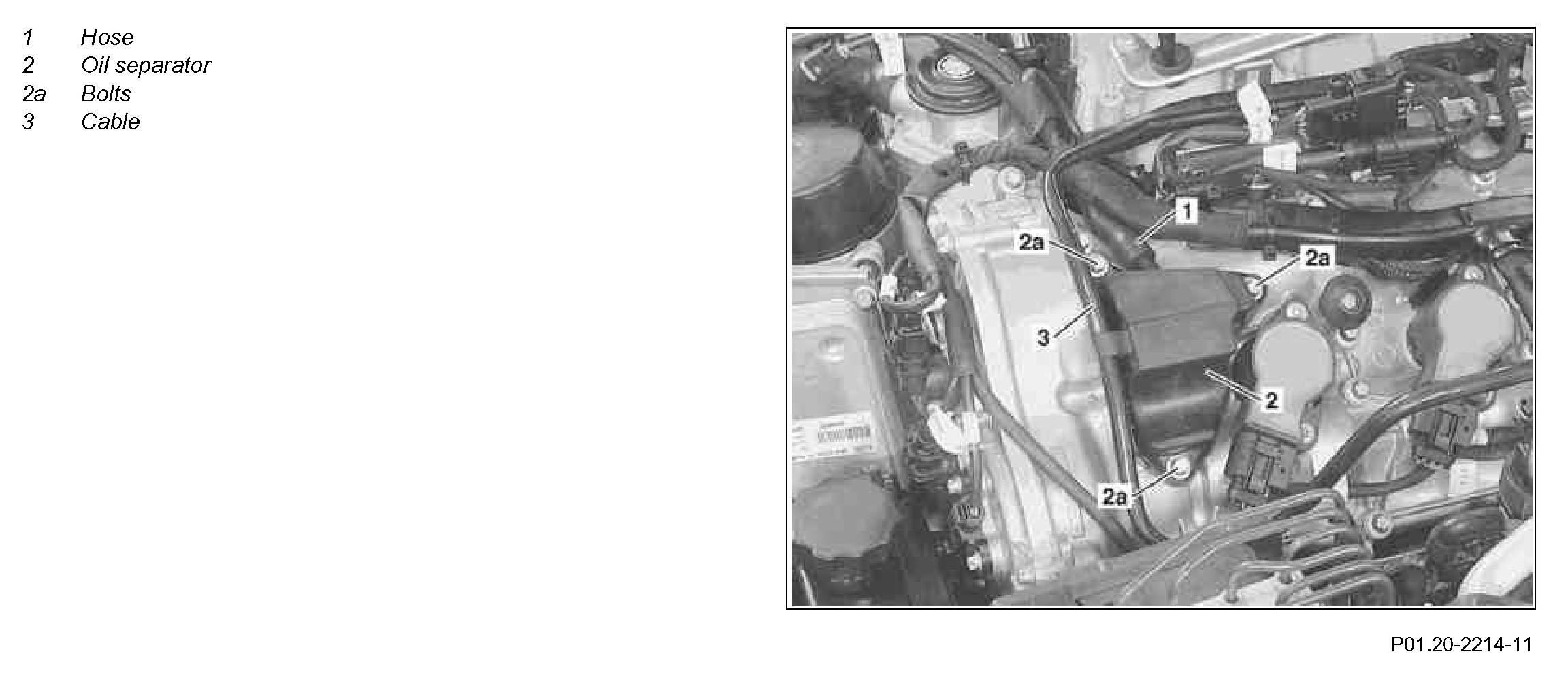

Component Identification:

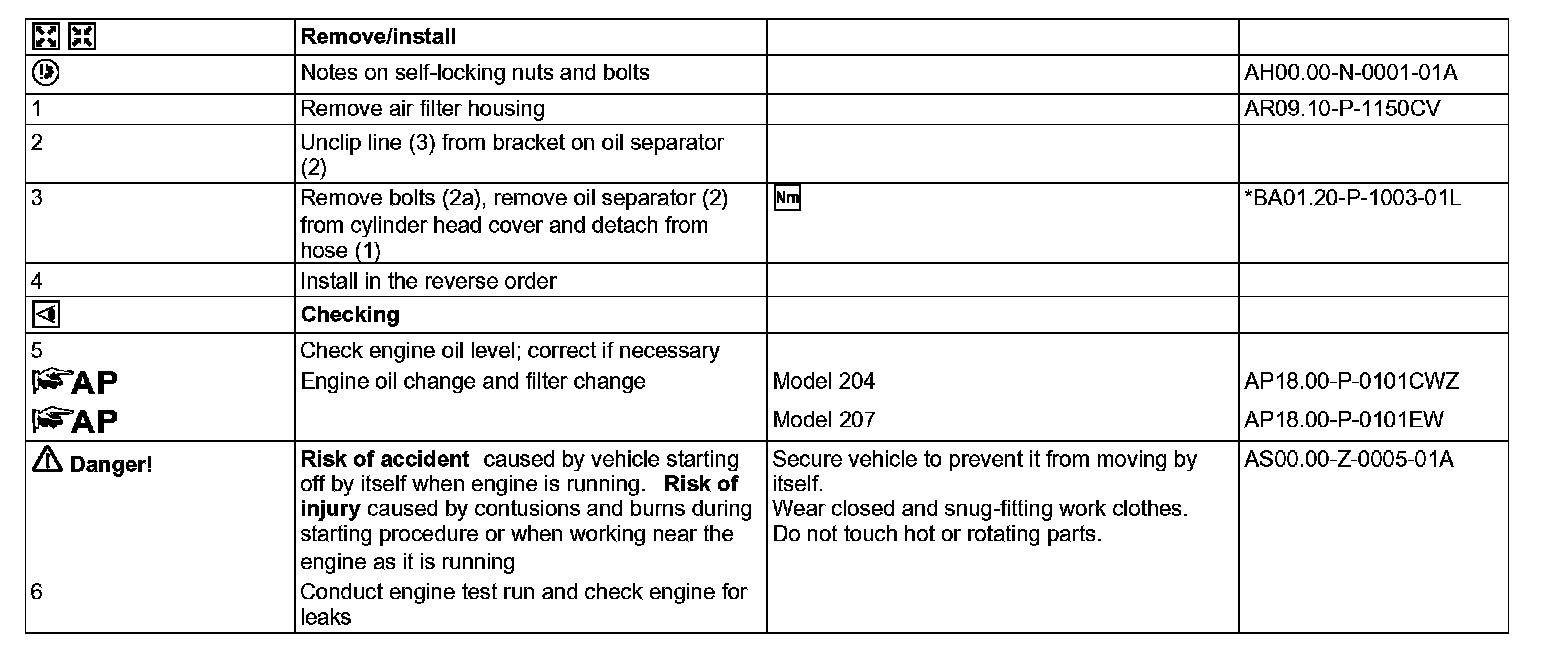

Steps 1-6:

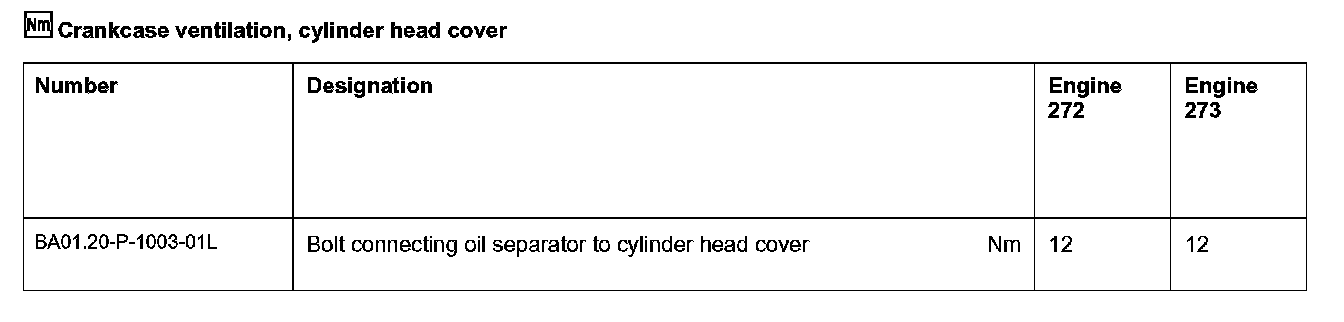

Crankcase ventilation, cylinder head cover:
