Home >> Mercedes Benz >> 2011 >> E 550 Coupe (207.372) V8-5.5L (273.966) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Timing Components >> Timing Chain Guide >> Service and Repair >> AR05.10-P-7760A Remove/Install Guide Wheel For Timing Chain

AR05.10-P-7760A Remove/Install Guide Wheel For Timing Chain



AR05.10-P-7760A Remove/install guide wheel for timing chain

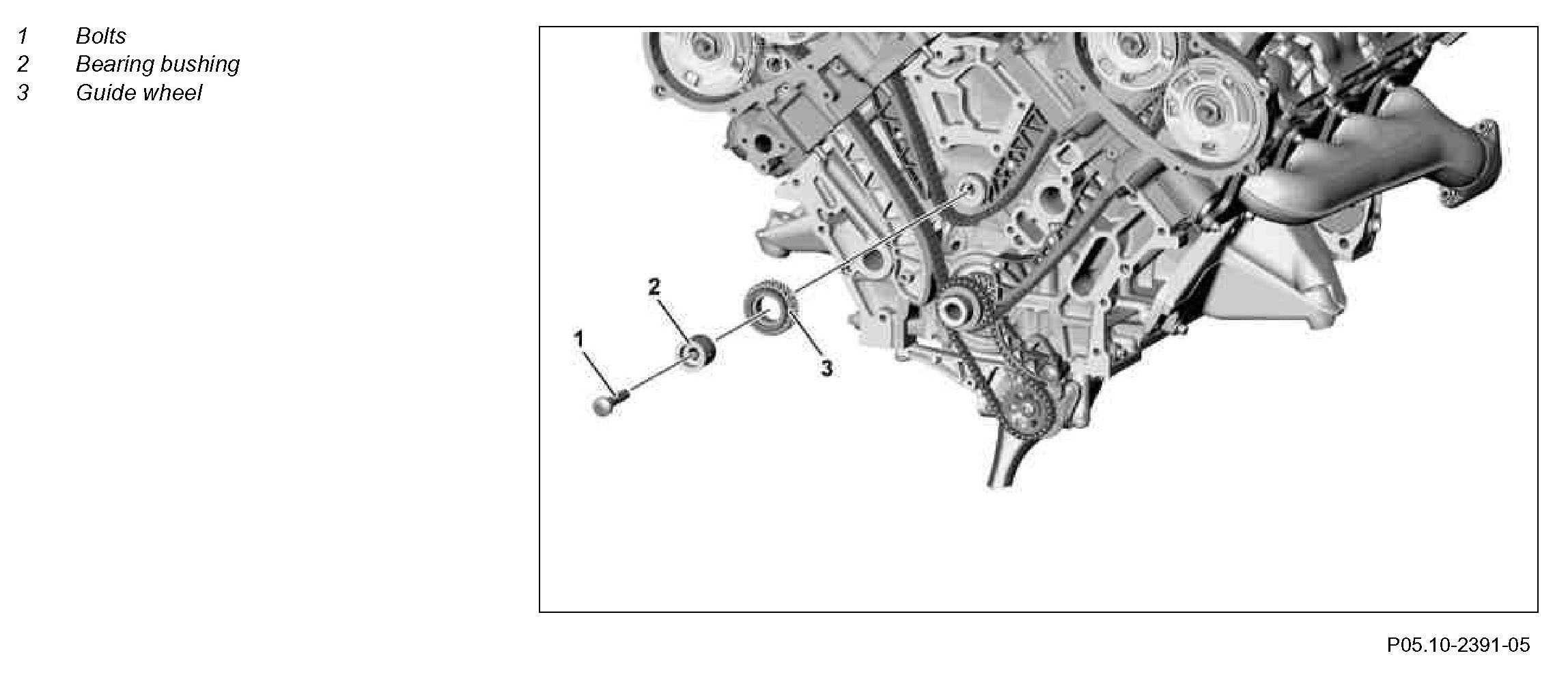

Component Identification:

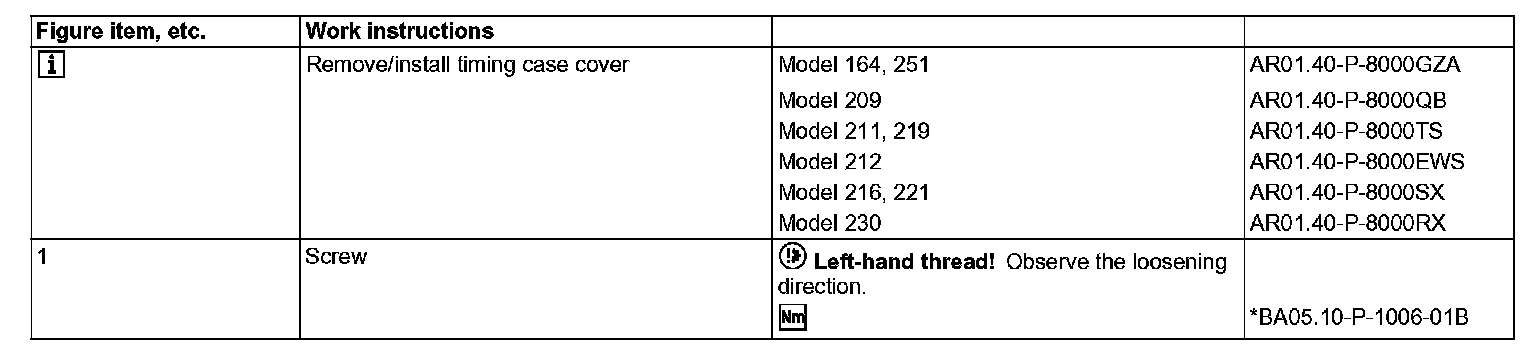

Work instructions:

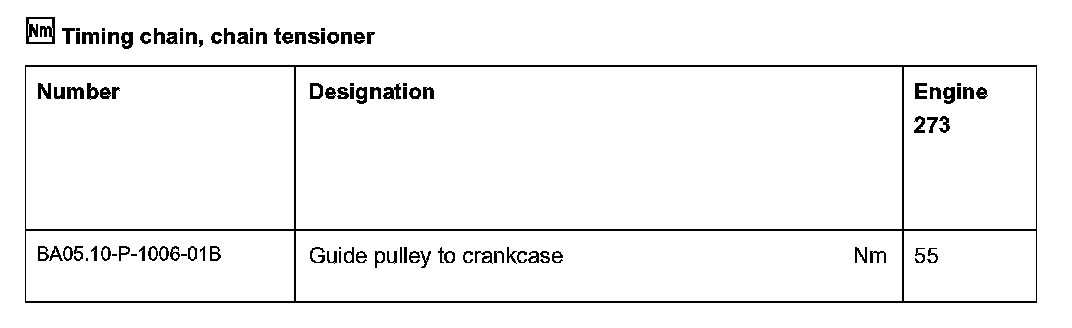

Timing chain, chain tensioner:
